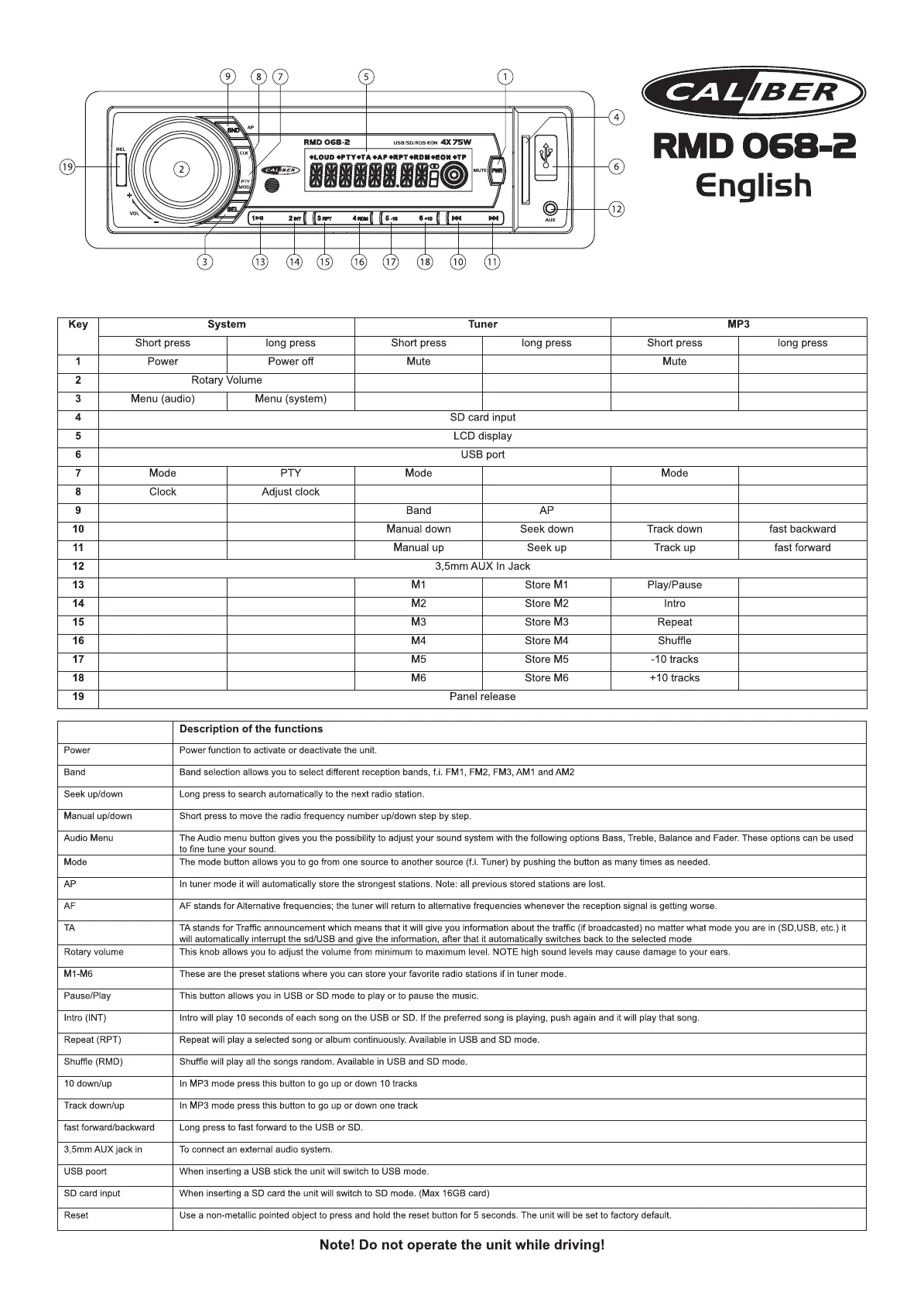

Side 1/12

Key System Tuner MP3

Short press long press Short press long press Short press long press

1 Power Power off Mute Mute

2 Rotary Volume

3 Menu (audio) Menu (system)

4 SD card input

5 LCD display

6 USB port

7 Mode PTY Mode Mode

8 Clock Adjust clock

9 Band AP

10 Manual down Seek down Track down fast backward

11 Manual up Seek up Track up fast forward

12 3,5mm AUX In Jack

13 M1 Store M1 Play/Pause

14 M2 Store M2 Intro

15 M3 Store M3 Repeat

16 M4 Store M4 Shufe

17 M5 Store M5 -10 tracks

18 M6 Store M6 +10 tracks

19 Panel release

Description of the functions

Power Power function to activate or deactivate the unit.

Band Band selection allows you to select different reception bands, f.i. FM1, FM2, FM3, AM1 and AM2

Seek up/down Long press to search automatically to the next radio station.

Manual up/down Short press to move the radio frequency number up/down step by step.

Audio Menu The Audio menu button gives you the possibility to adjust your sound system with the following options Bass, Treble, Balance and Fader. These options can be used

to ne tune your sound.

Mode The mode button allows you to go from one source to another source (f.i. Tuner) by pushing the button as many times as needed.

AP In tuner mode it will automatically store the strongest stations. Note: all previous stored stations are lost.

AF AF stands for Alternative frequencies; the tuner will return to alternative frequencies whenever the reception signal is getting worse.

TA TA stands for Trafc announcement which means that it will give you information about the trafc (if broadcasted) no matter what mode you are in (SD,USB, etc.) it

will automatically interrupt the sd/USB and give the information, after that it automatically switches back to the selected mode

Rotary volume This knob allows you to adjust the volume from minimum to maximum level. NOTE high sound levels may cause damage to your ears.

M1-M6 These are the preset stations where you can store your favorite radio stations if in tuner mode.

Pause/Play This button allows you in USB or SD mode to play or to pause the music.

Intro (INT) Intro will play 10 seconds of each song on the USB or SD. If the preferred song is playing, push again and it will play that song.

Repeat (RPT) Repeat will play a selected song or album continuously. Available in USB and SD mode.

Shufe (RMD) Shufe will play all the songs random. Available in USB and SD mode.

10 down/up In MP3 mode press this button to go up or down 10 tracks

Track down/up In MP3 mode press this button to go up or down one track

fast forward/backward Long press to fast forward to the USB or SD.

3,5mm AUX jack in To connect an external audio system.

USB poort When inserting a USB stick the unit will switch to USB mode.

SD card input When inserting a SD card the unit will switch to SD mode. (Max 16GB card)

Reset Use a non-metallic pointed object to press and hold the reset button for 5 seconds. The unit will be set to factory default.

Produkt Specifikationer

Mærke:	Caliber
Kategori:	Bilradio
Model:	RMD068-2
Produktfarve:	Sort
Indbygget skærm:	Ja
Skærmtype:	LCD
Kompatible hukommelseskort:	SD
Bluetooth:	Ingen
Equalizer:	Ja
Understøttede lydformater:	MP3
Linie-udgang (RCA):	2
Dimensioner (BxDxH):	182 x 100 x 50 mm
Lyd-output kanaler:	4.0 kanaler
Udgangseffekt:	- W
Understøttede disktyper:	Ingen
Indbygget kortlæser:	Ja
DIN størrelse:	1 DIN
Maksimal effekt pr. kanal:	75 W
Klar til iPod:	Ingen
Equalizerbånd, antal:	4
AUX-indgang:	Ja
Understøttede radiobånd:	FM
RDS Tuner inkluderet:	Ja
MP3-afspilning:	Ja
Direkte USB-afspilning:	Ja
CD-R-afspilning:	Ingen
CD-RW-afspilning:	Ingen
Antal forudindstillede stationer:	18
ISO-tilslutning:	Ja
Understøttelse af ID3 Tags:	Ja
Afspilning af DVD-lyd:	Ingen
