DPL/DPL-AF SERIES – PLENUM FANS
OPERATION INSTRUCTIONS AND PARTS MANUAL
MODELS: DPL/DPL-AF-12, 13, 15, 16, 18, 20, 22, 24, 27, 30, 33, 36
GENERAL SAFETY
Rotating parts on fans should not be exposed. Where these components are not protected by ductwork, cabinets or
covers, appropriate guards should be employed to restrict exposure to rotating parts. Access doors should not be
opened with the fan operating to avoid foreign objects being drawn into the system. On initial start-up a careful
inspection should be carried out to ensure no foreign material is present which could become airborne in the system.
Read installation and operation instructions carefully before attempting to install, operate or service Delhi DPL/DPL-AF
Series Blowers. Failure to comply with instructions could result in personal injury and/or property damage. Retain
instructions for future reference.

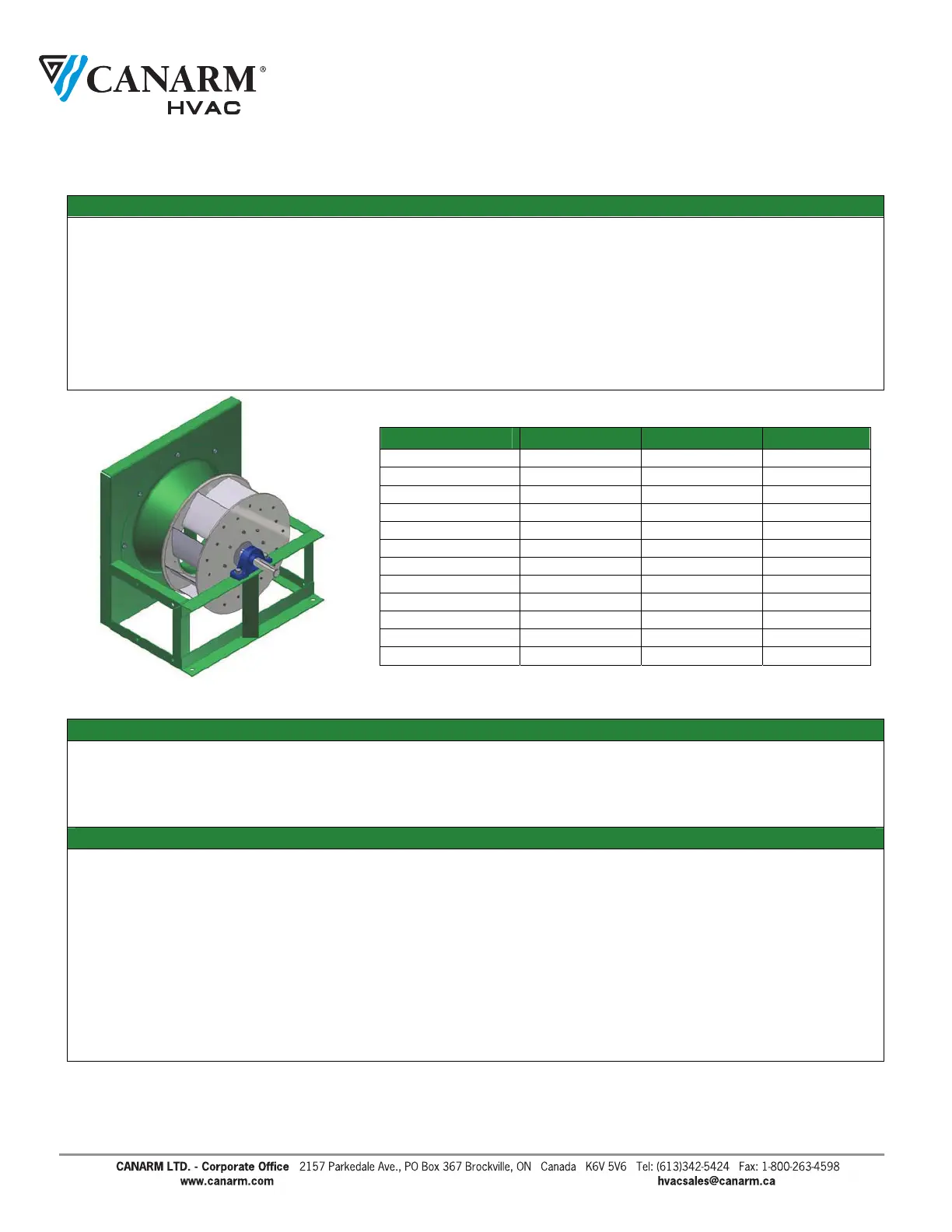

Fig. 1
MODEL MAX. H.P SHAFT DIA. WEIGHT
DPL-12 7-1/2 1” 51
DPL-13 7-1/2 1” 57
DPL-15 7-1/2 1” 68
DPL-16 10 1-3/16” 80
DPL/DPL-AF-18 7-1/2 / 10 1-3/16” 91 / 81
DPL/DPL-AF-20 10 / 15 1-3/16” 104 / 96
DPL/DPL-AF-22 10 / 15 1-7/16” 148 / 139
DPL/DPL-AF-24 15 / 20 1-7/16” 185 / 162
DPL/DPL-AF-27 15 / 25 1-7/16” 205 / 185
DPL/DPL-AF-30 20 / 30 1-11/16” 236 / 248
DPL/DPL-AF-33 25 / 40 1-15/16” 288 / 306
DPL/DPL-AF-36 30 / 40 1-15/16” 344 / 357
ALL SHAFTS ARE KEYWAYED
GENERAL
Inspect unit for damage, report any shipping damage to carrier. Check all fasteners and re-tighten as required. Rotate
the blower wheel by hand to ensure free rotation. . If rubbing occurs, loosen the set screw(s), re-position the wheel to
the shaft centre, re-tighten set screw(s).
UNIT DESCRIPTION
x Rigid welded angle iron frame construction.
x Full Class II capability.
x Min L10 bearing life of 35,000 hrs (average L50 bearing life of 175,000 hrs).
x Standard backwardly inclined flat blade steel wheel for DPL-12 through DPL-36 (aluminum wheel available as
an option).
x Standard Aluminum airfoil wheel for DPL-AF-18 through DPL-AF-36.
