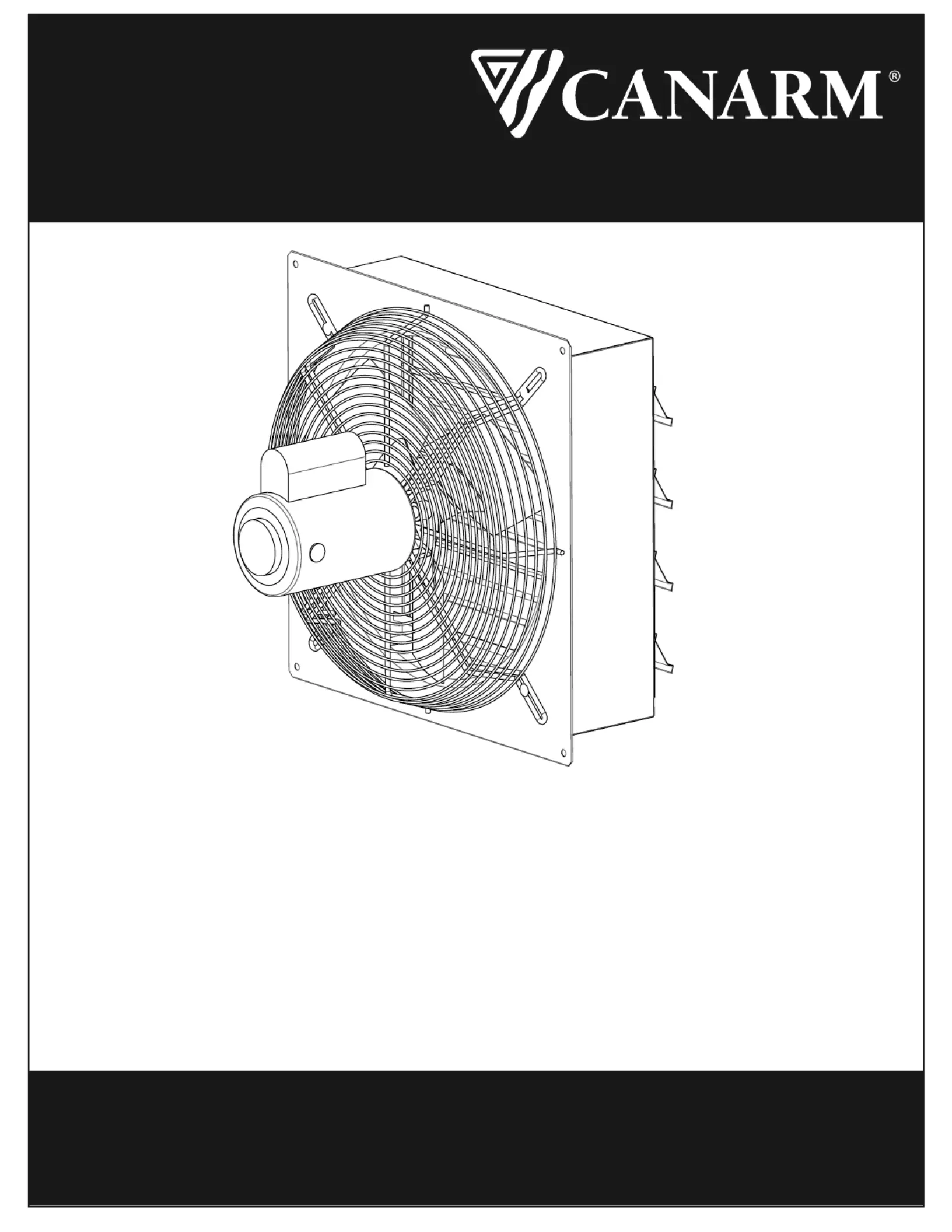

oPeratIon InstructIons and Parts manual
READ AND SAVE THESE INSTRUCTIONS
WARRANTY
CANARM Ltd. warrants every new fan to be free of defects in material and workmanship, to the extent that, within a period of one year from the
date of purchase CANARM Ltd. shall either repair or replace at CANARM’s option, any unit or part thereof, returned freight prepaid, and found
to be defective.
Components repaired or replaced are warranted through the remainder of the original warranty period only.
This warranty applies to the original purchaser-user only; it is null and void in case of alteration, accident, abuse, neglect, and operation not in
accordance with instructions.
NOTICE: No warranty claims will be honored by CANARM Ltd. unless prior authorization is obtained.
InstallatIon or Product Problems? do not return to store of Purchase.
contact canarm servIce at 1-800-265-1833 (canada) 1-800-267-4427 (u.s.a.)
1-800-567-2513 (en francaIs) monday to frIday 8:00 - 5:00Pm e.s.t.
SD_FANS_M_M0019 -09/21/2022 Page 1 of 4

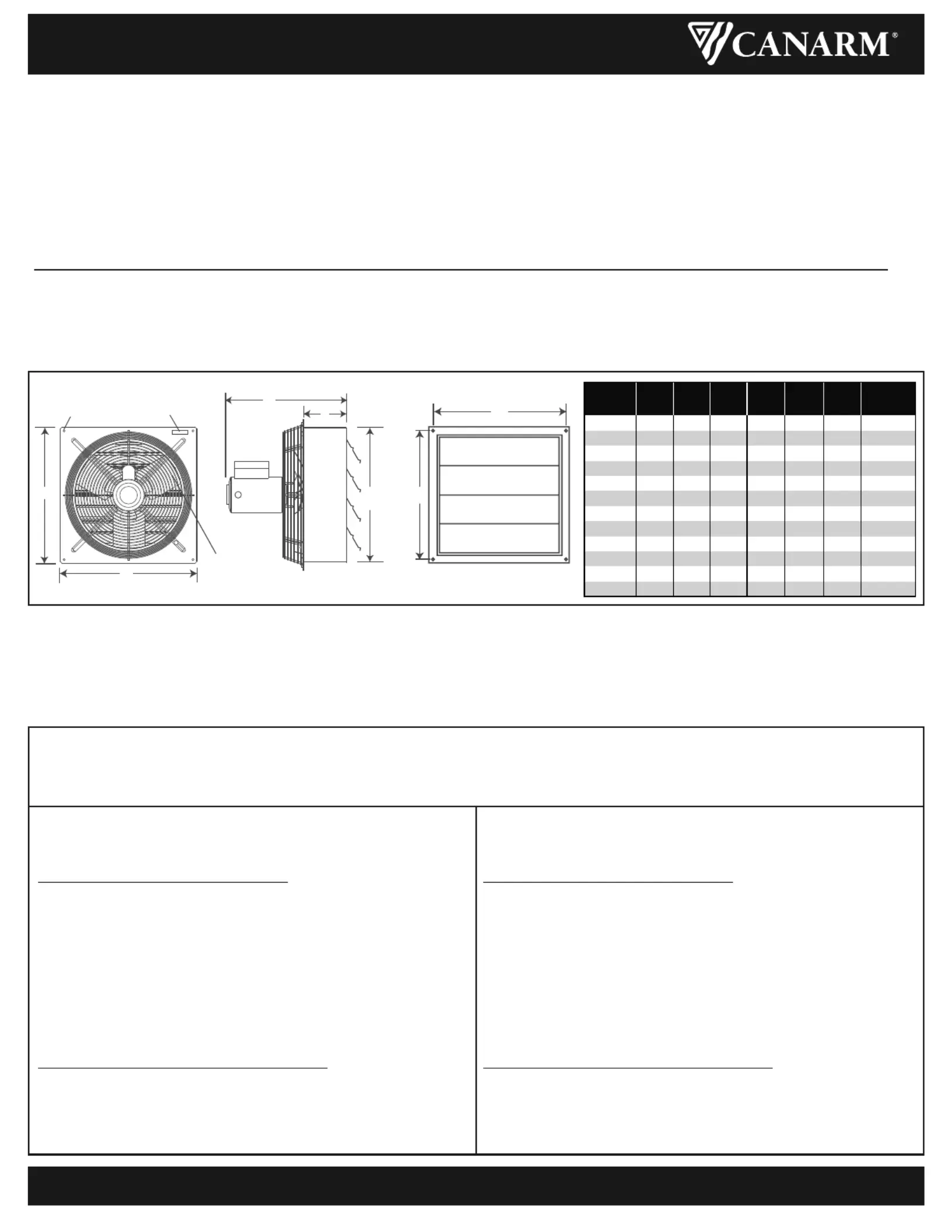

Standard Exhaust Fans
N - LOUVERS
D
A
A
4 Mounting Holes
.375” Diameter
Serial Model & Label
Propeller
E
SQR
C
Motor
B
D
SD_FANS_M_M0019 - 09/21/22 Page 2 of 4
INSTRUCTION MANUAL FOR STANDARD EXHAUST FANS
read InstructIons comPletely before InstallatIon & save for reference
Congratulations on the purchase of your quality built direct drive, wall exhaust ventilation fan. All of these models use totally enclosed motors with
thermal over load protection. Variable speed motors are high efficiency motors which save on electrical costs and can be run as a single speed
motor. The motors are mounted on heavy gauge welded steel rod motor mounts that have a Bright Zinc finish. Fans come fully assembled and
100% of fans are tested for proper operation before shipping.
these are general InstructIons whIch cover our sIngle, varIable and two sPeed standard fans, as well as our
sIngle sPeed exPlosIon Proof models..
EXPLOSION PROOF FANS:
Explosion proof fans are equipped with single speed explosion proof motors and aluminum blades so sparks cannot occur if a metal object
obstructs the blade path. Explosion proof fans have the same quality welded steel box housing and heavy gauge welded guard as the standard
fans. These fans should be used to ventilate hazardous areas. Locations are considered hazardous if the atmosphere contains or may contain
gas, vapor, or dust in explosive quantities.
c p i panarm ex los on r
oof fans meet the follow ng ha ardous do i z
class f cat onsi i i .
c p i p do not i zanarm ex los on roof fans meet the follow ng ha ardous
class f cat onsi i i .
class 1, dIvIsIon 1 (gases, vaPors)
grouP c Acetaldehyde, cyclopropane, diethlether,
Ethylene, isoprene
grouP d Acetone, acrylonitrile, ammonia, benzene, butane,
ethylene dichloride, gasoline, hexane, methane,
methanol, naphtha, propane, propylene styrene,
toluene, vinyl, acetate, vinyl chloride, xylene
class 2, dIvIsIon 1 (combustIble dusts)
grouP f Carbon black, coke or coal dust
grouP g Flour, starch or graindust
class 1, dIvIsIon 1 (gases, vaPors)
grouP a Acetylene
grouP b Butadiene, ethylene oxide, hydrogen, propylene oxide
class 2, dIvIsIon 1 (combustIble dusts)
grouP e Aluminum, magnesium and other metal dusts
with similar characteristics
STANDARD FANS:
These models have a rugged, welded steel box housing with a powder coated finish and aluminum or plastic exhaust louvers that are supported
by long life nylon bushings. The louvers open automatically when the fan starts up and close when the fan stops
Fan Size
A B C
D
(c/c)
E N Framing
8" 13 1/4" 11" 4" 12" 10 3/4" 2 11 X 11
10" 15 1/4" 11" 4" 14" 12 3/4" 2 13 X 13
12" 17 1/4" 17" 6" 16" 14 3/4" 3 15 X 15
14" 19 1/4" 17" 6" 18" 16 3/4" 3 17 X 17
16" 21 1/4" 17" 6" 20" 18 3/4" 4 19 X 19
18" 23 1/4" 15" 6" 22" 20 3/4" 4 21 X 21
20" 25 1/4" 18" 6" 24" 22 3/4" 5 23 X 23
24" 29 1/4" 18" 6" 28" 26 3/4" 5 27 X 27
30" 35 1/4" 19" 6" 34" 32 3/4" 16 33 X 33
36" 41 1/4" 18" 6" 40" 38 3/4" 20 39 X 39
42" 47 1/4" 18" 6 3/4" 46" 44 3/4" 24 45 X 45
48" 53 1/4" 19" 6 3/4" 52" 50 5/8" 26 51 X 51
the motor ambIent temPerature Is not to exceed +40 c or -25 c unless the motor namePlate sPecIfIcally PermIts ˚ ˚
another value. the followIng table IndIcates whIch ha ardous classIfIcatIons canarm exPlosIon Proof fans do z
and do not meet.
