Note: The ‘S’ trap pan is supplied with the Caroma performance

approved variable offset pan connector. Code No: 416002. Set-outs can

be achieved with the pan remaining on the centre line of floor outlet.

ROUGHING IN:

The Luna ‘S’ trap pan installation is detailed in and ‘P’ trap pan inFig. 1 Fig. 2.

The recommended set-out for ‘S’ trap installations is 140mm from the finished

wall. The 50mm offset connector (supplied) is available to achieve a set out of

140mm, where the soil pipe is between 90mm min. and 190mm max. from the

finished wall. The connector also allows for sideways positional movement, as

detailed in .Fig. 1

For Back entry connection it is important that the cold water connection (1/2"

BSP connector nipple) be accurately position in the wall as detailed in .Fig. 5

PAN FIXING PROCEDURE

Pan bedding:

1- Remove an area of tiles which are within the internal area covered by the

foot of the pan to expose the sub floor and provide a bondage key for the

bedding mixture.

2- Ensure that the bedding area is clean and free of building material.

3- Prepare bedding sand cement mixture 3:1 to depth of 60mm as detailed in

Fig.1.

Do not fill the foot of the pan with bedding mix or include lime or fast Note:

drying cement into the mix, these may cause cracking in the foot of the

pan.

4- Position pan and connect with pan connector and level pan into bedding

mixture, so that the back of the foot of the pan is approximately 10mm

above the finished floor. It is recommended that wedges are used to

support the foot of the pan during the positioning, as detailed in Fig. 3.

5- Adjust pan position if necessary. Allow bedding mixture to set for at least 24

hours prior to use.

Screw fixing:

1- Position pan onto pan connector and locate the cistern onto the pan,

checking that the cistern aligns with the finished wall. Adjust pan position if

necessary and mark location of pan fixing holes on the floor. Remove the

cistern and pan.

2- Drill two holes in the marked positions on the floor. The hole diameter is

dependent on the type of fixing system and floor finish.

IMPORTANT-DO NOT USE THE PAN SCREW HOLES AS A GUIDE

FOR DRILLING AS THIS MAY CRACK THE PAN.

3- Ensure that the area around the floor is clean and free from building

material.

4- Run a bead of acetic cured silicone sealant at a height of 8mm

approximately fully around the foot of the pan which contacts the floor.

Use Wedges around the foot base (if required) so that the maximum height

of silicone sealant is not greater that 5mm on completion on bedding,

as detailed in Fig. 4.

5- Reposition pan to pan connector and fix to the floor with suitable corrosion

resistant screws. The silicone sealant will bed the pan to the floor. Remove

any excess sealant.

6- Allow bedding mixture to set for at least 24 hours prior to use.

All measurements are subject to accepted

manufacturing tolerances.

To ensure accuracy please check actual product dimensions before drilling for installation.

The manufacturer reserves the right to change specifications at any time without giving prior notification.

This product should be installed by a qualified plumber. Local authority, Water Board, and Building

Regulations may apply to the installation of this product, and you should consult the appropriate bodies

on these requirements. Issue No. 2

Date of issue 02.10.19

Luna Close Coupled

Cleanflush Pan

IMPORTANT

TO ACHIEVE A SATISFACTORY 4.5/3L FLUSH

PERFORMANCE AND A 4 STAR WATER EFFICIENCY

RATING THE PAN MUST BE MATCHED WITH A

COMPATIBLE CAROMA SMARTFLUSH 4.5/3L

CISTERN.

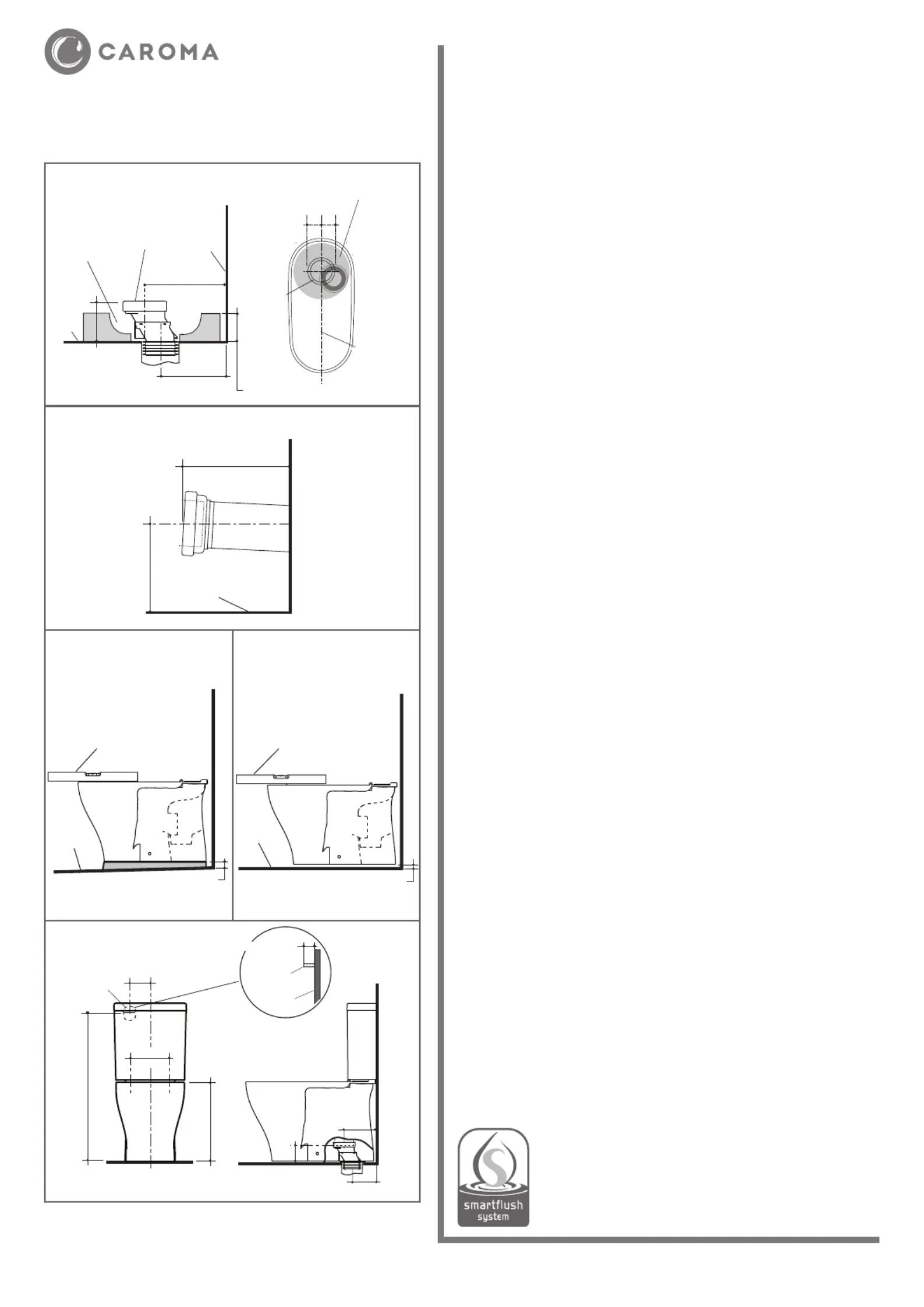

Offset

connector

Installation for 'P' trap

Fig. 1

Fig. 2

Fig. 3

Fig. 5

Relieve bed

around

pan connector

Pan

foot

level

Finished

Wall

Bedding height

60mm

130

140

Pan foot

level

Finished

Wall

190

185

Bedded position 10mm

Level pan when

bedding

Finished

floor level

Finished Wall

1/2 "

B.S.P.

Nipple

Finished wall

Bedding Installation Screw Fixing Installation

Level pan when

bedding

Important:

Do not use the pan screw hole

as a guide for drilling as this

may crack the pan.

Bedding height position max. 5mm

silicone around foot

Finished Wall

Finished

floor level

22 mm

projection from

finished wall

90 - 190

Set-out range

Fig. 4

410 ‘S’ trap pan

395 ‘P’ trap pan

100

240 Inlet

or overflow

745 ‘S’ trap pan

730 ‘P’ trap pan

Centre water inlet optional

back entry connection

Setout position for

" B.S.P. Nipple

back inlet

140

Waste

outlet

50mm

Pan seal

Offset connector (supplied)

can be positioned

anywhere in shaded area

in a 50mm arc

Centreline of

Pan and Floor

outlet

Installation for 'S' trap

PLUMBERS' INSTALLATION

INSTRUCTIONS

PLEASE READ CAREFULLY BEFORE INSTALLATION

90 - 190

Set-out range
