MS-170

BiologicalMicroscope

Intermediate 40x-1600x Biological Microscope

Congratulations on selecting your new Microscope! In order to achieve

optimum performance, please follow instructions for proper use and care.

PRODUCT SPECIFICATION

Binocular Tube: Rotatable 360° Focus: Coaxial with Course and Fine Adjustment

Total Magnification:

40x-1600x*

Stage: Double Layer Mechanical

Eyepieces:

WF10x, WF16x

(115mm x 125mm)

Objectives:

4x, 10x, 40x, Condenser:

Abbe NA 1.25 with Iris Diaphragm

100x OIL*

Filter:

Blue Filter (32mm) with Holder

Illumination:

Bright White LED

Power Cord:

AC110V-240V, 50/60Hz

*With Oil Immersion

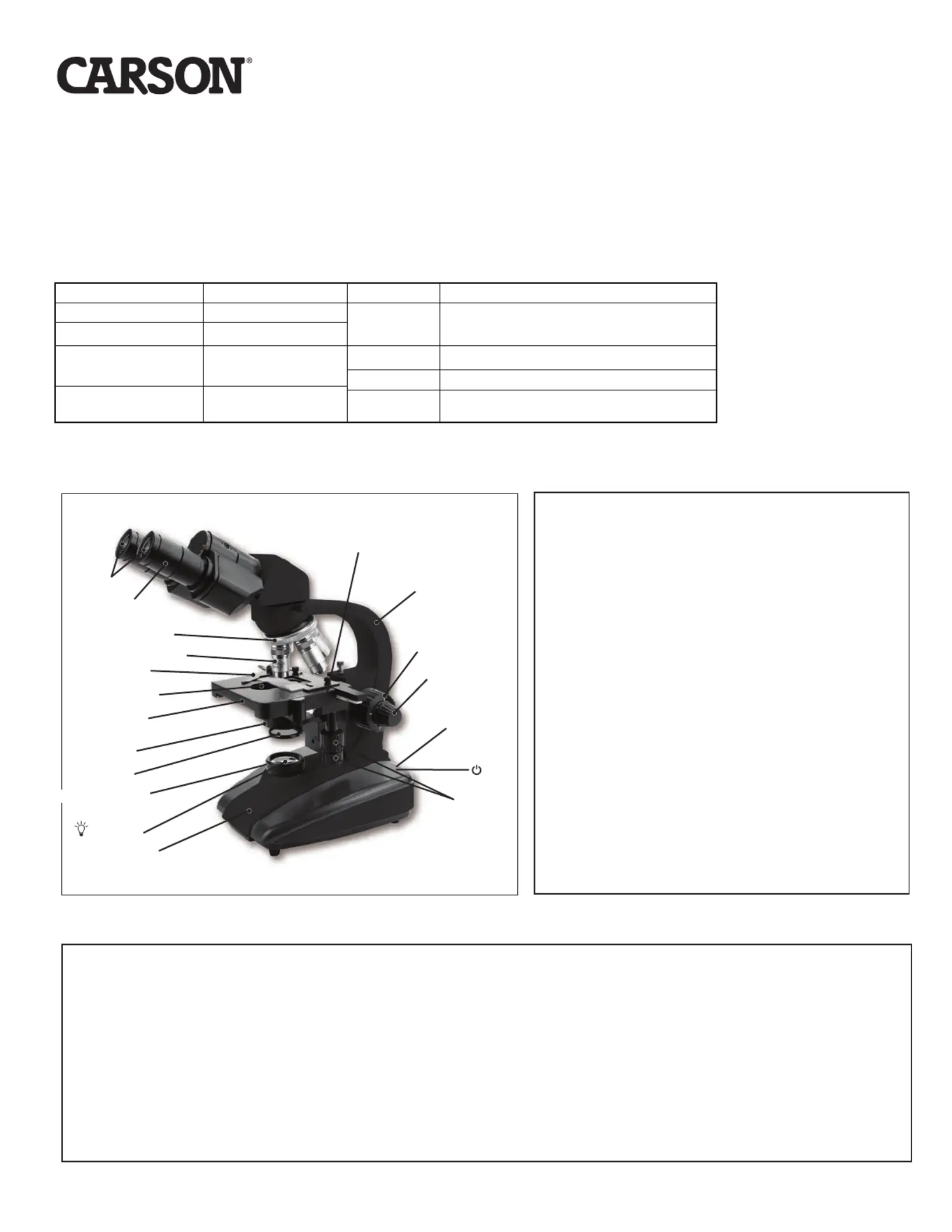

MS-170 DIAGRAM

Eyepieces

360º Rotatable

Draw Tube

Turret

Objective Lens

Slide Clip

Condenser

Mechanical Stage

Iris Diaphragm

Filter Holder

Light Intensity

Adjustment

(on left side)

Light Source

Base

Condenser

Height Knob

(on left side)

Neck

Coarse Focus

Knob

Fine Focus

Knob

Power Port

Power

Switch

Stage Knobs

SETTING UP

1. Place microscope on a secure surface.

2. Insert the end of the power cord into the

microscope’s Power Port and plug the opposite

end into any standard outlet.

3. Place Eyepiece in the Draw Tubes.

4. Position slide on the Mechanical Stage and

secure with Slide Clip. Use the Stage Knobs

to move front-back (top knob) and left-right

(lower knob) until area of interest is located in

center of stage.

Note: Wipe both sides of slide (prepared,

wet mount, dry mount, smeared) with a

damp microfiber cloth before using.

5. Turn on Light Source by turning Power Switch

to the on position.

6. Rotate Turret so that the 4x Objective Lens

(always begin with lowest power) is directly

above specimen.

FOCUSING

1. Rotate eyepieces closer or farther apart until you see a singular white circular field.

2. Slowly adjust the Coarse Focus Knob to find image. Then focus with Focus Knob, turning very slowly until the area

of interest is sharp and clear.

3. To achieve best image and maximum contrast, adjust Intensity and/or Iris Diaphragm.

Please note, the Condenser is preset to be 1-3mm from bottom of specimen slide. Although the condenser height can

be adjusted with knob, we recommend leaving it at factory setting. Adjust condensor height only when absolutely

necessary.

Warning: When focusing, be careful that the Objective Lens and Condenser do not touch the specimen. This can

cause damage to the Objective Lens, Condenser and/or specimen.

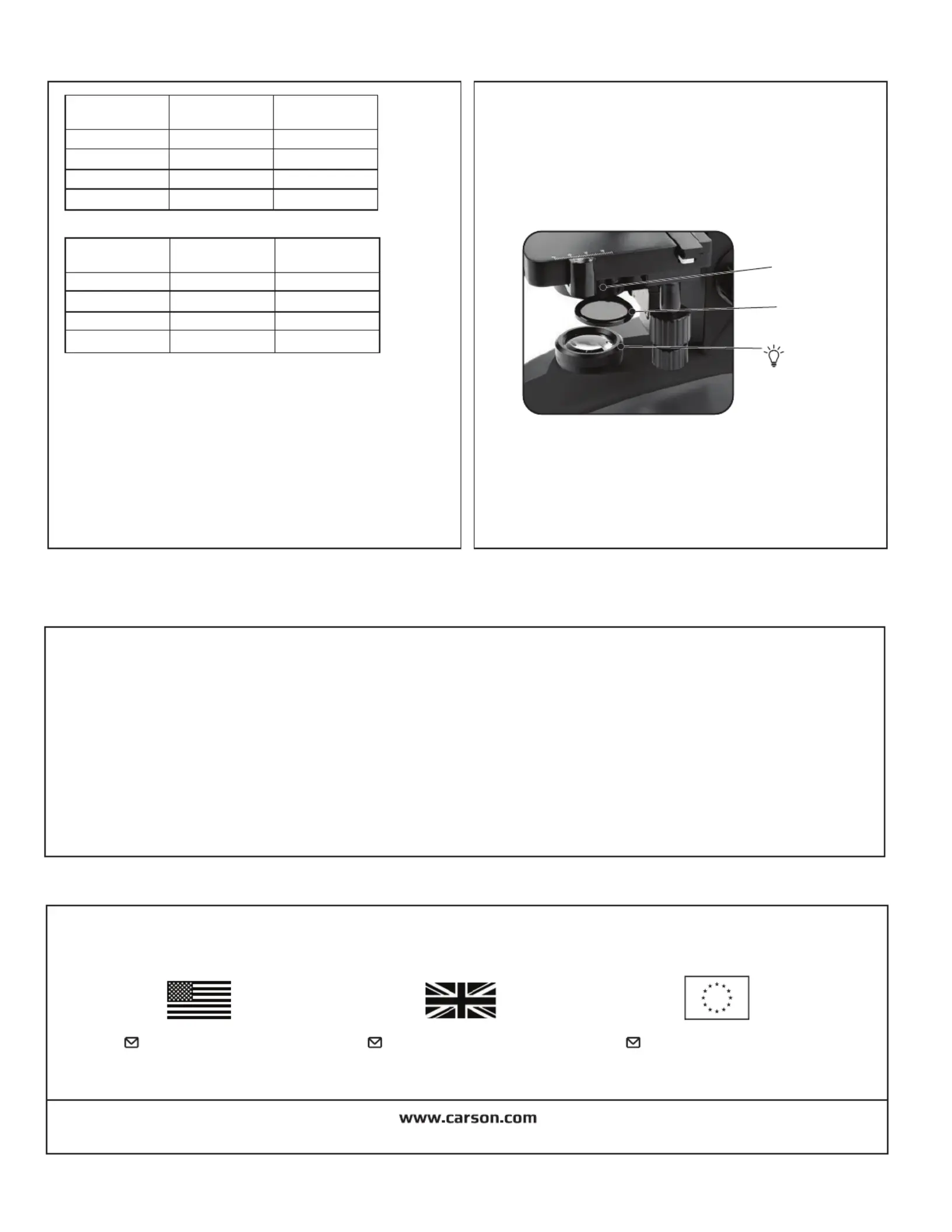

MAGNIFICATION

Objective Total

Eyepiece

Lens Magnification

10x 4x 40x

10x 10x 100x

10x 40x 400x

10x

100x* 1000x*

Objective Total

Eyepiece

Lens Magnification

16x 4x 64x

16x 10x 160x

16x 40x

640x

16x 100x* 1600x*

*With Oil Immersion

1. To change magnification, rotate the Turret so that

the desired Objective Lens is directly above

specimen. Refocus as needed.

2. The 100x Objective is only designed for oil

immersion microscopy, wherein the specimen and

Objective Lens are coated with immersion oils (not

included).

COLOR FILTERS

Color filters may be used to enhance contrast on

clear or stained slides. To use the included Blue

Color Filter, rotate the Filter Holder (located

under the Diaphragm) outwards. Place the filter

flat inside the top part of the holder, and then fully

rotate the filter holder back into position.

Iris

Diaphragm

Filter

Holder

Light

Source

CARE & CLEANING

• When moving the microscope, hold by the neck or base of the microscope body. Never hold by the eyepiece, draw

tube, or turret.

• If the focusing or mechanical stage motion becomes stiff and hard to move, the mechanical sliding portions on the

focusing track or stage may need one or two drops of lubricating oil (not included).

• Cleaning:

1. Unplug power cord and use a slightly damp microfiber cloth to clean microscope body.

2. Use a slightly damp microfiber cloth and rub gently to remove dust or debris on eyepiece or objective lens.

Do NOT rub with a dry cloth. This can scratch the eyepiece and/or objective lens.

3. To keep your microscope free from dirt, debris, dust or moisture, cover microscope with dust cover.

Customer Service:

If you experience any difficulties, please contact us and we will be happy to help you.

info@carson.com

uksupport@carson.com eusupport@carson.com

For warranty information, visit www.carson.com/warranty
