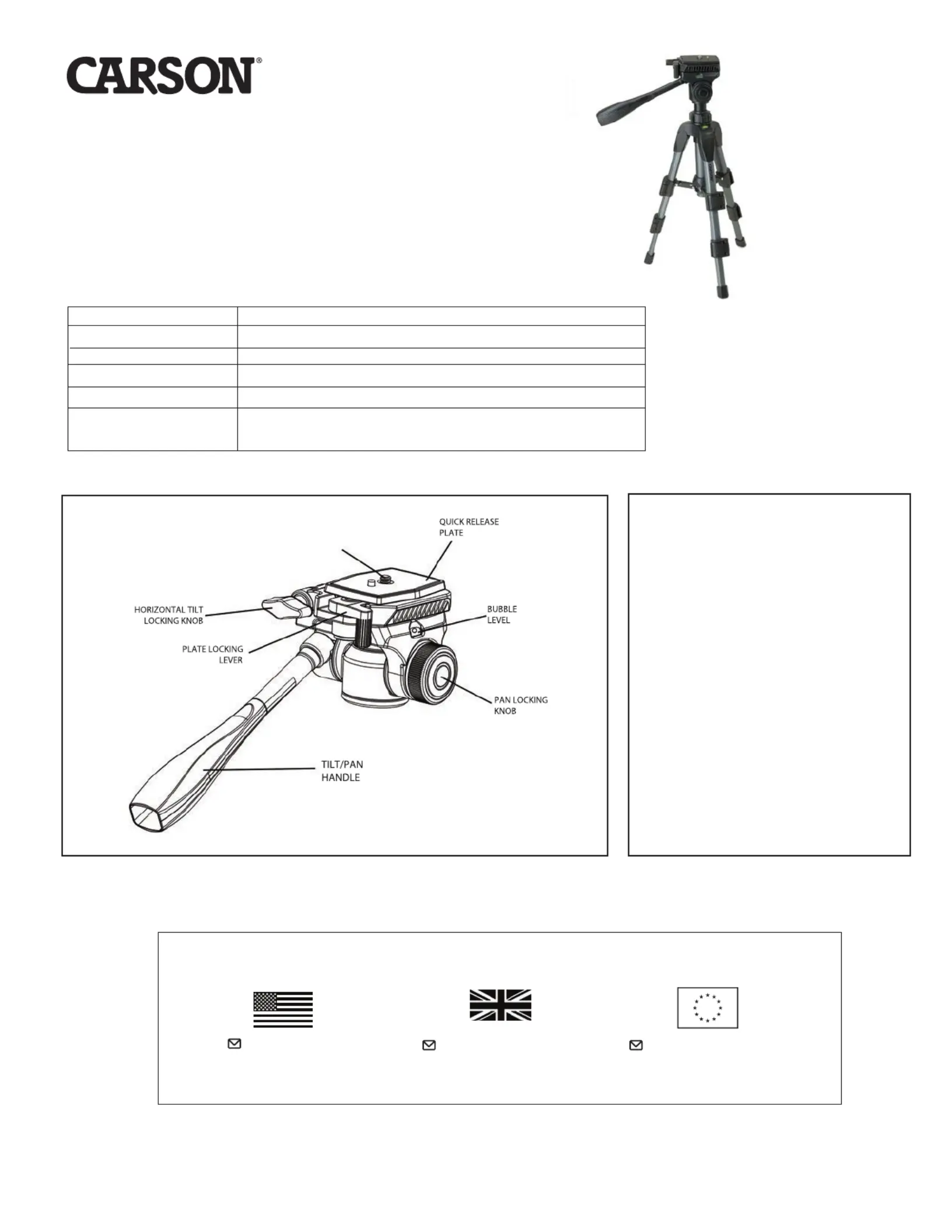

TR-100
The Rock Tripod
with 3-Way Fluid Panhead
Congratulations on selecting your new Tripod! In order to achieve optimum
performance, please follow instructions for proper use and care.
PRODUCT SPECIFICATION:
Head Type: 3-Way Fluid Panhead
Leg Sections: 3
Maximum Height: 20.8”
Maximum Tube Diameter: 20.5mm
Maximum Load: 5.5 lbs.
Features: Bubble Level, Quick Release Plate, Non-Slip Rubber Feet,
and Carrying Case
TR-100 PANHEAD DIAGRAM:
MOUNTING SCREW
IMPORTANT:
• Do not exceed maximum load capacity
of the tripod.
• Do not mount optic to tripod until all
legs are securely locked, level and
stabilized.
• Make sure all panhead locks are
tightened securely before mounting
any optic.
• Do not overtighten locks as this may
damage the locking mechanisms.
• Make sure optic is securely fastened to
quick release plate before mounting to
tripod.
• Do not carry the tripod by the panhead.
• Remove optic before adjusting or
transporting your tripod.
• Always store tripod in carrying case
when not in use.
˜°˛˝˙ˆˇ˘ˇ˘ˇ
˜°˛˝˙ˆ˛ˇ˘ˇˇˇ˛˝˛ˆˇ ˛ˇˇ˛˙˛ˆ˛˛ ˇ˛˛ ˇ˛˝˛˙˛ˇ˛˝˙ˆ
°˙ ˙˙ ˆˆ˙ ˙˙ ˇˆˆ˙ ˙˙
˙˘˘˘˝  ˙˘ˆ˝˙˛˝ ˘˛˙˙ˆ˘˘˝
www.carson.com
Carson Optical 2070 5th Avenue, Ronkonkoma, NY 11779 | Tel: 631-963-5000
11

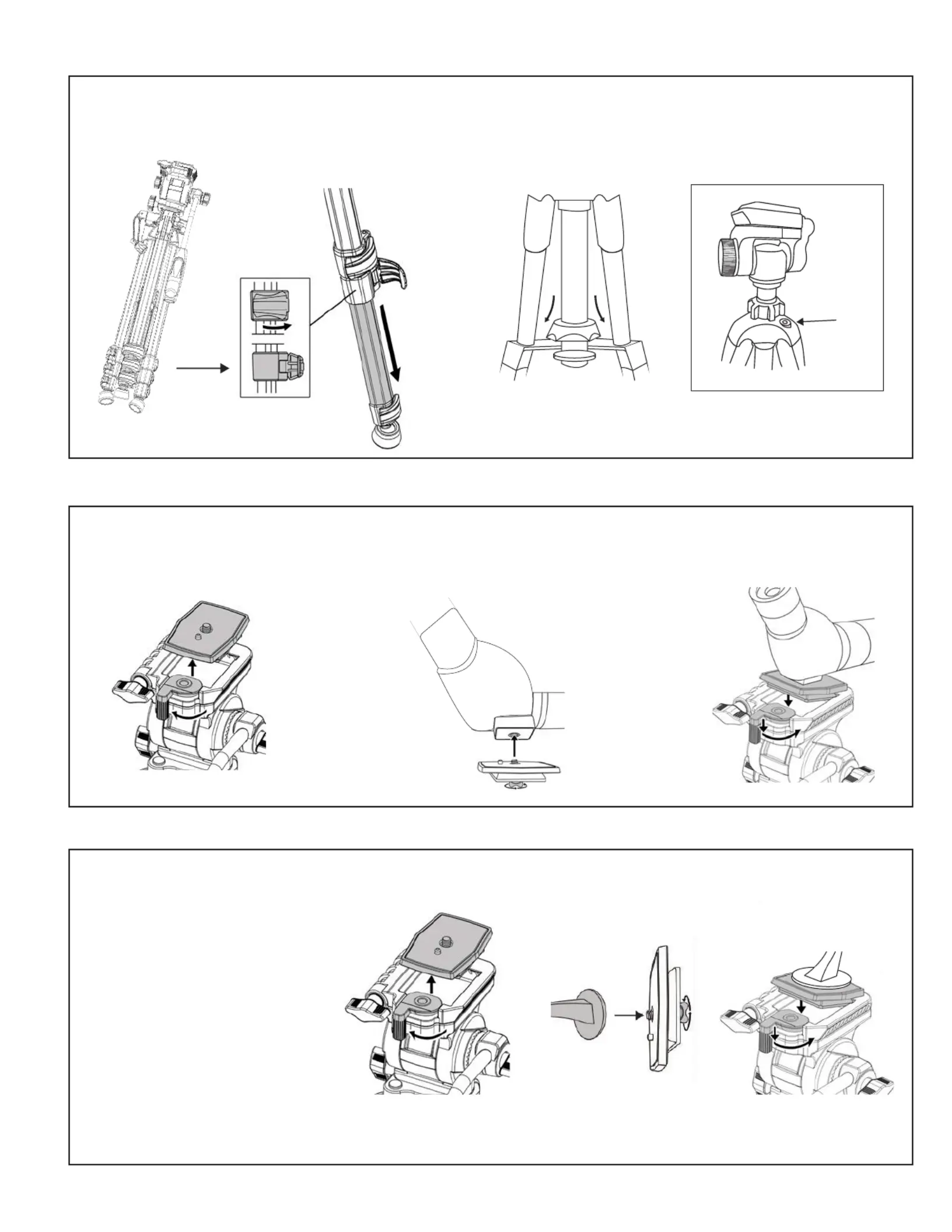

SETTING UP TRIPOD:
1. Flip open leg locks and extend legs to desired
height. Close leg locks to lock in place (Fig. 1).
Fig. 1
2. To make sure tripod is level, the bubble level should
appear centered inside red circle. Adjust leg height as
needed to level tripod (Fig. 2).
Bubble Level
Fig. 2
ATTACHING CAMERA OR SPOTTING SCOPE:
1. Pull back plate locking lever
to remove quick release plate
(Fig. 3). Fig. 3
2. Insert mounting screw into thread on optic
and turn wingnut (located on underside of
quick release plate) clockwise until tight.
This will secure optic to plate (Fig. 4).
3. Reattach quick release plate to
Fig. 4 Fig. 5
ATTACHING BINOCULARS:
PLEASE NOTE: To attach your full sized
binoculars to a tripod, you will need a
tripod binocular adapter (not included).
1. Pull back plate locking lever to remove
quick release plate (Fig. 6).
2. Insert mounting screw into thread on
adapter and turn wingnut (located on
underside of quick release plate)
clockwise until tight. This will secure
adapter to plate (Fig. 7).
3. Reattach quick release plate to
tripod head. Press down plate and
lever will shift into place and lock
(Fig. 8).
4. Attach binocular to adapter.
Fig. 6
Fig. 8
Fig. 7
2
tripod head. Press down plate and
lever will shift into place and lock
(Fig. 5).
