Casio XJ-S58 Manual

Casio videoprojektorer XJ-S58

Læs gratis den danske manual til Casio XJ-S58 (40 sider) i kategorien videoprojektorer. Denne vejledning er vurderet som hjælpsom af 5 personer og har en gennemsnitlig bedømmelse på 4.5 stjerner ud af 3 anmeldelser. Har du et spørgsmål om Casio XJ-S58, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/40

Contents

E-1

English

Safety Precautions .....................................E-2

Operating Precautions ...............................E-6

Lamp Handling Precautions ......................E-6

Lamp Replacement Precautions ............... E-6

Other Precautions .....................................E-7

Unpacking ...................................................E-9

Using the User Documentation on the

CD-ROM....................................................E-9

Projector Features and

Main Functions .........................................E-10

General Guide ...........................................E-10

Remote Controller General Guide........... E-12

Preparing the Remote Controller.............E-12

Replacing the Remote Controller Battery

.. E-13

Getting Ready ...........................................E-14

Setting Up the Projector ..........................E-14

Setup Precautions ................................... E-15

Adjusting the Projector Elevation Angle

... E-16

Rear Projection

(From the Back of the Screen) ................E-16

Connecting a Computer to the Projector

... E-17

Connecting to a Standard Video Device

... E-17

Connecting to a Component Video

Output Device.......................................... E-18

Connecting a USB Device to the Projector

(USB Port Equipped Models Only)

............E-19

Turning On the Projector ......................... E-20

Turning Off the Projector......................... E-22

Projector Basics .......................................E-23

Selecting the Input Source ...................... E-23

Adjusting the Projected Image ................ E-23

Adjusting the Volume Level..................... E-24

Keystone Correction (KEYSTONE)......... E-25

Using the Setup Menu..............................E-26

User Maintenance.....................................E-27

Cleaning the Projector............................. E-27

Reattaching the Lens Cover.................... E-28

Replacing the Lamp ................................ E-29

Troubleshooting .......................................E-34

Indicators................................................. E-34

Projector Troubleshooting ....................... E-38

Specifications ...........................................E-40

• DLP is a registered trademark of Texas Instruments Incorporated of the United States.

• Microsoft, Windows, Windows Vista, and PowerPoint are registered trademarks or trademarks

of Microsoft Corporation in the United States and other countries.

• Apple and Macintosh are registered trademarks of Apple Inc. of the United States.

• Adobe and Reader are registered trademarks of Adobe Systems Incorporated.

• XGA is a registered trademark of IBM Corporation of the United States.

• Other company and product names may be registered trademarks or trademarks of their

respective owners.

• The contents of this User’s Guide are subject to change without notice.

• Copying of this manual, either in part or its entirety, is forbidden. You are allowed to use this

manual for your own personal use. Any other use is forbidden without the permission of CASIO

COMPUTER CO., LTD.

• CASIO COMPUTER CO., LTD. shall not be held liable for any lost profits or claims from third

parties arising out of the use of this product or this manual.

• CASIO COMPUTER CO., LTD. shall not be held liable for any loss or lost profits due to loss of

data caused by malfunction or maintenance of this product, or any other reason.

• The sample screens shown in this manual are for illustrative purposes only, and appear

differently from the screens actually produced by the product.

User’s Guide (Basic Operations)

• Be sure to read the “Safety Precautions” on page E-2 and “Operating Precautions” on page

E-6 before trying to use this projector.

• This manual covers only basic operations, including how to set up the projector, basic projector

operations, and how to replace the lamp. For more detailed information, see the User’s Guide

(UsersGuide_English.pdf) on the CD-ROM that comes with the projector.

E-2

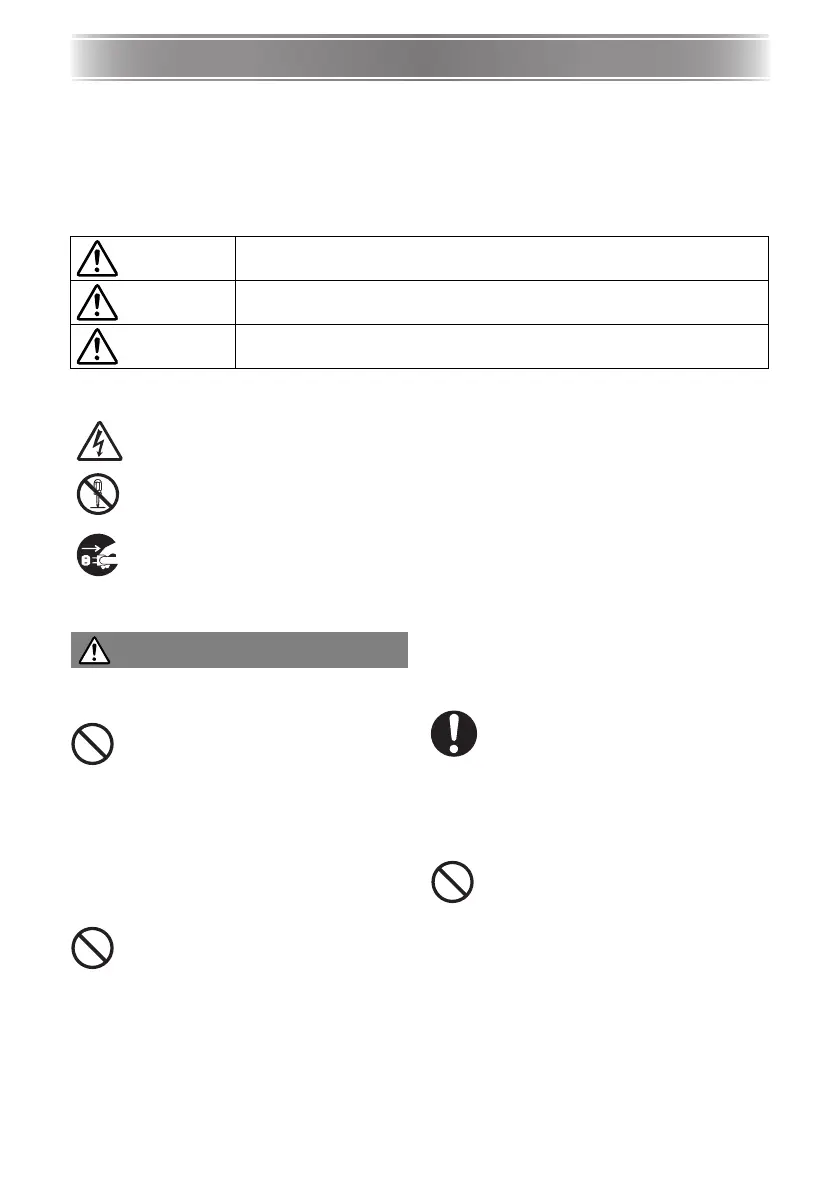

Safety Precautions

Thank you for selecting this CASIO product. Be sure to read these “Safety Precautions” before

trying to use it. After reading this User’s Guide, keep it in a safe place for future reference.

About safety symbols

Various symbols are used in this User’s Guide and on the product itself to ensure safe use,

and to protect you and others against the risk of injury and against material damage. The

meaning of each of the symbols is explained below.

Icon Examples

Precautions During Use

● Smoke, odor, heat, loud noise,

and other abnormalities

Should you ever notice smoke, strange

odor, or loud noise being emitted by

the projector, or any other abnormality,

immediately stop using the projector.

Continued use creates the risk of fire and

electric shock. Immediately perform the

following steps.

1. Unplug the projector.

2. Contact your original dealer or authorized

CASIO service center.

● Malfunction

Immediately stop using the projector if

the screen appears abnormal, or if

any other abnormal operation occurs

even though you are operating the

projector correctly. Continued use

creates the risk of fire and electric

shock. Immediately perform the

following steps.

1. Turn off the projector.

2. Unplug the projector.

3. Contact your original dealer or authorized

CASIO service center.

● Power cord

Misuse of the power cord creates the

risk of fire and electric shock.

Make sure that you always observe

the following precautions.

• Make sure that you use a power source with

the same voltage as that specified for the

projector.

• Do not overload a power outlet with too

many devices.

A damaged power cord creates the

risk of fire and electric shock.

Make sure that you always observe

the following precautions.

• Never place heavy objects on the power

cord and never expose it to heat.

• Make sure the power cord is not pinched

between the wall and the rack or table

where the projector is located, and never

cover the power cord with a cushion or

other object.

• Never try to modify the power cord, allow it

to become damaged, or subject it to

excessive bending.

• Do not twist the power cord or pull on it.

Danger

This symbol indicates information that, if ignored or applied incorrectly,

creates the risk of death or serious personal injury.

Warning

This symbol indicates information that, if ignored or applied incorrectly,

could possibly create the risk of death or serious personal injury.

Caution

This symbol indicates information that, if ignored or applied incorrectly,

could possibly create the risk of personal injury or material damage.

A triangle indicates a situation against which you need to exercise caution. The

example shown here indicates you should take precaution against electric shock.

A circle with a line through it indicates information about an action that you should

not perform. The specific action is indicated by the figure inside the circle. The

example shown here means disassembly is prohibited.

A black circle indicates information about an action that you must perform. The

specific action is indicated by the figure inside the circle. The example shown here

indicates you must unplug the power cord from the power outlet.

Warning

Produkt Specifikationer

Mærke:	Casio
Kategori:	videoprojektorer
Model:	XJ-S58
Relativ luftfugtighed ved drift (H-H):	20 - 80 %
Antal USB 2.0-porte:	1
Komponentvideo (YPbPr/YCbCr) indgang:	1
Driftstemperatur (T-T):	5 - 35 °C
Markedspositionering:	Bærbar
Sammensat videoindgang:	1
Effektkrav:	AC100~240V, 50/60Hz
Lydindgang:	1
Antal farver:	16,78 millioner farver
Kontrastforhold (typisk):	1800:1
Horisontal scanningsområde:	31.5 - 91.1 kHz
Antal VGA-porte (D-sub):	1
Projektor lysstyrke:	3000 ANSI lumens
Projektionsteknologi:	DLP
Projektor indbygget opløsning:	XGA (1024x768)
Vertikalt scanningsområde:	56 - 85 Hz
RS-232-porte:	1
Levetid for lyskilde:	2000 t
Lampeeffekt:	210 W
Lyskilde type:	Lampe
Seriel grænsefladetype:	RS-232
Lydudgang:	1
