Congratulations on your Celestron Labs

microscope purchase. Your new Celestron

Labs microscope is a precision optical

instrument, made of the highest quality

materials to ensure durability and long

life. It is designed to give you a lifetime of

enjoyment with minimal maintenance.

This CL-CM800 microscope provides powers

from 40x up to 800x. It is ideally suited for

examining specimen slides of yeasts and

molds, cultures, plant and animal parts,

ﬁbers, bacteria, and more.

Before attempting to use your Celestron

Labs microscope, please read these

instructions to familiarize yourself with

the parts and functions of the microscope.

Refer to the microscope diagrams to locate

the parts discussed in the manual. The ﬁnal

section of the manual provides simple care

and maintenance tips.

IN THE BOX

- Microscope CL-CM800

- 2 wide ﬁeld eyepieces: 10x, 20x

- AC adapter

- 10 prepared slides

- 3 AA batteries

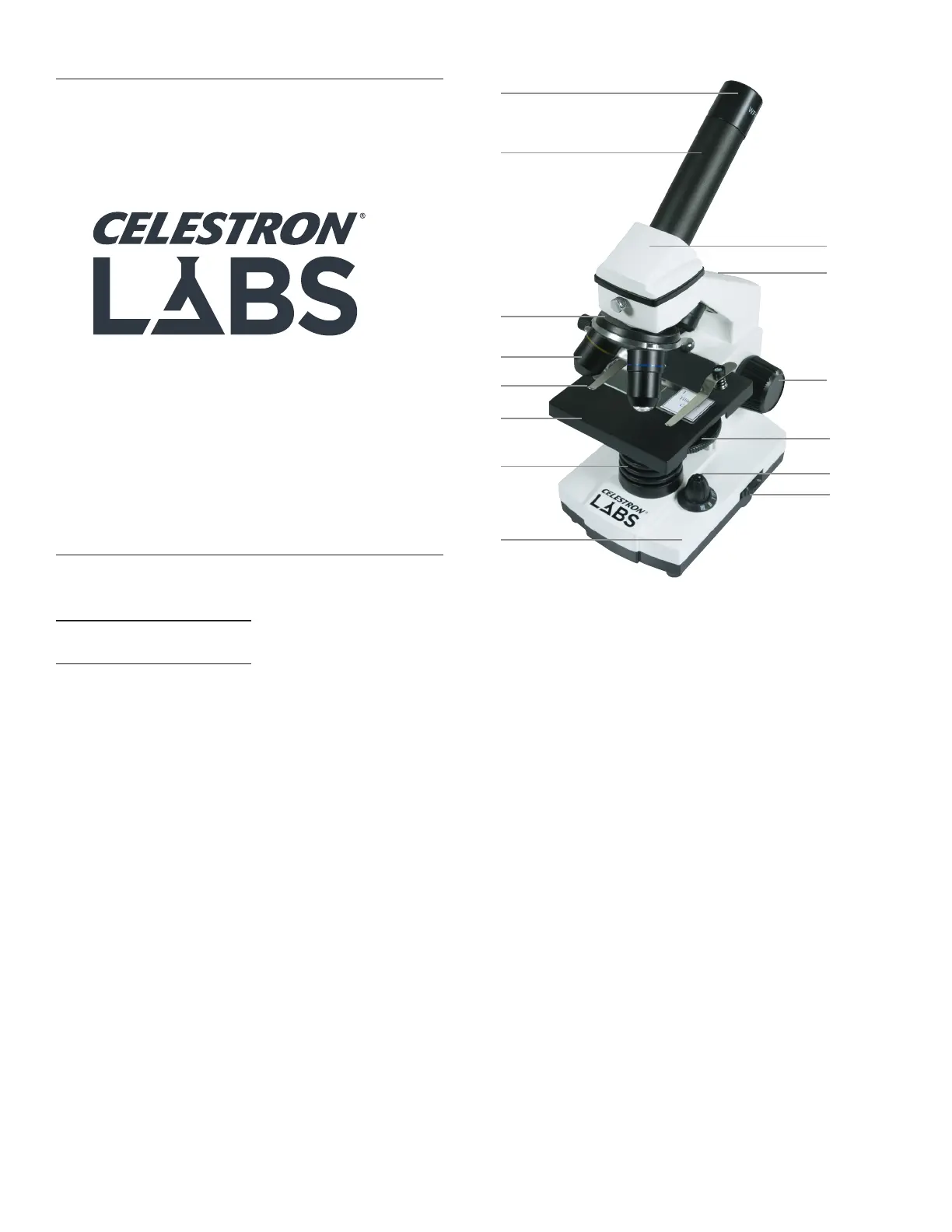

PARTS

1. Eyepiece

2. Eyepiece Tube

3. Nosepiece

4. Objective Lens

5. Stage Clip

6. Stage

7. Illuminator

8. Base

9. Head

10. Arm

11. Focus Knob

12. Disc Diaphragm

13. Power Switch

14. Illuminator Adjustment

SPECIFICATIONS

STAGE: Plain Stage with clips –

3.5 in x 3.5 in (88 mm x 88 mm)

HEAD: Monocular with 45° incline

MAGNIFICATION RANGE: 40x to 800x

FOCUSER: Coarse focus

OBJECTIVES: 4x, 10x, 40x

EYEPIECES: WF 10x, WF 20x

NOSEPIECE: Triple with click stop

ILLUMINATOR: LED, adjustable

CONDENSER: N.A. 0.65

DIAPHRAGM: Disc diaphragm with 6

aperture sizes

DIMENS IONS: 5.0 in x 6.0 in x 11.0 in

(127 mm x 152 mm x 279 mm)

WEIGHT: 2.7 lbs (1.108 kg)

MAGNIFICATION TABLE

Use the following table to determine

magniﬁcation using your microscope’s

different eyepiece/objective lens

combinations.

OBJECTIVE LENS: 4x 10x 40x

WF 10X EYEPIECE: 40x 100x 400x

WF 20X EYEPIECE: 80x 200x 800x

SETTING UP YOUR

MICROSCOPE

1. Remove the Styrofoam container from

the carton.

2. Carefully remove the microscope and

accessories from container and set them

on a table, desk, or other ﬂat surface.

3. Remove bag covering from microscope.

4. Remove cap from eyepiece tube (2).

5. Remove the eyepieces from plastic bags.

6. Insert the WF 10x eyepiece into the

eyepiece tube (2)

7. Plug the AC adapter into the socket on

the back of the base (8).

8. Insert the plug end of the AC adapter into

the proper power source.

Additionally the microscope can be powered

with three AA batteries.

- Open the battery compartment on the

base (8) of the microscope.

- Install the three AA batteries (supplied)

and close the battery compartment.

MICROSCOPE OPERATION

Before viewing specimens, please read

these sections thoroughly regarding

focusing, changing power (magniﬁcation),

using the stage and adjusting illumination.

VIEWING A SPECIMEN

Carefully place a specimen slide under the

stage clips (5) and center the specimen.

Images will be observed upside down and

reversed right to left. Prepared slides are

included with your microscope to help you

get started.

You are now ready to focus and view a

specimen. Be careful not to damage the

specimen slide.. When using higher powers

while focusing, make sure the objective lens

(4) does not hit the slide or object being

viewed.

FOCUSING AND CHANGING

POWER (MAGNIFICATION)

1. Always start with lowest power (4x

objective lens and WF 10x eyepiece). This

combination yields the lowest power.

2. Place a specimen slide (or object) on

the stage (6) directly under the objective

lens (4). Gradually turn the focus knob

(11) until the specimen is in focus.

CM800

Model # 44128

Produkt Specifikationer

Mærke:	Celestron
Kategori:	Mikroskop
Model:	Labs CM800
Bredde:	195 mm
Dybde:	175 mm
Højde:	335 mm
Vægt:	1676 g
Produktfarve:	Black, White
Indbygget skærm:	Ingen
Strømkilde:	Vekselstrøm/batteri
Indbygget kamera:	Ingen
Oprindelsesland:	Kina
Belysning:	Ja
Maksimal forstørrelse:	800 x
Mikroskop, type:	Optisk mikroskop
Minimum forstørrelse:	40 x
Belysningstype:	LED
Antal okularer:	2
