8803-000034 Rev. B 05/05

CHIEF MANUFACTURING INC. 1-800-582-6480, Fax: 1-877-894-6918, Email: chief@chiefmfg.com

INSTALLATION INSTRUCTIONS

FPM SERIES

SMALL FLAT PANEL DISPLAY

PITCH-ADJUSTABLE WALL MOUNT

Exclusive Q2™ Mounting System

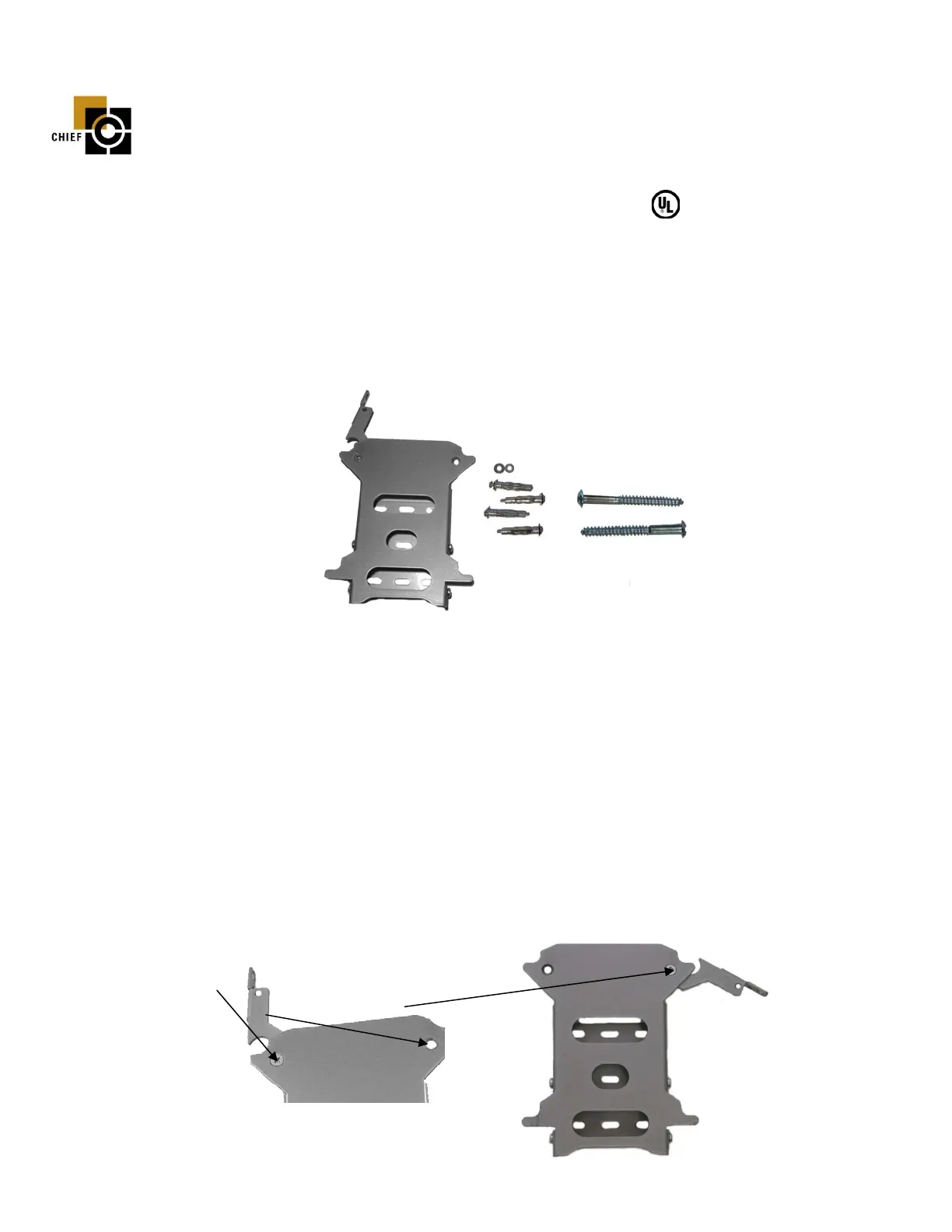

Prior to assembly, unpack carton completely and verify contents.

If you are missing any of the following components, Service at 1-800/582-6480 please contact Customer

(1) FPM Wall Bracket (4) Drywall Anchor

(2) Wood Screw (2) Washer, Flat, .25 ID X .56 OD

BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY

Flat Panel Displays are Extremely Fragile.

If Monitor Uses a Screw Size Other Than M4 X 10mm (M4 X 20mm),

DO NOT USE M4 Screws Provided. Monitor Damage Could Occur.

Interface Bracket Installation:

1. See installation procedures accompanying your mounting bracket.

Optional Latching Flag Placement:

1. Remove Phillips head screw, Nylock nut and latching flag (see Figure 2).

2. Reposition latching flag and secure using Phillips head screw, Nylock nut.

CAUTION!

Figure 1

Remove screw

and nut

Move latch

Figure 2

Drywall Installation Procedures:

Minimum Sheetrock Thickness ½ Inch.

2. Using the wall bracket as a template at the desired mounting location, mark the location of the four

outer mounting holes.

3. Using a 3/8-inch drill, drill four pilot holes

to a minimum depth of 1 1/2”

at the locations marked

in Step 2.

4. Install an anchor bolt in one of the pilot holes and tighten anchor bolt until it is fully seated (see

Figure 3).

5. Remove and retain bolt and washer from anchor and repeat Step 4 and 5 for three remaining anchor

bolts.

6. Using four bolts, with washers installed, secure wall bracket to wall.

Wood Stud Installation Procedures:

1. Locate stud and, using wall bracket as a template at the desired height, mark the location of the two

center mounting holes.

2. Install a .25 ID x .06 OD flat washer on each of the two wood screws.

3. Using the two wood screws with flat washers installed, secure wall bracket to wall.

Mounting Display with Interface Bracket to Wall Bracket:

1. Make sure the latching flag on the mounting bracket is in the unlocked position (see Figure 4).

2. Place your small flat panel display; with interface bracket attached, onto the wall bracket, making

sure it is securely seated.

3. Lower the latching flag on the wall bracket, locking small flat panel display in place (see Figure 5).

Figure 5

CAUTION!

Outer Mountin

Holes

Figure 4

Locke

Unlocke

%%c0.375

(

PREDRILL HO LE

)

INSERT ANCHOR INTOPPREDRILLED HOLE

NCHOR BARBP

(

STOPS ANCHOR ROTATIO N

)

#10-24 Screw Ancho

0.375

(

Predrill Hole

)

Insert anchor into

predrilled hole Anchor Barb

(Stops anchor rotation)

Turn 10-24 screw clockwise

until anchor fully seats

against back side of wall

Figure 3

Inner Mountin

Holes
