Side 1/2

8800-002664 Rev00

www.chiefmfg.com

10/14

Milestone AV Technologies, Inc., and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone

makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation

or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, ex-

pressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this

document.

Chief, a products division of Milestone AV Technologies

6436 City West Parkway, Eden Prairie, MN 55344

• P: 800.582.6480 / 952.225.6000 • F:877.894.6918 / 952.894.6918

I N S T A L L A T I O N I N S T R U C T I O N S

Continued. . .

MODEL: HB-46E Custom Projector Bracket

Unpack carton and verify contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.

PARTS

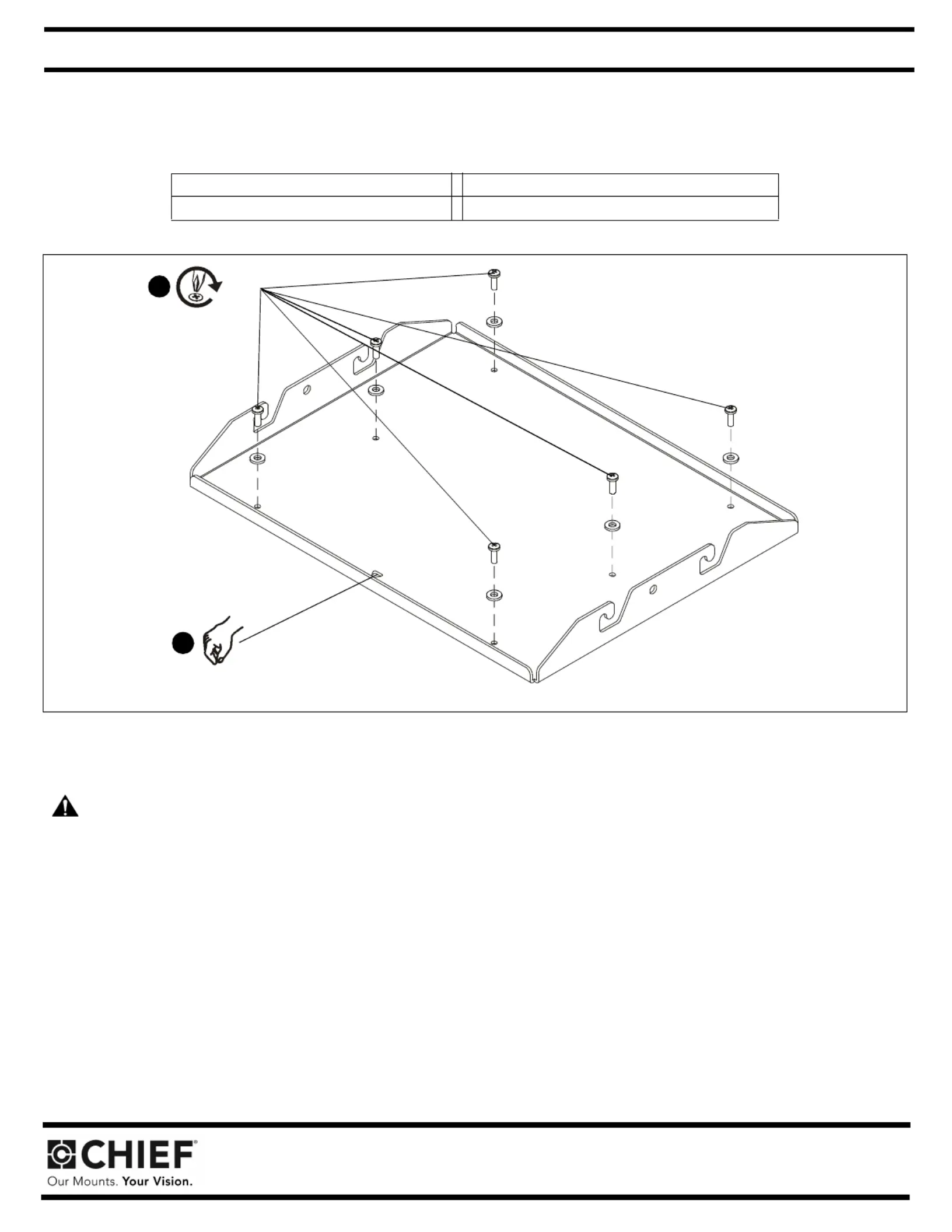

Figure 1

INSTALLATION

WARNING: IMPROPER INSTALLATION MAY RESULT IN SERIOUS PERSONAL INJURY! All components must be securely fastened

to each other and to the ceiling, and the ceiling must be capable of supporting five times the total weight of the installation.

1. Lower custom HB bracket onto top of projector. Ensure that triangle in bracket points toward front of projector. (See Figure 1)

2. Attach HB bracket to projector using six M4 x 16mm Phillips pan head screws through six holes in the HB bracket. (See Figure 1)

(1) BRACKET, Custom HB (6) WASHER, Flat, M4

(4) NUT, Flange, Hex, 5/16-18 (6) SCREW, Phillips Pan Head, M4 x 16mm

x 6

I N S T A L L A T I O N I N S T R U C T I O N S

Continued . .

CAUTION: Installing a ceiling mount requires the presence of two persons familiar with mechanical installations. A third assistant is

recommended.

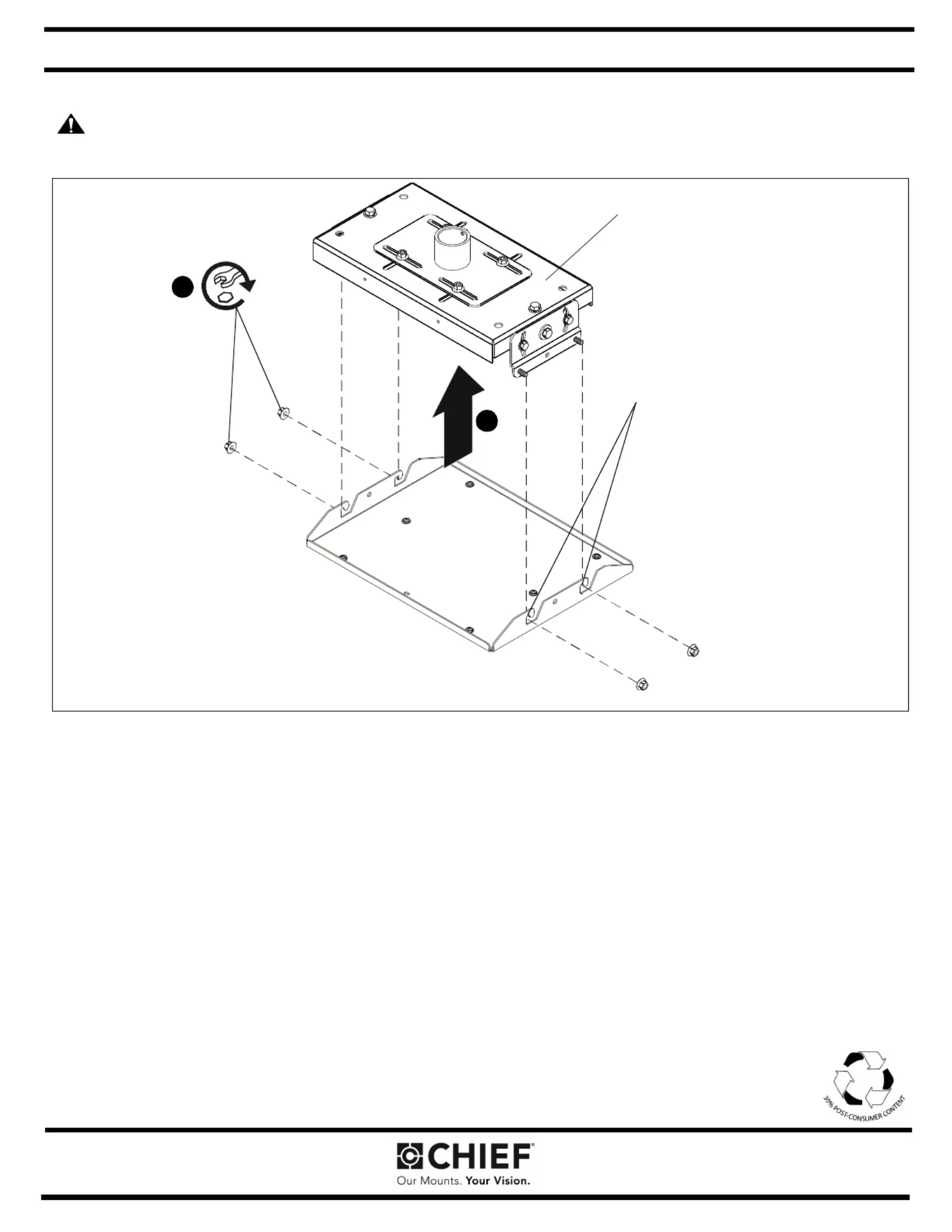

Figure 2

3. Attach VCM housing to your method of support and tighten firmly so the VCM housing is square to the screen.

4. With help of assistants, lift the projector and install it to the four studs extending from the VCM housing. Ensure that the VCM housing is

seated in slots on HB bracket. (See Figure 2)

5. Tighten the four 5/16" flange nuts. (See Figure 2)

VCM Housing

x 4

Seat VCM in HB

bracket slots
