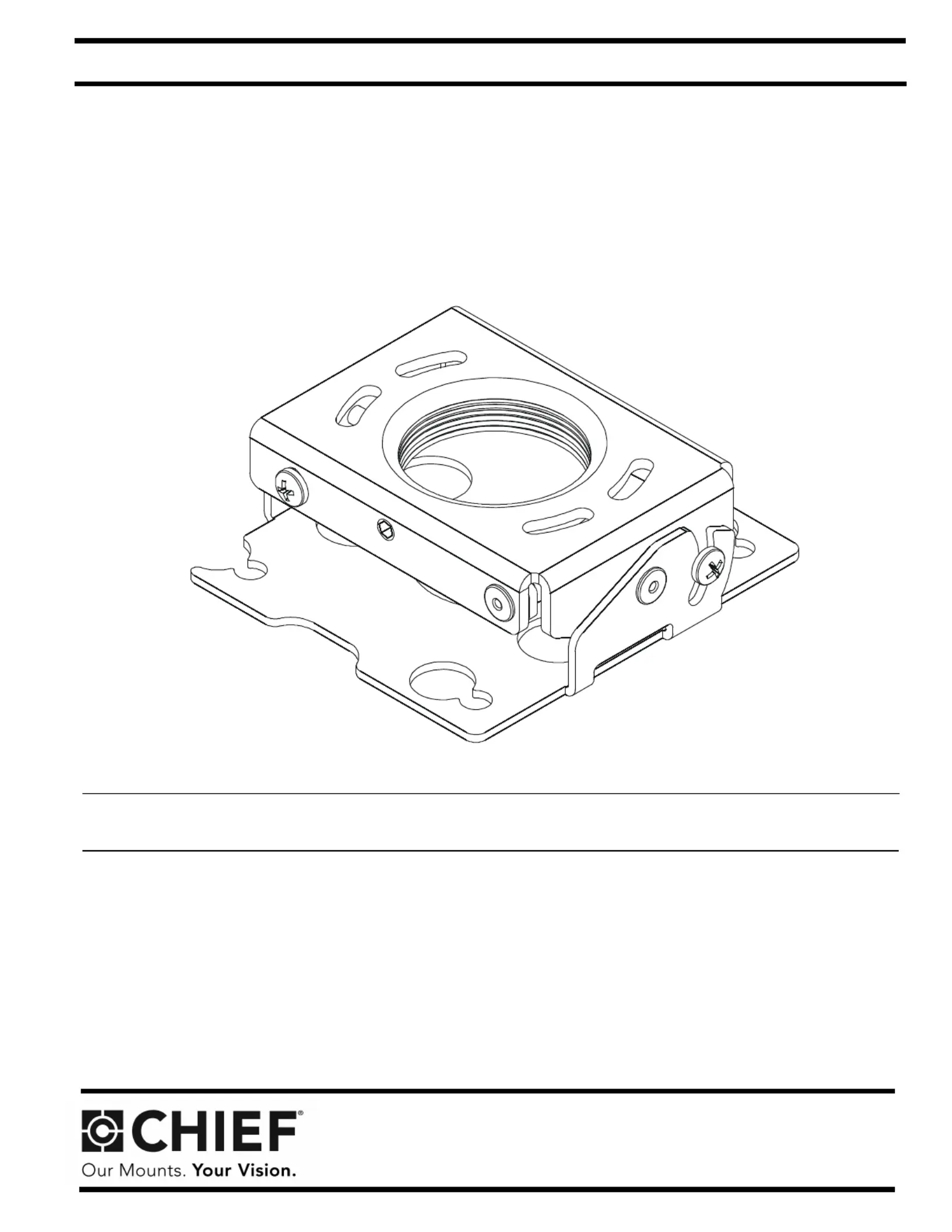

I N S T A L L A T I O N I N S T R U C T I O N S

RSA Projector Mounts

RPA Elite Series Projector Mount

RSA

RSA Projector Mounts Installation Instructions

DISCLAIMER

Milestone AV Technologies, and its affiliated corporations and

subsidiaries (collectively, "Milestone"), intend to make this

manual accurate and complete. However, Milestone makes no

claim that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Milestone

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Milestone assumes

no responsibility for accuracy, completeness or sufficiency of

the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies.

IMPORTANT SAFETY INSTRUCTIONS!

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all components are

properly assembled and installed using the instructions

provided.

WARNING: Failure to provide adequate structural strength

for this component can result in serious personal injury or

damage to equipment! It is the installer’s responsibility to

make sure the structure to which this component is attached

can support five times the combined weight of all equipment.

Reinforce the structure as required before installing the

component.

WARNING: Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of

all components attached to the RSA does not exceed 25 lbs

(11.37 kg).

• The weight capacity of the RSA may be LIMITED to the

lowest weight capacity of any other components

located between the RSA and the supporting structure!

WARNING: Use this mounting system only for its intended

use as described in these instructions. Do not use

attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is

damaged. Return the mounting system to a service center for

examination and repair.

WARNING: Do not use this product outdoors.

IMPORTANT ! : The RSA mounts are designed to be:

• mounted to a 1-1/2" NPT or NPSM following ANSI/

ASME B1.20.1 (Schedule 40, 0.154" minimum

thickness aluminum - ASTM B221) threaded extension

column;

• mounted to double 2" x 4" wood stud cross bracing

(1-1/2" on center) between two 2" x 4" ceiling joists;

• mounted to a concrete ceiling with a minimum

thickness of 8" and a maximum drywall covering of

5/8"; or

• suspended from four 1/4" diameter (minimum) Grade 2

or better threaded rods (not included) which are

secured to unistrut, angle or channel assembly

overhead structural members (trusses or I-beams) by

Grade 2 or better 1/4" channel nuts (not included).

NOTE: RSA Series may be used with Listed Chief models

WM110S, WM120S, WM130S, WM210S, WM220S,

WM230S, WM240S, WM210SI, WM220SI, WM230SI,

and WM240SI (not included).

--SAVE THESE INSTRUCTIONS--

DIMENSIONS

4.39

111.6

4°

ROLL ADJUSTMENT

4.38

111.1

2.88

BOLT CIRCLE

.22

5.6

THREADS ONTO 1-1/2' NPT

1.44

36.5

25°

PITCH ADJUSTMENT

3.10

78.8
