8804-000079 07/26/07

CHIEF MANUFACTURING INC. 1-800-582-6480, Fax: 1-877-894-6918, Email: chief@chiefmfg.com

INSTALLATION INSTRUCTIONS

PSB-2044

LCD DISPLAY MOUNTING BRACKET

Prior to assembly, unpack carton completely and verify contents.

If you are missing any of the following components, please contact Customer Service at 1-800/582-6480

(1) LCD Interface Bracket (4) Mounting Buttons-Tapped 10-24

(4) 10-24 x .5” Button Head Cap Screws (6) M4-.7 x 16mm Phillips Head Cap Screws

(6) ½ x .219 x ¼ Round Nylon Spacer (1) 1/8” Allen Key

BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY

LCD DISPLAYS ARE EXTREMELY FRAGILE.

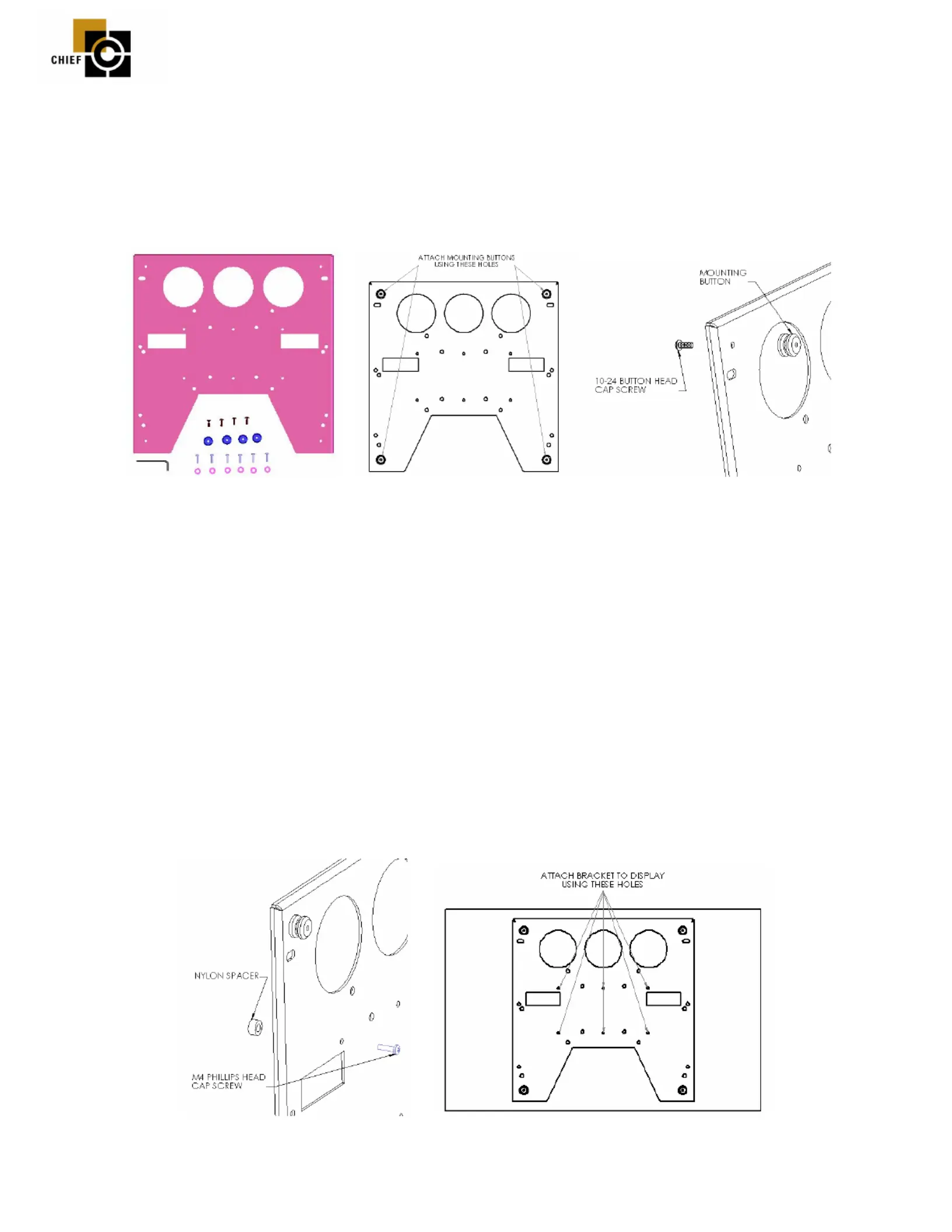

1. Using a 10-24 button head cap screw inserted from back side of bracket, secure mounting button, with

chamfered hole of mounting button (larger surface) facing bracket, to bracket (four places) (see Figure 2

& Figure 3).

2. Place Nylon spacers on mounting holes, aligning hole pattern on brackets with pattern on back of LCD

Display (see Figure 4 & Figure 5).

3. Using M4 Phillips head screws, secure brackets to display. Do not over tighten screws.

4. With the aid of another person, lift LCD Display up to the Chief Mount, aligning buttons of mounting

brackets with slots in the Chief Mount.

5. Lower safety latch on the Chief Mount to secure LCD Display, making sure latch is completely engaged.
