I N S T A L LA T I O N I N S T R U C T I O N S

Chief Manufacturing, a division of Milestone AV Technologies

8401 Eagle Creek Parkway, Savage, MN 55378

P: 800.582.6480 / 952.894.6280 F: 877.894.6918 / 952.894.6918

8804-000362

04/08

ALL COMPONENTS MUST BE SECURELY FASTENED TO A

STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4

TIMES THE COMBINED WEIGHT OF ALL COMPONENTS

PLUS THE EQUIPMENT BEING MOUNTED. IF IT CANNOT

SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE

REINFORCED.

THE MAXIMUM WEIGHT TO BE INSTALLED ON THE

MOUNT IS

175

POUNDS (

79.38

KG).

PSB-2364

FLAT PANEL DISPLAY MOUNTING BRACKET

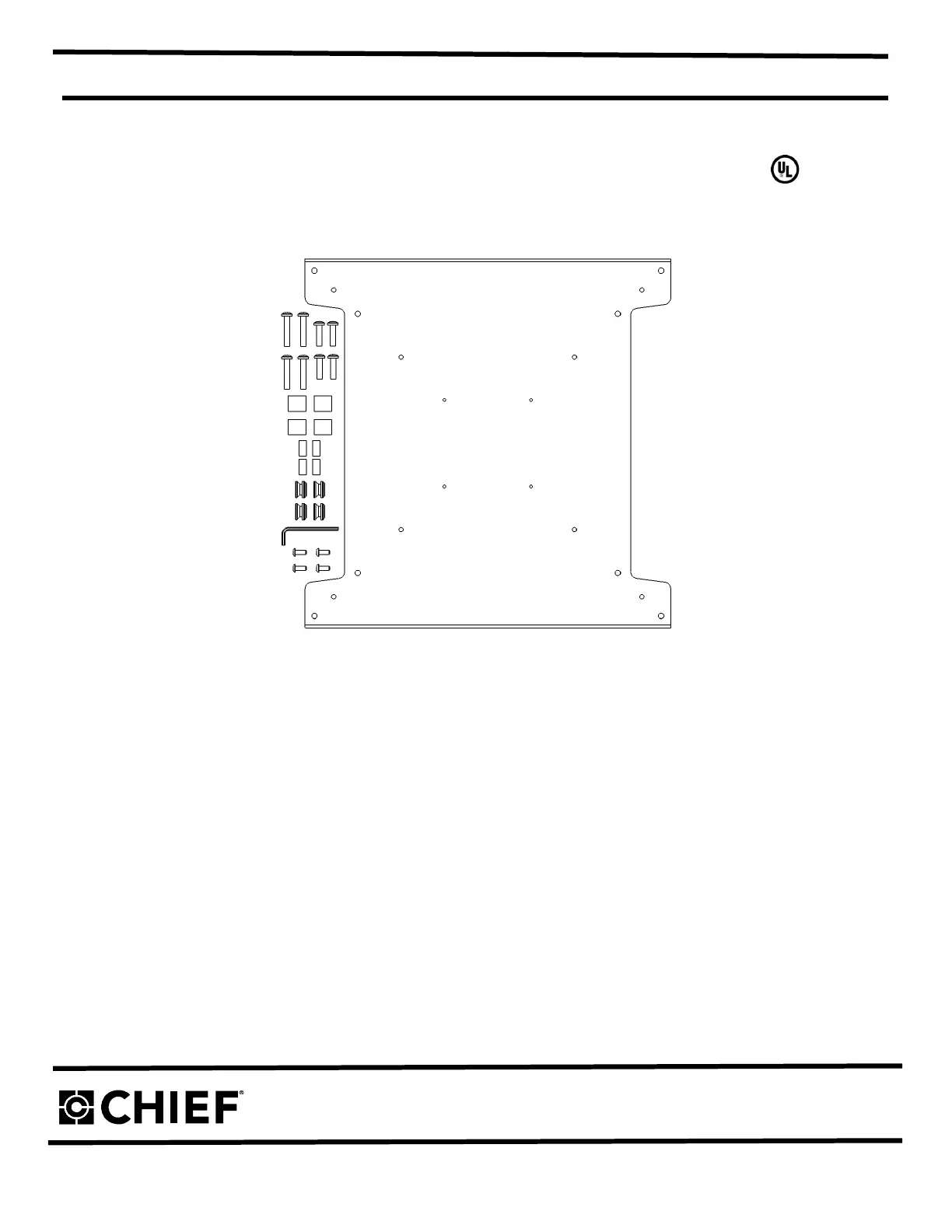

Prior to assembly, unpack carton completely and verify contents.

If you are missing any of the following components, please contact Customer Service at 1-800/582-6480

(1) Interface Bracket (4) Mounting Button – Tapped

(4) 10-24 x .5 Button Head Cap Screw (4) M6 x 35mm Phillips Head Screws

(4) M18 OD x 8.3 ID x 20 L Metric Nylon Spacer (4) M6 x 25mm Phillips Head Screws

(4) .75 OD x .266 ID x .375 L Nylon Spacer (1) 1/8 Allen Key

BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY

DISPLAYS ARE EXTREMELY FRAGILE.

CAUTION!

Figure 1

WARNING!

1. Using a 10-24 button head cap screw inserted from back side of bracket, secure mounting button, with

chamfered hole of mounting button (larger surface) facing bracket, to top and bottom brackets (four places) (see

Figure 2 & Figure 3).

2. Place Nylon spacers over mounting holes on back of screen. Attach mounting brackets to display using the M6

screws (see Figure 4). For 32” and 37” screens use the longer spacer (20mm length) and M6 x 35mm screw

(see Figure 5). For 42” 46” and 52” screens use the .375” spacer and M6 x 25mm Screws (see Figure 6).

3. With the aid of another person, lift your display up to the Chief Mount, aligning buttons of mounting brackets

with slots in the Chief Mount. Lower safety latch on the Chief Mount to secure your display, making sure latch

is completely engaged.

Figure 2 Figure 3

Figure 4 Figure 5 (32” & 37” SCREENS)

Figure 6 (42”, 46” & 52” SCREENS)
