I N S T A L L A T I O N I N S T R U C T I O N S

Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes

no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use

of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or

implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief Manufacturing, a products division of Milestone AV Technologies

8401 Eagle Creek Parkway, Savage, MN 55378

• P: 800.582.6480 / 952.894.6280 • F:877.894.6918 / 952.894.6918

8802-000262 RevB

a Duchossois Group Company

05/09

SSB-193, SSM-193, SLB-193 and SLM-193 Interface Brackets

SSB-193, SSM-193, SLB-193 and SLM-193 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific

installation instructions provided with the mount for additional installation information.

Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.

WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND

DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!

Installation Instructions

WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND

DAMAGE TO EQUPIMENT! DO NOT over tighten screws when installing interface brackets.

NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.

1. Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.

2. Turn projector upside down on a flat surface.

3. Place the 3/8" nylon spacer over the center back mounting hole.

4. Place the interface bracket onto the bottom of the projector and align the holes in the bracket with the threaded inserts in the bottom of the

projector.

5. Position M4 x 16mm mounting screw into back mounting hole and M4 x 10mm mounting screws with washers into front mounting holes.

Tighten all fasteners at this time, securing the bracket to the projector.

NOTE: Security screws can be substituted when mounting interface bracket to projector by using the parts and installation instructions

in the All-Points Security Kit.

(1) Interface Bracket (2) Screw, Phillips Pan Head, Machine, M4 x 10mm

(4) 10-24 Thumb Nuts ** (2) Washer, M4

(1) All-Points Security Kit (1) Screw, Phillips Flat Head, M4 x 16mm

(1) Spacer, Nylon, 3/8"

**Only used when installing SLB/SSB interface brackets.

NOTE: Specific to SSB-style and SSM-style interface bracket installation, all appropriate screws come pre-installed as reflected in the

encircled locations above. DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style

interface bracket installation.

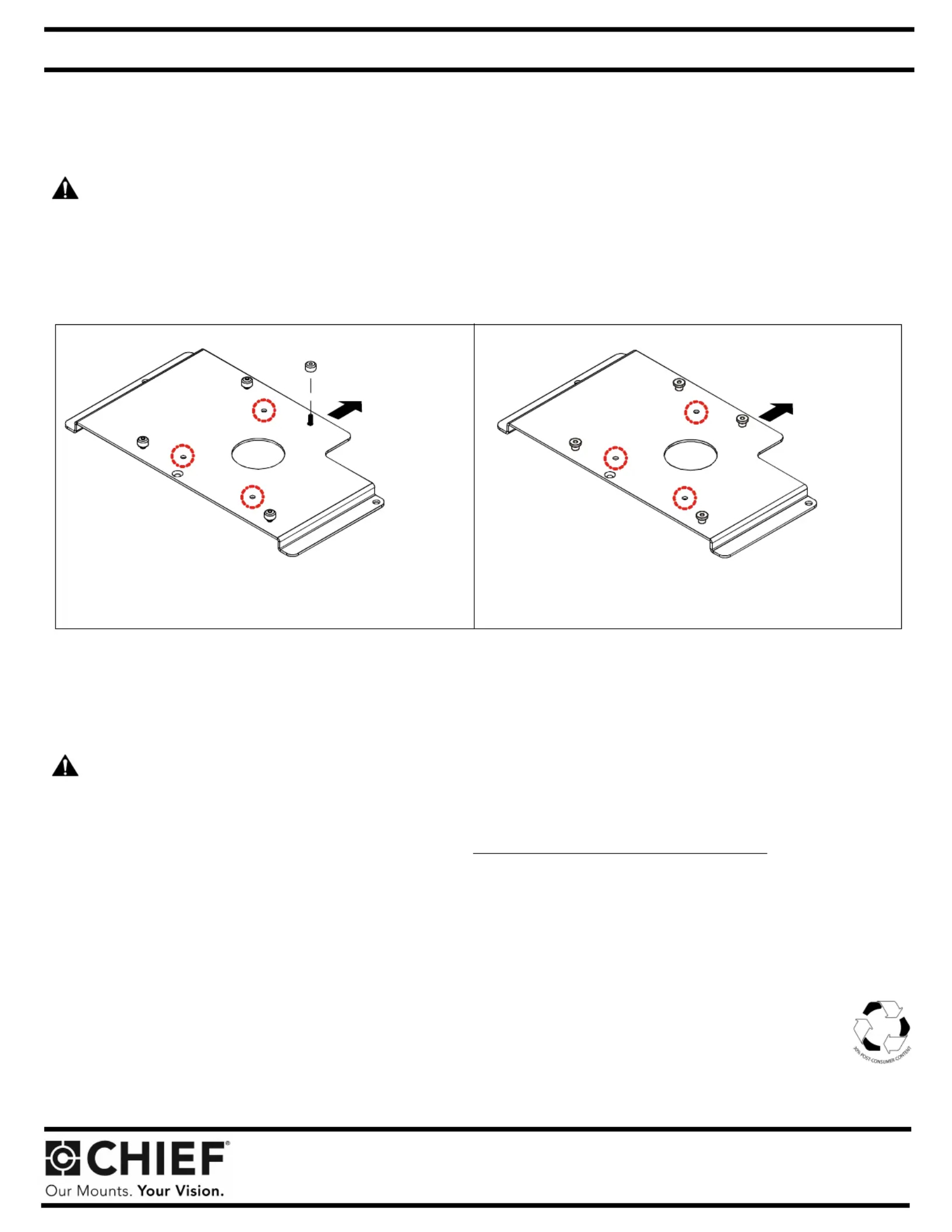

SLB-193 SLM-193

Towards front of

projector

Towards front of

projector

(Note: SSB-style interface bracket connections

)

(Note: SSM-style interface bracket connection

are encircled)
