INSTALLATION INSTRUCTIONS
BRACKET
SSC-4
The SSC bracket is designed for adding additional security to installations. By installing the SSC, a locking
device can be placed to obscure access to fastening hardware.

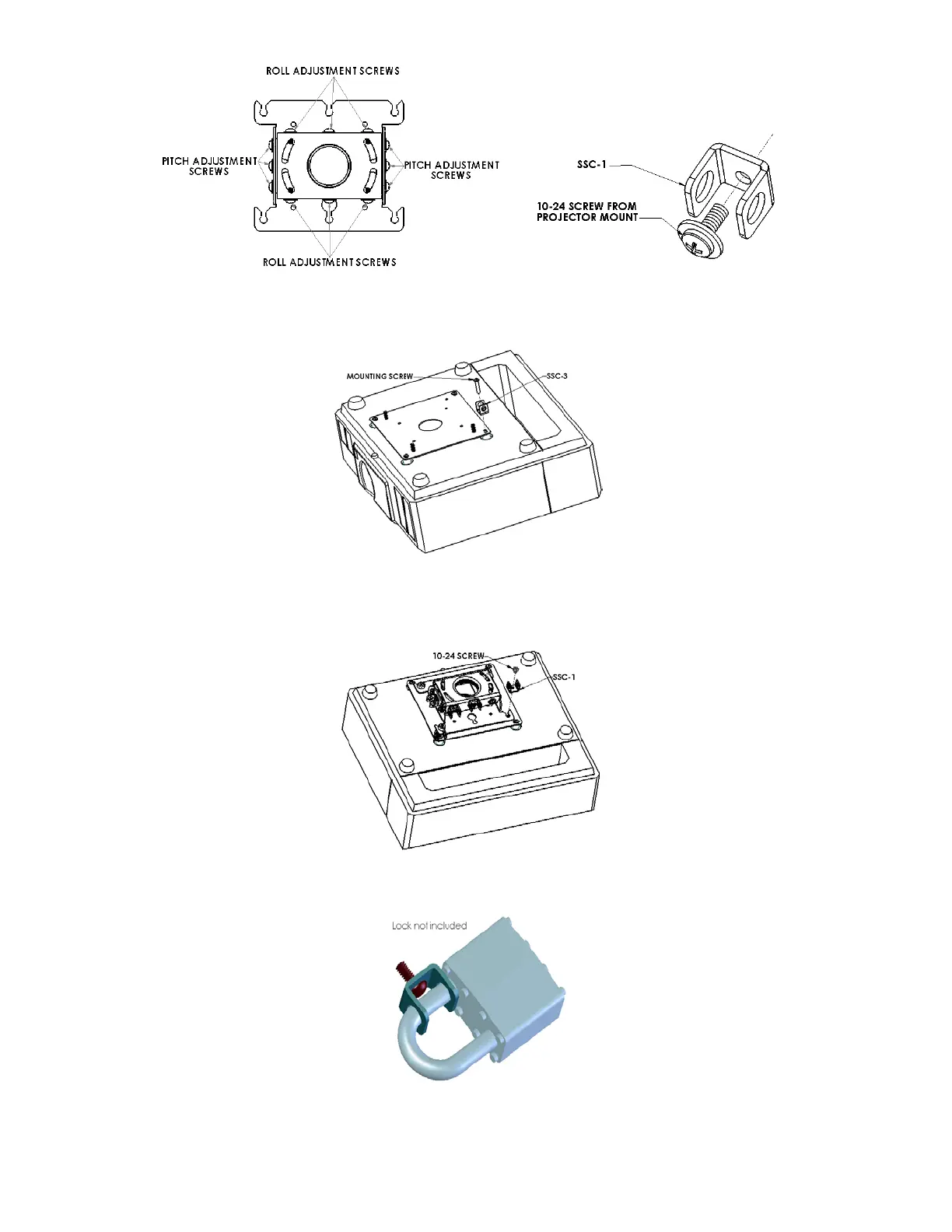

Unpack and check contents (see Figure 1):
(2) SSC-3 (5/16” clearance hole) (1) M4 Flat Washer
(3) SSC-1 (#10 clearance hole) (1) M5 Flat Washer
(1) 10-24 x .25” Phillips Head Cap Screw (1) M6 Flat Washer
(1) 5/16-18 x .625” Button Head Cap Screw (1) 3/16” Hex Key
1. Remove one of the 10-24 screws from the projector’s SLB interface bracket (see Figure 2).
2. Replace the 5/16” set screw of the RPA projector mount with the supplied 5/16” Button Head Cap
Screw and an SSC-3 (see Figure 3).
3. Install an SSC-1 bracket in one pitch and one roll adjustment screw on the RPA projector mount (see
Figure 4 & Figure 5).
Figure 2.
Figure 3.
Figure 1.
4. Place an SSC-3 bracket on one of the mounting points of the SLB interface bracket (see Figure 6).
Depending on the screw size, a flat washer (provided) may be necessary.
5. Install the projector on the RPA ceiling mount.
6. Install the final SSC-1 bracket and 10-24 x .25” screw (provided) into the hole from Step #1 (see
Figure 7).
7. Install locking device in each of the SSC brackets or connect all five by a cable, making sure the head
of each screw is covered (see Figure 8).
Figure 4.
Fi
g
ure 5.
Figure 6.
Figure 7.
Figure 8.
