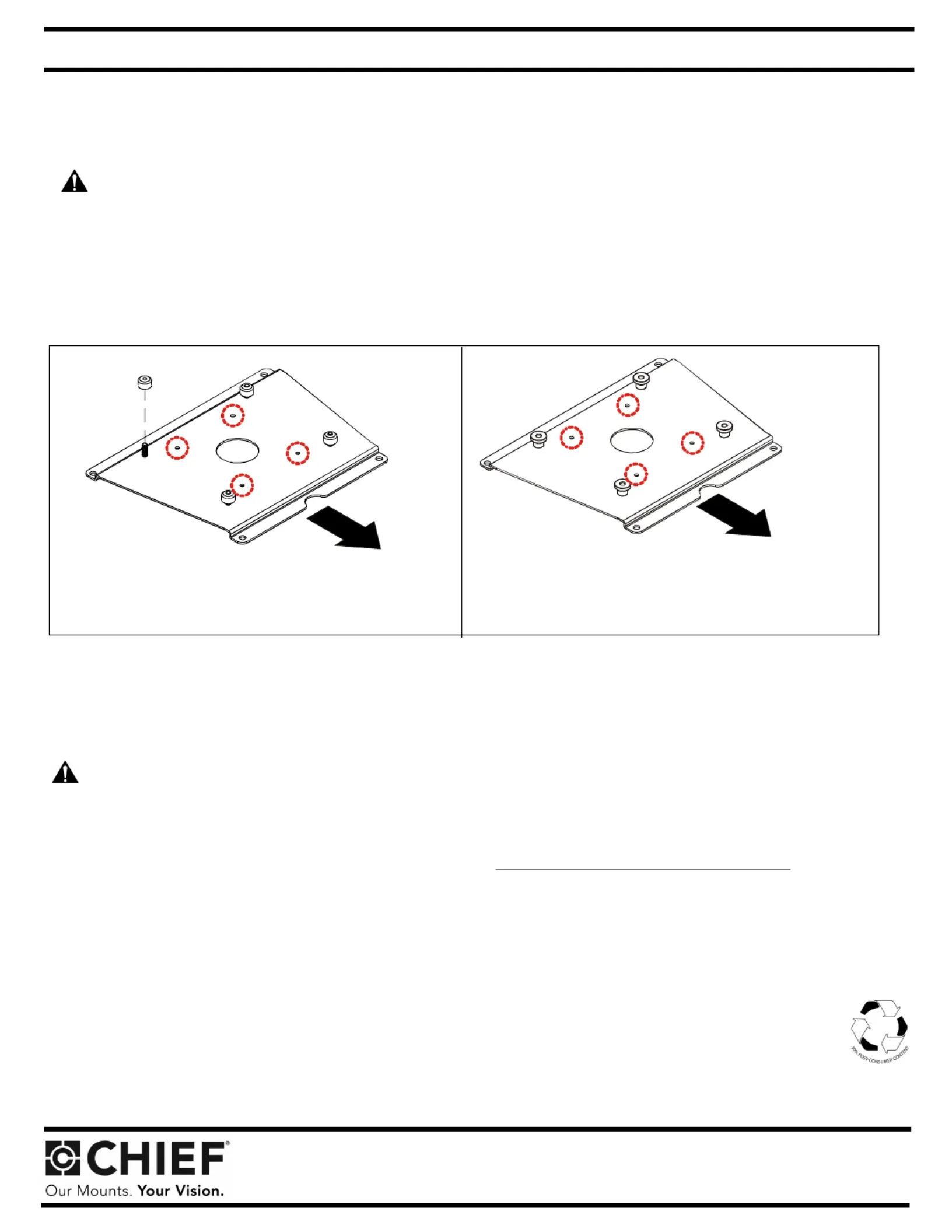

I N S T A L L A T I O N I N S T R U C T I O N S
Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes
no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use
of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or
implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
Chief Manufacturing, a products division of Milestone AV Technologies
8401 Eagle Creek Parkway, Savage, MN 55378
• P: 800.582.6480 / 952.894.6280 • F:877.894.6918 / 952.894.6918
8850-000035 Rev01
©2009 Milestone AV Technologies,
a Duchossois Group Company
05/09
Installation Instructions
WARNING: OVERTIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT! DO NOT over tighten screws when installing Interface bracket.
NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.
1. Screw thumb screws onto the 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
2. Turn projector upside down.
3. Place the interface bracket onto the bottom of the projector, aligning all mounting holes in the bracket with the threaded inserts in the
bottom of the projector.
4. Using M6 x 10mm mounting screws and washers, secure the bracket to the projector and tighten all fasteners at this time.
NOTE: Security screws can be substituted when mounting interface bracket to projector by using the parts and installation instructions in the
All-Points Security Kit.
Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.
SSB-042 SSM-042, SLB-042 and SLM-042 Interface Brackets
SSB-042 SSM-042, SLB-042 and SLM-042 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the
specific installation instructions provided with the mount for additional installation information.
Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.
WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY
AND DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!
(1) Interface Bracket (4) Screw, Phillips Pan Head, Machine, M6 x 10mm
(4) 10-24 Thumb Nuts ** (4) Washer, Flat, M6
(1) All-Points Security Kit
**Only used when installing SLB/SSB interface brackets.
NOTE: Specific to SSB-style and SSM-style interface bracket installation, all appropriate screws come pre-installed as reflected in the
encircled locations above. DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and
SSM-style interface bracket installation.
SLM-042
SLB-042
(
N
o
t
e
:
S
S
M
-
s
t
y
l
e
i
n
t
e
r
f
a
c
e
b
r
a
c
k
e
t
c
o
n
n
e
c
t
i
o
n
s
a
r
e
e
n
c
i
r
c
l
e
d
)
(
Note: SSB-style interface bracket c
o
n
n
e
c
t
i
o
n
s
a
r
e
e
n
c
i
r
c
l
e
d
)
Towards front of
projector
Towards front of
projector
