Side 1/33

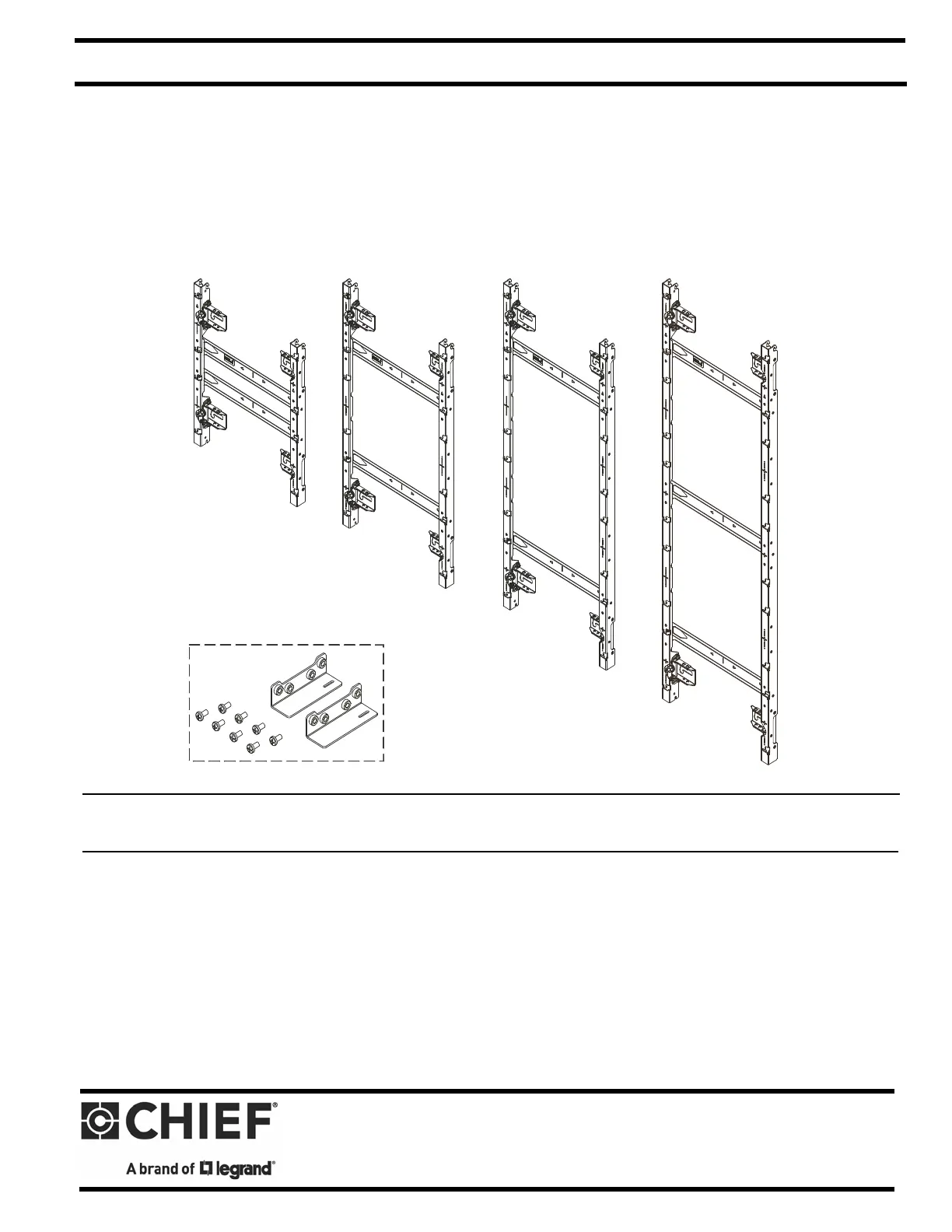

I N S T A L L A T I O N I N S T R U C T I O N S

TIL1X2AP

TIL1X5AP

TILVAB1 Accessory

TIL1X3AP

TIL1X4AP

AP Series LED Wall Mounts / Accessory

Spanish Product Description

German Product Description

Portuguese Product Description

Italian Product Description

Dutch Product Description

French Product Description

TIL1X2AP / TIL1X3AP / TIL1X4AP /

TIL1X5AP / TILVAB1

TIL1X2AP / TIL1X3AP / TIL1X4AP / TIL1X5AP / TILVAB1 Installation Instructions

DISCLAIMER

Legrand and subsidiaries | AV and its affiliated corporations

(collectively “Legrand | AV”), intend to make this manual

accurate and complete. However, Legrand | AV makes no claim

that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Legrand | AV

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Legrand | AV

assumes no responsibility for accuracy, completeness or

sufficiency of the information contained in this document.

Chief® is a registered trademark of Legrand AV Inc.

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the

primary Chief product to which an accessory and/or component

is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief

product which is attached to a primary Chief product, and may

have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item

designed to be attached or resting on an accessory or mounting

system such as a video camera, CPU, screen, display,

projector, etc.

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all mounting systems

are properly assembled and installed using the instructions

provided.

WARNING: Failure to provide adequate structural strength

for this mounting system can result in serious personal injury

or damage to equipment! It is the installer’s responsibility to

make sure the structure to which this mounting system is

attached can support five times the combined weight of all

equipment. Reinforce the structure as required before

installing the mounting system. The wall to which the

mounting system / accessory is being attached may have a

maximum drywall thickness of 5/8” (1.6cm). Do not install

drywall anchors into the seam between drywall pieces.

WARNING: The TIL1X2AP / TIL1X3AP / TIL1X4AP /

TIL1X5AP LED wall mounts are designed for use with LED

panels only. Exceeding the weight capacity (listed) can result

in serious personal injury or damage to equipment!

• TIL1X2AP: 40 lbs (18.1 kg) - 20 lbs (9.1 kg) per

screen;

• TIL1X3AP: 60 lbs (27.2 kg) - 20 lbs (9.1 kg) per

screen;

• TIL1X4AP: 80 lbs (36.3 kg) - 20 lbs (9.1 kg) per

screen.

• TIL1X5AP: 100 lbs (45.4 kg) - 20 lbs (9.1 kg) per

screen.

WARNING: Use this mounting system only for its intended

use as described in these instructions. Do not use

attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is

damaged. Return the mounting system to a service center for

examination and repair.

WARNING: Do not use this mounting system outdoors.

IMPORTANT ! : The TIL1X2AP / TIL1X3AP / TIL1X4AP /

TIL1X5AP LED wall mounts are designed to be mounted to:

• a bare 8" concrete or 8"x8"x16" concrete block wall; or

• a 3/4" thickness plywood-backed, 2" x 4" wood studs

(16" on center minimum) wall with a maximum drywall

thickness of 5/8"; or

• a 3/4" thickness plywood-backed, steel stud wall

covered with drywall having a maximum thickness of

5/8".

--SAVE THESE INSTRUCTIONS--
