Front Panel Controls and Indicators

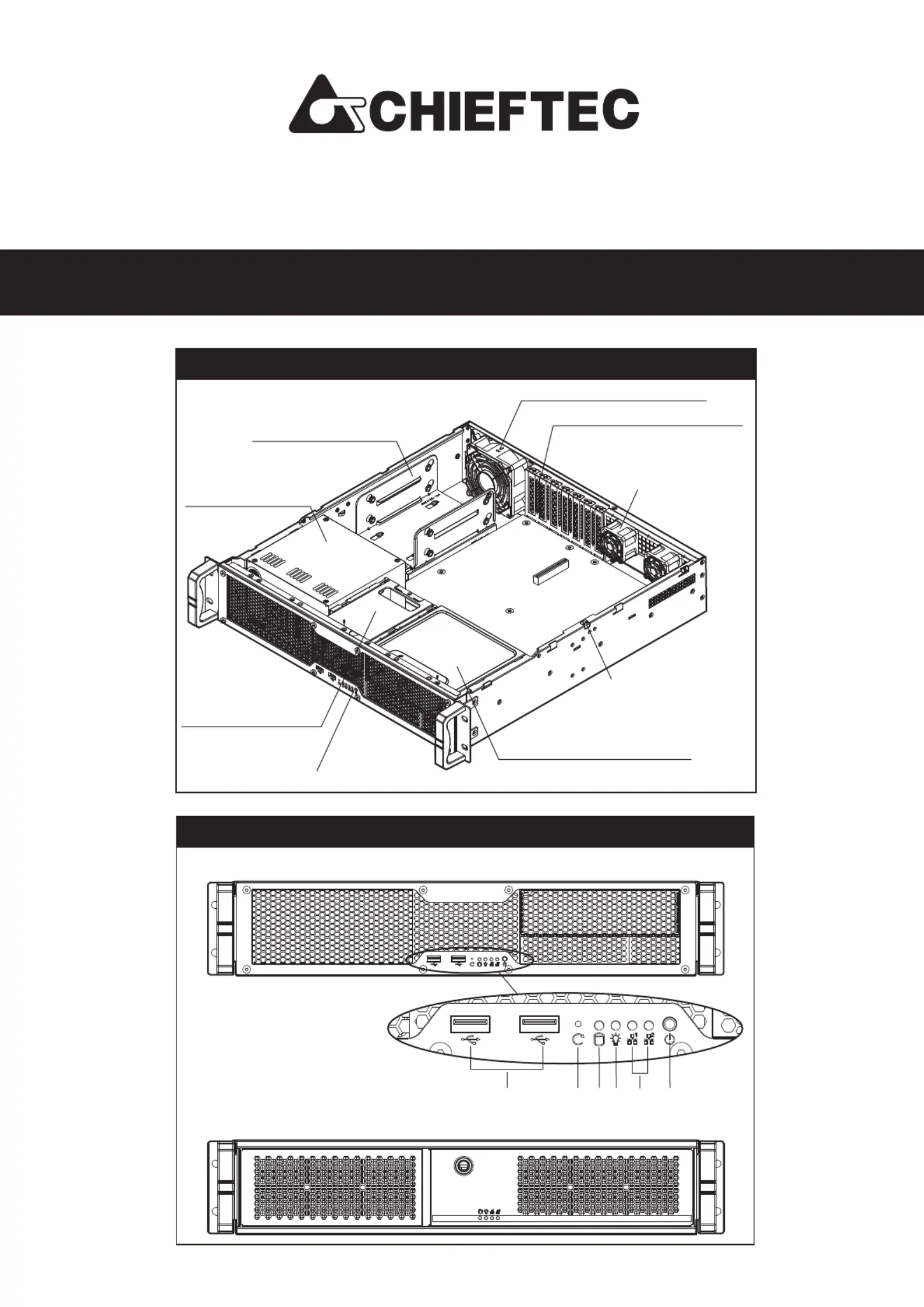

Major Components
IN THIS YOU CAN TRUST
- 01 -
A. Power Switch
B. LAN1, LAN2 Activity LED
C. Power on LED
D. HDD Activity LED
F. USB 2.0 port x 2
ABCDEF
UNC-209SR-B QUICK INSTALLATION GUIDE
Without front door
With front door
Rear Fan: 1x 80mm t 32mm(Option)
Front Controls and Indicators
Single PS/2 PSU
Internal 3.5” HDD x 2
Internal 2.5” SSD x 2
7x Low Profile PCI slots
(or 3x Full Height PCI slots
with optional bracket)
Rear Fan:
2x 40mm t 28mm
(Option)
Intrusion Switch (Option)
1x5.25” ODD+1x3.5” HDD
(or 3.5” FDD) Drive Bay
ATX M/B
(12”x 9.6”)
Rear Window Configuration

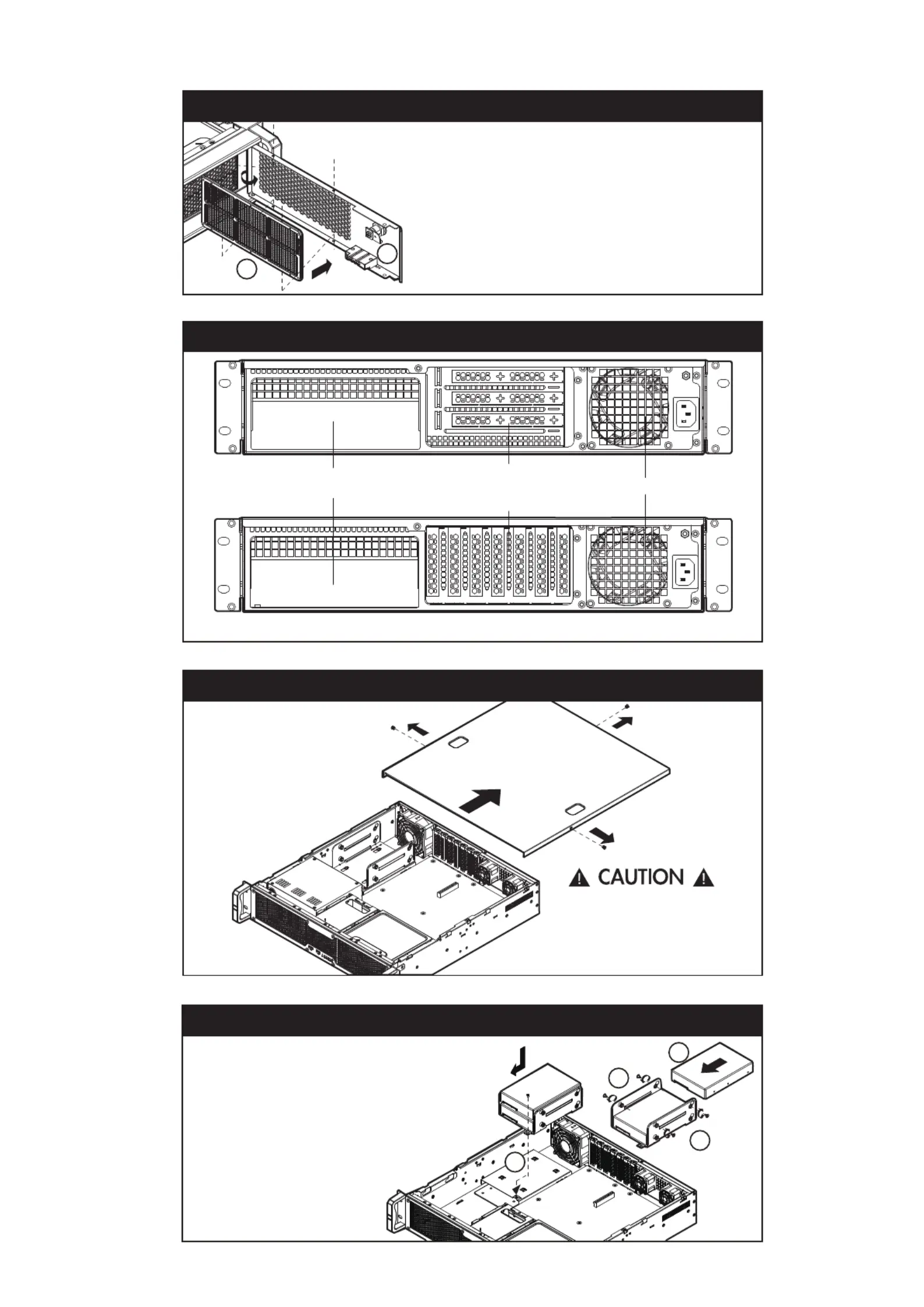

Top Cover Opening
Maintaining Front Door Filter
Installing Internal 3.5” HDD
Release three screws on left,
right and rear sides of the
top cover, and pull back
to open it
- 02 -
1
2
1
2
3
2
1. Unlock the front door and take out the filters to clean
2. Insert two filters on both left and right sides of the
front door with four anchoring points
7x Low Profile PCI slots
3x Full Height PCI slots
with optional braceket
Rear Fan
Standard I/O Opening
This unit must be operated
with the chassis TOP COVER
installed to ensure proper cooling
1. Slide two internal 3.5” HDDs into the bay
2. Use eight quakeproof screws to fix 3.5”
HDDs on both left and right sides of the bay
3. Slide the internal 3.5” HDD assembly
on the chassis and use a screw to
fix it with the chassis
