C S V-1 5 9 5 Q U I C K I N S TA L L AT I O N G U I D E

CSV-1595 QIG 04-2022

Thank you for purchasing our CSV-1595 Product. After unpacking

the product, please make sure you have all the items provided and

checked for any damages. In case of any missing/damaged parts

please inform your supplier immediately.

You should have:

• CSV-1595

• QIG, Quick Installation Guide

USB Gen1 Type-C 7-in-1 hub with 2x HDMI™, 2x USB Gen1 Type-A, 1x RJ45,

1x 3.5mm Audio, 1x USB Gen1 Type-C 100W Female port

Disclaimer:

While we endeavor to provide the most accurate, up-to-date information available, the content on this document may be out of date or include omissions, inaccuracies or other errors. Therefore Club 3D does not accept any rights claimed on the content of this document.

Please refer to a full overview of our Legacy Terms and Conditions on www.club-3d.com. All other brand names are trademarks or registered trademarks and are the property of their respective owners. All content is subject to change without prior notice.

The Club 3D CSV-1595 USB Gen1 Type-C 7-in-1 hub with with 2x HDMI™, 2x USB Gen1 Type-A, 1x RJ45, 1x 3.5mm Audio, 1x USB Gen1

Type-C 100W Female port, provides a very advanced, ecient solution to extend a single USB Gen1 Type-C port to multiple ports.

Supports HDMI™ max. 4K@30Hz and HDMI max. 4K@60Hz driver installation needed for MacOSX*

Features:

• Support DP™1.4 Alt mode

• Support HDMI™ max 4K@60Hz from the USB

Type-C Display Alternate Mode function

• Support HDMI™ max 4K@30Hz from the

integrated chipset in the dock - make sure to

install the driver from our website at www.

club-3d.com

• Support HDCP1.4, HDCP 2.2

(on the HDMI with AltMode Function only)

• Support dual displays for Mac M1 / M2 users.

• Max 5Gbps data transmission per USB Gen1

Type-A port

• Support max 7.5W(5V/1.5A) downstream

charging, 2 USB Gen1 Type-A BC 1.2

• Support Gigabit Ethernet 10M/100M/1000M,

RJ45

• Support Audio output

• Support 1x USB Type C Female PD3.0 with max

100W PD charging and Gen1 5Gbps of data

transfer

Make sure to install the driver* from our website CSV-1595 product page at www.club-3d.com

Please conﬁrm the monitor’s resolution meets resolution requirements before use.

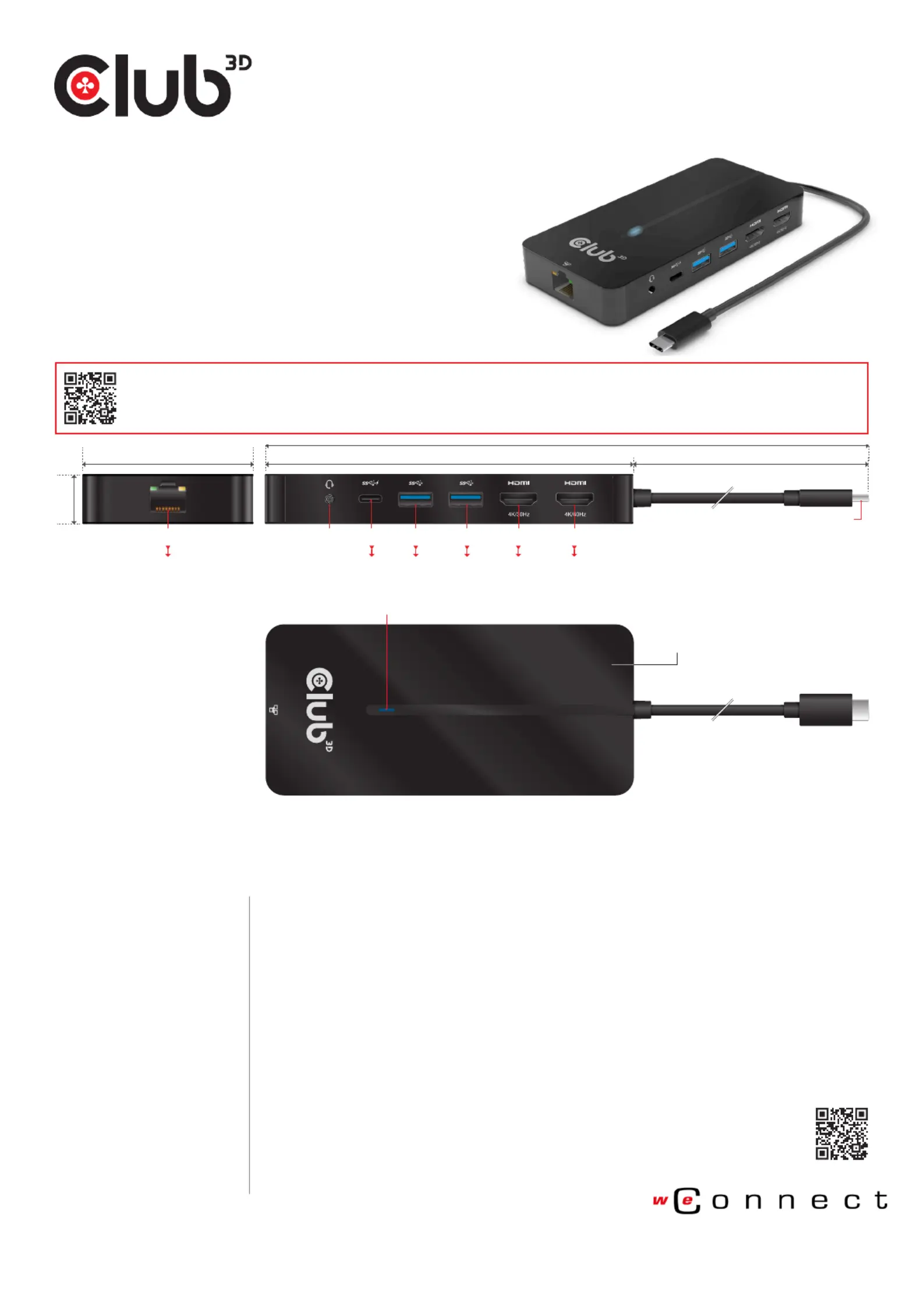

Blue Led indicator

14cm / 5.51"

USB-A

Female

USB-A

Female

* Check the complete product information

about System requirements (Windows/Mac)

Type-C Host PC

USB-C

Female

HDMI

Female

HDMI

Female

RJ45

Jack

3.5 mm

Audio jack

4K/30HzEthernet Router up to 1000MB/s

USB3.0A

5Gbps

BC1.2

USB3.0A

5Gbps

BC1.2

5Gbps +

PD3.0(100W)

4K/60Hz

Support dierent displays

4K/60Hz+4K/30Hz)

simutaneously

Cable length ± 25 cm / 9.84"6.5cm / 2.56"

1.9cm / 0.75"

Aluminum housing

Available Interfaces:

Input:

• USB Gen1 Type-C Male

(Connect to host)

Output:

• 2x HDMI™ Female

• 2x USB Gen1 Type-A Female

• 1x RJ45

• 1x 3.5mm jack Audio

• 1x USB Gen1 Type-C Female

NOTE:

Please make sure your host

supports DP™1.4 Alt mode.

* For Mac OSX users please

download driver from the

CSV-1595 product page

at our website.

Produkt Specifikationer

Mærke:	CLUB3D
Kategori:	Computertilbehør
Model:	CSV-1595
Bredde:	140 mm
Dybde:	65 mm
Højde:	19 mm
Vægt:	210 g
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Pakkevægt:	286 g
Pakkedybde:	35 mm
Pakkebredde:	210 mm
Pakkehøjde:	210 mm
HD-type:	4K Ultra HD
Understøttede videotilstande:	1080p, 2160p
Antal HDMI-porte:	2
HDCP:	Ja
Ethernet LAN-porte (RJ-45):	1
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte:	2
Ethernet LAN-datahastigheder:	10,100,1000 Mbit/s
Pakketype:	Kasse
Certificering:	ROHS, FCC, CE EMI
Strømforbrug (maks.):	7.5 W
Udgangsspænding:	5 V
Udgangsstrøm:	1.5 A
Kabellængde:	0.25 m
Understøttede Windows-operativsystemer:	Ja
Understøttede Mac-operativsystemer:	Ja
Værtsgrænseflade:	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Plug and play:	Ja
Maksimal opdateringshastighed:	60 Hz
Ethernet-grænsefladetype:	Fast Ethernet, Gigabit Ethernet
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte:	1
Kombineret hovedtelefon/mikrofon-port:	Ja
Dataoverførselshastighed:	5000 Mbit/s
HDCP-version:	2.2
Kabeltype:	Rundt kabel
USB strømforsyning revision:	3.0
USB strømforsyning:	Ja
Porte, antal:	7
USB type-C DisplayPort alternativ tilstand:	Ja
Antal understøttede skærme:	2
USB strømforsyning op til:	100 W
Hub-grænseflader:	3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
