Side 1/2

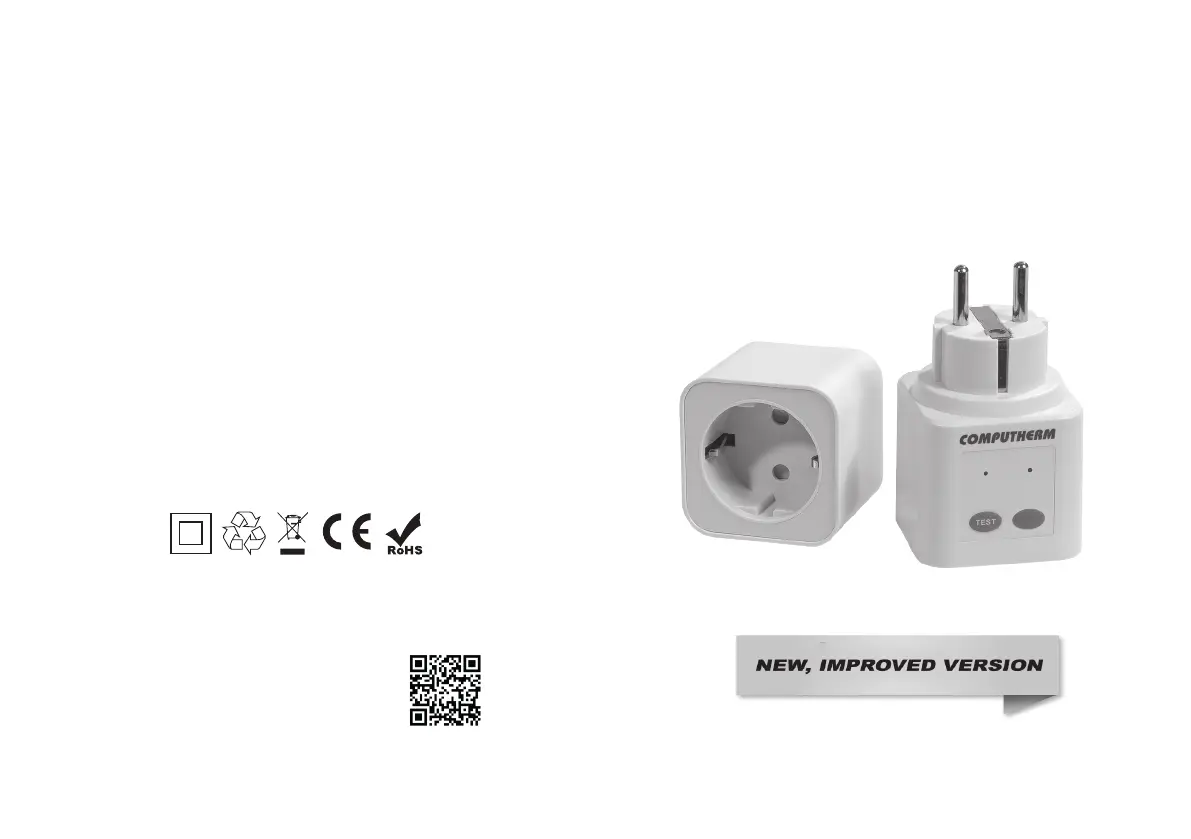

COMPUTHERM

Q2RF

wireless (radio-frequency) signal repeater (range

expander) plug for enlarging the range of the

COMPUTHERM

Q3RF Q5RF Q7RF Q8RF, , ,

thermostats

Warning! The manufacturer does not assume responsibility for

any direct or indirect damages and loss of income occurring

while the appliance is being used.

4. TECHNICAL DATA

• Power consumption: 0,5 W

• Power supply voltage: 230 V AC, 50 Hz

• Output voltage: 230 V AC; 50 Hz

• Maximum output current: 16 A (4 A inductive load)

• Operating frequency: 868,35 MHz

• Range of the switching signal sent by the socket:

approx. 100 m in open terrain

• Protection against environmental impacts: IP30

• Weight: 102 g

• Dimensions: 53 x 53 x 90 mm (W x H x D)

• Storage temperate: -10 ºC – +40 ºC

Operating Instructions

The

COMPUTHERM

Q2RF signal repeater plug complies

with the requirements of the directives

RED 2014/53/EU and ROHS 2011/65/EU.

Manufacturer: QUANTRAX Ltd.

Fülemüle u. 34., Szeged, H-6726, Hungary

  Phone:+3662424133•Fax:+3662424672

  Email:iroda@quantrax.hu

  Web:www.quantrax.hu

www.computherm.info

Origin: China

1. GENERAL DESCRIPTION

The

COMPUTHERM

Q2RF plug was developed for the

COMPUTHER M

Q3RF, Q5RF, Q7RF and Q8RF thermostats to increase their wire-

less range. The original range of Q3RF, Q5RF, Q7RF and Q8RF ther-

mostats is 50 m in open area, which can be signicantly shortened

by the structure of the building. To be able to use the Q3RF, Q5RF,

Q7RF and Q8RF thermostats in larger buildings too, it is advised to

use a wireless signal repeater. This can be achieved by using the

COMPUTHERM

Q2RF wireless repeater: it receives the signals of the

wireless thermostats and retransmits the signal to the receiver unit, thus

making the range larger. The range of the signal sent by the signal repeat-

er is approx. 100 m. The plug should be connected to the mains Q2RF

voltage (230 V, 50 Hz), meanwhile on the output of the plug the 230 Q2RF

V, 50 Hz mains voltage also appears. The maximum load of the plug is be

16 A (4 A inductive).

2. PUTTING THE WIRELESS REPEATER

INTO OPERATION

When choosing the location of the signal repeater unit you should re-

member that bulky metal objects (e.g. a boiler, bu󰀨er tank, etc.) and metal

building structures may have an adverse e󰀨ect on propagation of radio

waves. If it is possible, in order to ensure trouble-free RF connection, we

recommend that you install the receiving unit at a height of 1.5 to 2 m and

at a distance of 1 to 2 m from the boiler or other bulky metal construc-

tions. It is advisable to install the

COMPUTHER M

Q2RF signal repeater in

a place protected from moisture, dust, chemicals and heat.

WARNING! Modifying the socket can cause electric shock or prod-

uct failure.

Connect the

COMPUTHER M

Q2RF wireless repeater plug to the mains

voltage, approximately half way between the Q3RF, Q5RF, Q7RF and

Q8RF thermostat and Its receiver unit. After a couple of seconds the

LEDs on the front panel of the plug ash once, after which the plug is

ready for operation. Without tuning the device together with the thermo-

stat or its receiver unit, it receives the signals from all Q3RF, Q5RF, Q7RF

and Q8RF thermostats in its range, after which it transmits the signal to

the receiver unit using the same security code. The receiving and the the

sending of the signals are shown by the followings: red LED blinks two

times, then both LEDs blink one time and nally the green LED blinks

2 times. It causes absolutely no problems if there are more thermostats

working in the range of the wireless repeater: as the security codes are

kept for the repeated signals, an incorrect switch is not possible.

3. FAST CHECK OF THE OPERATION OF

THE WIRELESS REPEATER

By pressing the „TEST” button, the verication of the operation of the

Q2RF plug is easy, fast and can be done within one room by following the

steps below:

1. Unplug the device, in case it was plugged in before, and wait apQ2RF -

proximately 1 minute to make sure that the capacitors inside the device

are discharged.

2. Press and hold down the grey „TEST” button on the device, and mean-

while connect it to the mains voltage. Do not release the „TEST” button

until the LEDs on the front side of the device rst start ashing alter-

nately, then after a couple of seconds they become continuously illumi-

nated for approximately 2 seconds together. After the LEDs switch o󰀨,

the device is in „TEST” mode, and it is ready for the verication of its

operation.

3. The „TEST” mode of the wireless repeater inverts the signal sent from

the thermostat to the receiver unit. When the thermostat sends a switch

on command to the receiver unit and the sign of the heating/cooling

equipment working appears on the display of the thermostat, the re-

ceiver unit turns o󰀨. Similarly, after the switch o󰀨 signal of the thermo-

stat, the wireless repeater sends a switch on signal to the receiver unit.

The inverted operation shows that the signal repeater is working prop-

erly. With the help of this „TEST” mode, it is easy and fast to check the

proper operation of the Q2RF wireless repeater even if it is close to the

thermostat and the receiver unit.

4. To nish using the „TEST” mode, unplug the device from the mains

voltage and wait approximately 1 minute to make sure that the capaci-

tors are discharged. After this connect the device to the mains voltage

again, and then it is ready to use.
