Side 1/4
Connect Power Adaptor
1 2 3
Connect console
1. Monitor
2. Mouse
3. Keyboard
Special note:
If your device cannot work in rear console DDM ports properly, please connect it to the hub ports on
the front panel. The rear console ports can be connected with USB HID devices only.
Connect cables
Connect KVM cable from
computer system to KVM
ports
Front & Rear View
5V DC i n
DVI I-DVI I- DVI I-DVI I-DVI I-
USB
USB 1
Reset 1234
Ctrl
Shift
Scroll
Lock
Caps
Lock
Hot- Key
Sele ct
/
-UD 14 + MAST ER IT U SB- DVI KVM SWIT CH w/
USB 2
USB 2.0 HID devices DDM console connections for mouse and keyboard
Serial port for extra control and firmware upgrade ( CRJ45-DB9F-5 serial cable )
DVI connection for LCD or CRT monitor
KVM ports for connecting systems
Power input
DC 5V 2000 mA
Master-IT USB switches are
designed for effectively saving
energy.
IR Remote Control Sensor
Push-button selection
Hot-key selection
Hot-key indicator
( both LEDs not lit = hot-key has been disabled )
USB device sharing port ( high speed USB 2.0 )
Special note:
LED light will be quickly flashing while the KVM is mapping out the device. Features & Benefits
100% compatible with USB HID devices ( for USB DDM ports )
Compatible with Windows ( Windows 98, 2000, XP, Vista, Windows 7 ), Linux and Mac OS
Front panel push-button for easy computer selection
User selectable multi-hotkey ( Crtl, Shift, Scroll Lock, Caps Lock, Hotkey disable )
Backlit push-button with multi-color LED for easy monitoring and selection
Built-in IR remote receiver and selectable Hot-key control
Buzzer sound for computer switching confirmation
Plug-and-Play system configuration
Additional USB ports for device sharing, or assign to a certain port
No drivers needed for keyboard and mouse operation
RS-232 control and firmware upgradable
DVI interface, supports the DVI-I monitor
Max video resolution supported 1920 x 1200
Built-in All-time Full DDC ( Active - DDC to all connected systems )
3-year Warranty
TM

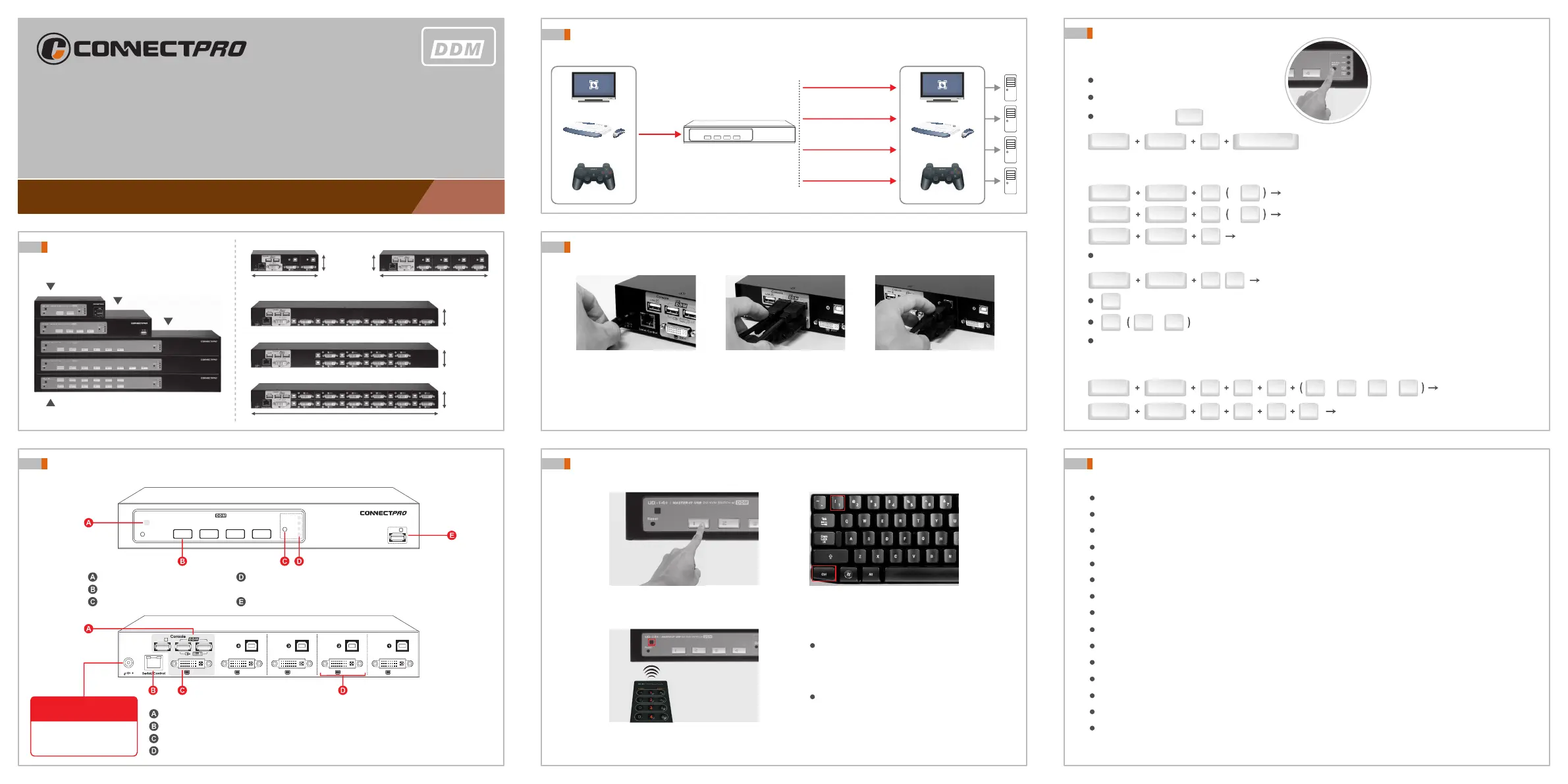

Installation Guide
UD-12+ / UD-14+ / UD-16+ / UD-18+ / UD-112+
Master-IT USB Plus+ - Advanced USB DVI KVM switch w/ DDM & multi-hotkey
USB
TM
Port Selection
Press button to select port
for control
Use IR remote controller for
( optional )
selecting port
Type hot-key to select port
for control
Via RJ-45 serial port -
control commands issued from
communication application such
as Hyper Terminal.
Via Mouse-click switching -
An optional function only released
to OEM/ODM or special projects.
Hot-Key Command
1. Hot-key selection
Turn on Auto Channel Scan
last setting interval , default 5 seconds
= =
5, 8, 15, 20, 30 seconds
=
Turn off Auto Channel Scan by pressing any key
Hot-key Hot-key S N
S
N15
~
2. Hot-key and functions
Default Hot-key =Ctrl
Via front panel Hot-key select button
Via Hot-key control
Hot-key Hot-key HNew Hot-key
Switch to Port #1 ( ~ Port #8 )
1
Turn switching confirmation
buzzer sound on/off
Hot-key 8
Z
Default buzzer sound off
=
Hot-key
Hot-key Hot-key
Switch to Port #A ( ~ Port #F )
A
Hot-key Hot-key F
~
~
3. Assign USB port command
H
Hot-key Hot-key
Hot-key Hot-key
1
0 PH Default USB port setting
( Sync with KVM port selection )
P
0
1~8 A F
~Assign USB #1 for
a certain port use only
,
What is USB DDM
USB Devices
PC
KVM
100% device mapping
USB DDM port
100% device mapping
100% device mapping
100% device mapping
USB Devices
1234
Touch-screen
wireless keyboard
and mouse
Joy stick
Touch-screen
wireless keyboard
and mouse
Joy stick
Product View
275 mm ( 10.83 inch )
UD-112+
165 mm ( 6.5 inch )
44 mm
( 1.73 inch )
44 mm
( 1.73 inch )
440 mm ( 17.3 inch )
UD-12+ UD-14+
UD-18+
44 mm
( 1.73 inch )
UD-16+
44 mm
( 1.73 inch )
UD-12+
UD-14+
UD-16+
UD-18+ & UD-112+
