Ender-2 Pro
3D打印机用户使用手册
3D Printer User Manual
V1.4
Ender-2 Pro
创造现实, 成就梦想
Create reality, achieve dreams
尊敬的用户：
感谢您选择创想三维的产品。为了您使用方便，请您在使用之前仔细阅读本说明书，并严格按照说明书的指示进行操作。
创想三维团队时刻准备为您提供优质的服务。在使用过程中无论遇到什么问题，请按照说明书结尾所提供的电话、邮箱与我们进行联系。
为了您能够更好地体验我们的产品，您还可以从以下方式获取设备操作知识：
您可以在存储卡内找到相关使用说明及视频。
您还可以登陆创想三维官网(www.cxsw3d.com)寻找相关软硬件、联系方式、设备操作、设备保养等信息。
Dear Consumers,
Thank you for choosing our products. For the best experience, please read the instructions before operating the printer. Our
teams will always be ready to provide you the best services. Please contact us via the phone number or e-mail address
provided at the end when you encounter any problem with the printer.
For a better experience in using our products, you can also learn how to use the printer in the following ways:
View the accompanied instructions and videos in the storage card.
Visit our official website www.creality.com to find relevant software/hardware information, contact details, operation mainte-
nance instructions.
固件升级
请您登录官网https://www.cxsw3d.com,点击首页→服务支持→下载所需固件,安装完成后即可使用。
Firmware Upgrade
Please login the official website https://www.creality.com/download, switch the language and select the relevant printer and
model and download the required firmware.
NOTES 使用须知
1
2
3
4
5
6
7
8
9
10
12
11
请勿尝试任何使用说明中没有描述的方法来使用本机，避免造成意外的人身伤害和财产损失;
请勿将打印机放置在振动较大或者其他不稳定的环境内，机器晃动会影响打印机打印质量;
建议使用厂家推荐耗材，以免造成机器损坏;
请勿将本机放置在易燃易爆物中或高热源附近，请将本机放置在阴凉、少尘的环境内;
请勿在安装过程中使用其他产品电源线代替，请使用本机附带的电源线，电源插头需接插在带有地线的三孔插座;
请勿在打印机工作时拆卸打印机，以免影响打印;
请勿在操作打印机时戴棉手套，以防可动部件对人身造成卷入挤压和切割伤害;
在打印完毕后及时利用喷头的余温借助工具将喷头上的耗材清理干净，清理时请勿直接用手触摸喷头,以防出现烫伤;
用干布对打印机做机身清洁，拭去灰尘和粘结的打印材料;
年龄在10岁以下的儿童，请勿在没有人员监督的情况下使用本机，以免造成人身伤害;
请勿在开机状态下手动快速移动喷头或打印平台，否则设备有可能会出现故障，无法正常工作;
使用者应遵守设备所在地（使用地）相应国家、地区法律法规，恪守职业道德，注意安全义务，严禁将我司的产品或设备使用在任何非法用途上。如有违反者所应承担的相关法律责任我司概
不负责。
1
2
3
4
5
6
7
8
9
10
Do not use the printer any way other than described herein in order to avoid personal injury or property damage.
Do not place the printer near any heat source or flammable or explosive objects. We suggest placing it in a cool and dustless environment.
Do not expose the printer to violent vibration or any unstable environment, as this may cause poor print quality.
Please use recommended resin to in case damage of machine.
Do not use any other power cable except the one supplied. Always use a grounded three-prong power outlet.
Do not disassemble the printer while operating the printer, so as not to affect printing.
Do not wear cotton gloves when operating the printer. Such cloths may become tangled in the printers moving parts leading to burns, possible bodily injury, or printer damage.
When cleaning debris from the printer hotend, always use the provided tools. Do not touch the nozzle directly when heated. This can cause personal injury.
Clean the body of the printer with dry cloth to remove dust and bonded printing materials.
Children under 10 years old should not use the printer without supervision.
Don’t manually move the nozzle or printing platform quickly under the power-on state; otherwise, malfunction may be caused, leading to failure of operation.
11
12
Users should comply with the laws and regulations of the corresponding countries and regions where the equipment is located (used), abide by professional ethics, pay
attention to safety obligations, and strictly prohibit the use of our products or equipment for any illegal purposes. Creality will not be responsible for any violators' legal
liability under any circustance.
Contents目录
Introduction 设备简介 01-01
Equipment Parameters 设备参数
02-02
Package Content 零件清单 03-03
04-04Assemble XZ-axis Kit 组装XZ轴组件
05-05Fix XZ-axis Kit 固定XZ轴组件
06-06Install the Rack 安装料架组件
08-09Cable Connection 设备连线
10-10Install Display Screen 安装显示屏
12-13Bed Leveling 调平平台
11-11Solution for V-wheel Jamming V轮卡顿解决方案
14-16Preheating 预热
17-17Load Filament 装料
18-19Start Printing 开始打印
20-20Circuit Wiring电路接线
21-22Trouble-shooting 故障检修
23-26FDM 3D PRINT FILAMENTS 3D打印耗材
Assemble Handle 组装把手
07-07
1. Introduction 设备简介
1
5
8
14
17
9
10
11
12
6
7
2
3
4
1
XZ-axis kit
XZ轴组件
2
X-axis limit switch
X轴限位开关
3
4
Screen
显示屏
5
6
7
Knob
旋钮
8
Extruder
挤出机
9
E-axis motor
E轴电机
10
Tool box
收纳盒
13
14
Handle
把手
Material rack and material tube
料架及料管
15
Coupling
联轴器
16
Toggle switch
拨动开关
Y-axis motor
Y轴电机
13
15
16
Z-axis limit switch
Z轴限位开关
Nozzle kit
喷头套件
Print platform
打印平台
11
12
Power
Power outlet
电源
17
电源插座
01
2. Equipment Parameters 设备参数
Model | 型号 Ender-2 Pro
165*165*180mm
FDM
1
Standard 0.4mm | 标配0.4mm
0.1mm-0.4mm
士0.1mm
Yes | 支持
No | 不支持
No| 不支持
English | 中文
WIN/XP/MAC/Linux/Vista
PLA/TPU/Wood | 木材
STL/OBJ/AMF
Cura/Repetier-Host/Simplify3D
USB or storage card |USB或存储卡脱机
150WRated Power | 额定功率
Bed Temp | 热床最高温度
Nozzle Temp | 喷嘴最高温度
Operating System | 电脑操作系统
Printing Speed | 打印速度
Language Selection | 语言切换
Resume Print | 断电续打
Filament Detector | 断料检测
Auto Leveing | 自动调平
Printing Size | 成型尺寸
Molding Tech | 成型技术
Precision | 打印精度
Nozzle Diameter | 喷嘴直径
File Format | 切片支持格式
Filament | 打印材料
Slice Software | 可兼容切片软件
Working Mode | 打印方式
Rated Voltage | 额定电压
Nozzle Number | 喷头数量
Slice Thickness | 切片层厚
Basic Parameters 基本参数
≤80℃
260℃
115/230V.ac 50/60Hz
30-100mm/s
02
3. Package Content 零件清单
1
Printer base
I
底座组件
x 1
5
XZ-axis kit | XZ轴组件 x 1
2
Handle | 把手 x 1
6
Material rack
I
料架
x 1
3
Screen kit
I
显示屏组件
x 1
4
Power cord
I
电源线
x 1
8
Filament x 1
耗材
7
Material tube
I
料管
x 1
*
Tips: the above accessories are for reference only, please refer to the physical accessories!
注意：以上配件仅供参考，请以实物为准！
9
M4x16 hexagon socket x 2
button head screws
M4x16内六角平圆头螺丝
12
M5x14 hexagon
socket button
head screws
x 2
M5x14内六角平圆头螺丝
17
Quick connect
buckles
x 2
快接卡扣
14
Wrenches and x 1
screwdrivers
扳手和螺丝刀
13
Storage card & x 1
card reader
存储卡和读卡器
Needle
x 1
通针
16
18
Nozzle x 1
喷嘴
19
Small pneumatic
joint
小气动接头
20
Large pneumatic
joint
x 1
大气动接头
10
M5x45 cylinder-head
combination screw
with washer
x 2
x 2
M5×45圆柱头带垫组合螺丝
11
M5x40 hexagon
socket button head
screws
x 1
M5x40内六角平圆头螺丝
15
Diagonal pliers
x 1
剪钳
03
4.Assemble XZ-axis Kit 组装XZ轴组件
4.Asseble Single Cantilever 组装单悬臂
1
5
Printer base
I
底座组件 x 1
5
1
XZ-axis kit | XZ轴组件 x 1
XZ-axis kit are vertically installed on the base. (As shown in the figure) | XZ轴组件垂直安装在底座组件。（如图所示）
04
5. Fix XZ-axis Kit 固定XZ轴组件
9
M4x16 hexagon socket x 2
button head screws
M4x16内六角平圆头螺丝
10
10
M5 x 45 cylinder-head
combination screw
with washer
x 2
M5×45圆柱头带垫组合螺丝
9
A.Screw up two M4x16 hexagonal socket button head cap screws from the front. | 将两颗M4x16内六角平圆头螺丝从正面扭紧固定。
B.Tighten and secure it with two M5x45 cylinder-head combination screws with washer from the bottom. | 再用两颗M5x45圆柱头带垫组合螺
丝从底部扭紧固定。
05
Fix the threaded end of the material tube on the rack, then align the screw hole of the rack with the position of the base, and finally fix it
with one M5x40 hexagonal socket button head cap screw. (As shown in the figure)
将料管带螺纹的一端固定在料架上，再把料架的螺孔对准底座组件的位置，最后用一颗M5x40内六角平圆头螺丝扭紧固定。（如图所示 ）
11
11
M5x40 hexagon
socket button head
screws
x 1
M5x40内六角平圆头螺丝
6
6
Rack
I
料架 x 1
7
7
Spool
I
料管 x 1
6.Install the Rack 安装料架组件
06
A. Overlap the bottom of the handle with the top surface of the profile. | 将把手的底面与型材上表面定位重合。
B. Fix it with two M5x14 hexagonal socket button head cap screws. | 再用2颗M5x14内六角平圆头螺丝扭紧固定。
7. Assemble Handle 组装把手
12
12
M5x14 hexagon x 2
socket button
head screws
M5x14内六角平圆头螺丝
2
2
Handle x 1
把手
07
A.Connect X, E, Z-axis motor wires according to the yellow label on the 6-pin (5 wires) port. | 按照6-pin（5根线）端口上黄色标签提示连接X、E、Z
轴步进电机。
B.Connect X, Z-axis limit switch wires according to the yellow label on the 3-pin (2wires) port. | 按照3-pin（2根线）端口上黄色标签提示连接X、Z轴
限位开关。
X、Z-axis limit switch
X、Z轴限位开关
X、E、Z
-axis motor port
X、E、Z轴电机接口
4
8. Cable Connection 设备接线
E
X
X
Z
Z
08

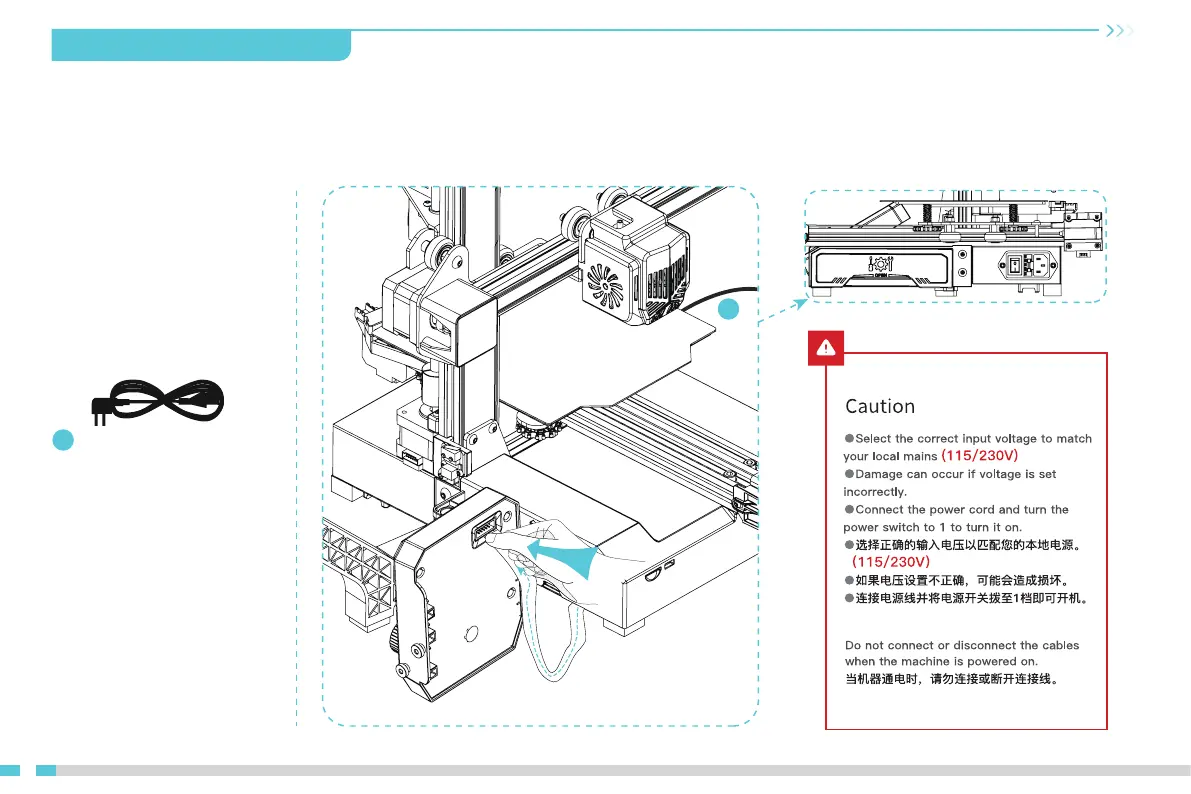

A.Align the flat cable socker with the slot at the back of display，and then insert it. | 排线的卡扣与显示屏里面的卡扣吻合，再插入。
B.Plug in the power cord. | 插入电源线。
4
4
Power cord
I
电源线 x 1
9. Cable Connection 设备接线
09

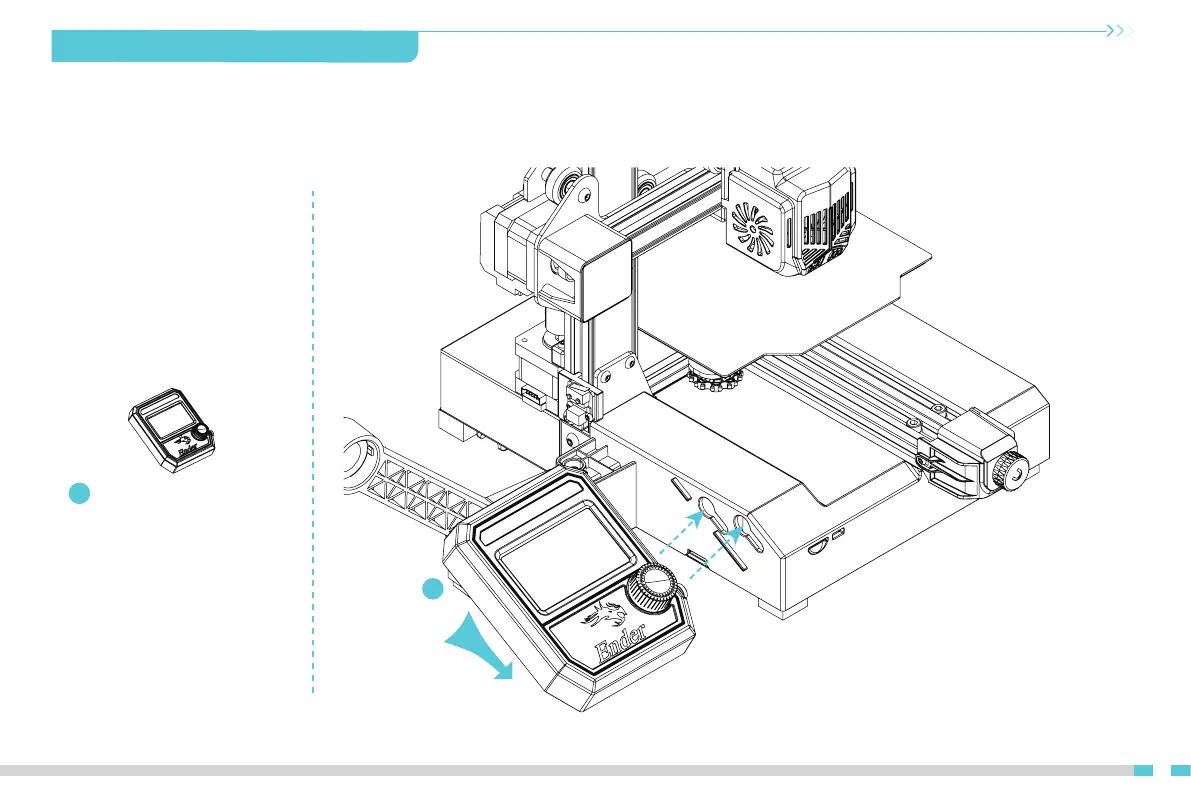

10. Install Display Screen 安装显示屏
Align the two posts on the right side of the display screen with the slots of the base, and move them down to fix. (As shown in the figure)
将显示屏组件右侧处的两个卡柱对准底部组件的卡槽往下移动加以固定。（如图所示）
3
3
Screen kit
I
显示屏组件
x 1
10
11

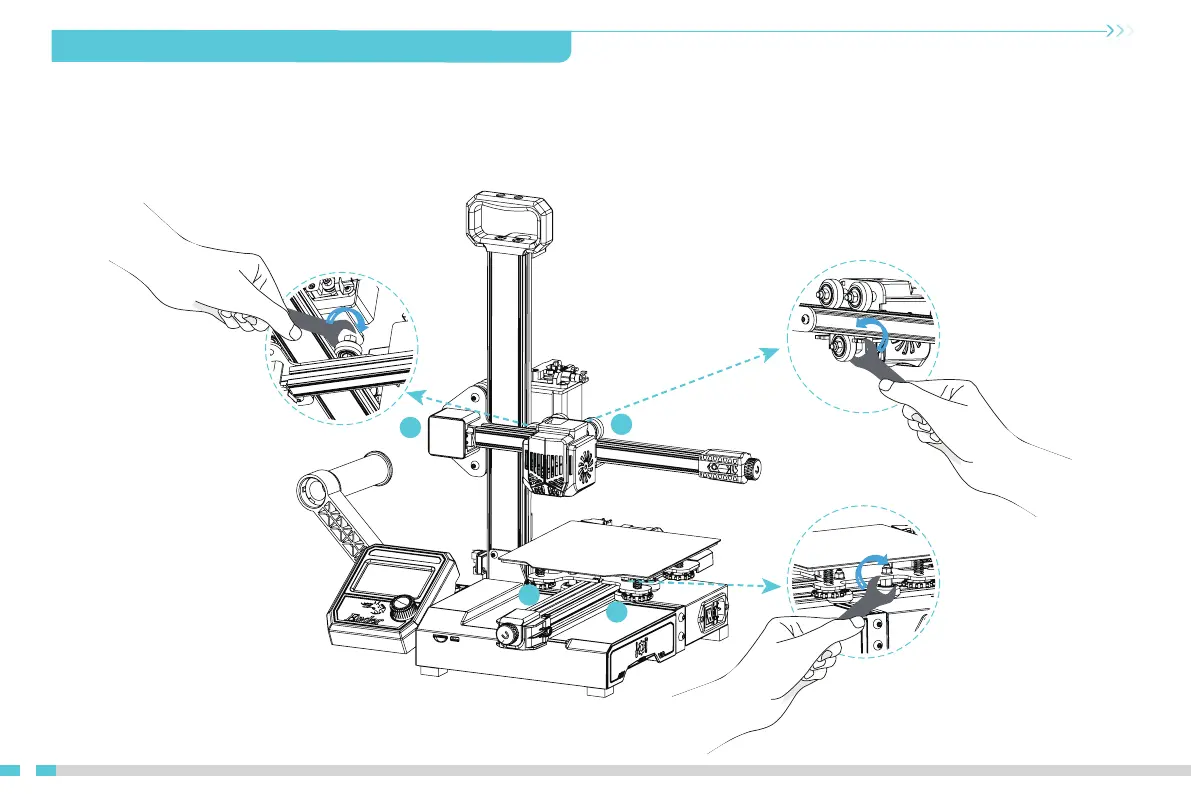

11. Solution for V-wheel Jamming V轮卡顿解决方案
X/Y/Z axis V-wheel adjustment: After the machine is assembled gently dial the wheel to check whether it is idling or stuck. If this phenom-
enon occurs, use an open-end wrench to adjust the hexagonal eccentric isolation column to make it rotate smoothly.
X/Y/Z轴滑轮调节：机器组装完成后，用手轻拨滑轮，检查其是否有空转和卡顿，如有此现象请使用开口扳手调节六角偏心隔离柱，使其转动运动顺
畅。
Y
Y
Z
X
Hexagonal eccentric isolation column
六角偏心隔离柱
12

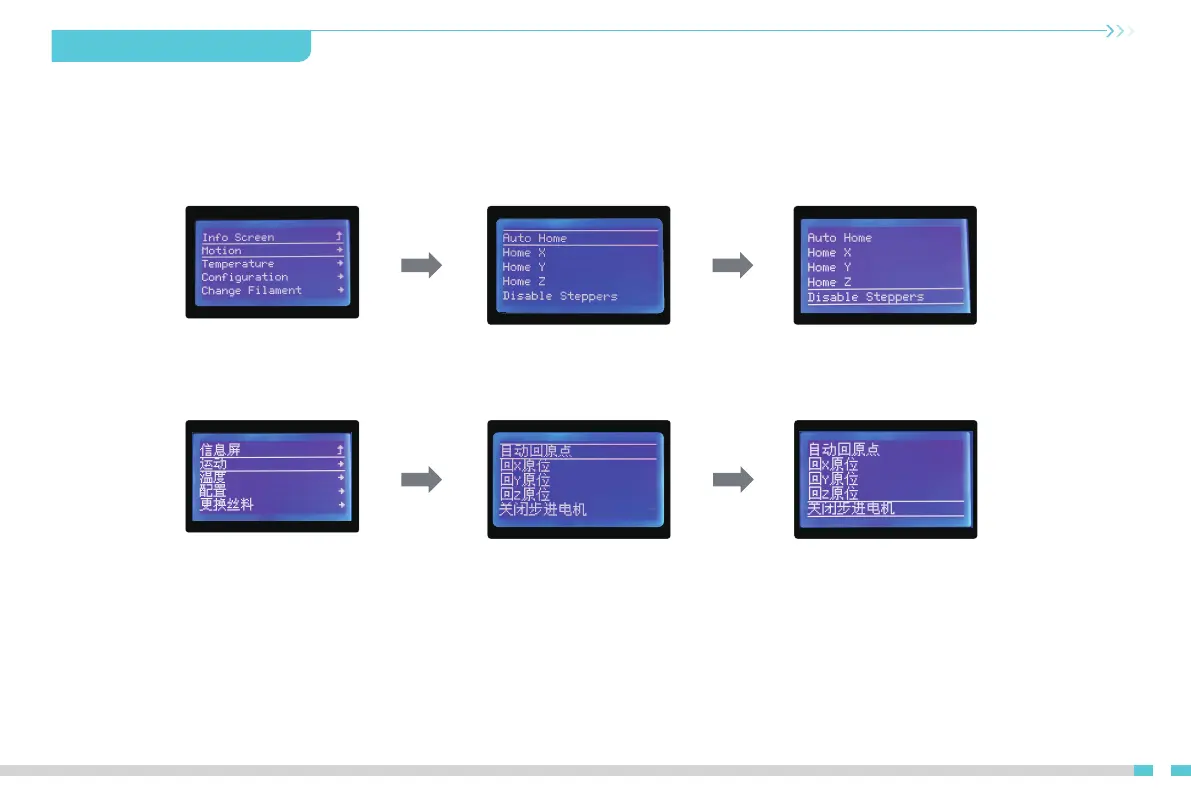

Motion →Auto Home→ Disable Steppers (Release the motor). | 运动→自动回到原点→ 关闭步进电机（释放电机）

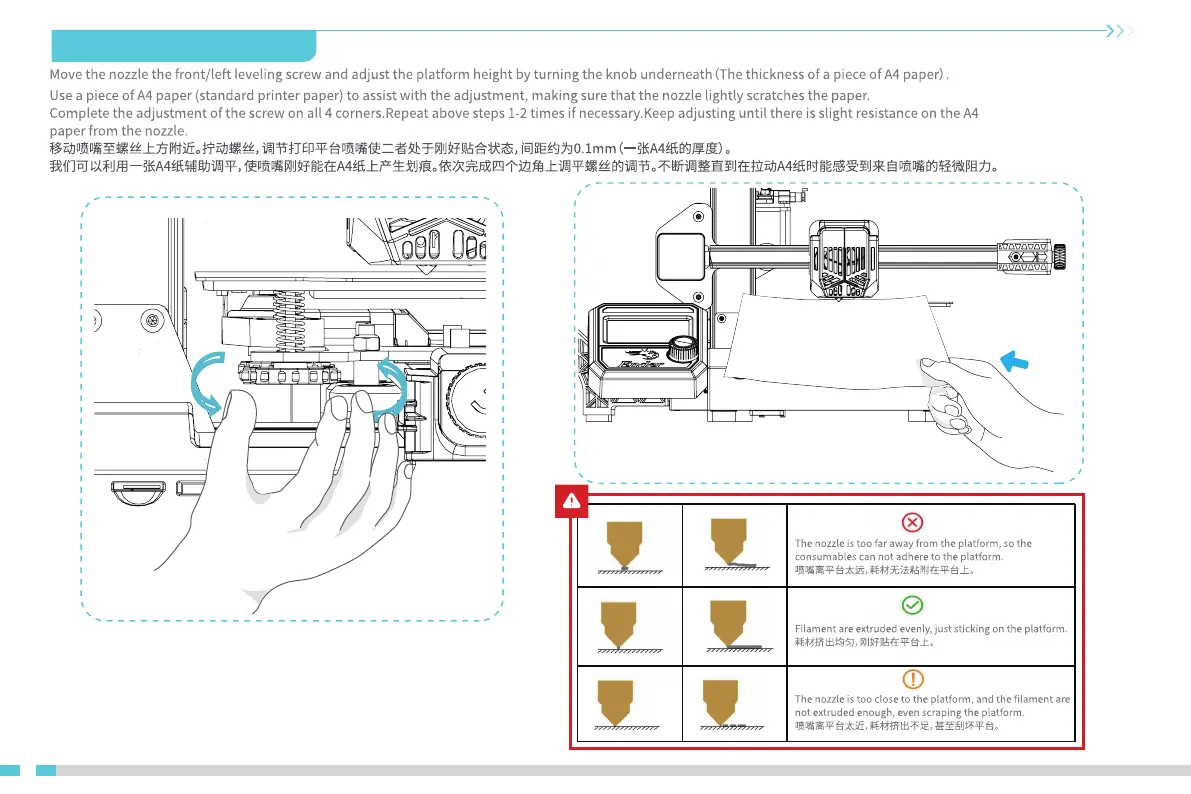

12. Bed Leveling 调平平台
13
13. Bed Leveling 调平平台
14

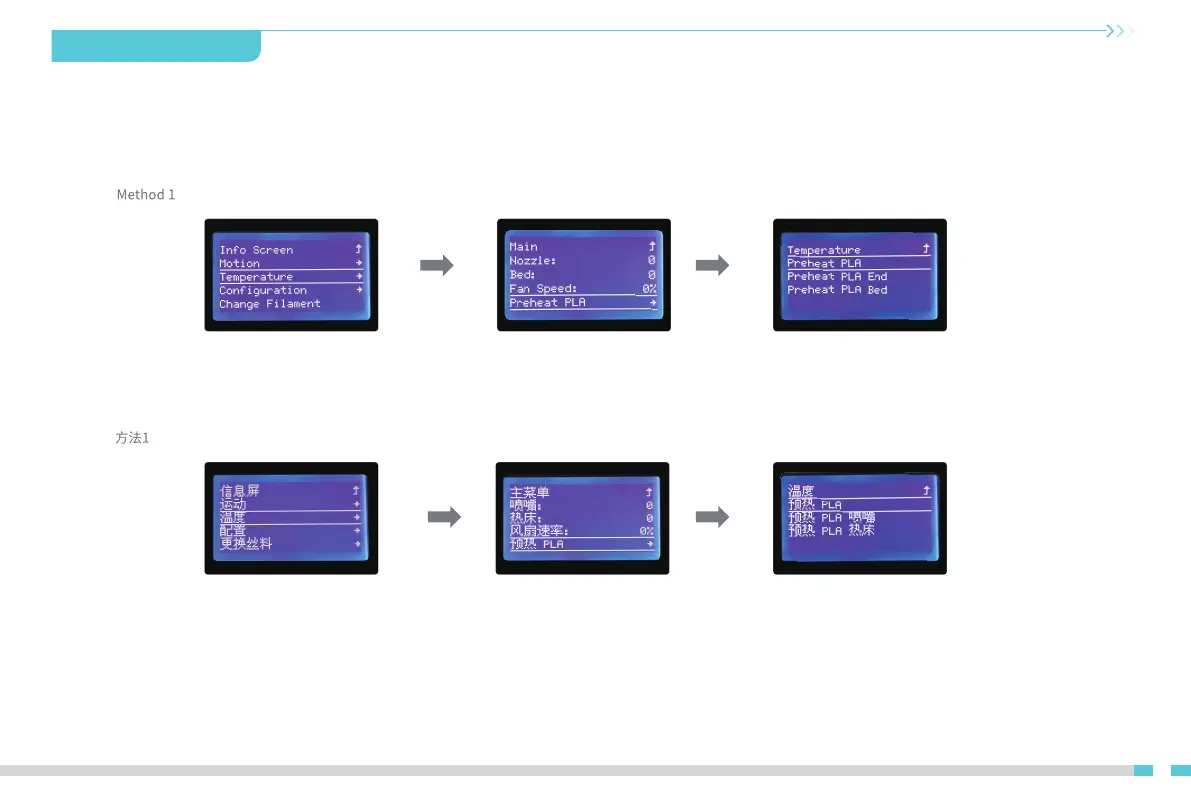

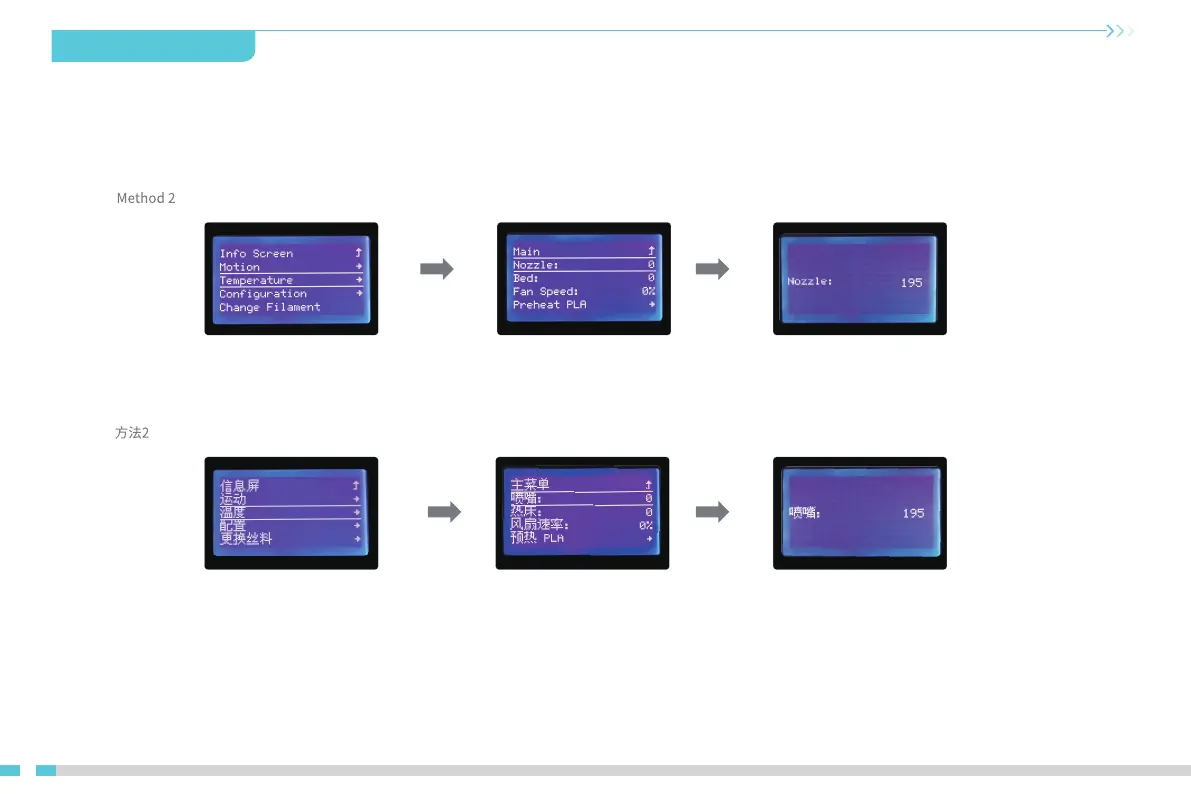

14. Preheating 预热
15
15. Preheating 预热
16
16. Preheating 预热

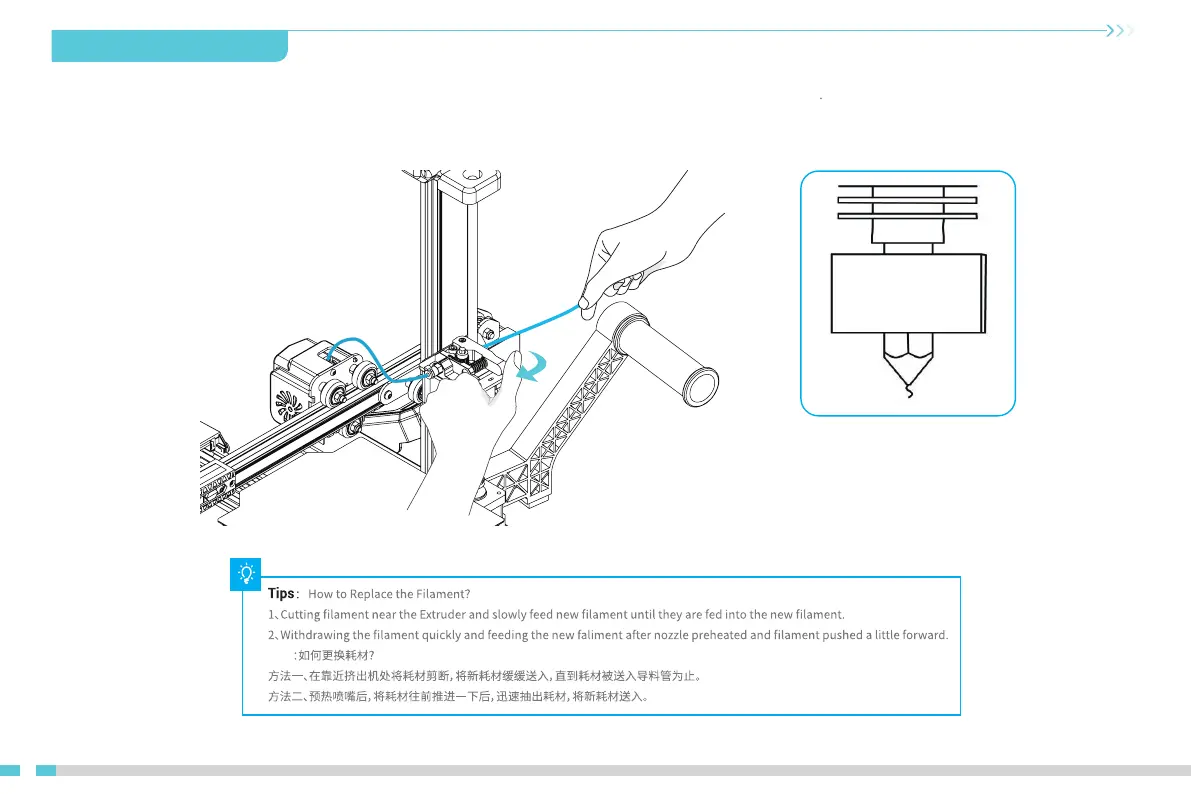

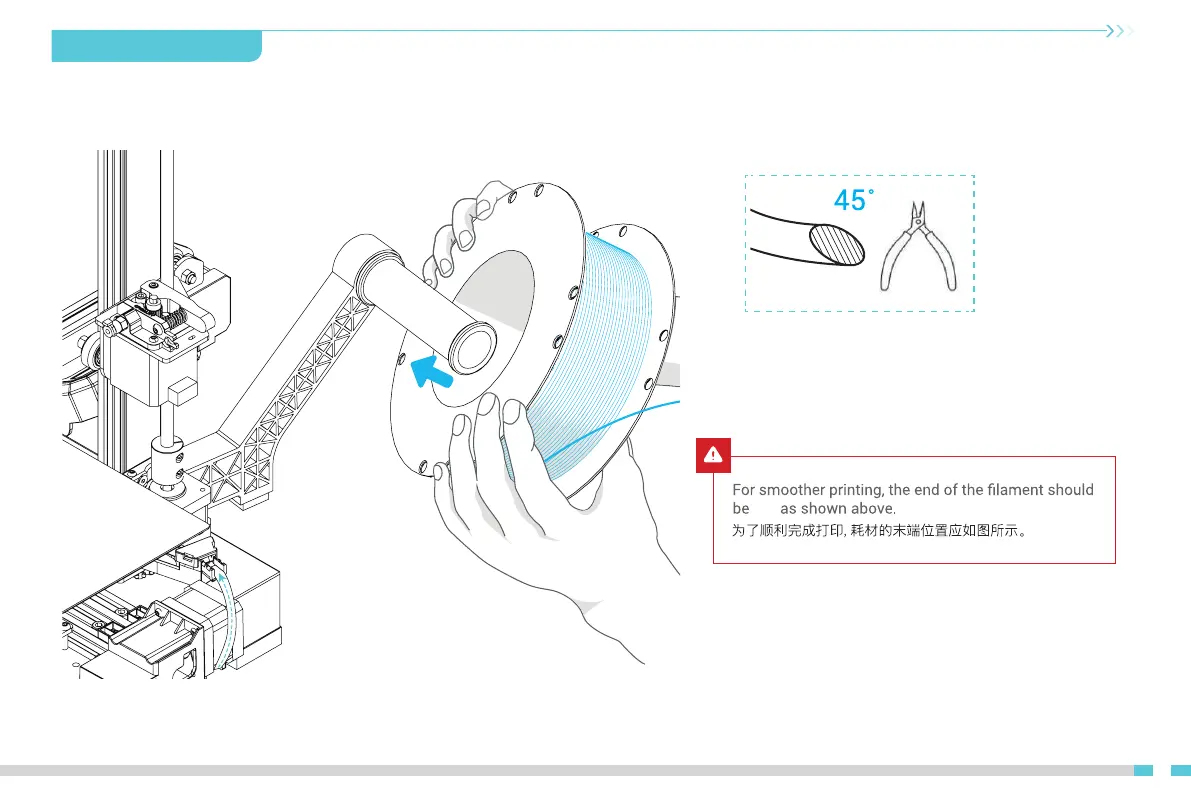

When you wait for the temperature to rise, hang the filament over the filament holder. | 当您等待温度上升时，把耗材挂在料架上。
cut
17
提示
17. Load Filament 装料
When target temperature is reached, hold the extruding clamp by hand and insert filament into the small hole of the extruder until the
nozzle position. When filaments flow out of the nozzle, meaning that the filaments have been loaded.
当温度达到目标温度时，用手捏住挤出夹，将耗材插入挤出机小孔直至喷嘴位置，看到喷嘴处有耗材流出即表示耗材已经装载完成。
18
18. Start Printing 开始打印
20
20

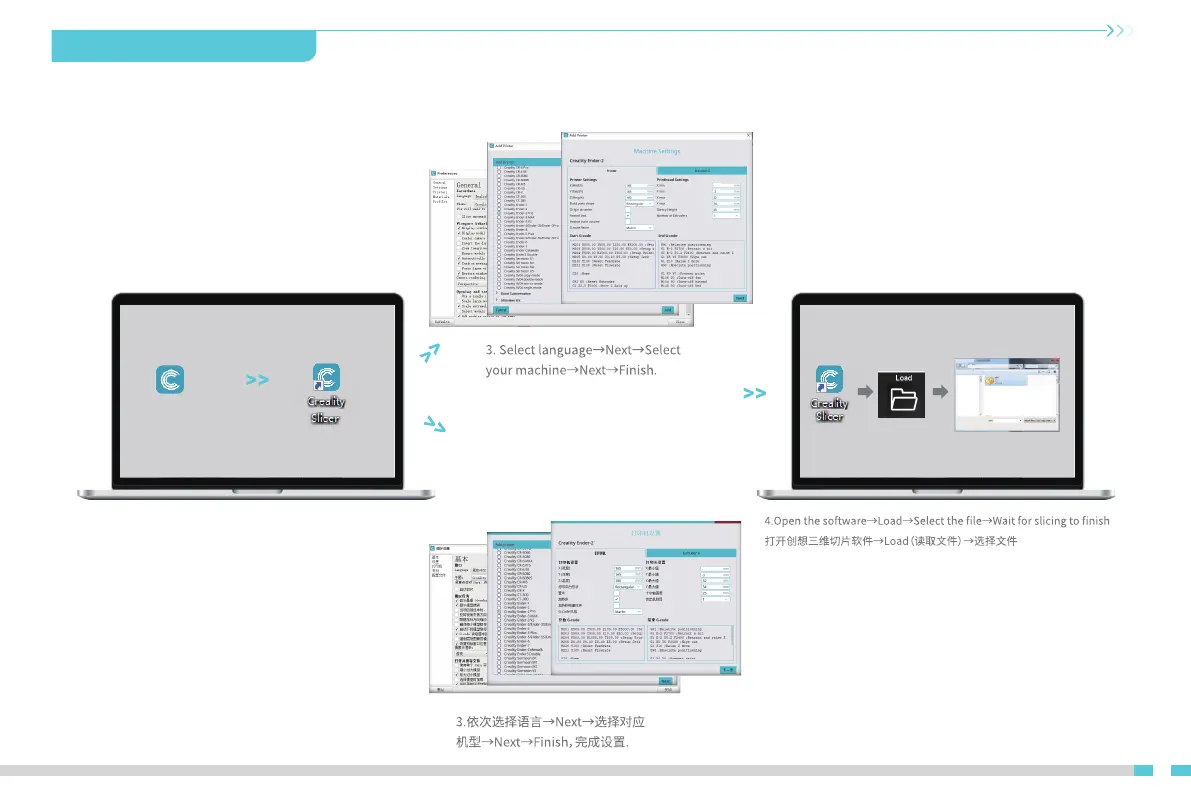

1.Double click to install the . | 双击安装Creality Slicer
2.Double click to open the Creality Slicer. | 2.双击打开Creality Slicer
Pro
Pro
19
19. Start Printing 开始打印
警告：在打印过程中，禁止插拔存储卡。
。
.
Please don't insert or remove the storage card during
printing.
Ender-2 Pro
storage card.
6.Insert the storage card→press the
knob→Print from Card→> Choose
the file to be printed.
插入存储卡→按下按钮→存储卡上打
印→要打印的文件
20
20. Circuit Wiring 电路接线
Power input
电源输入
Normally open fan
常开风扇
Heating pipes
加热管
Reserved port
预留接口
Controllable fan 2
可控风扇 2
Controllable fan 1
可控风扇 1
X limit switch
X 限位开关
Z limit switch
Z 限位开关
Hot bed power output
热床板电源输出
Y limit switch
Y 限位开关
Bed thermistor
热床热敏
Nozzle thermistor
喷嘴热敏
BL-Touch Reserved
BL-Touch 预留接口
EXP1/12864 Screen
interface
EXP1/12864
屏幕接口
MINI USB Port
MINI USB 接口
Storage card slot
存储卡卡槽
X axis motor
X轴电机
Y axis motor
Y轴电机
Z axis motor
Z轴电机
E axis motor
E轴电机
Play by
storage card
Other
M
F
H
motor
Extrusion
gear loose
home
H
H
21

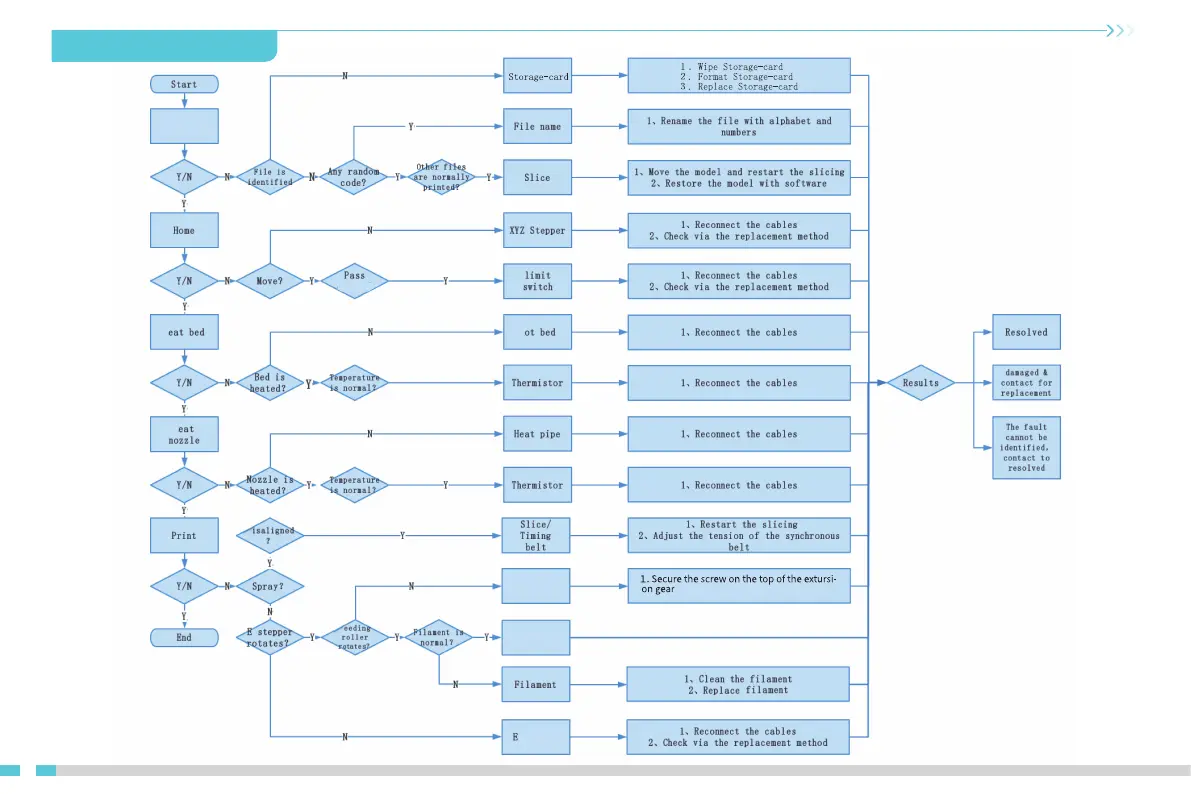

21. Trouble-shooting
22

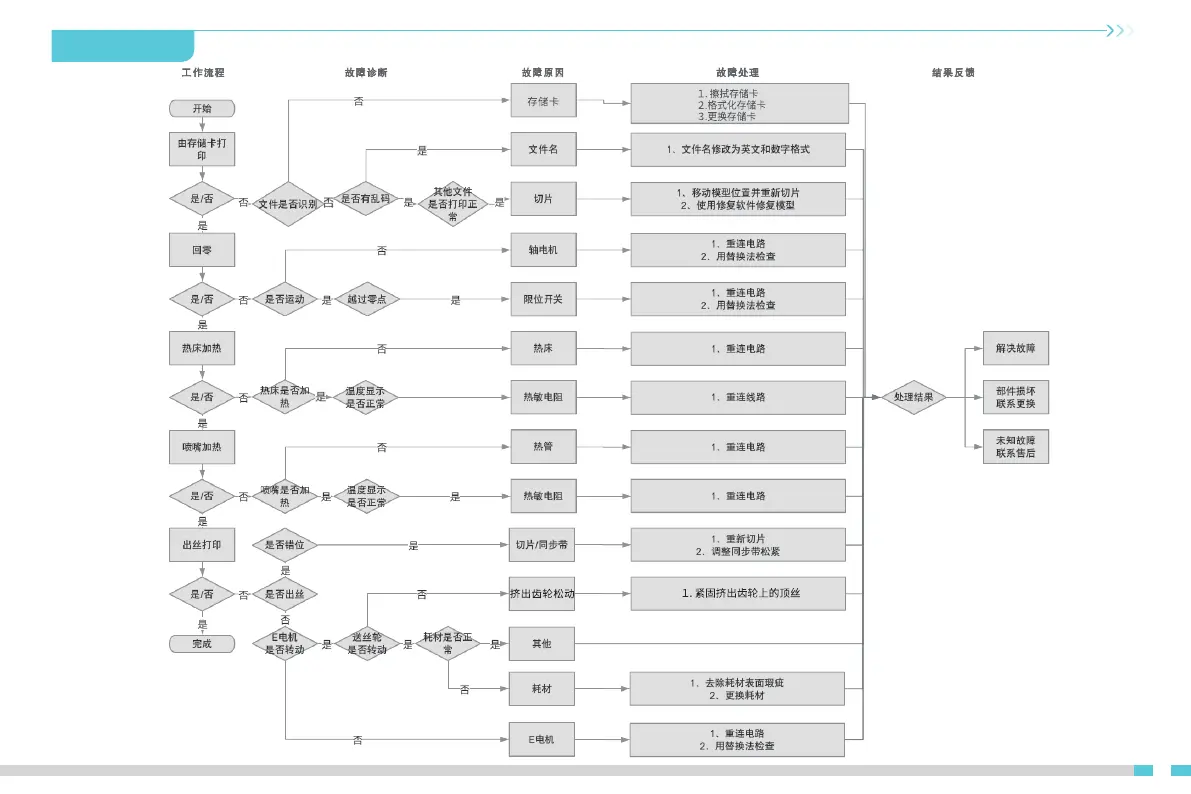

22. 故障检修
23
23 . FDM 3D PRINT FILAMENTS
FDM 3D PRINTING FILAMENTS
Upgraded environmentally friendly
formula, matte effect, high toughness,
and fine printing. The raw materials are
imported from the United States,
besides, there are rich colors for
customers to choose.
Targeting at mid-end users, CR series is with
transparent tray plus black-white color box
design. lts slight tolerance in wire diameter
contributes to stable printing quality. CR
series meets your demands of daily design
and prototype making.
HC series is cost-efficient. It’s widely
applicable to general FDM printer product
designs on the market to meet your daily
design and different prototyping needs.
Ender series is widely applied to general
FDM printer design, which meet customers'
needs of daily design and different
prototyping needs.
24
24. Filaments Parameter Information
190-220
190-220
190-220
190-220
220-260
230-250
210-240
190-220
230-260
190-220
190-220
60-100
50-60
50-60
50-60
50-60
90-110
60-100
50
50-60
80-90
50-60
50-60
-
HP-PLA
HP-PLAx3
CR-PLA
HC/EN-PLA
Hot bed is needed, and Creality printer enclosure
is recommended for DIY machine
Hot bed is needed, and Creality printer enclosure
is recommended for DIY machine
Hot bed is needed, and Creality printer enclosure
is recommended for DIY machine
Suitable for 99% FDM models
Suitable for 99% FDM models
Suitable for 99% FDM models
Suitable for 99% FDM models
Direct extrusion models
Suitable for 99% FDM models
Suitable for 99% FDM models
Creality K5、K8、T5
Low temperature 3D printing pen
Material Print Temp (℃) Bed Temp (℃) Difficulty Flexibility Shrinkage Ductility Applicable Models
PLA
Series
ABS
PETG
TPU
Silk
Nylon
PDS Advertising word
filament-PLA
Carbon
(Ordinary type)
Low temperature filament-PCL
25
25. 3D 打印耗材
3D打印耗材
升级环保配方，哑光效果，韧性高，打印细
腻，原料源自美国，有丰富的颜色可选。
定位中高端用户，透明盘+黑白彩盒设计，线径
公差小，打印性能稳定。可以满足您日常的设
计和原型制作需求。具有出色的机械性能和打
印质量。
高性价比款，广泛适用市面上通用型FDM打
印机，并可以按照您的需求量身定制，可以
满足您日常的设计和不同的原型制作需求。
广泛适用市面上通用型FDM打印机，并可以
按照您的需求量身定制，可以满足您日常的
设计和不同的原型制作需求,让想象插上翅
膀。
系列系列
系列
系列
26.线材种类参数信息
需要热床，DIY机推荐使用Creality保温罩
需要热床，DIY机推荐使用Creality保温罩
需要热床，DIY机推荐使用Creality保温罩
材质
PLA
系列
190-220
190-220
190-220
190-220
220-260
230-250
210-240
190-220
230-260
190-220
190-220
60-100
50-60
50-60
50-60
50-60
90-110
60-100
50
50-60
80-90
50-60
50-60
-
适配99%FDM机型
适配99%FDM机型
适配99%FDM机型
适配99%FDM机型
近端挤出机型
适配99%FDM机型
适配99%FDM机型
Creality K5、K8、T5
低温打印笔
打印温度 (℃) 热床温度 (℃) 打印难度 柔软度 收缩率 韧性 适用机型
HP-PLA
HP-PLAx3
CR-PLA
HC/EN-PLA
ABS
PETG
TPU
Silk
Nylon
广告字耗材-PLA
Carbon (普通型)
低温打印笔耗材-PCL
26
深圳市创想三维科技股份有限公司
深圳市龙华区民治街道新牛社区梅龙大道锦绣鸿都大厦18F
公司网站：www.cxsw3d.com
服务热线：400 6133 882 0755-8523 4565
Scan To Learn More
扫码了解更多
SHENZHEN CREALITY 3D TECHNOLOGY CO., LTD.
Add:18F,JinXiuHongDuBuilding,Meilong Blvd.,LonghuaDist.,
Shenzhen,China 518131
Official Website: www.creality.com
Tel：+86 755-8523 4565
E-mail: info@creality.com cs@creality.com
Produkt Specifikationer
| Mærke: | Creality |
| Kategori: | 3D printer |
| Model: | Ender-2 Pro |
Har du brug for hjælp?
Hvis du har brug for hjælp til Creality Ender-2 Pro stil et spørgsmål nedenfor, og andre brugere vil svare dig
3D printer Creality Manualer
17 Juli 2025
17 Juli 2025
9 Juni 2025
7 Juni 2025
24 Januar 2025
24 Januar 2025
16 Januar 2025
16 Januar 2025
16 Januar 2025
16 Januar 2025
3D printer Manualer
- BFB
- Renkforce
- Dimension
- German RepRap
- Sharebot
- Artillery
- Raise3D
- Creality3D
- 3D Systems
- HP
- Kodak
- Wanhao
- Bq
- XYZprinting
- Zortrax
Nyeste 3D printer Manualer
21 August 2025
6 August 2025
3 August 2025
8 Juli 2025
1 April 2025
24 Februar 2025
4 Februar 2025
4 Februar 2025
26 Januar 2025
26 Januar 2025
