Side 1/3

quickstart guide

C2N(I)-AMP-4X100

www.crestron.com

888.273.7876 201.767.3400

Specifications subject to

change without notice.

C2N(I)-AMP-4X100

For Regulatory Compliance information, refer to the latest version

of Doc. 7289.

QUICKSTART DOC. 7288B (2032394, Sheet 1 of 2) 04.13

4 Room Audio System

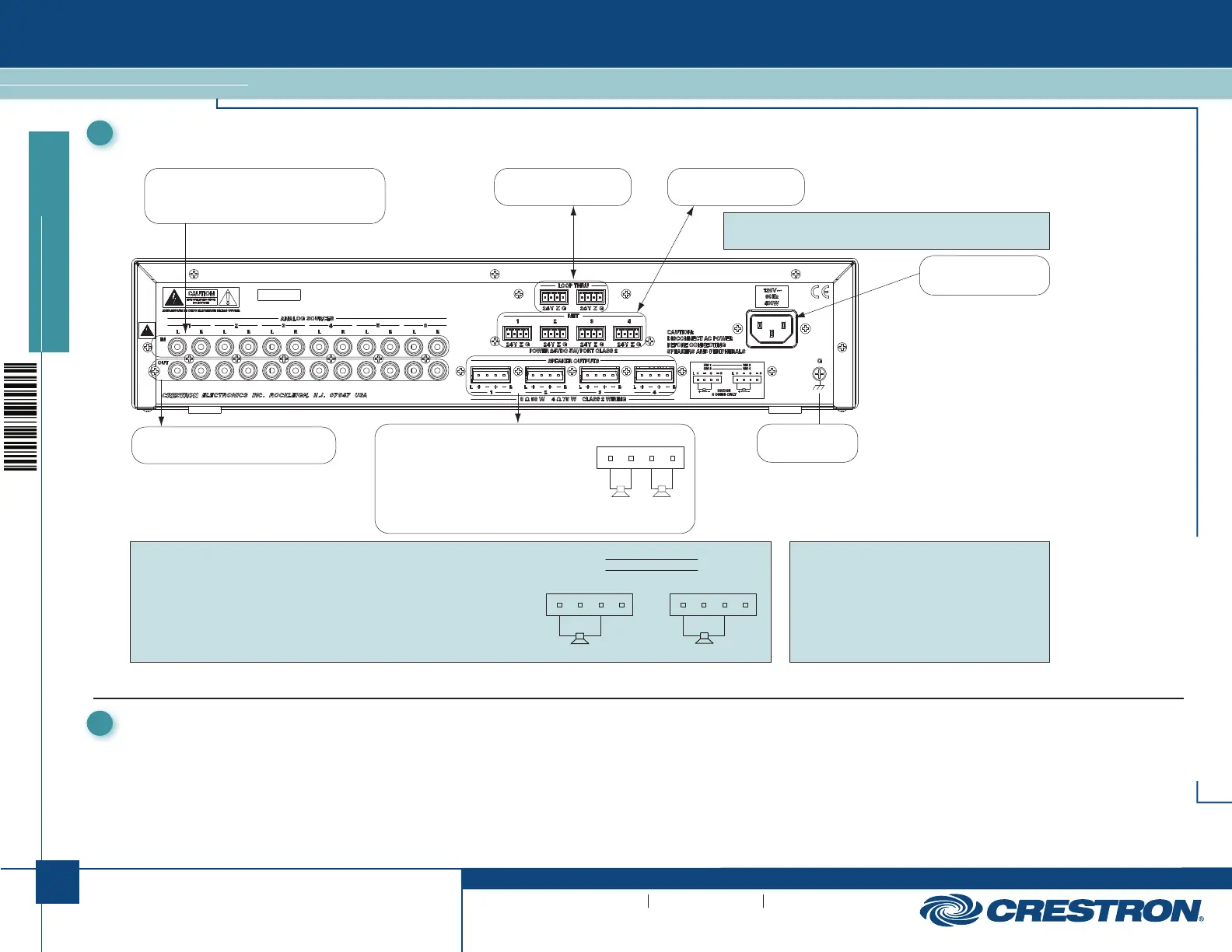

Make the necessary connections as called out in the diagram below. Connect power last.

Hardware Hookup

NOTE: For triple the power (into 8 Ω speakers only), SPEAKER OUTPUTS 1

and 2 or SPEAKER OUTPUTS 3 and 4 can be bridged. For example, the left

speaker’s + and - terminals are connected to the two + terminals of output #1

and the right speaker’s + and - terminals are connected to the two + terminals

of output #2. Refer to the diagram to the right.

To adjust volume when bridged, select ROOM 1 for SPEAKER OUTPUTS 1

and 2 or select ROOM 2 for SPEAKER OUTPUTS 3 and 4.

RM 1

RM 3

RM 2

RM 4

BRIDGE

8 OHMS ONLY

To Cresnet Devices

NET

From AC Power Line

PWR

Tie to Ground

From Unbalanced Stereo Line Level Audio

Outputs from Source Devices

ANALOG SOURCES (IN)

To Additional Amplifiers

ANALOG SOURCES (OUT)

NOTE: The 24 volt lines on the NET ports of the amplifier are

limited to 300 mA.

To Loudspeakers

SPEAKER OUTPUTS

NON-BRIDGE

+ - + -

LEFT RIGHT

NOTE: The C2NI-AMP-4X100 (International

version) requires a power cord that is

harmonized to the country’s national and local

electrical codes. Each inner wire in the cord

should be at least 18 AWG (0.75 mm

) and rated

for at least 300 V. The temperature rating of the

cord should be at least 60º C. The cord length

should be 1.5 - 2 meters.

To Cresnet

Devices

LOOP THRU

Attach the Labels

Use the included labels and inserts to prepare the C2N(I)-AMP-4X100:

1. Locate the SOURCE and ROOM label inserts included with the unit (SOURCE insert has space for six labels, ROOM insert has room for four labels).

2. Apply the peel-and-stick labels in the appropriate positions on the inserts, being careful to match label positions to what is configured in the programming software. For neatest appearance, when applying a label,

cover the white guidelines on the insert. First and last labels cover one line each; labels in between cover lines on their left and right sides.

quickstart guide

C2N(I)-AMP-4X100

www.crestron.com

888.273.7876 201.767.3400

Specifications subject to

change without notice.

C2N(I)-AMP-4X100

For Regulatory Compliance information, refer to the latest version

of Doc. 7289.

QUICKSTART DOC. 7288B (2032394, Sheet 1 of 2) 04.13

4 Room Audio System

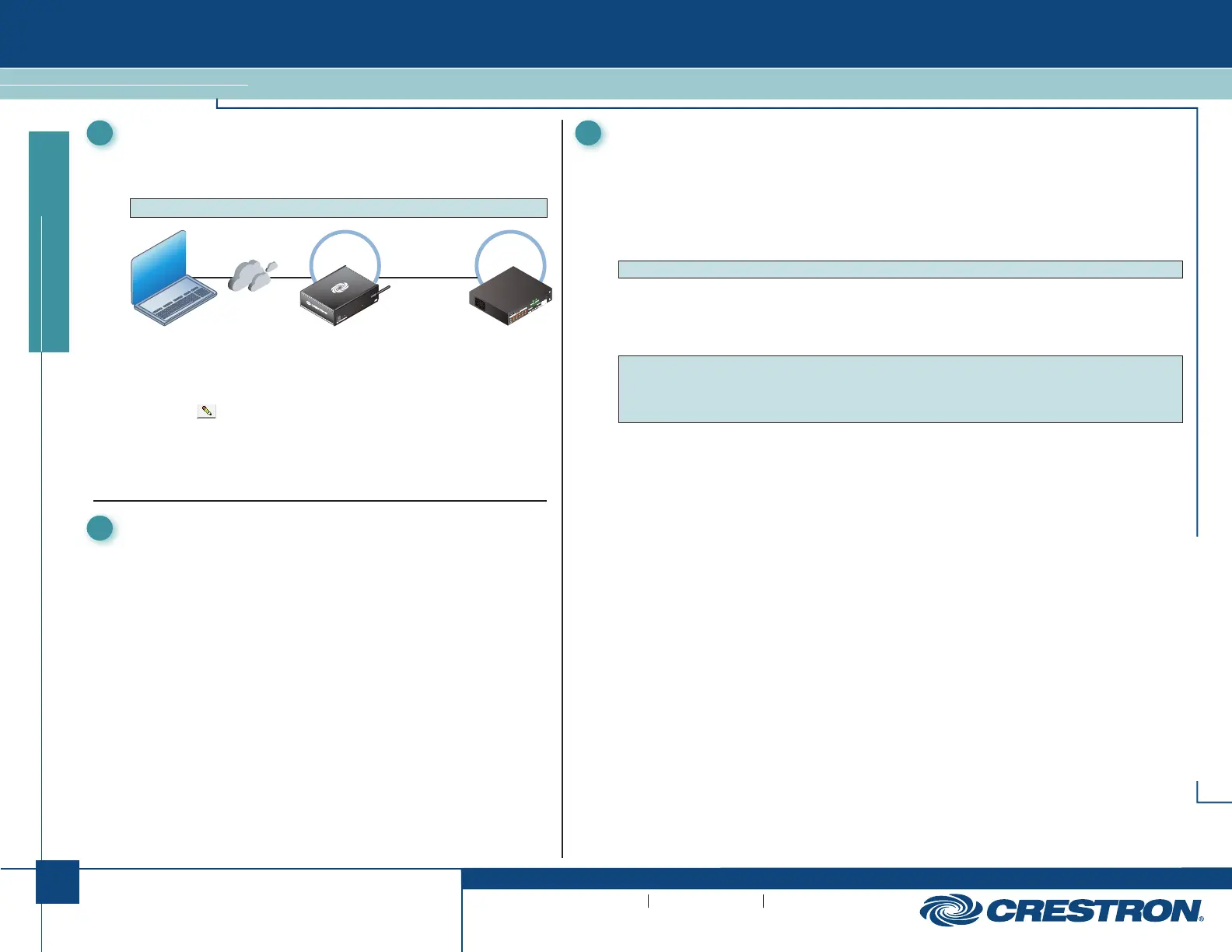

Establish Communication

The NET port on the C2N(I)-AMP-4X100 connects to the control system via Cresnet:

1. In Crestron Toolbox, click Tools | System Info.

2. Click the icon.

3. For Connection Type, select Cresnet ID. In the Through drop-down menu, select

the control system that is connected to the device.

4. Click OK. Communications are confirmed when the device information is

displayed.

The Net ID of the C2N(I)-AMP-4X100 has been factory set to 33. The Net IDs of

multiple C2N(I)-AMP-4X100 devices in the same system must be unique. Net IDs are

changed from a personal computer (PC) via Crestron Toolbox (refer to “Establish

Communication” in section

π).

Net ID

Turn the Amplifier On or Off

To turn the amplifier on, move the front panel switch to the ON position.

To turn the amplifier off, move the front panel switch to the OFF position.

Select a Source

To select a source for distribution, press the desired SOURCE button. If a room is connected to the selected source,

its LED lights.

NOTE: If a room is in Volume Control mode, press a SOURCE button to exit the mode.

Select a Room

Once a source is selected, press any ROOM button that is to receive the selected source. The room is connected to

the selected source and its LED lights.

To remove a room from the selected source, press the ROOM button of a connected room. The LED turns off.

NOTE: If a room is in Volume Control mode, press a ROOM button to exit the mode.

NOTE: If the outputs of the C2N(I)-AMP-4X100 are bridged, the ROOM 1 button acts in unison with the ROOM 2

button and the ROOM 3 button acts in unison with the ROOM 4 button. Similarly, the ROOM 1 LED acts in unison

with the ROOM 2 LED and the ROOM 3 LED acts in unison with the ROOM 4 LED.

Volume Control Mode

The volume level of a connected room can be controlled when the room is in Volume Control mode. To switch to

Volume Control mode:

1. Press and hold the ROOM button of the room to be controlled for 2 seconds.

• Press j or k to change the volume in 1 dB increments.

• Hold j or k for more than 1 second, to ramp the volume up or down in 1 dB/0.1 second

increments.

If the maximum volume or minimum volume is reached, all of the front panel LEDs blink three times.

2. Press the ROOM button again to exit Volume Control mode.

If j or k is not pressed for 10 seconds, the amplifier automatically exits Volume Control mode.

Operation

PC Running

Crestron Toolbox

C2N(I)-

AMP-4X100

Serial,

or USB

LAN

Cresnet

Control

System

COMPUTER

PWR

NET

HW-R

SW-R

ACQUIRE

ACTIVITY

MC3

ANALOG SOURCES

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

AVIS: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

CAUTION

DISCONNECT AC POWER

BEFORE CONNECTING

SPEAKERS AND PERIPHERALS

SPEAKER OUTPUTS

ELECTRONICS INC. ROCKLEIGH N.J. 07847 USA

LOOP THRU

NET

L R

OUT

L + - + - R

24 Y Z G

POWER 24VDC 5W/PORT CLASS 2

8Ω 50W 4Ω 75W CLASS 2 WIRING

120V

50Hz

400W

Use Crestron Toolbox™ to communicate with the C2N(I)-AMP-4X100. Refer to the

Crestron Toolbox help file for details.

There is a single method of communication: Indirect communication.

NOTE: Required for setting the Net ID and loading firmware.
