Drip Shields for Lighting Enclosures
Crestron Electronics, Inc. Installation Guide – DOC. 7172B
15 Volvo Drive Rockleigh, NJ 07647 (2030547)
Tel: 888.CRESTRON 08.13
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
Introduction
The drip shields prevent condensation from dripping into lighting enclosures. There are two drip shield models to
accommodate different lighting enclosure widths: CAEN/GLEX- - - - DRS 1W and CAEN DRS 2W. Refer to the table
below for more information.
LIGHTING ENCLOSURE
MODEL
LIGHTING ENCLOSURE
SIZE
CAEN/GLEX- - DRS 1W
CAEN 2x1 4x1 7x1
CAEN- MLO 3x1 5x1
GLEX- FT 24 56
CAEN- - DRS 2W
CAEN
4x2
7x2
CAEN- MLO 5x2
NOTE: Drip shield does not make enclosure suitable for outdoor installation.
Physical Description
This section shows the dimensions of the CAEN/GLEX- DRS Series drip shield.

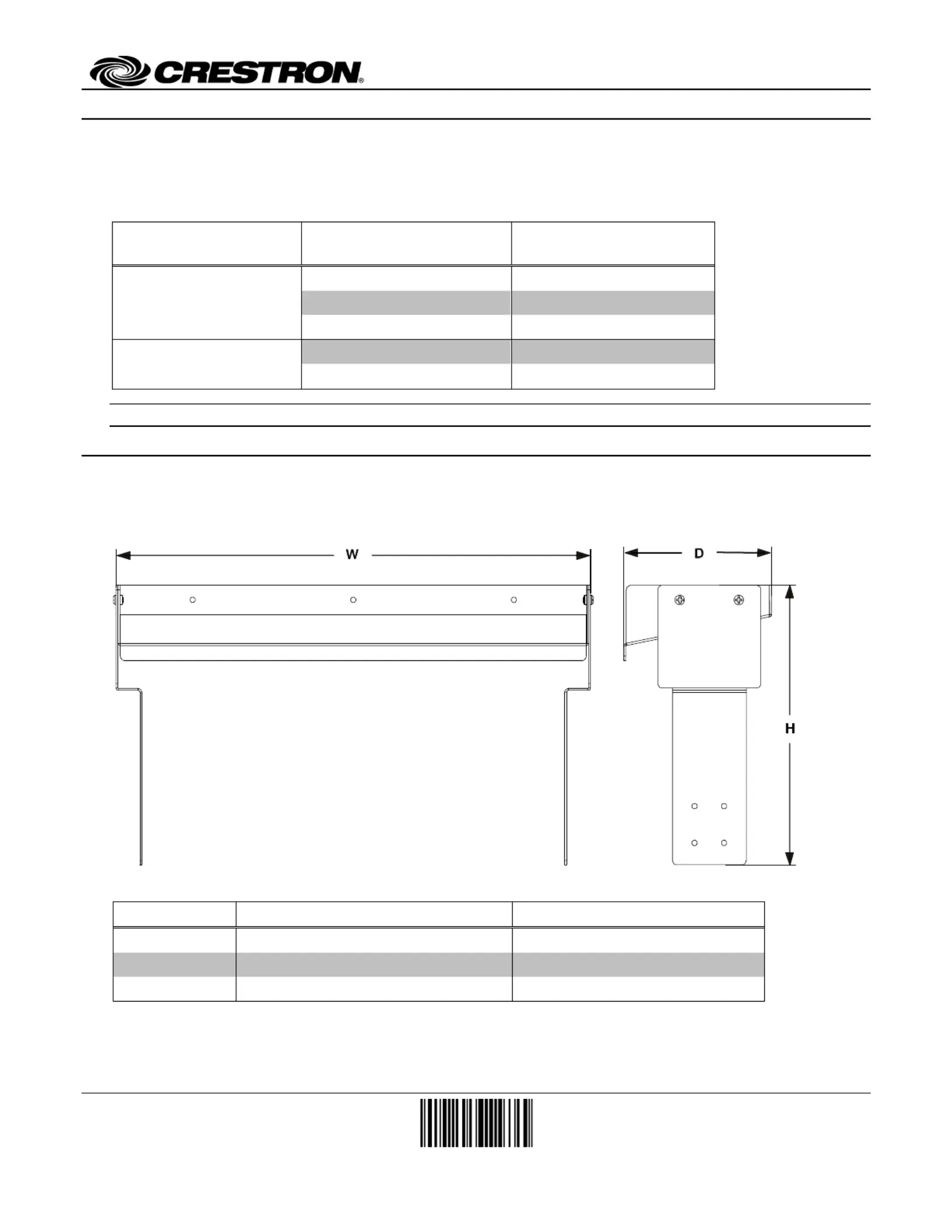

CAEN/GLEX- DRS Overall Dimensions (Front and Side Views)
External Dimensions of DRS Series Drip ShieldCAEN/GLEX- s
DIMENSION
CAEN/GLEX- - DRS 1W
CAEN- -DRS 2W
Width (W) 16 1/16 (409 mm) 1/4 in in 27 (693 mm)
Depth (D) (127 mm) (127 mm) 5 in 5 in
Height (H) (242 mm) (242 mm) 9 1/2 in 9 1/2 in
Drip Shields CAEN/GLEX- Series for Lighting Enclosures DRS
2 s •
•
•
•• Drip Shield for Lighting Enclosures: CAEN/GLEX- DRS Series Installation Guide – DOC. 7172B
Installation

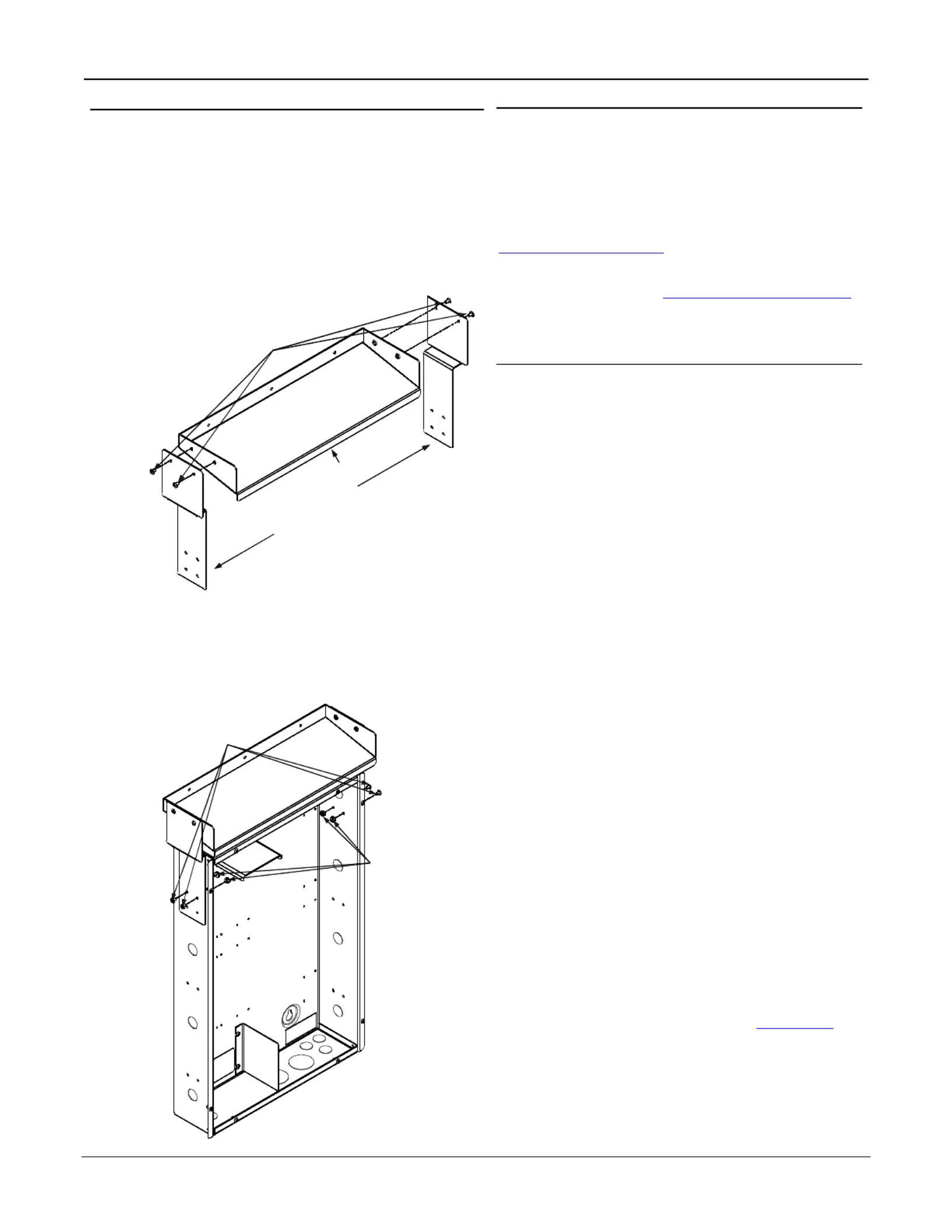

Use the following procedure to install the drip shield on a
CAEN, CAEN-MLO, or GLEX lighting enclosure (refer
to the illustrations below).
1. Attach the two side brackets to the drip shield using
(4) #8- 32 x 1/4 inch screws (included) as shown
below.
2. Locate the appropriate mounting holes on the
lighting enclosure and attach the drip shield using (4)
#8-32 x ) and (4) #8¼ inch screws (included -32 hex
nuts (included) as shown below.
Installing the Drip Shield
Further Inquiries
To locate specific information or resolve questions after
reviewing this guide, contact Crestron's True Blue
Support at 1-888-CRESTRON - - -[1 888 273 7876] or, for
assistance within a particular geographic region, refer to
the listing of Crestron worldwide offices at
www.crestron.com/offices.
To post a question about Crestron products, log onto
Crestron’s Online Help at
www.crestron.com/onlinehelp.
First-time users must establish a user account to fully
benefit from all available features.
Return and Warranty Policies
Merchandise Returns / Repair Service
1. No merchandise may be returned for credit, exchange or service without ,
prior authorization from Crestron. To obtain warranty service for Crestron
products, contact an authorized Crestron dealer. Only authorized Crestron
dealers may contact the factory and request an RMA (Return Merchandise
Authorization) number. Enclose a note specifying the nature of the problem,
name and phone number of contact person, RMA number and return address.,
2. Products may be returned for credit, exchange or service with a Crestron ,
Return Merchandise Authorization (RMA) number. Authorized returns must
be shipped freight prepaid to Crestron,
6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with RMA
number clearly marked on the outside of all cartons. Shipments arriving
freight collect or without an RMA number shall be subject to refusal.
Crestron reserves the right in its sole and absolute discretion to charge a 15%
restocking fee plus shipping costs on any products returned with an RMA.
3. Return freight charges following repair of items under warranty shall be paid
by Crestron, shipping by standard ground carrier. In the event repairs are
found to be non- warranty, return freight costs shall be paid by the purchaser.
C restron Limited Warranty
Crestron Electronics, Inc. warrants its products to be free from manufacturing defects in
materials and workmanship under normal use for a period of three (3) years from the date
of purchase from Crestron, with the following exceptions: disk drives and any other
moving or rotating mechanical parts, pan/tilt heads and power supplies are covered for a
period of one (1) year; touch screen display and overlay components are covered for 90
days; batteries and incandescent lamps are not covered.
This warranty extends to products purchased directly from Crestron or an authorized
Crestron dealer. Purchasers should inquire of the dealer regarding the nature and extent
of the dealer's warranty, if any.
Crestron shall not be liable to honor the terms of this warranty if the product has been
used in any application other than that for which it was intended or if it has been
subjected to misuse, accidental damage, modification, or improper installation
procedures. Furthermore, this warranty does not cover any product that has had the serial
number altered, defaced or removed.,
This warranty shall be the sole and exclusive remedy to the original purchaser. In no
event shall Crestron be liable for incidental or consequential damages of any kind
(property or economic damages inclusive) arising from the sale or use of this equipment.
Crestron is not liable for any claim made by a third party or made by the purchaser for a
third party.
Crestron shall, at its option, repair or replace any product found defective, without charge
for parts or labor. Repaired or replaced equipment and parts supplied under this warranty
shall be covered only by the unexpired portion of the warranty.
Except as expressly set forth in this warranty, Crestron makes no other warranties,
expressed or implied, nor authorizes any other party to oer any warranty, including any
implied warranties of merchantability or fitness for a particular purpose. Any implied
warranties that may be imposed by law are limited to the terms of this limited warranty.
This warranty statement supersedes all previous warranties.
The s . pecific patents that cover Crestron products are listed at patents.crestron.com
Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron
Electronics, Inc. in the United States and/or other countries. Other trademarks, registered
trademarks, and trade names may be used in this document to refer to either the entities
claiming the marks and names or their products. Crestron disclaims any proprietary
interest in the marks and names of others. Crestron is not responsible for errors in
typography or photography.
This document was written by the Technical Publications department at Crestron.
©2013 Crestron Electronics, Inc.
Scre
w
s
(4
)
#8-32
x
1/4 in
P
hill
i
ps
P
an Hea
d
SideBrackets
Dr
ipShield
Screws (4) #8-32 x 1/4 in
Ph Pillips an Head
Nu (4)ts
#8-32 in
Hex
