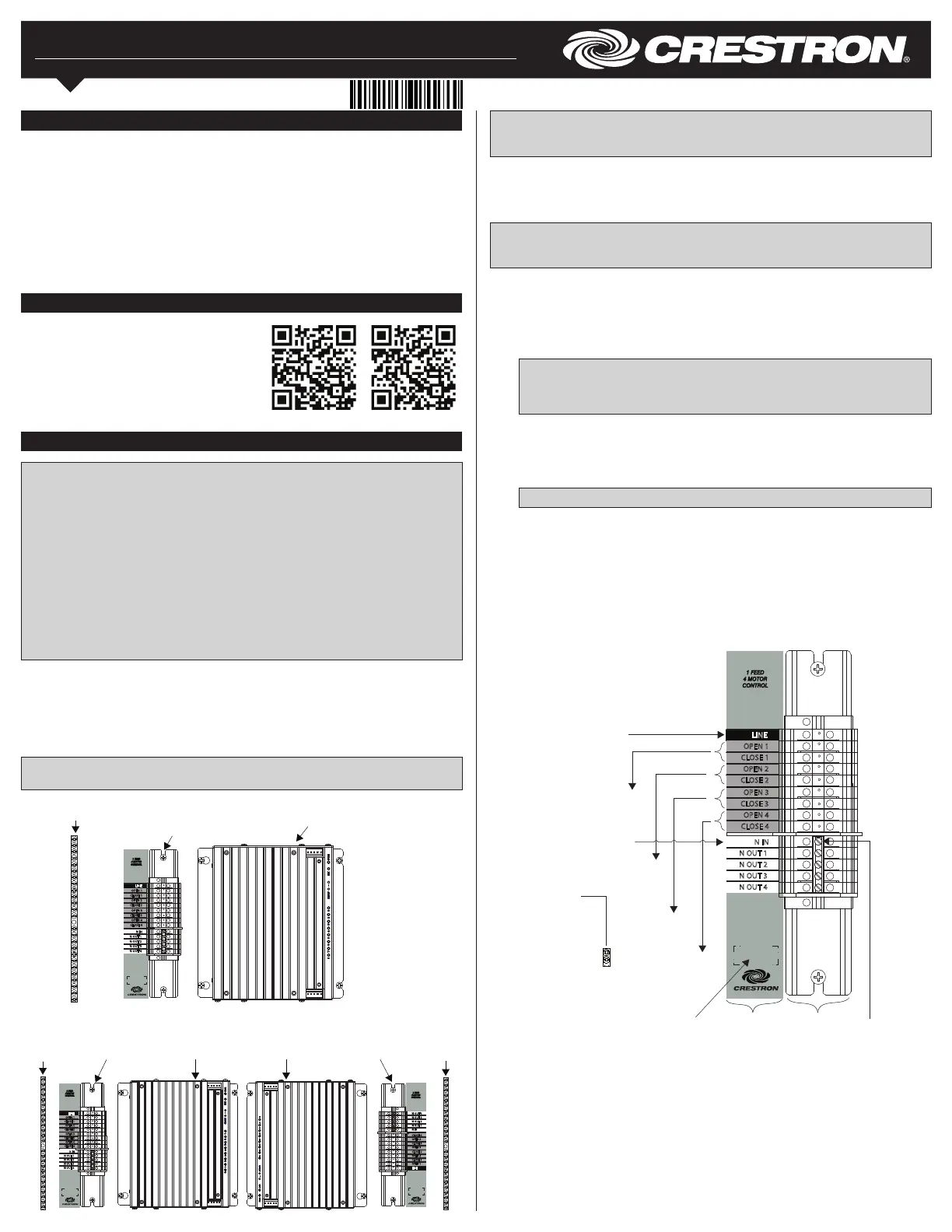

CLT-1MC4/CLX-1MC4
Terminal Block and Motor Control Module
Installation Guide
Description
The Crestron® 1-feed, 4-motor terminal block and module (CLT-1MC4 and CLX-1MC4,
respectively) are considered a single entity and must be used together. They ship
separately to permit termination of the eld wiring to the CLT-1MC4 prior to installation of
the CLX-1MC4. They can be mounted in any Crestron Automation Enclosure
(CAEN-Series Enclosures). The terminal block is designed to terminate the circuit feed
(LINE and NEUTRAL) and distribute the controlled circuits (LOAD) to the motors. The
module connects to the terminal block and controls four bidirectional motors. The
maximum load is 10 Amps (1/2 HP) for any controlled circuit, limited to 16 amps total per
module. The unit requires 120 Vac 50/60 Hz, 1 phase input voltage. An oversize heat sink
dissipates heat efciently. There are LEDs on the module to indicate communication to a
Cresnet® network, input power to the module, and output power to the load.
Installation
WARNING: To avoid re, shock, or death, turn off the power at the circuit breaker or
fuse, and test that the power is off before wiring!
CAUTION: This equipment is for indoor use only and needs to be air cooled. Mount in a
well-ventilated area. The ambient temperature must be 32°F to 104°F (0°C to 40°C). The
relative humidity must be 0% to 90% (noncondensing).
NOTES: Observe the following points:
• This product must be installed and used in accordance with appropriate electrical
codes and regulations.
• This product must be installed by a licensed electrician.
NOTE: Before using the CLX-1MC4, ensure the device is using the latest rmware.
Check for the latest rmware for the CLX-1MC4 at www.crestron.com/rmware.
Firmware is loaded onto the device using Crestron Toolbox™ software.
The terminal block is installed along the left side of single-wide enclosures and along the
outside edges (left and right sides) of double-wide enclosures. The module is installed
along the right side of single-wide enclosures and side-by-side in the center of
double-wide enclosures. When installing modules and terminal blocks in a double-wide
enclosure, be sure to invert units on the right side so that they can be properly wired.
Refer to the illustrations when considering the location of terminal blocks and modules
within an enclosure.
NOTE: The CLT-1MC4 and CLX-1MC4 must be installed into the lowest available
spaces of the enclosure rst and then continue toward the top of the enclosure.
Terminal Block and Module Locations (Single-Wide Enclosure)
Additional Resources
Visit the product page on the Crestron website
(www.crestron.com) for additional information
and the latest rmware updates. Use a QR
reader application on your mobile device to scan
the QR image.
NOTE: If an assembled UL® Listed panel is required, it can be obtained through
Crestron’s UL Listed panel shop. An assembled UL Listed panel includes complete
in-factory system conguration and assembly by Crestron for an additional fee.
Terminal Block Installation and Field Wiring
Apply the supplied adhesive label before installing the terminal block. The adhesive label
provides identication for each terminal in the terminal block and is designed to
accomodate installation into the left or right side of the enclosure.
NOTE: Both left-side and right-side adhesive wiring labels are provided. The left-side
labels are used in both single- and double-wide enclosures. The right-side labels are
used only in double-wide enclosures.
1. Remove the backing from the left- or right-side adhesive wiring label.
2. Apply the adhesive label by aligning the holes in the label with the holes on the
Crestron Automation Enclosure where the terminal block is to be mounted. The
wiring label lies beneath the terminal block as shown in the following diagrams.
3. Use the two supplied self-tapping Phillips pan head screws (8B x 1/4-inch length) to
secure the terminal block to the Crestron Automation Enclosure.
CAUTION: The jumper on the white section of the terminal block ties the neutral
in to the neutral out. These jumpers should never be removed.
NOTE: Use copper conductors only—rated 75° C or greater.
4. Turn off the circuit breakers.
5. Connect the circuit feed (LINE and NEUTRAL) and controlled circuit (LOAD) wires to
the terminal block per the markings provided on the wiring label (as shown in the
following diagrams). Terminal blocks accept one 14–10 AWG wire. Strip the wires to
1/2 in (13 mm). Tighten terminal blocks to 9 in-lbs.
NOTE: Only one motor may be wired per circuit.
6. Terminate the ground wires at the grounding terminal blocks that are available in the
enclosure. Tighten the grounding terminal blocks to 35 in-lbs (14–10 AWG), 40 in-lbs
(8 AWG), or 45 in-lbs (6–4 AWG).
7. Test the circuit for electrical faults by connecting LINE to OPEN 1. Switch on the
circuit breaker, and check that it does not trip and that the load connected to
OPEN 1 is receiving power. Switch off the circuit breaker, remove the connection
between LINE and OPEN 1, and repeat this step, for CLOSE 1, and then sequentially
for each OPEN and CLOSE motor connection.
Wiring the Terminal Block to the Feed and Load(s)
(Single-Wide and Left-Side Double-Wide Enclosures)
Terminal Block and Module Locations (Double-Wide Enclosure)
CLX-1MC4
OPEN 3
CLOSE 3
OPEN 4
CLOSE 4
120VAC 60 Hz
16A MAX
N IN
N OUT 1
N OUT 2
N OUT 3
N OUT 4
OPEN 1
CLOSE 1
OPEN 2
CLOSE 2
LINE
Line
Connection from a 15
or 20 Amp Circuit
Breaker
Jumper
Terminal
Block
Left-Side
Wiring Label
Module
Location
Label
Neutral
Grounding
Terminal
Block
Ground
To
Motor 4
To
Motor 3
To
Motor 2
To
Motor 1
Grounding
Terminal
Block
CLT-1MC4
Terminal Block
(Left)
CLX-1MC4
Module
CLT-1MC4
Terminal Block
(Right)
CLX-1MC4
Module
Grounding
Terminal
Block
CLX-1MC4
120VAC 60 Hz
16A MAX
N OUT 4
N OUT 3
N OUT 2
N OUT 1
N IN
LINE
CLO SE 2
OP
C O 1
OP 1
CLO SE 4
OP 4
C O 3
OP 3
CLX-1MC4
O PEN 3
C O 3
O P 4
C O 4
120VAC 60 Hz
16A MAX
N IN
N O UT 1
N O UT 2
N O UT 3
N O UT 4
O PEN 1
C O 1
O P 2
C O 2
LINE
CLX-1MC4
OPEN 3
C O 3
OP 4
C O S 4
120VAC 60 Hz
16A MAX
N IN
N OUT 1
N OUT 2
N OUT 3
N OUT 4
OPEN 1
C O S 1
OP 2
C O S 2
LINE
CLT-1MC4 Terminal Block CLX-1MC4 Module
Grounding Terminal Block
CLT-1MC4 CLX-1MC4
Wiring the Terminal Block to the Feed and Load(s)
(Right-Side Double-Wide Enclosures)
Module Installation
CAUTION: The module contains electrostatic-sensitive devices (ESDs); the unit must
be handled from the metal chassis. Do not touch the PC board or components.
Install the module after the terminal block is installed and the enclosure has been
completely wired.
1. Use the four supplied self-tapping Phillips pan head screws (8B x 1/4-inch length) to
secure the module to the enclosure.
2. As shown in the wiring diagram, connect the wires from the module to the terminal
block. Each wire exits the module directly in line with, and is the same color as, the
terminal to which it should be connected. Wires are prestripped to 1/2 in (13 mm).
Tighten to 9 in-lbs.
3. If the module is being installed above another module within the enclosure, attach
the supplied module-interconnect cable to the two modules. The illustration that
follows shows the area within a double-wide enclosure where the corners of four
modules meet.
NOTE: One wire on the module-interconnect cable may be a different color from
the rest. The color has no bearing on its orientation during installation.
Use the Module Interconnect Cable to Wire Module to Module.
4. Turn on the circuit breakers and verify that the green PWR LED on the module lights,
that the breakers do not trip, and that power is delivered to the loads.
NOTE: Power must be supplied to LINE for the module to communicate with the
control system or any of the circuits to operate.
Wiring the Terminal Block to the Module
Wiring Diagram of the Terminal Block to the Module
(Right Side Double-Wide Enclosures)
This product is Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc.
The product warranty can be found at www.crestron.com/warranty.
The specic patents that cover Crestron products are listed at patents.crestron.com.
Certain Crestron products contain open source software. For specic information, please visit
www.crestron.com/opensource.
Crestron, the Crestron logo, Cresnet, and Crestron Toolbox are either trademarks or registered
trademarks of Crestron Electronics, Inc. in the United States and/or other countries. UL and the UL
logo are either trademarks or registered trademarks of Underwriters Laboratories, Inc. in the United
States and/or other countries. Other trademarks, registered trademarks, and trade names may be
used in this document to refer to either the entities claiming the marks and names or their products.
Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not
responsible for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2015 Crestron Electronics, Inc.
Crestron Electronics, Inc. Installation Guide - DOC. 5991D
15 Volvo Drive Rockleigh, NJ 07647 (2002073)
Tel: 888.CRESTRON 12.15
Fax: 201.767.7576 Specications subject to
www.crestron.com change without notice.
Module Interconnect
Cable Attached
Connection Not
Made
CLX- 1MC4
OPEN 3
CLOSE 3
OPE 4
CLOSE 4
120VAC 60 Hz
16A MAX
N IN
N OU T 1
N OU T 2
N OU T 3
N OU T 4
OPEN 1
CLOSE 1
OPE 2
CLOSE 2
LINE
Jumper
Attach Module
Interconnect
Cable (Step 3)
CLX-1MC4
120VAC 60 Hz
16A MAX
N O UT 4
N O UT 3
N O UT 2
N O UT 1
N I N
LINE
CLOSE 2
OPE 2
CLOSE 1
OPE 1
CLOSE 4
OPE 4
CLOSE 3
OPE 3
Attach Module
Interconnect
Cable (Step 3)
Jumper
Line
Connection from a 15
or 20 Amp Circuit
Breaker
Jumper
Terminal
Block
Right-Side
Wiring Label
Module
Location
Label
Neutral
To
Motor 4
To
Motor 3
To
Motor 2
To
Motor 1
CLX-1MC4
120VAC 60 Hz
16A MAX
N OUT 4
N OUT 3
N OUT 2
N OUT 1
N IN
LINE
CLOSE 2
OPEN 2
CLOSE 1
OPEN 1
CLOSE 4
OPEN 4
CLOSE 3
OPEN 3
Grounding
Terminal
Block
Ground

Produkt Specifikationer

Mærke: Crestron
Kategori: Ikke kategoriseret
Model: CLX-1MC4

Har du brug for hjælp?

Hvis du har brug for hjælp til Crestron CLX-1MC4 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret Crestron Manualer

Crestron

Crestron Green Light GL-EXP-SW-CN Manual

10 September 2025
Crestron

Crestron FT2A-PWR-IT-1-BASIC Manual

10 September 2025
Crestron

Crestron FT2A-PWR-AU-2 Manual

10 September 2025
Crestron

Crestron FT2A-PWR-UK-2 Manual

10 September 2025
Crestron

Crestron Green Light GLXX-2DIM8 Manual

10 September 2025
Crestron

Crestron FT2A-PWR-EU-1-BASIC Manual

10 September 2025
Crestron

Crestron FT2A-PWR-UN-1-BASIC Manual

9 September 2025
Crestron

Crestron FT2A-PWR-US-3 Manual

9 September 2025
Crestron

Crestron FT2A-PWR-SW-1-BASIC Manual

9 September 2025
Crestron

Crestron FT2A-PWR-US-1-BASIC Manual

9 September 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Elektrobock

Elektrobock PT44 Manual

14 September 2025
BSS Audio

BSS Audio FDS-366T Manual

14 September 2025
Systemair

Systemair Airline R-114 Manual

14 September 2025
IFM

IFM SU2031 Manual

14 September 2025
Morel

Morel Tempo Ultra Integra 502 Manual

14 September 2025
IMC Networks

IMC Networks 232CL9R Manual

14 September 2025
Varta

Varta Speed Charger 57955 Manual

14 September 2025
Melissa & Doug

Melissa & Doug 9336 Manual

14 September 2025
Opus

Opus dataPREDATOR Manual

13 September 2025
Varta

Varta Wireless Power Bank 20000 57909 Manual

13 September 2025
