CLTI- & CLXI-2DIM2

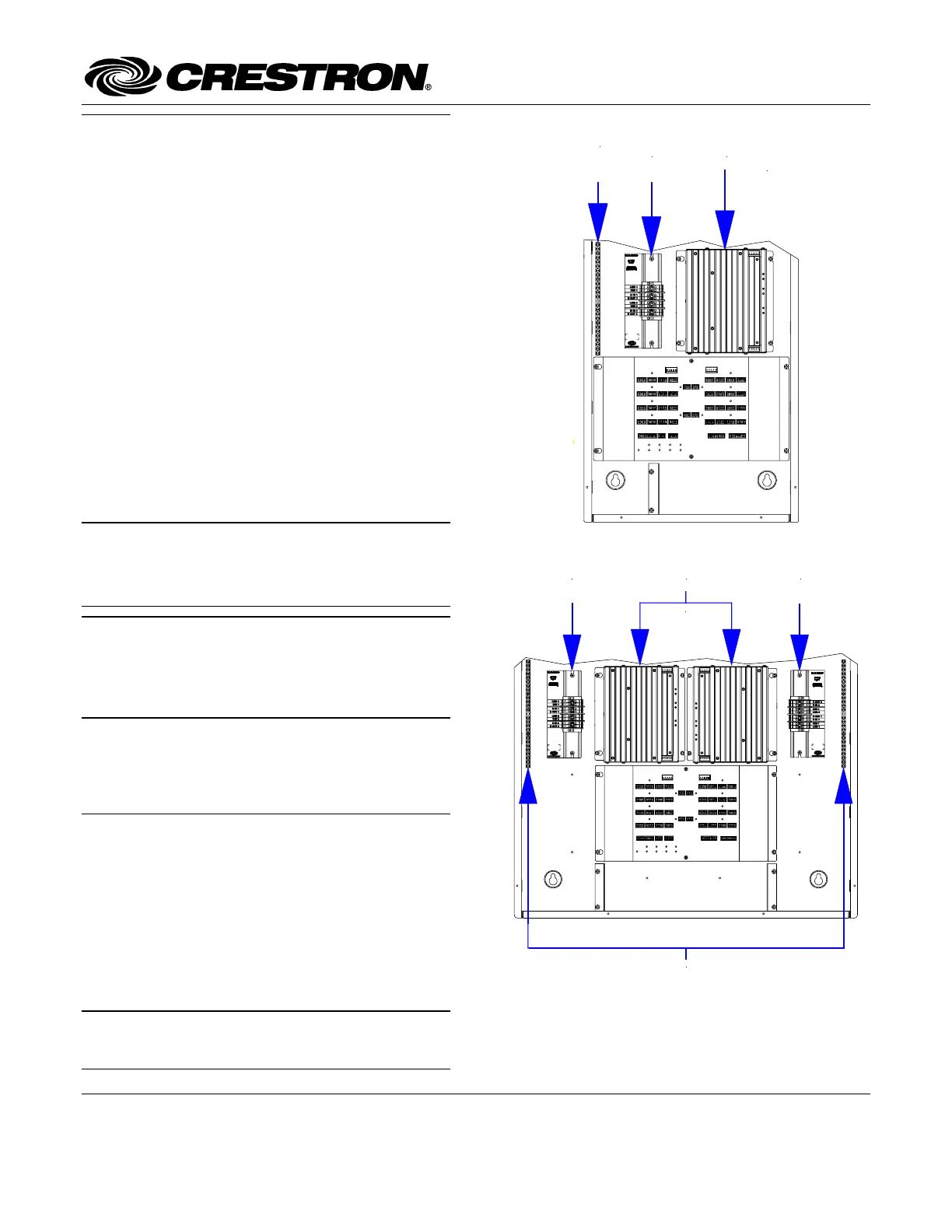

Terminal Block & Module Locations (Single-wide Enclosure)

Functional Summary

MODULETERMINAL

BLOCK

GROUNDING

TERMINAL

BLOCK (INSTALL INTO

LOWEST

AVAILABLE

SPACES)

The Crestron 2-Feed, 2-Dimmer Terminal Block and

Module (CLTI-2DIM2 and CLXI-2DIM2, respectively),

are considered a single entity and must be used together.

They ship separately to permit termination of the field

wiring to the CLTI-2DIM2 prior to installation of the

CLXI-2DIM2, as described in this guide. They can be

mounted in any Crestron Automation Enclosure (CAEN

or CAENIB-Series Enclosures). The terminal block is

designed to terminate two circuit feeds (LINE and

NEUTRAL) and distribute the controlled circuits (LOAD)

to the fixtures. The module connects to the terminal block

and performs dimming control of two incandescent,

magnetic low voltage, neon, cold cathode, or dimmable

2-wire fluorescent lighting loads. The maximum load is

10 amps for each controlled circuit (20 amps total per

module). The unit requires 230VAC 50 Hz, 1 phase input

voltage. An oversize heat sink dissipates heat efficiently.

There are LEDs on the module to indicate communication

to a Cresnet

network, input power to the module, and

output power to the load.

NOTE: The two input lines must be the same phase or

split phase. Terminal Block & Module Locations (Double-wide Enclosure)

NOTE: When connecting to an Arc Fault Breaker, the

load should not exceed 1000 watts.

GROUNDING TERMINAL BLOCKS

TERMINAL BLOCK

(LEFT)

TERMINAL BLOCK

(RIGHT)

MODULE

(INSTALL INTO

LOWEST

AVAILABLE

SPACES)

Installation

Terminal block and module must be mounted into a

Crestron Automation Enclosure by a licensed electrician,

in accordance with all national and local codes.

CAUTION: This equipment is for indoor use only and

needs to be air-cooled. Mount in a well-ventilated area.

The ambient temperature must be 0°C to 40°C (32°F to

104°F). The relative humidity must be 0% to 90% (non-

condensing).

Terminal blocks are installed along the left side of single-

wide enclosures and along the outside edges (left and

right sides) of double-wide enclosures. Modules are

installed along the right side of single-wide enclosures

and side-by-side in the center of double-wide enclosures.

When installing modules and terminal blocks in a double-

wide enclosure, be sure to invert units on the right side so

that they can be properly wired. Refer to the illustrations

shown below when considering the location of terminal

blocks and modules within an enclosure.

NOTE: Modules and terminal blocks must be installed

into the lowest available spaces and continue toward the

top of the enclosure.

Crestron Electronics, Inc. Installation Guide – DOC. 6410A

15 Volvo Drive Rockleigh, NJ 07647 (2013810)

Tel: 888.CRESTRON 11.07

Fax: 201.767.7576 Specifications subject to

www.crestron.com change without notice.

Terminal Block & Module Crestron CLTI- & CLXI-2DIM2

Terminal Block Installation and Field

Wiring

5. Grounding terminal blocks are available in the

cabinet for termination of ground wires. Tighten

to 4 Nm (2.5 - 6.0 mm2), 4.5 Nm (10.0 mm2), or

5.1 Nm (16 - 25 mm2).

NOTE: To install a CLTIBN Circuit Breaker Terminal

Block, refer to the latest version of the CLTIBN

Installation Guide (Doc. 6561) which can be downloaded

from the Crestron website (www.crestron.com/manuals).

6. Test the circuit for electrical faults by turning on

the circuit breakers, checking that the breakers

do not trip, and that power is delivered to the

proper loads.

NOTE: Both left-side and right-side adhesive wiring

labels are provided. The left-side labels are used in both

single and double-wide enclosures. The right-side labels

are only used in double-wide enclosures.

NOTE: If installing in a CAENIB, complete the

installation with a CAENIB-BP Blank Plate. Refer to the

latest version of the CAENIB-BP Installation Guide (Doc.

6563) for details.

1. Remove the backing from the left or right

adhesive wiring label. Wiring Diagram of the Terminal Block to the Feed and

Load(s) (Single-wide and Left Side Double-wide Enclosures)

2. Apply the adhesive label by aligning the holes in

the label with the appropriate holes on the

Crestron Automation Enclosure where the

terminal block is to be mounted. For information

on mounting locations, refer to the latest version

of the CAEN Installation Guide (Doc. 5940) or

the CAENIB Installation Guide (Doc. 6562). The

wiring label lies beneath the terminal block as

shown in the two wiring diagrams on this page.

NEUTRAL

LINE 1

(FROM 10 OR 16 AMP

CIRCUIT BREAKER)

TERMINAL

BLOCK

LEFT SIDE

WIRING LABEL

LOAD 1

AREA FOR

MODULE

LOCATION

LABEL

GROUNDING

TERMINAL

BLOCK

GND

LOAD 2

BYPASS

JUMPERS

NEUTRAL

LINE 2

(FROM 10 OR 16 AMP

CIRCUIT BREAKER)

3. Use the two supplied self-tapping pan Phillips

screws (8B x ¼ (6 mm) length) to secure the

terminal block to the Crestron Automation

Enclosure.

CAUTION: Bypass jumpers are provided to allow

testing and to protect the module during installation.

When properly secured by two screws, the bypass

jumpers on the brown and red sections of the terminal

block short the LINE in to DIM out so that all

circuits are energized. Do not remove the bypass

jumpers until all feed and load wiring has been

completed, the circuit has been tested for electrical

faults, and the module has been installed. Refer to

“Module Installation” on next page.

Furthermore, the jumpers on the blue sections of the

terminal block tie the neutral in to the neutral outs.

These jumpers should never be removed.

Wiring Diagram of the Terminal Block to the Feed and

Load(s) (Right Side Double-wide Enclosures)

NEUTRAL

AREA FOR

MODULE

LOCATION

LABEL

NEUTRA

LINE 1

(FROM 10 OR 16 AMP

CIRCUIT BREAKER)

GROUNDING

TERMINAL

BLOCK

GND

LOAD 1

LOAD 2

TERMINAL

BLOCK

RIGHT SIDE

WIRING LABEL

BYPASS

JUMPERS

LINE 2

(FROM 10 OR 16 AMP

CIRCUIT BREAKER)

NOTE: Use copper conductors only – rated 75°C

4. With the circuit breakers turned off, connect the

circuit feed (LINE and NEUTRAL) and

controlled circuit (LOAD) wires to the terminal

block per the markings provided on the wiring

label (as shown in the diagrams on this page).

Terminal blocks accept one 2.5 - 6.0 mm

2 wire.

Wires should be stripped to 12 mm. Tighten

terminal blocks to 1 Nm.

2 •

•

•• Terminal Block & Module: CLTI- & CLXI-2DIM2 Installation Guide – DOC. 6410A
