Description
The Crestron
®
STIRP is a pure IR (infrared) emitter that is designed to adhere to the IR
sensor window of a television, an optical disc player, or any other IR-controllable device.
equipped with a 3.5 mm mono mini-type Crestron IR port, providing a 1-way IR control
interface to the device.
STIRP
IR Emitter Probe
Installation Guide
Installation
Positioning the STIRP
With many devices, the STIRP works best when positioned directly over the controlled
device’s IR sensor, but with other devices, operation is more consistent when the STIRP
is placed an inch or two offset from the IR sensor.
It may be difcult to locate the IR sensor on the controlled device, so instead, test
commands from the Crestron control system or room solution box while moving the
STIRP around the controlled device’s front panel. When operation is consistent and
reliable, attach the STIRP using the procedure below.
Attaching the STIRP
Peel off the clear adhesive strip on the back of the STIRP shell, and then carefully afx
the STIRP to the desired location on the controlled device’s front panel while pressing
rmly.
Attaching the IR Mask (Optional)
Attach the included IR mask when two or more identical components in the same rack
are being controlled. The IR mask prevents stray IR output from accidentally controlling
another device.
To attach the IR mask, t the two pieces together without removing the clear adhesive
strips from the STRIP shell or the IR mask, and then attach the STIRP to the controlled
device as described above.

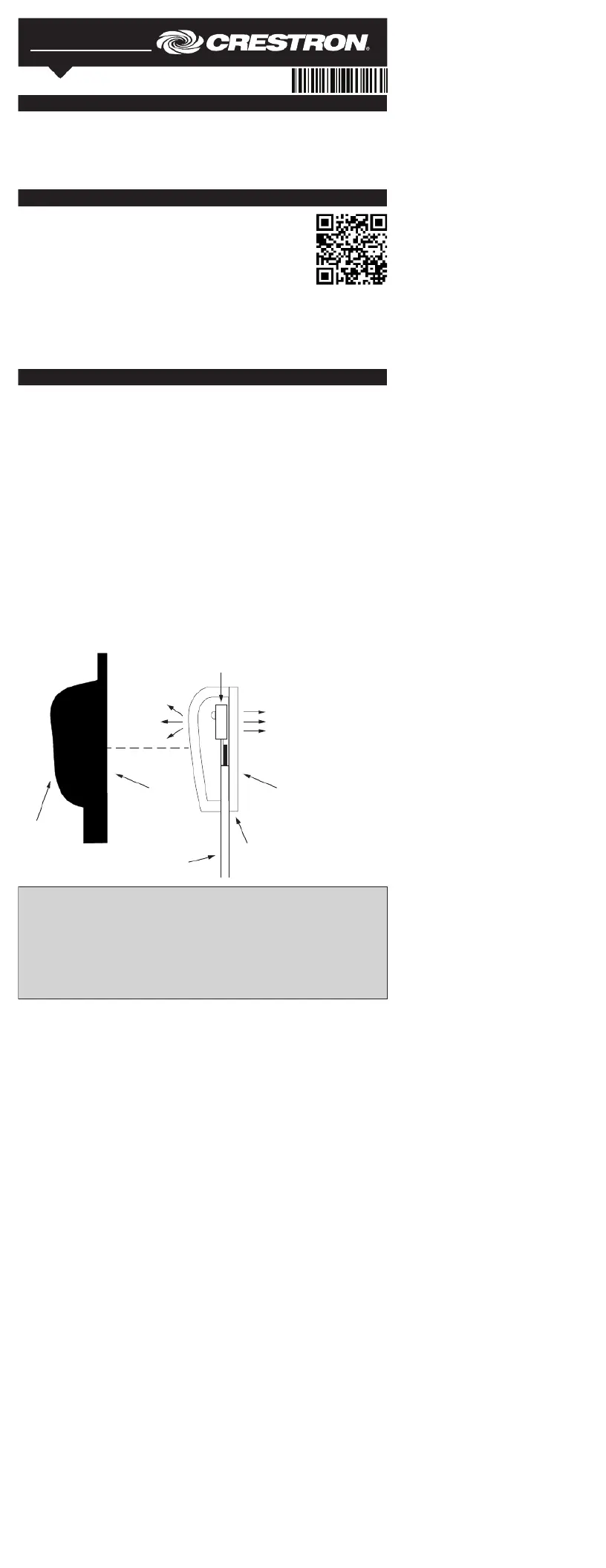

STIRP Shell and (Optional) IR Mask (Side View)
Clear adhesive
layer
Internal IR
emitter
IR
output
IR
output
STIRP
shell
Miniwire
lead
NOTE:
If the STIRP’s shell must be removed and repositioned for any reason, it may
be necessary to replace the adhesive strip with a new piece of two-sided tape
(supplied) to restore adhesion.
NOTE:
The STIRP is a pure infrared emitter, and it does not emit visible light. Since
IR can be recorded by using a smart device’s digital camera, test to see that the
STIRP is properly working by triggering the STIRP using the control system or room
solution box. While the STIRP is being triggered, record a video of the emitter with a
smart phone’s digital camera. If IR is visible in the video during playback, the STIRP
is properly working.
IR
mask
(optional)
Clear adhesive
layer
As of the date of manufacture, the device has been tested and found to comply with
specications for CE marking.
Product warranty can be found at www.crestron.com/warranty.
The specic patents that cover Crestron products are listed at patents.crestron.com.
www.crestron.com/opensource.
Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron
Electronics, Inc. in the United States and/or other countries. Other trademarks, registered
trademarks, and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Crestron disclaims any proprietary interest in the marks
and names of others. Crestron is not responsible for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2016 Crestron Electronics, Inc.
Crestron Electronics, Inc. Installation Guide - DOC. 5674D
15 Volvo Drive, Rockleigh, NJ 07647 (2030842)
Tel: 888.CRESTRON 10.16
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
Hardware Hookup
Insert the STIRP’s 3.5 mm mono mini plug into an infrared-serial output port of a control
system or a room solution box as shown in the following illustration.

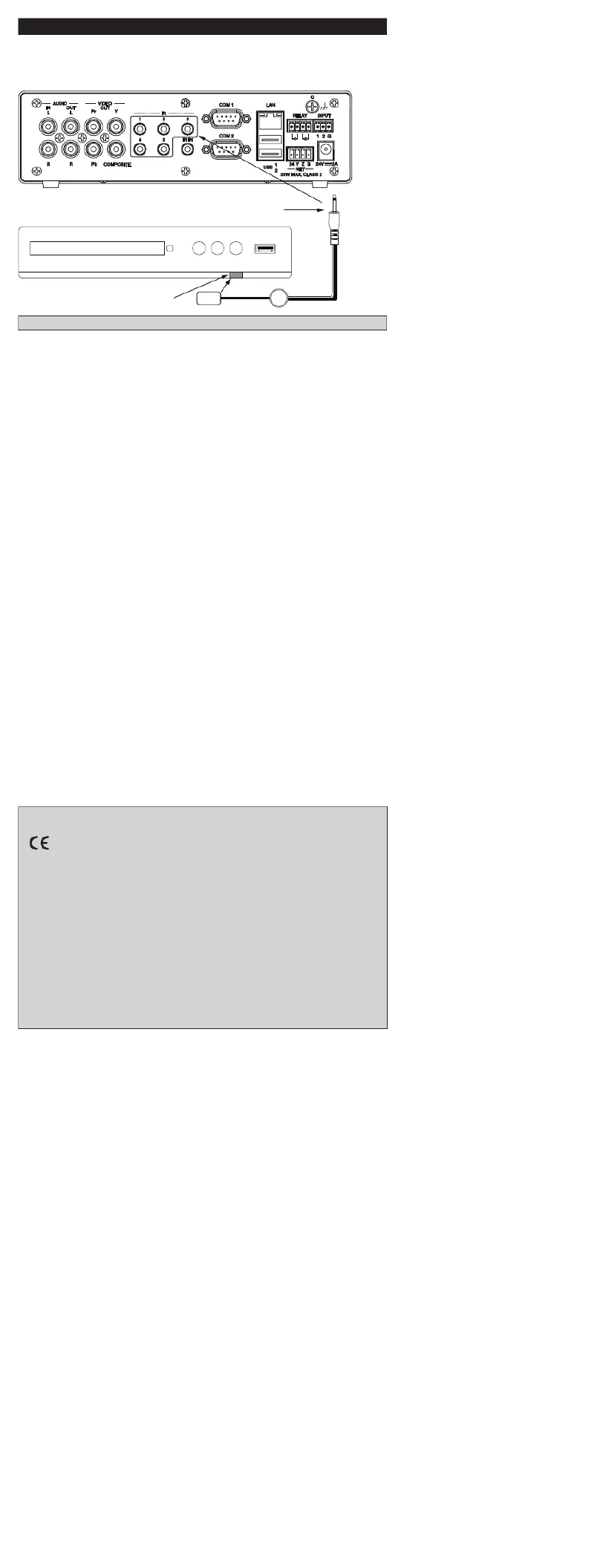

STIRP Connection Diagram
Crestron MC3
Optical Disk Player
3.5 mm mono
mini plug
IR sensor
window
NOTE: The white-striped side of the connector cable is positive (+).
