Side 1/4
CLTI- & CLXI-2IND/4IND
Functional Summary NOTE: Inductor modules and terminal blocks should be
installed above the dimmer modules, towards the top of
the CAEN or CAENIB enclosure.
The CLTI/CLXI-2IND is a 2-inductor terminal block and
module kit while the CLTI/CLXI-4IND is a 4-inductor
terminal block and module kit. Inductor modules are
typically used to reduce hum from incandescent lamps
that are connected to dimmer modules in a Crestron
lighting system. These kits can be mounted in any
Crestron Automation Enclosure (CAEN or CAENIB-
Series Enclosures). The terminal block is for connecting
wires into and out of the inductor module. The inductor is
wired in series between the output of the dimmer module
and the load. The maximum load for any inductor in the
module is 10 amps.

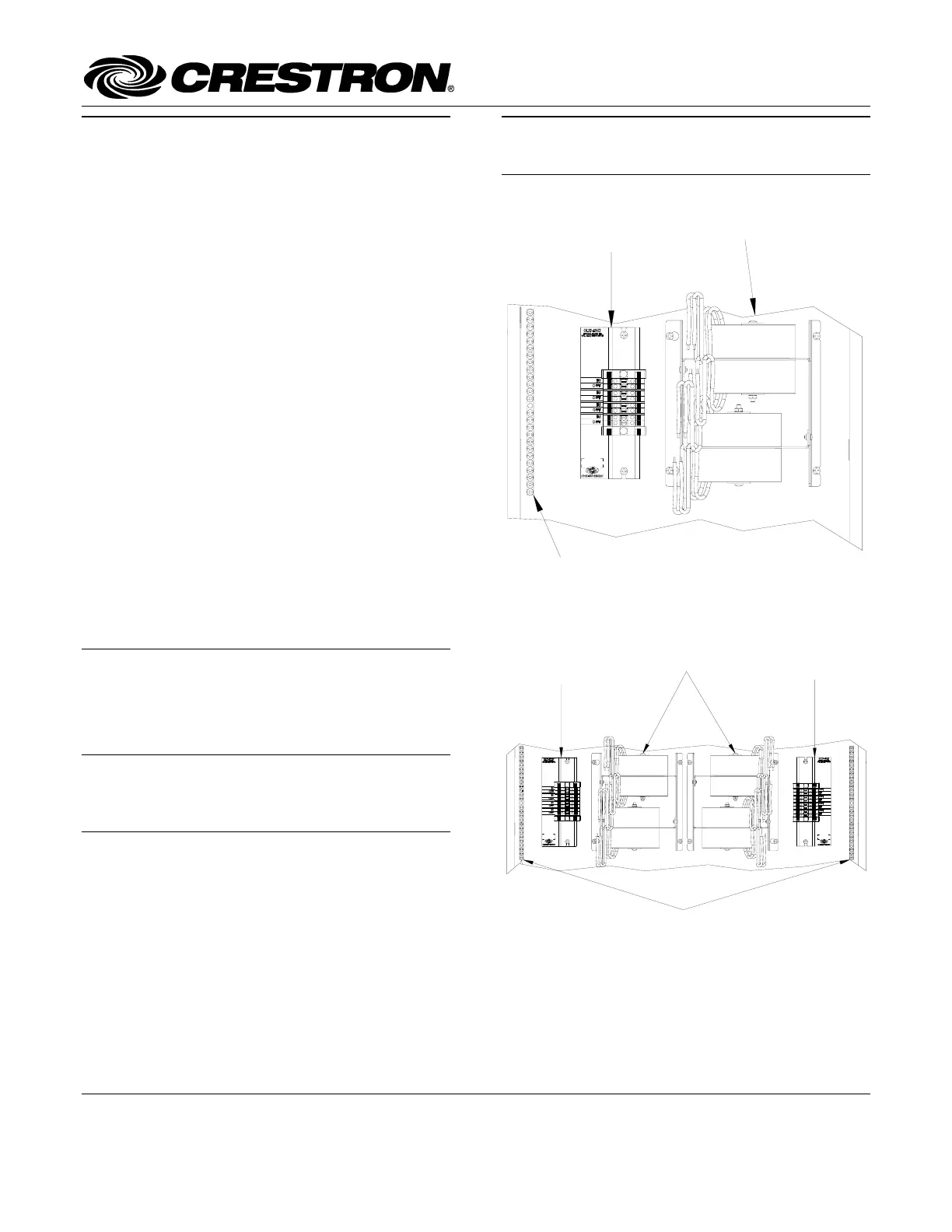

Terminal Block & Module Locations in Single-wide Enclosure
(CLTI/CLXI-4IND shown)
TERMINAL BLOCK
(LEFT)
MODULE
GROUNDING
TERMINAL BLOCK
Each of these Terminal Block and Module kits is
considered single entities and must be used together. The
terminal blocks (CLTI-2IND and/or CLTI-4IND) are
shipped separately from their respective modules
(CLXI-2IND and CLXI-4IND) to permit termination of
the field wiring to the terminal block prior to installation
of the module, as described in this guide.
CLXI-2IND and CLXI-4IND modules can also be
connected to CLTIBN-2IND and CLTIBN-4IND terminal
blocks. For installation information, refer to the latest
version of the CLTIBN Installation Guide (Doc. 6561)
which is available for download from the Crestron
website (www.crestron.com/manuals).
Terminal Block & Module Locations in Double-wide
Enclosure (CLTI/CLXI-4IND shown)
Installation
GROUNDING
TERMINAL
BLOCKS
TERMINAL BLOCK
(LEFT)
MODULES TERMINAL BLOCK
(RIGHT)
The terminal block and module must be mounted into a
Crestron Automation Enclosure by a licensed electrician,
in accordance with all national and local codes.
CAUTION: This equipment is for indoor use only.
Mount in a well-ventilated area. The ambient temperature
must be 0°C to 40°C (32°F to 104°F). The relative
humidity must be 10% to 90% (non-condensing).
Terminal blocks are installed along the left side of single-
wide enclosures and along the outside edges (left and
right sides) of double-wide enclosures. Modules are
installed along the right side of single-wide enclosures
and side-by-side in the center of double-wide enclosures.
When installing modules and terminal blocks in a double-
wide enclosure, be sure to invert units on the right side so
that they can be properly wired. Refer to the illustrations
shown in the next column when considering the location
of terminal blocks and modules within an enclosure.
Crestron Electronics, Inc. Installation Guide – DOC. 6559A
15 Volvo Drive Rockleigh, NJ 07647 (2017224)
Tel: 888.CRESTRON 04.07
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
Terminal Block & Module Crestron CLTI- & CLXI-2IND/4IND
Installation and Field Wiring Wiring CLTI-2IND Terminal Block to the Feed and Load(s)
for Single-Wide Enclosure and Left Side of Double-Wide
Enclosure
NOTE: If CLTIBN terminal blocks are to be used, refer
to the latest version of the CLTIBN Installation Guide
(Doc. 6561).
FROM DIMMER
TO LOAD
FROM DIMMER
TO LOAD
NOTE: Both left-side and right-side adhesive wiring
labels are provided. The left-side labels are used in both
single and double-wide enclosures. The right-side labels
are only used in double-wide enclosures.
1. Remove the backing from the left or right
adhesive wiring label.
2. Apply the adhesive label by aligning the holes in
the label with the holes on the Crestron
Automation Enclosure where the terminal block
is to be mounted. The wiring label lies beneath
the terminal block as shown in the two wiring
diagrams on this page.
3. Use the two supplied self-tapping pan Phillips
screws (8B x ¼ length (6mm)) to secure the
terminal block to the Crestron Automation
Enclosure.
CAUTION: Bypass jumpers are provided to allow
testing of circuits and to protect the module during
installation. When properly secured by two screws,
each of the two jumpers on terminal block shorts the
dimmer output to the load so that the circuit is
energized. Do not remove any bypass jumpers until
all dimmer and load wiring has been completed, the
circuit has been tested for electrical faults, and the
module has been installed. Refer to “Module
Installation” on next page.
Wiring CLTI-2IND Terminal Block to the Feed and Load(s)
for Right Side of Double-Wide Enclosure
TO LOAD
FROM DIMMER
TO LOAD
FROM DIMMER
NOTE: Use copper conductors only – rated 75°C
4. With the circuit breaker turned off, connect the
dimmer module output (IN) and the load (OUT)
wires to the IND terminal block per the markings
provided on the wiring label (as shown in the
following diagrams). Terminal blocks accept one
2.5 - 6.0 mm2 wire. Wires should be stripped to
12 mm. Tighten terminal blocks to 1 Nm.
5. Test the circuit for electrical faults by turning on
the circuit breaker and checking that the breaker
does not trip and that the proper lighting loads
are energized.
2 •
•
•
•• Terminal Block & Module: CLTI- & CLXI-2IND/4IND Installation Guide – DOC. 6559A
