DMB Series

DigitalMedia™ Blades

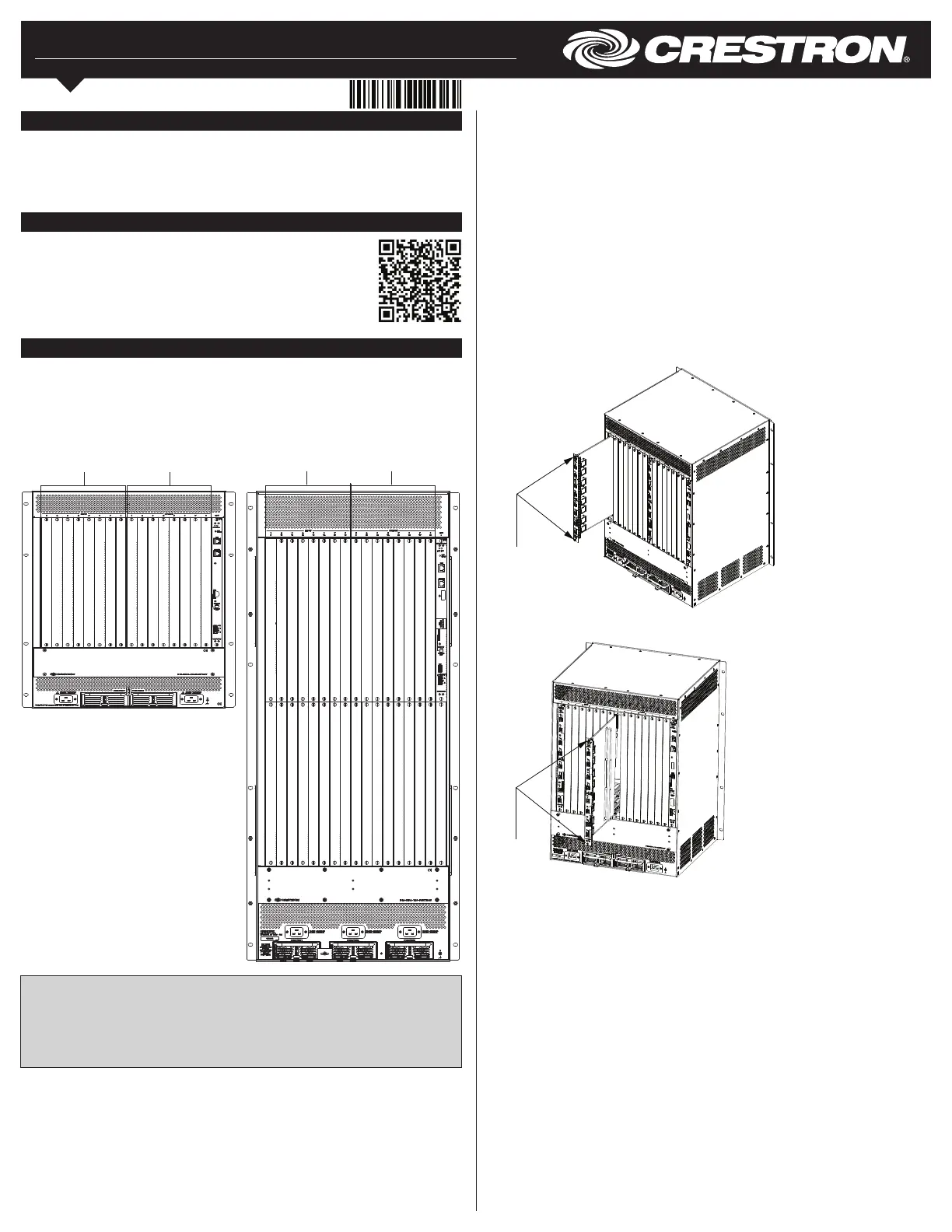

Installation Guide

To add or replace a DMB I/O blade, perform the following steps and refer to the

illustrations below.

1. Do either of the following:

• If adding an I/O blade, remove the slot cover of an unused input or output slot as

appropriate by loosening the two thumb screws.

• If replacing an I/O blade, disconnect all cables from the blade being replaced,

loosen the two thumb screws that secure the blade to the blade assembly, and

then slide the blade out of the slot.

2. Carefully insert the new blade into the guides at the top and bottom of the selected

slot until the blade is 1/4 inch from the fully seated position.

3. Align the two thumb screws of the blade with the corresponding holes in the blade

assembly, and then push the blade inward until it is fully seated and engages the

chassis backplane.

4. Finger-tighten the two thumb screws to secure the blade—do not overtighten the

screws.

5. Reconnect the cables to the blade.

Input Blade Installation (DM-MD64X64 Shown)

Output Blade Installation (DM-MD64X64 Shown)

Description

DMB blades occupy the DM-MD64X64 and DM-MD128X128 DigitalMedia™ switchers.

This document provides installation instructions for the following:

• Adding or replacing a DMB input/output (I/O) blade

• Replacing the DMB CPU blade

Adding or Replacing a DMB I/O Blade

DMB input blades occupy input slots 1 through 8 of the DM-MD64X64 and input slots

1 through 16 of the DM-MD128X128. DMB output blades occupy output slots 1 through 8

of the DM-MD64X64 and output slots 1 through 16 of the DM-MD128X128. Refer to the

following illustrations for slot locations.

DM-MD64X64 DMB I/O Blade Slots DM-MD128X128 DMB I/O Blade Slots

Additional Resources

Visit the product page on the Crestron® website (www.crestron.com)

for additional information and the latest rmware updates.

CAUTION: DMB I/O blades are susceptible to damage from electrostatic discharge

(ESD). Standard ESD precautions must be followed when handling the blades. Always

wear an ESD wrist strap that is connected to ground, and place blades on grounded

surfaces only.

NOTE: DMB I/O blades are hot swappable; therefore, the blades can be installed

without the need to shut down the DigitalMedia switcher.

Input Slots

1-8

Output Slots

1-8

-B-

Input Slots

1-16

Output Slots

1-16

Thumb

Screws (2)

Thumb

Screws (2)

Replacing the DMB CPU Blade

The DMB-CPU-64 blade occupies the CPU slot of the DM-MD64X64; the DMB-CPU-128

blade occupies the CPU slot of the DM-MD128X128. Refer to the following illustrations for

the location of the DMB CPU blade in a DM-MD64X64 and DM-MD128X128.

DMB-CPU-64 Blade in DM-MD64X64 CPU Slot

DMB-CPU-128 Blade in DM-MD128X128 CPU Slot

As of the date of manufacture, the DMB Series blades have been tested and found to comply with

specications for CE marking.

Federal Communications Commission (FCC) Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

CAUTION: Changes or modications not expressly approved by the manufacturer responsible for

compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected

• Consult the dealer or an experienced radio/TV technician for help

To replace the DMB CPU blade, perform the following steps and refer to the illustration

below.

1. Disconnect all cables from the blade, loosen the two thumb screws that secure the

blade to the blade assembly, and then slide the blade out of the slot.

2. Carefully insert the new blade into the guides at the top and bottom of the CPU slot

until the blade is 1/4 inch from the fully seated position.

3. Align the two thumb screws of the blade with the corresponding holes in the blade

assembly, and then push the blade inward until it is fully seated and engages the

chassis backplane.

4. Finger-tighten the two thumb screws to secure the blade—do not overtighten the

screws.

5. Reconnect the cables to the blade.

CPU Blade Installation into CPU Slot (DM-MD64X64 Shown)

Crestron Electronics, Inc. Installation Guide - DOC. 7486D

15 Volvo Drive Rockleigh, NJ 07647 (2035927)

Tel: 888.CRESTRON 05.15

Fax: 201.767.7576 Specications subject to

www.crestron.com change without notice.

Industry Canada (IC) Compliance Statement

CAN ICES-3(B)/NMB-3(B)

The DMB Fiber Series blades are class 1 laser products. They comply with safety

regulations of IEC-60825-1, FDA 21 CFR 1040 11 and FDA 21 CFR 1040 10.

WARNING: Visible and invisible laser radiation when open. Avoid direct exposure to beam.

NOTE: Plug the included dust cap into the optical transceiver when the ber optic cable is unplugged.

The product warranty can be found at www.crestron.com/warranty.

The specic patents that cover Crestron products are listed at patents.crestron.com.

Crestron, the Crestron logo, and DigitalMedia are either trademarks or registered trademarks of

Crestron Electronics, Inc. in the United States and/or other countries. Other trademarks, registered

trademarks, and trade names may be used in this document to refer to either the entities claiming the

marks and names or their products. Crestron disclaims any proprietary interest in the marks and names

of others. Crestron is not responsible for errors in typography or photography.

This document was written by the Technical Publications department at Crestron.

CAUTION: The DMB CPU blade is susceptible to damage from electrostatic discharge

(ESD). Standard ESD precautions must be followed when handling the blade. Always

wear an ESD wrist strap that is connected to ground, and place the blade on a

grounded surface only.

DMB-CPU-64

Blade

-B-

DMB-CPU-128

Blade

Thumb

Screws (2)
