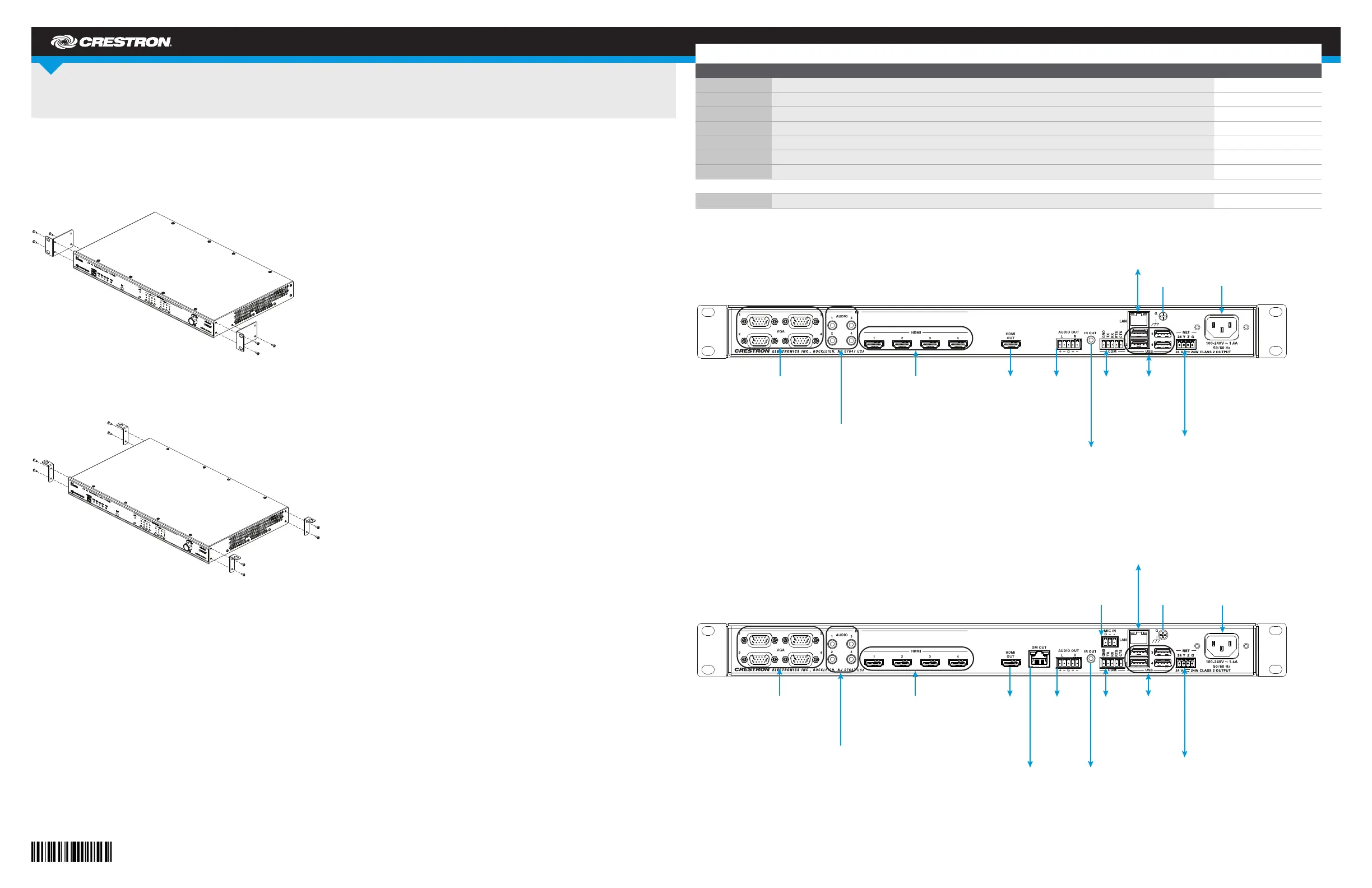

DO GUIDE

DMPS3-4K-50 Rear Panel Connections

DMPS3-4K-100-C Rear Panel Connections

Information about VGA, DM OUT, AUDIO OUT, LAN, and NET pin assignments follows.

DMPS3-4K-50/DMPS3-4K-100-C

3-Series

4K DigitalMedia

™

Presentation Systems

DO Install the Device

The Crestron

DMPS3-4K-50 and DMPS3-4K-100-C can be mounted into a rack, mounted under a table, or placed onto a at surface.

Mount into a Rack

The DMPS3-4K-50 and DMPS3-4K-100-C each occupy 1U of rack space. Using a #1 or #2 Phillips screwdriver, attach the two included rack ears to the

device. Then, mount the device into the rack using four mounting screws (not included).

Mount under a Table

Using a #1 or #2 Phillips screwdriver, attach the four included table mount brackets to the device. Then, attach the four table mount brackets to the underside

of the table using four mounting screws (not included).

Place onto a Flat Surface

When placing the device onto a at surface or stacking it with other equipment, attach the included feet near the corners on the underside of the device.

DO Connect the Device

Make connections to the rear panel of the device. Refer to the following illustrations for information about DMPS3-4K-50 and DMPS3-4K-100-C connections.

DO Check the Box

QUANTITY PRODUCT COLOR PART NUMBER

2 Bracket, Rack Ear, 1U 2032122

4 Bracket, Under Table Mount 2041951

1 Connector, 4-Pin 2003576

2 Connector, 5-Pin 2003577

1 Emitter Probe, IR, Crestron

STIRP 2001137

4 Foot, 0.5" x 0.5" x 0.23", Rubber Black 2002389

1 Power Cord, 6' 7" (2 m) 2001134

DMPS3-4K-100-C Only

1 Connector, 3-Pin 2003575

Ground

MIC IN:

From

microphone

AUDIO OUT:

To balanced/

unbalanced

stereo line

level audio

output device

IR OUT:

To Crestron

STIRP IR

emitter probe

(included)

COM:

RS-232

device

USB 1–4:

To Crestron

TT-100 series

presentation

interfaces

NET:

To Cresnet

device

DM OUT:

To DM 8G+

receiver or other

device or to

HDBaseT

device*

LAN:

10BASE-T/100BASE-TX

Ethernet to LAN

100-240V~1.4A

50/60 Hz:

From ac

power outlet

VGA 1–4:

From RGB (VGA),

component, S-video, or

composite video sources

AUDIO 1–4:

From unbalanced

stereo line level

analog audio sources

HDMI 1–4:

From HDMI

audio/video

sources

HDMI OUT:

To HDMI

display

VGA 1–4:

From RGB (VGA),

component, S-video, or

composite video sources

AUDIO 1–4:

From unbalanced

stereo line level

analog audio sources

HDMI 1–4:

From HDMI

audio/video

sources

HDMI OUT:

To HDMI

display

AUDIO OUT:

To balanced/

unbalanced

stereo line

level audio

output device

IR OUT:

To Crestron

STIRP IR

emitter probe

(included)

COM:

RS-232

device

Ground

LAN:

10BASE-T/100BASE-TX

Ethernet to LAN

USB 1–4:

To Crestron

TT-100 series

presentation

interfaces

NET:

To Cresnet

device

100-240V~1.4A

50/60 Hz:

From ac

power outlet

Produkt Specifikationer

Mærke:	Crestron
Kategori:	Ikke kategoriseret
Model:	DMPS3-4K-100-C
Bredde:	439 mm
Dybde:	266 mm
Højde:	45 mm
Vægt:	2900 g
Produktfarve:	Sort
Understøttede videotilstande:	480i, 576i, 1080i, 1080p, 2160p
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Format til analogt signal:	NTSC, PAL
HDCP:	Ja
Antal USB 2.0-porte:	4
Strømforbrug (typisk):	36 W
Driftstemperatur (T-T):	5 - 40 °C
Husmateriale:	Metal
Indgangsspænding for vekselstrømsadapter:	100-240 V
Frekvens for vekselstrømsadapter:	50/60 Hz
Understøttede grafikopløsninger:	1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA),3840 x 2160,4096 x 2160
Frekvensområde:	20 - 20000 Hz
Impedens:	75 ohm (Ω)
Lydindgang:	4
AC (strøm) indgang:	Ja
Signal/støjforhold:	108 dB
HSMI-indgang:	4
Antal HDMI-udgange:	1
Stativ-montering:	Ja
Varmeafgivelse:	122 BUT/t
Skalerede opløsninger:	1920 x 1080,2560 x 1600,3840 x 2160,4096 x 2160
VGA (D-Sub) indgangsporte:	4
Antal RJ-45-porte:	2
Indgangsstrøm til vekselstrømsadapter:	1.4 A
Synkroniser indgangsimpedans:	2200 ohm (Ω)
Maksimal pixel ur:	300 MHz
Kanalseparation (1kHz):	103 dB
