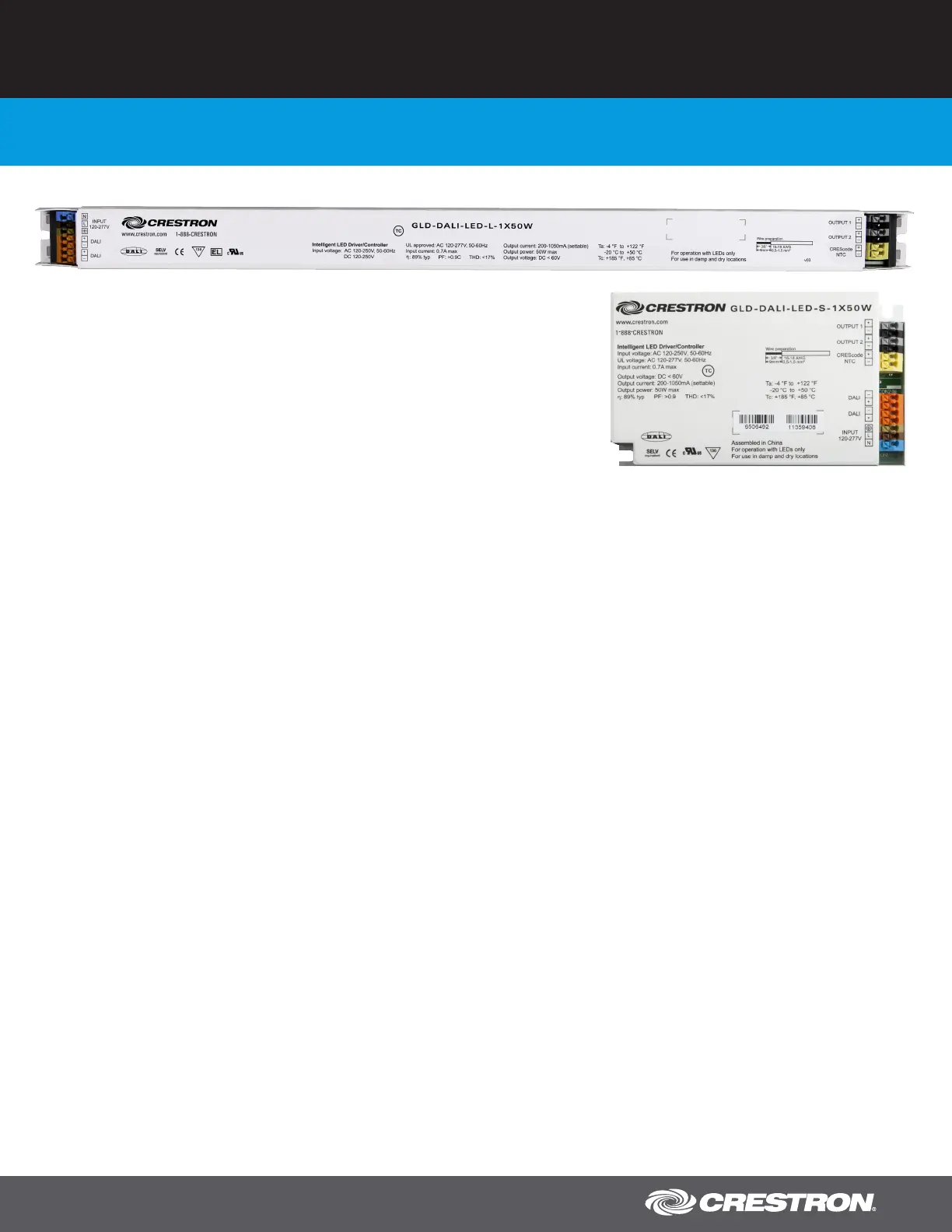

GLD-LED-50W
Crestron Green Light® 50W Dimmable LED Drivers
crestron.com | 800.237.2041
>Programmable, dimmable, high-power LED drivers
>DALI® or 0-10 Volt controllable
>Superior, smooth dimming to below 1%
>Excellent color stability, even at low dimming levels
>Linear or logarithmic dimming curve
>High efficiency over a wide power and voltage range
>CREScode™ programmable for use with a wide variety of
LED fixtures
>Cost-reducing due to fewer inventory requirements
>Multiple outputs with independent LED current settings
>2-channel models that support tunable white lighting and
direct-indirect fixtures
>NTC interface for robust thermal management
>Available in long or short case form factors
>Compatible with 120 Volt, 230 Volt, and 277 Volt AC systems
>50 Watt power rating (100 Watt also available)
Crestron Green Light® Dimmable LED Drivers (GLD-LED Series) provide
manufacturers of dimmable LED lighting fixtures with a high-performance,
cost-saving LED driver solution. Offered in two compact case styles, the
GLD-LED series fits easily in a wide range of enclosures and fixture
designs. The choice of DALI® or 0-10 Volt control enables compatibility
with virtually any lighting control system. All models are operable between
120 and 277 Volts, reducing inventory costs for manufacturers serving
multiple regions.
Superior, High-Power Dimming
Employing a combination of duty-cycle and current-dimming technologies,
Crestron Green Light LED drivers provide smooth, deep dimming with
excellent color stability to below 1%. A choice of 50 Watt and 100 Watt
models affords high-power capability for use with a wide range of LED
fixtures. (Refer to the GLD-LED-100W spec sheet for 100 Watt models.)
2-Channel Option
Models featuring DALI control are available in either single or
2-channel configurations. The 2-channel option provides two
independently-controllable channels in one housing, offering a cost-saving,
space-efficient solution for use with tunable white lighting and fixtures
with separate direct and indirect lighting components.
Multiple Outputs
To support a wider variety of fixture configurations, the single-channel 50
Watt models include two LED outputs. The two outputs are controlled as
one; however, the output current for each can be separately set by the
fixture manufacturer. The 2-channel 50 Watt models provide just one
output per channel.
DALI Lighting Control
DALI (Digital Addressable Lighting Interface) is a lighting control protocol
that allows multiple lighting fixtures to be networked using a single
daisy-chained control wire. Up to 64 fixtures can exist on a single DALI
channel. DALI provides a bidirectional interface enabling independent
control and monitoring of each individual fixture. DALI is optimal for use
in applications that require granular control of each fixture, such as open
office floor plans, AV-equipped conference rooms, and daylight harvesting.
In addition to DALI dimmable LED drivers, Crestron
® offers a full line of
lighting control products utilizing DALI technology.
0-10 Volt Dimming Control
This simple interface affords essential dimming control using a 0 to 10 Volt
DC control signal. Crestron Green Light 0-10 Volt dimmable LED drivers
afford high-quality, single-channel dimming, and are compatible with both
current sink and current source controls.
CREScode™ Programmability
Crestron Green Light Dimmable LED Drivers are programmable using the
CREScode LED Driver Configuration Tool, allowing each LED driver to be
matched perfectly to its fixture at the factory. The hardware and software
utility provides a simple means of selecting the dimming curve and setting
the minimum dimming level, NTC temperature and output current. The
output current can be set individually for each LED output. The use of
programmable LED drivers reduces inventory requirements, allowing a
single driver model to be used with numerous different fixtures.
OEM Fixture Partner Program
Crestron® works directly with leading global fixture manufacturers to
provide complete access to its entire line of ballasts and drivers. Crestron
works with each partner to ensure excellence in quality, performance, and
function and to deliver superior dimming, ease of commissioning, and
complete control. All Crestron products are backed by our unparalleled
design assistance and support services.
This product is for sale to Crestron OEM Fixture Partners Only. To
learn more about our OEM Fixture Partners or to become one, please
contact .OEM@crestron.com
GLD-LED-50W Crestron Green Light
®
50W Dimmable LED Drivers
crestron.com | 800.237.2041
SPECIFICATIONS
Input
Voltage: 120-277 Volts AC
Frequency: 50/60 Hz
Current: 0.7 Amp maximum
Output
Number of Class 2 LED Outputs: Single-channel 50W models = 2;
2-channel 50W models = 1 per channel;
Number of Dimming Channels: 1 or 2 depending on model
Voltage: 55 Volts typical
Power: 50 Watts maximum
Current Range: configurable from 200 mA to 1050 mA per output
Current Accuracy: ±5%
Dimming
Type: Constant current
Range: 0-100%
Curve: Configurable for linear or logarithmic
Control Interface: DALI® or 0-10 Volts DC (current sink and current source
compatible), depending on model
General
Standby power: <0.5 Watt
Inrush current: 30 mA²s at 277 Volts
Surge protection: 1 kV differential mode surge, 2 kV common mode surge
Efficiency: 89% at full load, ≥85% above 67% load
Power Factor: >0.9
THD: <17% at full load
Thermal Management: Supports LED temperature feedback using
47k Ohm NTC thermistor (not included)
Configurable Parameters (via CREScode™): Output current (per LED
output), dimming curve, minimum dimming level, NTC temperature
Connections
INPUT 120-277V: (1) 3-position pushbutton terminal block for Line,
Neutral, and Ground[1]
DALI (DALI models only): (2) 2-position pushbutton terminal blocks for
interface to DALI bus [1]
0-10V (LV models only): (1) 2-position pushbutton terminal block for 0-10
Volt control input [1]
OUTPUT 1 – 2: (2) 2-position pushbutton terminal blocks for LED outputs
[1]
CREScode/NTC: (1) 2-position pushbutton terminal block for interface to
CREScode configuration tool during factory setup, and for 47k Ohm NTC
thermistor during operation[1]
Environmental
Temperature Range: -4° to 122° F (-20° to 50° C)
Maximum Tc: 185° F (85° C)
Life Expectancy: 50,000 hours at or below maximum rated ambient
temperature
MTBF: 480,000 hours
Enclosure
Metal, painted
Dimensions
Long Case: Height: 1.18 in (30 mm);
Width: 17.48 in (444 mm);
Depth: 0.83 in (21 mm)
Short Case: Height: 2.99 in (76 mm);
Width: 5.12 in (130 mm);
Depth: 1.18 in (30 mm)
Weight
Long Case: 12.7 oz (360 g)
Short Case: 12.4 oz (350 g)
Certifications
CE;
UL: Recognized Component for US and Canada according to UL1310 and
UL8750; US: Class 2 output; Canada: Non-Class 2 output; IEC 61347-1, IEC
61347-2-13, IEC 62384 + A1, EN 55015 + A1, EN 55022 + A1, IEC 61000-
3-2, IEC 61547 + A1, IEC 62386-101/102/207;
FCC: Title 47CFR Part 15 Class B
MODELS & ACCESSORIES
Available Models
GLD-DALI-LED-L-1X50W: 50W DALI Dimmable LED Driver, Long Case
GLD-DALI-LED-S-1X50W: 50W DALI Dimmable LED Driver, Short Case
GLD-DALI-LED-L-2X50W: 2 Channel 50W DALI Dimmable LED Driver,
Long Case
GLD-DALI-LED-S-2X50W: 2 Channel 50W DALI Dimmable LED Driver,
Short Case
GLD-LV-LED-L-1X50W: 50W 0-10V Dimmable LED Driver, Long Case
GLD-LV-LED-S-1X50W: 50W 0-10V Dimmable LED Driver, Short Case
Available Accessories
GLDA-LED-PROG-CRESCODE: CREScode™ LED Driver Configuration Tool
Notes:
1. All terminal blocks accommodate 20 to 16 AWG (0.5 to 1.5 mm
2) solid or stranded copper
conductors.
This product may be purchased from an authorized Crestron dealer. To find a dealer, please
contact the Crestron sales representative for your area. A list of sales representatives is available
online at www.crestron.com/salesreps or by calling 800-237-2041.
The specific patents that cover Crestron products are listed online at: .patents.crestron.com
Certain Crestron products contain open source software. For specific information, visit
www.crestron.com/opensource.
