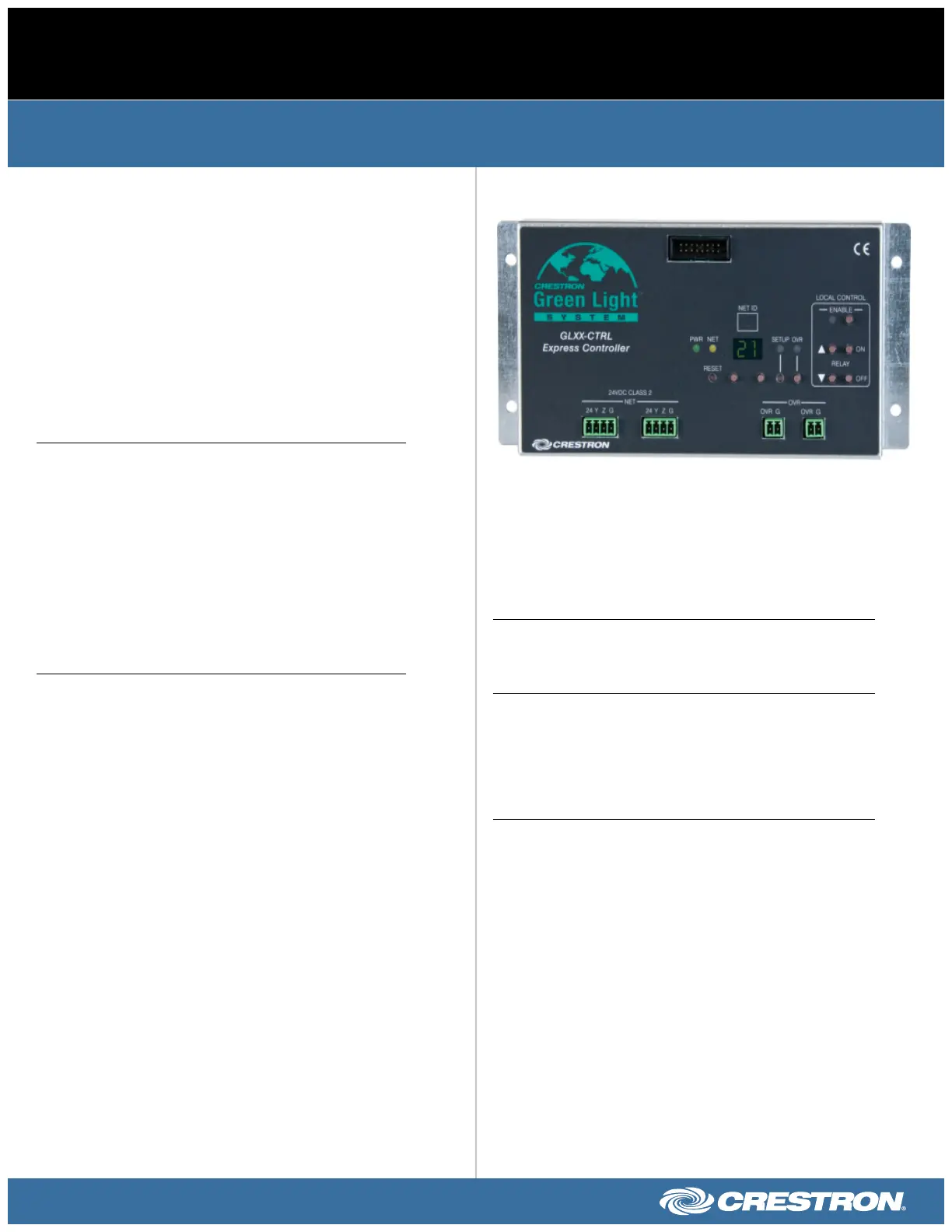

GLXX-CTRL
Cresnet® Control Module
The GLXX-CTRL is a Crestron® Green Light Express® control
module which controls GLXX-SW8GLXX-SW8GLXX-SW8GLXX-SW8, GLXX-SW16GLXX-SW16GLXX-SW16GLXX-SW16, GLXX-HDSW8GLXX-HDSW8GLXX-HDSW8GLXX-HDSW8,
and GLXX-HDSW16GLXX-HDSW16GLXX-HDSW16GLXX-HDSW16 relay modules. The module is part of a
complete Crestron engineered GLPX Green Light Express panel.
For more information on Crestron Green Light commercial
lighting products, please contact Crestron Sales SupportSales SupportSales SupportSales Support
Services.
SPECIFICATIONSSPECIFICATIONSSPECIFICATIONSSPECIFICATIONS
ConnectorsConnectorsConnectorsConnectors
NET: (2) 4-pin 3.5mm detachable terminal blocks; Cresnet®
port
Communication: (1) 16 pin IDC header, connects to adjacent
GLXX module; provides power and control to attached modules
OVR: (2) 2-pin 3.5mm detachable terminal blocks,
paralleled, comprising (2) inputs for external contact
closures to engage override mode
Controls & IndicatorsControls & IndicatorsControls & IndicatorsControls & Indicators
PWR: (1) Green LED; indicates Cresnet power is applied to
NET port
NET: (1) Yellow LED; indicates communication with control
processor
RESET: (1) Recessed miniature pushbutton, resets internal
processor
NET ID: (2) 7-Segment green LED digits and (2) miniature
pushbuttons for setting Cresnet ID; also used to identify
relay when in Local Control mode
SETUP: (1) Red LED and (1) recessed miniature pushbutton
for enabling setup mode and touch-settable ID
OVR: (1) Red LED and (1) miniature pushbutton for enabling
override mode and saving override presets
Local Control Section
ENABLE: (1) Red LED and (1) miniature pushbutton for
activating local mode
UP/DN: (2) miniature pushbuttons for selecting relay
channel
ON/OFF: (2) miniature pushbuttons for manual channel
activation
Power RequirementsPower RequirementsPower RequirementsPower Requirements
5 Watts at 24 Volts DC (powered via control system)
EnvironmentalEnvironmentalEnvironmentalEnvironmental
Temperature: 32° to 104°F (0° to 40°C)
Humidity: 10% to 90% RH (non-condensing)
Heat Dissipation: 1 BTU/Hr
DimensionsDimensionsDimensionsDimensions
Height: 3.9 in (99 mm)
Width: 7.87 in (200 mm) including mounting holes
Depth: 1.23 in (31 mm)
