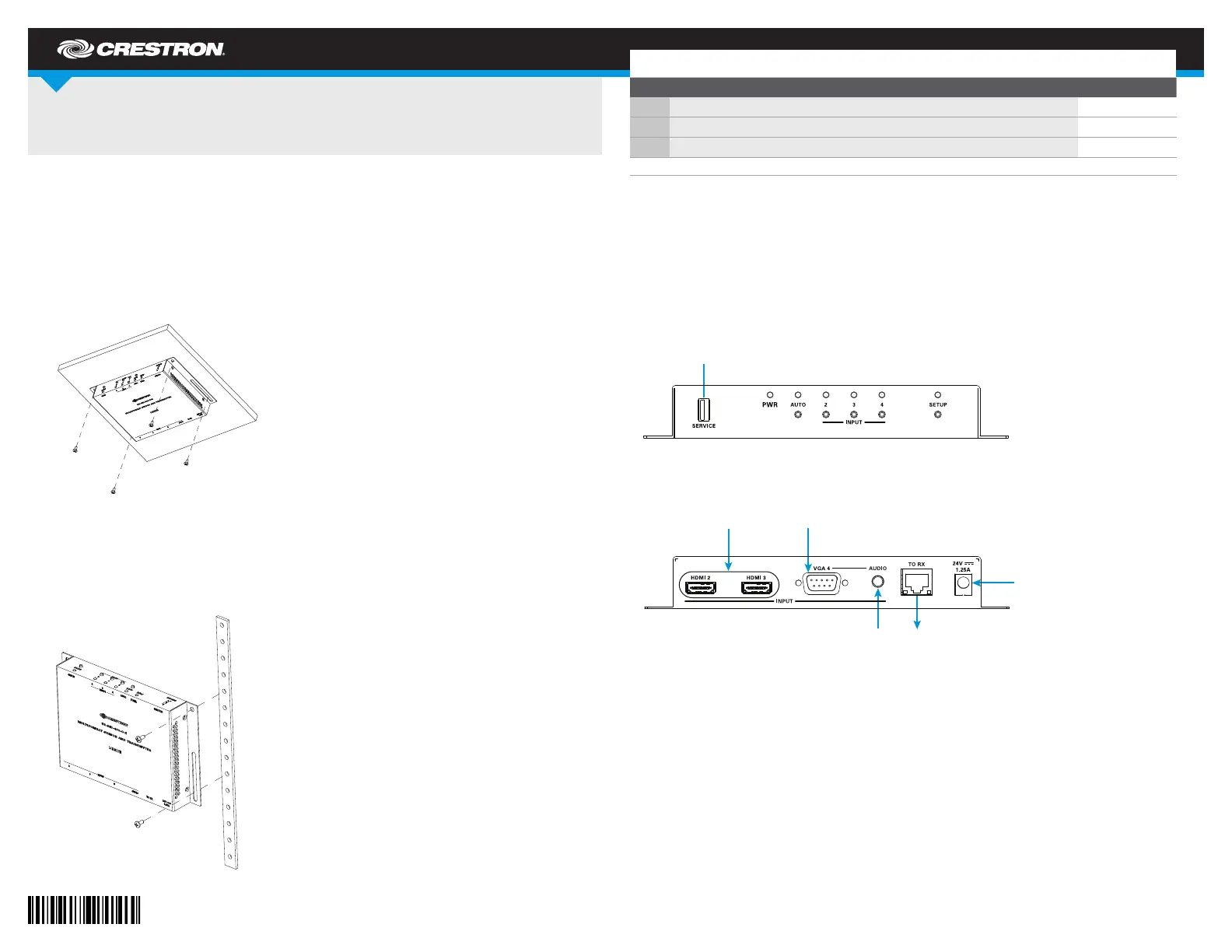

Side 1/2

DO GUIDE

DO Connect the Devices

Make connections to the top and bottom panels of the devices as required for the application.

NOTE: Only one 24 Vdc power pack (included) is required to power both the transmitter and

the receiver; therefore, connect the power pack to the 24 Vdc power connector of either the

transmitter or receiver. Power is transmitted over the cable that connects the TO RX link output

port of the transmitter to the FROM TX link input port of the receiver.

Top and Bottom Panel Connections of the HD-MD-400-C-E Transmitter

HD-MD-400-C-E

HD Scaling Auto-Switcher and Extender 400

DO Install the Devices

The HD-MD-400-C-E is a multiformat switcher that consists of a transmitter and a receiver.

The transmitter and receiver can be mounted onto a at surface or onto a rack rail.

Mounting onto a Flat Surface

Using four mounting screws (not included), mount the transmitter and receiver onto a at

surface such as the underside of a table or onto a wall as appropriate for the installation.

Mounting to the Underside of a Table

Mounting onto a Rack Rail

The transmitter and receiver can be mounted onto the front or rear rail of a rack. Position either

the left or right mounting ange of the device so that the holes align with the holes in the rack.

Then, secure the device to the rack using two mounting screws (not included).

Mounting onto a Rack Rail

DO Check the Box

QTY PRODUCT COLOR PART NUM.

1 Connector, 2-Pin 2003574

2 Connector, 5-Pin 2003577

1 Power Pack, 24 Vdc 1.25 A, 100-240 Vac 2045870

Not included: Cables, Mounting Screws

From HDMI

Audio/Video

Sources

From RGB (VGA)

or Component

Video Source

Unbalanced

Stereo Line Level

Audio Input

To FROM TX

Link Input of

HD-MD-400-C-E

Receiver

From 24 VDC

Power Pack

(Included for

Connection to

Transmitter or

Receiver)

Bottom

Panel

For Factory

Use Only

Top

Panel

Produkt Specifikationer

Mærke:	Crestron
Kategori:	Ikke kategoriseret
Model:	HD-MD-400-C-E
Produktfarve:	Sort
Understøttede videotilstande:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Relativ luftfugtighed ved drift (H-H):	20 - 90 %
HDCP:	Ja
Strømforbrug (typisk):	13 W
Driftstemperatur (T-T):	0 - 40 °C
Husmateriale:	Metal
Indgangsspænding for vekselstrømsadapter:	100-240 V
Frekvens for vekselstrømsadapter:	50/60 Hz
Understøttede grafikopløsninger:	640 x 480 (VGA),720 x 480,720 x 576,800 x 600 (SVGA),848 x 480,1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 800 (WXGA),1280 x 960,1360 x 768 (WXGA),1366 x 768,1400 x 1050 (SXGA+),1440 x 900 (WXGA+),1600 x 1200 (UXGA),1600 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)
Impedens:	200 ohm (Ω)
LED-indikatorer:	Ja
HSMI-indgang:	3
Antal HDMI-udgange:	1
Varmeafgivelse:	44.3 BUT/t
Skalerede opløsninger:	640 x 480,800 x 600,1024 x 768,1280 x 1024,1280 x 720,1280 x 768,1280 x 800,1360 x 768,1366 x 768,1400 x 1050,1440 x 900,1600 x 1200,1600 x 900,1680 x 1050,1920 x 1200
VGA (D-Sub) indgangsporte:	1
Antal RJ-45-porte:	3
Baud hastighed:	115200 Bd
Indgangsstrøm til vekselstrømsadapter:	0.8 A
Maksimal pixel ur:	165 MHz
Kanalseparation (1kHz):	80 dB
