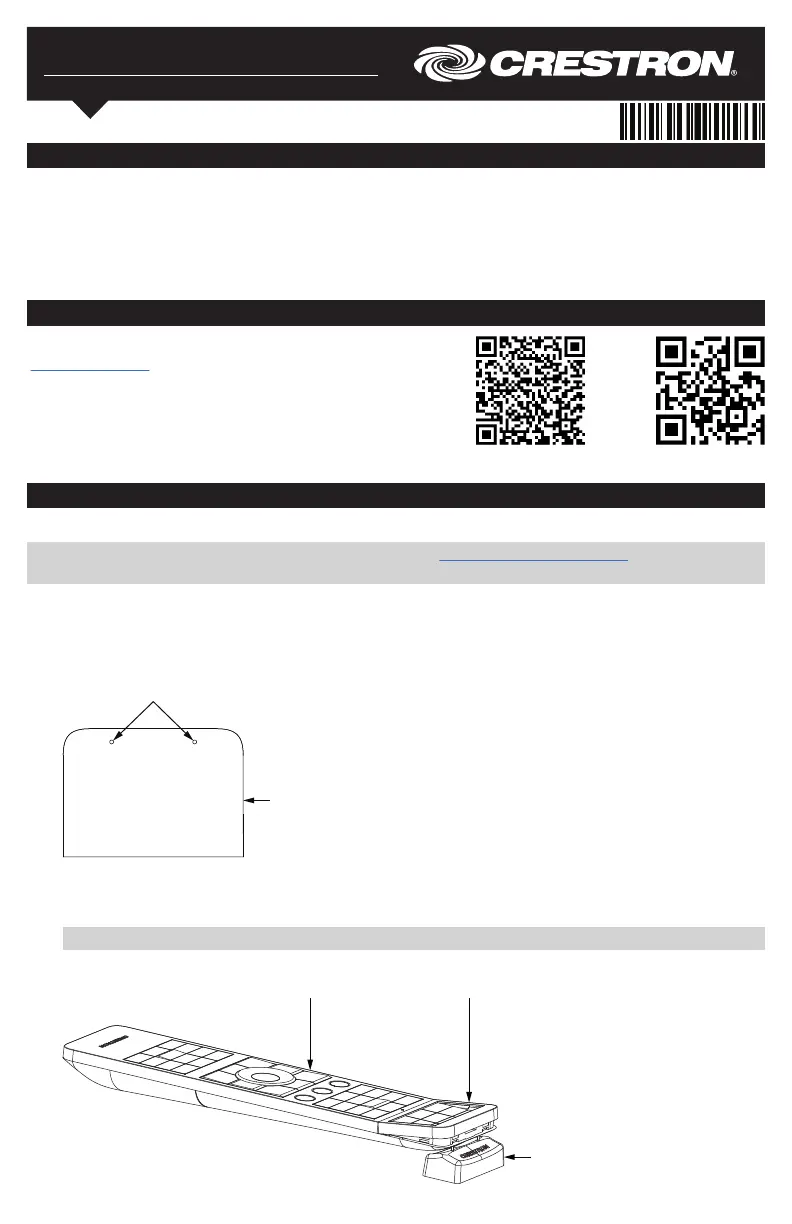

HR-310-BTN

Engravable Buttons for HR-310

Installation Guide

Product Page Instructional Video

Description

The Crestron® HR-310-BTN BLANK and the HR-310-BTN ENGRAVED are sets of blank and engravable buttons,

respectively, that are designed to replace the default button set installed in an HR-310 or HR-310-I handheld remote

(not included). Each button set contains nine congurable hard buttons. A custom-engraved button frame that

secures the custom button set to the remote is also included with each engraving order.

Customized hard buttons for the HR-310-BTN ENGRAVED can be created and ordered using Crestron Engraver

software. For more information, refer to the Crestron Engraver help le that is packaged with the software.

Installation

Use the following procedure to install the HR-310-BTN in an HR-310 or HR-310-I remote.

NOTE: To view an instructional video showing these steps, visit , or use a QR reader https://vimeo.com/250110905

application on your mobile device to scan the “Instructional Video” QR image located in “Additional Resources.”

1. Align the two pegs on top of the included button removal tool with the two small holes on the rear of the remote

(behind the button cover).

Aligning the Button Removal Tool with the Remote

Additional Resources

Visit the product page on the Crestron website

( ) for additional information and the latest www.crestron.com

rmware updates. An instructional video showing how to

install the HR-310-BTN buttons into an HR-310 or HR-310-I

remote can also be viewed. Use a QR reader application on

your mobile device to scan the QR images, or click the QR

images to load the web pages.

Button cover

HR-310-BTN

button removal

tool

HR-310/HR-310-I

2. Place the button removal tool on a at, level surface. Then, use two ngers to rmly press down on the left and

right buttons in the middle row of removable buttons on the remote until the frame pops up. Refer to the

illustration on the following page.

NOTE: The button cover can be removed only using the button removal tool.

Removing the Button Cover

HR-310/HR-310-I

(top rear view)

Align top pegs on

button removal tool

with these holes

3. Remove the button removal tool from the rear of the remote.

4. Remove the default button set from the button compartment by pulling it up and out of the compartment.

5. Position the HR-310-BTN replacement button set so that the tabs on top and bottom of the button set align

with the slots on the top and bottom of the button compartment, and then place the button set into the

compartment, bottom side rst. Refer to the following illustration.

Installing the Replacement Button Set in the Remote

Engraved button cover

HR-310-BTN

button set

Button compartment

6. Attach the custom-engraved button cover so that the tab on the bottom of the cover enters the slot on the

bottom of the button compartment. Then, gently press the top of the cover down into the remote until the cover

is secured.

Attaching the Engraved Button Cover to the Remote

Removing the Button Cover - Button Press Locations

1 2 3

454 6

7 8 9

0ENTER

Press the left and

right buttons in the

middle row rmly

until the cover pops up

Top slots in remote (2)

Bottom slots in remote (2) Bottom tabs on button set (2)

Top tabs on button set (2)

As of the date of manufacture, the product has been tested

and found to comply with specifications for CE marking.

Product warranty can be found at

www.crestron.com/warranty.

The specic patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For

www.crestron.com/opensource.

Crestron and the Crestron logo are either trademarks or

registered trademarks of Crestron Electronics, Inc. in the

United States and/or other countries.

Other trademarks, registered trademarks, and trade names

may be used in this document to refer to either the entities

claiming the marks and names or their products. Crestron

disclaims any proprietary interest in the marks and names of

others. Crestron is not responsible for errors in typography or

photography.

This document was written by the Technical Publications

department at Crestron.

Crestron Electronics, Inc. Installation Guide

15 Volvo Drive DOC. 8224D

Rockleigh, NJ 07647 (2049461)

Tel: 888.CRESTRON 01.18

Fax: 201.767.7576 Specications subject to

www.crestron.com change without notice.
