DO GUIDE

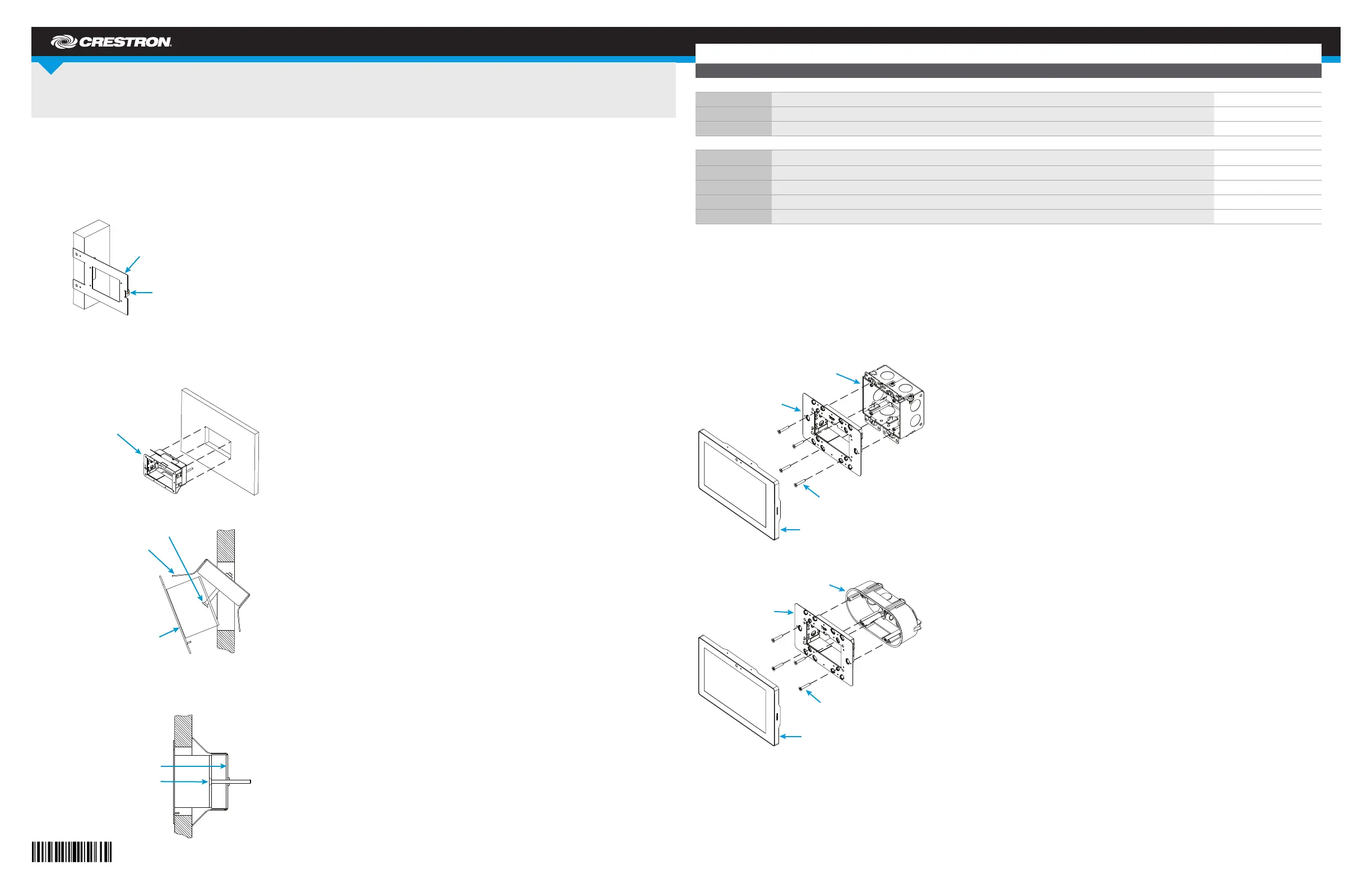

DO Install the TSW-760 or TSW-1060 Mounting Bracket

The TSW-760 and TSW-1060 touch screens install over a standard 2-gang or 3-gang U.S. electrical box, a 2-gang European electrical box, or a 2-gang

U.K. electrical box. The touch screens can also be attached directly to drywall and other surfaces over the front of a 2-3/8" (60 mm) high by 3-3/8" (86

mm) wide cutout. When installed, the touch screen protrudes 1/2" (13 mm) from the mounting surface, eliminating any visible screws.

To mount the TSW-760 or TSW-1060 into an electrical box, use the appropriate included screws (four 6-32 x 3/4" screws, four M3 x 16 mm screws, or

two M3.5 x 25 mm screws) to attach the mounting bracket to the electrical box, as shown in the following illustrations.

NOTE: For U.S.-style installations, use a #2 Phillips screwdriver. For European or U.K.-style installations, use a #1 Phillips screwdriver or equivalent.

For U.S.-style installations, use the four 6-32 x 3/4" screws.

For European-style installations, use the four M3 x 16 mm screws.

For U.K.-style installations (not pictured), use the two M3.5 x 25 mm screws.

To complete the installation, refer to “DO Complete the Installation” on the next page.

TSW-560/TSW-760/TSW-1060

5", 7", and 10.1" Touch Screens

DO Install the TSW-560 Mounting Bracket

The Crestron® TSW-560 touch screen can be mounted into drywall and other surfaces, or it can be mounted onto a wall stud. When mounted into drywall

and other surfaces, the touch screen protrudes 1/2" (13 mm) from the mounting surface.

To mount the TSW-560, use the following procedure:

1. For preconstruction applications, use standard drywall nails or screws (not included) to attach the included preconstruction mounting bracket to a

wall stud.

CAUTION: Allow an air gap of at least 12" (305 mm) in the wall cavity above and below the TSW-560 for heat dissipation.

For postconstruction applications, use the preconstruction bracket as a cutout template by turning the bracket to face the wall, ensuring it is level,

and temporarily tacking it to the wall with nishing nails (not included) in the smaller holes around the cutout opening. Trace the cutout opening with

an appropriate drywall saw (not included).

2. Loosen the two screws on the included universal mounting bracket, and then install the universal mounting bracket, bottom rst, into the opening.

3. Reach into the universal mounting bracket and push the rear half back to ensure it is fully behind the mounting surface. Ensure the front of the

universal mounting bracket is level, and then tighten the two screws to complete the installation.

CAUTION: To avoid damage to the bracket, do not overtighten the screws.

DO Check the Box

QUANTITY PRODUCT PART NUMBER

Items for TSW-560 Only

1 Latch, Security 4525305

1 Bracket, Universal Mounting 4525127

1 Bracket, Preconstruction 4524592

Items for TSW-760 and TSW-1060 Only

1 Bracket, Mounting 4525352

1 Latch, Security 4525305

4 Screw, 6-32 x 3/4", Undercut Head, Phillips 2033247

2 Screw, M3.5 x 25 mm, Flat Head, Phillips 2023756

4 Screw, M3 x 16 mm, Flat Head, Phillips 2013788

Preconstruction bracket

Use a tie wrap to hold the cable

until the TSW-560 is mounted.

Universal mounting bracket

Push the top surface

downward to install

the bottom half rst.

Universal mounting bracket

Loosen both of the screws.

Push the rear half back.

Ensure the front is level.

Then, tighten both screws.

Mounting bracket

Screws (4): 6-32 x 3/4"

TSW-760 or TSW-1060

U.S. electrical box

Mounting bracket

Screws (4): M3 x 16 mm

TSW-760 or TSW-1060

European electrical box

DO GUIDE DOC. 7926B (2047264) 10.16

Specications subject t o change without notice.

DO Install the Touch Screen Security Latch (Optional)

The touch screen comes with a security latch, which can be installed so that the touch screen cannot

be easily removed from the mounting bracket after installation.

To install the security latch, use a small Phillips screwdriver to screw the security latch to the top of

the touch screen’s rear housing before the touch screen has been inserted into the mounting bracket.

To remove the touch screen after the installation is complete, pull the touch screen away from the wall

until the security latch makes contact with the mounting bracket. Then, insert a at-head screwdriver

into the slot on the security latch and rotate the latch into the open position, which causes the security

latch arms to retract. While the arms are retracted, pull on the touch screen to disengage it from the

mounting bracket.

NOTE: There is a small amount of “play” in the bracket mounting, which allows room for the

screwdriver.

DO Complete the Installation

Make connections to the touch screen using Crestron power supplies for Crestron equipment. Power

and data connection to the touch screen is provided by a single Ethernet cable connected to the

LAN port on the rear of the unit. A Crestron PoE (Power over Ethernet) power supply or PoE-capable

network switch is recommended (both sold separately). Apply power after the Ethernet cable is

connected.

Once all connections to the device have been made, carefully hold the touch screen over the

mounting bracket and gently place it in position.

NOTE: If the touch screen is not level after installation, pull the touch screen out of the mounting

bracket and slightly loosen the screws holding the bracket into place. This procedure allows the

mounting bracket to be slightly rotated. Once the mounting bracket has been repositioned, retighten

the screws, reinstall the touch screen into the bracket, and ensure that the touch screen is now level.

DO Access the Setup Screens

NOTE: The touch screen can take up to 120 seconds to boot.

When power is applied for the rst time, the following screen appears.

Tap Enter Setup to display the main Setup screen.

NOTE: During regular operation of the touch screen, there are two ways to activate the setup

functions:

• Place a button on the project main page, and assign the reserved join number (17242) that

activates setup.

• Tap the hard keys labeled below as 1, 2, 3, and 4 in sequence twice (tap 1, 2, 3, 4, 1, 2, 3, 4)

within a 5-second period.

DO Congure the Touch Screen

Use the setup screens to congure various settings for the touch screen, including Ethernet setup, IP

table setup, audio setup, display setup, standby timeout, and diagnostics. For more information on

conguring the touch screen, refer to the TSW-560, TSW-760, and TSW-1060 Supplemental Guide

(Doc. 7927) at www.crestron.com/manuals.
