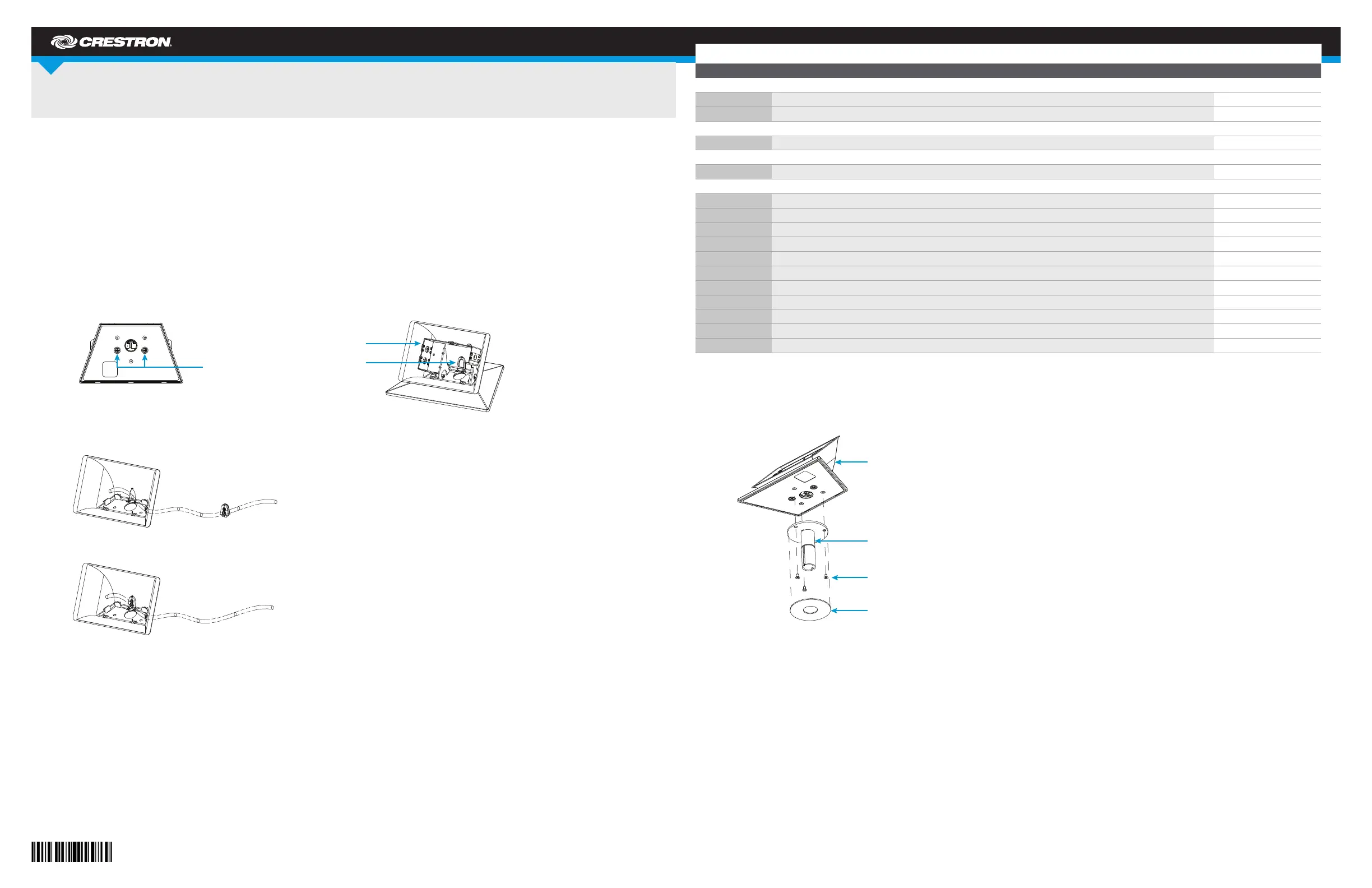

DO GUIDE

DO Assemble the TSW-560/760/1060-SMK

Assemble the Swivel Mount

To assemble the swivel mount:

1. Attach and secure the swivel mechanism tube to the bottom of the TSW-560/760/1060-TTK using the three included 6-32 x 3/16" screws.

2. Remove the paper liner from the felt washer and attach the washer to the bottom of the swivel mechanism tube.

3. If the Ethernet cable is routed to exit through the bottom of the TSW-560/760/1060-TTK, feed the full length of the cable through the swivel

mechanism tube.

4. Use the included template to prepare the mounting surface.

5. Using the six mounting holes on the swivel stop plate as a template, drill pilot holes in the mounting surface. The holes should be 0.093" (2 mm)

minimum diameter, 0.115" (3 mm) maximum diameter, and 0.35" (9 mm) maximum depth.

6. Attach the swivel stop plate to the bottom of the mounting surface using the six included 8-8B x 1/2" screws.

7. Pass the swivel mechanism tube attached to the TSW-560/760/1060-TTK down through the mounting hole and swivel stop plate.

NOTE: The swivel stop plate has a permanently installed limiting screw to prevent the swivel mechanism from spinning and tangling the touch

screen cable.

TSW-560/760/1060-TTK and TSW-560/760/1060-SMK

TableTop Kits and Swivel Mount Kit for TSW-560/760/1060

The Crestron

TSW-560-TTK, TSW-760-TTK, and TSW-1060-TTK are functionally identical. For simplicity within this guide, the term

“TSW-560/760/1060-TTK” is used except where noted.

DO Prepare the TSW-560/760/1060-TTK

The TSW-560/760/1060-TTK includes parts for routing device cabling through either the bottom or rear of the unit.

Routing the Cable though the Bottom of the TSW-560/760/1060-TTK

The TSW-560/760/1060-TTK has a circular opening in its metal base that allows an Ethernet cable to pass through the bottom, enabling network connection

when the unit is attached to the TSW-560/760/1060-SMK Swivel Mount Kit (sold separately).

Routing the Cable though the Rear of the TSW-560/760/1060-TTK

Modication is necessary to install the TSW-560/760/1060-TTK on a at surface. Replace the rear plastic cap with the provided grommet to route the

Ethernet cable through the rear of the unit. The grommet serves as a strain relief on the cable.

1. Remove the two screws on the bottom of the unit that hold the metal bracket. Retain the metal bracket and screws.

2. Remove the rear plastic cap by pressing the top of the cap inward until it unsnaps.

3. Insert the Ethernet cable through the rear opening of the TSW-560/760/1060-TTK and attach the provided grommet to the cable.

4. Secure the grommet to the back of the TSW-560/760/1060-TTK by pressing it into place.

NOTE: For added security, refer to “DO Use the Security Option” and follow the procedure. For standard mounting, proceed to the next step.

5. Reinstall the metal bracket using the screws removed in step 1.

DO Mount the Touch Screen in the TSW-560/760/1060-TTK

To mount the touch screen:

1. Connect the Ethernet cable to the touch screen.

2. Gently pull excess cable out through the rear of the TSW-560/760/1060-TTK as the touch screen and tabletop kit converge.

3. Seat the touch screen in the TSW-560/760/1060-TTK fully to engage the spring-loaded retainers built into the metal bracket.

DO Check the Box

QUANTITY ITEM PART NUMBER

Items for TSW-560/760/1060-TTK Only

2 Screw, M3 x 0.5 x 6 mm, Pan Head, Phillips 2047840

1 Template, Cutout 4525014

Items for TSW-560/760/1060-TTK-B-S Only

1 Grommet, Rubber, Black 2047839

Items for TSW-560/760/1060-TTK-W-S Only

1 Grommet, Rubber, White 2047838

Items for TSW-560/760/1060-SMK Only

1 Nut, 7/8"-14 2017632

1 Plate, Swivel Stop 4504353

3 Screw, 6-32 x 3/16", Pan Head, Phillips 2007202

2 Screw, 8-32 x 1/8", Cap Head, Socket 2017634

6 Screw, 8-8B x 1/2", Pan Head, Phillips 2017784

1 Template, Cutout 4525014

1 Washer, 1.75" OD, 15/16" ID, 0.14" TH 2017633

1 Washer, Cork/Rubber, 1.75" OD, 0.94" ID, 1/16" TH 2017614

1 Washer, Felt, 2.65" OD, 0.93" ID 2024711

1 Washer, Keyed 4506321

1 Washer, Rubber, 1.75" OD, 0.94" ID, 1/16" TH 2017615

TSW-560/760/1060-TTK

Swivel mechanism tube

Screws (3) 6-32 x 3/16"

Felt washer

Remove these screws

to release the metal bracket.

Metal bracket

Plastic cap

Bottom of TSW-560/760/1060-TTK
