Quick Installation Guide

Model: POE350

For support and warranty, please visit: http://www.cudy.com/.

Speciﬁcations are subject to change without notice. Cudy is a

registered trademark of Shenzhen Cudy Technologies Co., Ltd.

Other brands and product names are trademarks or registered

EU Address: Otto esser 2c, 65451 Kelsterbach, Germany

EU declaration of conformity

Cudy hereby declares that the device is in compliance with the

essential requirements and other relevant provisions of directives

2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.The

original EU declaration of conformity may be found at

http://www.cudy.com/

810600126

CE Mark Warning

This is a class B product. In a domestic environment, this product

may cause radio interference, in which case the user may be

required to take adequate measures.

Indicators

System indicator: AC Power

User Indicator: Channel Power

Connectors

Protection

Shielded RJ-45, EIA 568A and 568B

Over voltage protection

Anti-interference protection

Operating Temperature: 0 to 45℃

Maximum 80%, Non-condensing

Storage Temperature:-20 to 70℃

Environmental

Conditions

Over current protection

Over load protection

Model

Output Voltage

PoE Power

Pin Polarity

POE350

Standard

1/2(-)3/6(+) 4/5(+)7/8(-),

IEEE 802.3af (15.4W)/at (30W)/bt (90W)

Data Rates 10/100/1000Mbps

Input Power

Requirements

Dimensions 178.5mm x 100mm x 46mm

56VDC

90W max

IAC Input Voltage: 100 to 240 Vac

AC Input Current: 1A 100-240 Vac

AC Frequency: 50 to 60 Hz

Speciﬁcations

Power Socket

Ethernet Device

(switch, router, etc.)

1 2 3 4 5

PoE 350

Wireless AP Smart VoIP

IP Camera

Powered Device (PD)

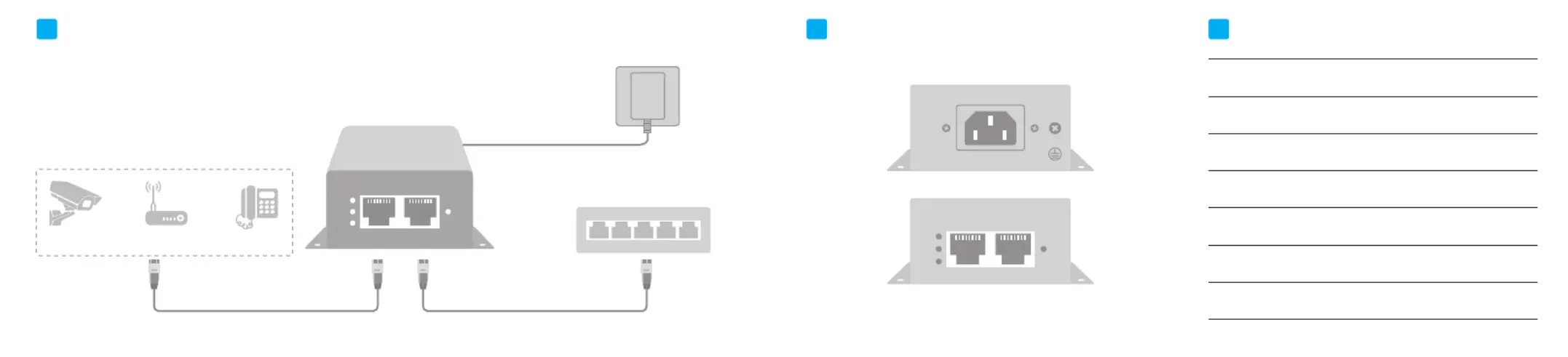

Hardware Connection

Physical Appearance

PWR

30W

60W

90w

AC Socket

DATA/IN

PoE/DATA

Connect with AC cable

Connect to the Ethernet device with

CAT5E or CAT6 UTP cable to transmit data.

Connect to the camera with UTP cable

CAT5E or CAT6 supply power

LED and Interface Explanation

PoE injector got 100-240V power input

When the PoE output power is 0<P≤30W,

LED lights up

When the PoE output power is 30<P≤60W,

LED lights up

When the PoE output power is 60<P≤90W,

LED lights up

30W

POE

60W PWR

90W

D /ATA INPoE/DATA

802.3bt PoE++Injector

30W

POE

60W PWR

90W

D /ATA INPoE/DATA

802.3bt PoE++Injector

AC Socket

INPUT 100-240VAC

Produkt Specifikationer

Mærke:	Cudy
Kategori:	Ikke kategoriseret
Model:	POE350
Bredde:	178.5 mm
Dybde:	80 mm
Højde:	46 mm
Produktfarve:	Sort
Opbevaringstemperatur (T-T):	-20 - 70 °C
Relativ luftfugtighed ved drift (H-H):	0 - 80 %
Relativ luftfugtighed ved opbevaring (H-H):	0 - 80 %
Ethernet LAN-porte (RJ-45):	2
Driftstemperatur (T-T):	0 - 45 °C
Ethernet LAN-datahastigheder:	10,100,1000 Mbit/s
Indgangsspænding for vekselstrømsadapter:	100 - 240 V
Frekvens for vekselstrømsadapter:	50/60 Hz
Hurtig installationsvejledning:	Ja
Pakketype:	Kasse
Kabelteknologi:	10/100
Netværksstandarder:	IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bt
LED-indikatorer:	Strøm
Kan monteres på væggen:	Ja
AC-adapter inkluderet:	Ja
Indgangsstrøm:	1 A
Strøm over Ethernet (PoE):	Ja
Ethernet-grænsefladetype:	Gigabit Ethernet
DC udgangsspænding:	56 V
Antal produkter inkluderet:	1 stk
Total Power over Ethernet (PoE):	90 W
Strømbeskyttelsesfunktioner:	Over current, Over power, Over voltage
Power over Ethernet (PoE) spænding:	52 V
Benkonfiguration & polaritet:	1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-)
