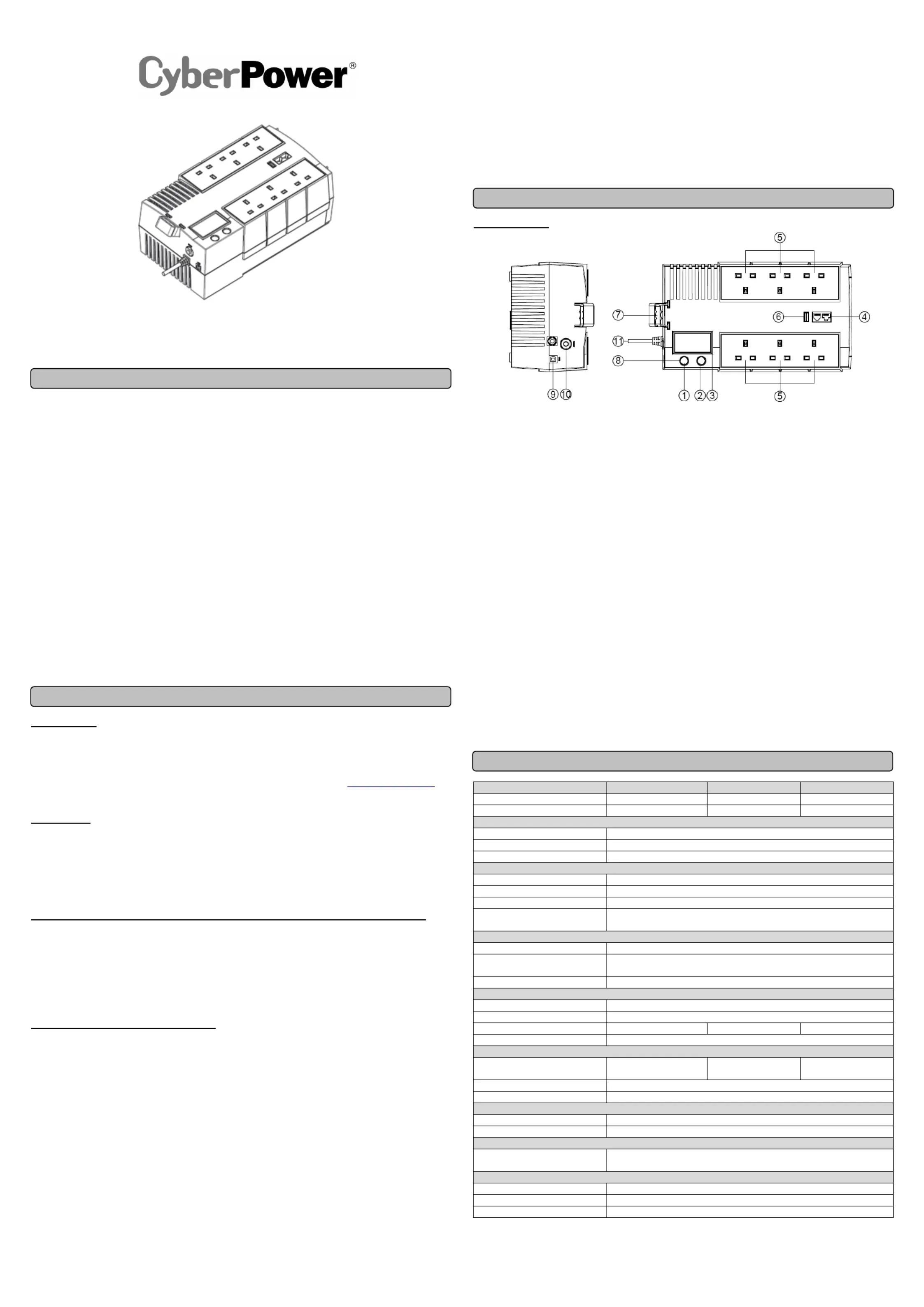

BR700ELCD / BR1000ELCD / BR1200ELCD

User’s Manual

K01-C000108-03

This manual contains important instructions that should be followed during installation and maintenance of

the UPS and batteries. Please read and follow all instructions carefully during installation and operation of

the unit. Read this manual thoroughly before attempting to unpack, install, or operate.

CAUTION! The UPS must be connected to a grounded AC power outlet with fuse or circuit breaker

protection. DO NOT plug the UPS into an outlet that is not grounded. If you need to de-energize this

equipment, turn off and unplug the UPS.

CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! CyberPower Systems does

not sell products for life support or medical applications. use in any circumstance that would affect DO NOT

the operation or safety of any life support equipment, with any medical applications, or patient care.

CAUTION! Hazardous live parts inside can be energized by the battery even when the AC input power is

disconnected.

CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor

area, free of conductive contaminants. (Please see specifications for acceptable temperature and humidity

range).

CAUTION! To reduce the risk of electric shock, do not remove the cover, except to service the battery. There

are no user serviceable parts inside, except for the battery.

CAUTION! To avoid electrical shock, turn off the unit and unplug it from the AC power source before

servicing the battery or installing a computer component.

CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire, do not use with or near

aquariums. Condensation from the aquarium can come in contact with metal electrical contacts and cause

the machine to short out.

CAUTION! DO NOT USE WITH LASER PRINTERS! The power demands of laser printers are too large for

a UPS.

UNPACKING

The box should contain the following:

(1) UPS Unit x 1; (2) Phone Line x 1; (3) USB Cable x 1; (4) User Manual x 1; (5) Cable Collector x 1;

(6) Warranty Card x 1;

*PowerPanel® Personal Edition software is available on our website. Please visit www.cyberpower.com

and

go to the Software Section for free download.

OVERVIEW

The BR700ELCD/ BR1000ELCD/ BR1200ELCD provides automatic voltage regulation for inconsistent utility

power. The BR700ELCD/ BR1000ELCD/ BR1200ELCD features 125 Joules of surge protection, and

provides battery backup during power outages. The BR700ELCD/ BR1000ELCD/ BR1200ELCD ensures

consistent power to your computer system and its included software will automatically save your open files

and shutdown your computer system during a utility power loss.

HOW TO DETERMINE THE POWER REQUIREMENTS OF YOUR EQUIPMENT

1. Make sure that the total Volt-Amp (VA) requirements of your computer, monitor, and peripheral

equipment does not exceed 700VA/1000VA/1200VA.

2. Ensure that the equipment plugged into the battery power-supplied/surge outlets does not exceed the

UPS unit's rated capacity (700VA/420W forBR700ELCD,1000VA/600W for BR1000ELCD,

1200VA/720W for BR1200ELCD). If the rated unit capacities are exceeded, an overload condition may

occur and cause the UPS unit to shut down and the circuit breaker to trip.

HARDWARE INSTALLATION GUIDE

1. Your new UPS may be used immediately upon receipt. However, recharging the battery for at least 8

hours is recommended to ensure that the battery's maximum charge capacity is achieved. Charge loss

may occur during shipping and storage. To recharge the battery, simply leave the unit plugged into an AC

outlet. The unit will charge in both the on and off position.

2. If you will use the software, connect the USB cable to the USB port on the UPS.

3. With the UPS unit off and unplugged, connect the computer, monitor, and any externally powered data

storage device (Zip drive, Jazz drive, Tape drive, etc. into the battery power supplied outlets. DO NOT

plug a laser printer, copier, space heater, vacuum, paper shredder or other large electrical device

into the UPS. The power demands of these devices will overload and possibly damage the unit.

4. To protect a fax, telephone, modem line or network cable, connect a telephone cable or network cable

from the wall jack outlet to the IN jack of the UPS. Then connect a telephone cable or network cable from

the OUT jack on the UPS to the modem, computer, telephone, fax machine, or network device.

5. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet is

protected by a fuse or circuit breaker and does not service equipment with large electrical demands (e.g.

air conditioner, refrigerator, copier, etc.) Avoid using extension cords.

6. Depress the power switch to turn the unit on. The power on indicator light will illuminate and the unit will

"beep".

7. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct this,

turn the UPS off and unplug at least one piece of equipment from the battery power supplied outlets. Wait

10 seconds. Make sure the circuit breaker is depressed and then turn the UPS on.

8. Your UPS is equipped with an auto-charge feature. When the UPS is plugged into an AC outlet, the

battery will automatically recharge.

9. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.

10. To store your UPS for an extended period, cover it and store with the battery fully charged. Recharge the

battery every three months to ensure battery life.

DESCRIPTION

1. Power Switch

Press the switch for two seconds to turn the UPS ON or OFF.

2. LCD Display Selected Switch

The switch can be used to select the LCD display contents including Input Voltage, Output Voltage and

Estimated Run Time. The toggle frequency is set to one time per second. Holding the switch for more than

two seconds while running on battery will silence the buzzer.

3. LCD Display

High resolution and intelligent LCD display shows all the UPS information with icons and messages. For

more information please review the “Definitions for Illuminated LCD Indicators” section.

4. Communication Protection Ports RJ11/RJ45

Communication protection ports will protect any standard modem, fax, telephone line, or network cable from

surge and spikes.

5. AC Outlets

The UPS provides 4 outlets for connected equipment to insure temporary uninterrupted operation during a

power failure and against surges and spikes and another 4 outlets against surges and spikes only.

6. USB Charger Port

The UPS provides charging for external equipment via this port.

7. Cable Collector

Collect the cables connected from the AC outlets in the cable collector.

8. Led Indicators

The power on LED lights up when the UPS is ON.

9. USB Port To PC

This port allows connection and communication from the USB port on the computer to the UPS unit. The

UPS communicates its status to the PowerPanel® Personal Edition software.

10. Input Circuit Breaker

The Circuit Breaker provides optimal overload protection.

11. Input Power Cord

Connect to utility power

Model BR700ELCD-UK BR1000ELCD-UK BR1200ELCD-UK

Capacity (VA) 700VA 1000VA 1200VA

Capacity (Watts) 420W 600W 720W

Input

Input Voltage Range 165-290Vac

Frequency Range 47~63Hz (Auto Sensing)

AVR Function Boost @ 200+/-10V

Output

On Battery Output Voltage Simulated Sine Wave at 230Vac +/-10%

On Battery Output Frequency 50/60Hz +/-1%

Transfer Time 4ms Typical

Overload Protection

On Utility: Circuit Breaker and Internal Current Limiting

On Battery: Internal Current Limiting

Surge Protection

Lightning / Surge Protection Yes

Network/ Phone/ Fax/ Modem

Protection

RJ11/RJ45 (One In/ One Out)

Operating Temperature +32F to 104F ( 0C to 40C )

Physical

Total # of UPS outlets 6 (3 for battery backup and surge, 3 for surge only)

Dimensions (WxHxD) (mm) 166x 118x288

Weight (kg) 5.3 6.5 8.2

Wall-mounted Distance(mm) 163

Battery

Sealed Maintenance Free

Lead Acid Battery

RBP0083 RBP0006 RBP0063 x 1 x 1 x 2

Typical Recharge Time 8 hours

User Replaceable Yes

Status Indicators

Indicators Power On, LCD Display

Audible Alarms On Battery, Low Battery, Overload

Communication

PowerPanel

Personal Edition

Software

Windows 8/7/Vista/XP/2000,Server 2012/2008/2003, Linux

Management

Auto-Charger Yes

Auto-Restart Yes

USB interface Yes

TECHNICAL SPECIFICATIONS

BASIC OPERATION

INSTALLING YOUR UPS SYSTEM

IMPORTANT SAFETY INSTRUCTIONS

CAUTION! Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the battery.

Service the battery under the supervision of personnel knowledgeable of batteries and their

precautions.

CAUTION! Use only the specified type of battery. See your dealer for replacement batteries.

CAUTION! The battery may present the risk of electrical shock. Do not dispose of batteries in a fire, as they

may explode. Follow all local ordinances regarding proper disposal of batteries.

CAUTION! Do not open or mutilate the batteries. Released electrolyte is harmful to the skin and eyes and

may be toxic.

CAUTION! A battery can present a high risk of short circuit current and electrical shock. Take the following

precautions before replacing the battery:

1. Remove all watches, rings or other metal objects.

2. Only use tools with insulated handles.

3. DO NOT lay tools or other metal parts on top of battery or any battery terminals.

4. Wear rubber gloves and boots.

5. Determine if the battery is inadvertently grounded. If inadvertently grounded, remove source of ground.

CONTACT WITH A GROUNDED BATTERY CAN RESULT IN ELECTRICAL SHOCK! The likelihood of

such shock will be reduced if such grounds are removed during installation and maintenance (applicable to a

UPS and a remote battery supply not having a grounded circuit)

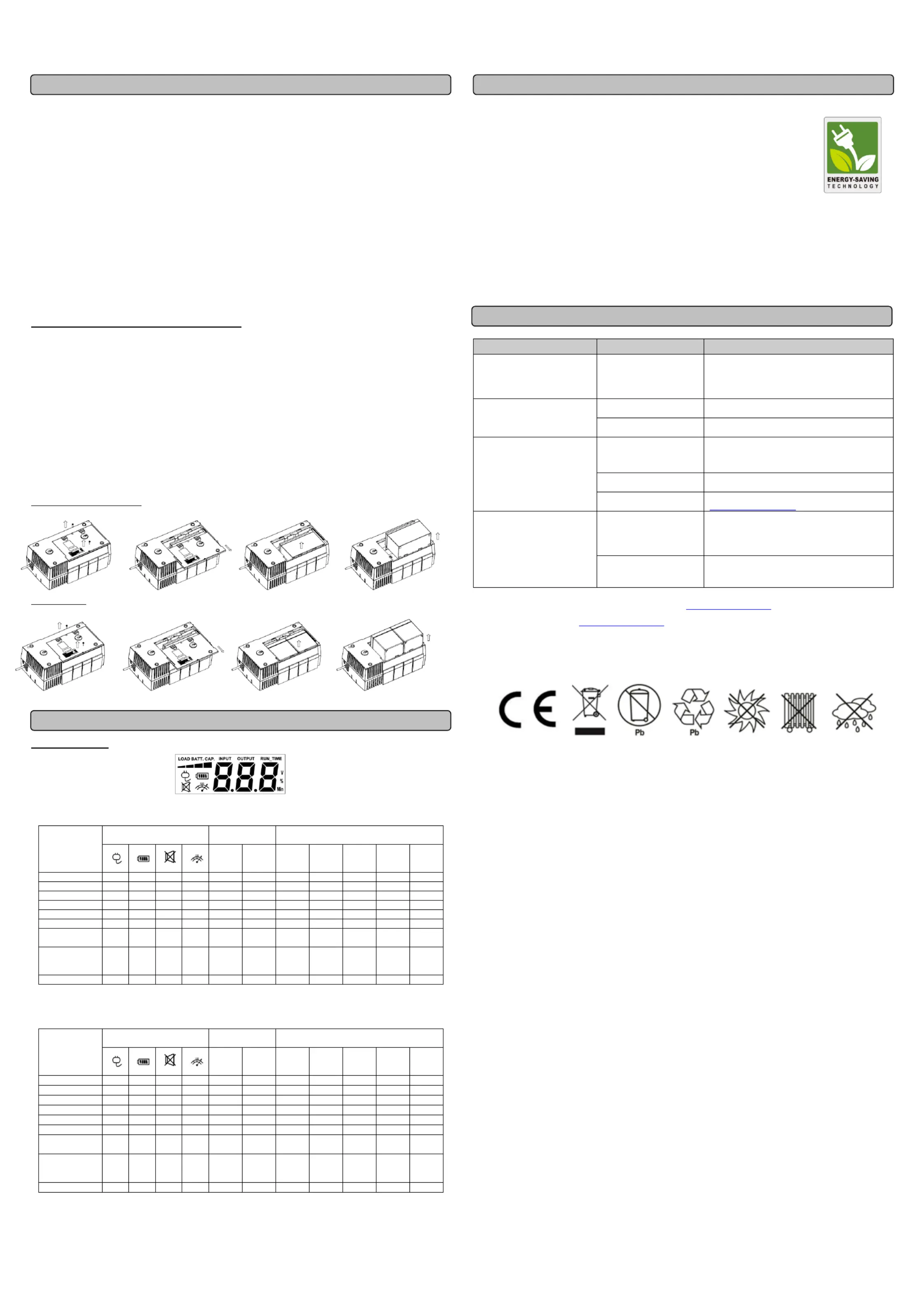

BATTERY REPLACEMENT PROCEDURE

1. Turn off and unplug all connected equipment.

2. Turn the UPS off and unplug it from the AC power source.

3. Turn the UPS on its side.

4. Remove the retaining screw located on the bottom of the UPS.

5. Slide the battery compartment cover completely off of the unit.

6. Remove the batteries from the compartment.

7. Disconnect the battery wires from the batteries.

8. Install the replacement batteries by connecting the red wire (+) and black wire (-) to the same color

connectors from the battery pack.

9. Put the batteries back into the compartment.

10. Slide back the battery compartment cover and tighten the retaining screw.

11. Recharge the UPS for 8-16 hours to fully charge the battery.

BR700ELCD/ BR1000ELCD

BR1200ELCD

LCD Indication

Line Mode

Display SW

Press

UPS Status Display Capacity Display Digital Value Display

Load

Cap.

Battery

Cap.

Input

Voltage

Output

Voltage

Run

Time

Load

of Batt.

Initial V X -- X V X V

1st V X -- X V X V

2nd V X -- X V X V

3rd V X -- X X V V

4th V X -- X V X V

5th(Return) V X -- X V X V

Press >3sec

(Sound Disable)

V X V X -- -- -- -- -- -- --

Press >3sec

again

(Sound Enable)

V X X X -- -- -- -- -- -- --

(Overload) V X -- V -- -- -- --

-- -- --

“V” : Illuminated, “X” : Not Illuminated, “--“ : Either

Battery Mode

Display SW

Press

UPS Status Display Capacity Display Digital Value Display

Load

Cap.

Battery

Cap.

Input

Voltage

Output

Voltage

Run

Time

Load

of Batt.

Initial X V -- X X V V

1st X V -- X X V V

2nd X V -- X V X V

3rd X V -- X X V V

4th X V -- X X V V

5th(Return) X V -- X X V V

Press >3sec

(Sound Disable)

X V V X -- -- -- -- -- -- --

Press >3sec

again

(Sound Enable)

X V X X -- -- -- -- -- -- --

(Overload) X V -- V -- -- -- --

-- -- --

“V” : Illuminated, “X” : Not Illuminated, “--“ : Either

CyberPower’s Green Commitment

CyberPower is dedicated to the development of green products, and has adopted

Green practices throughout its business, including: membership in Climate Savers

Computing Initiative (CSCI), accordance with the Restriction on Hazardous

Substances (RoHS), Waste Electrical and Electronic Equipment (WEEE) protocols,

as well as ISO 14001 and IECQ QC080000. CyberPower pledges to provide the

advanced energy solution for the environment and become a leading eco-friendly

organization in the UPS industry.

Reduce Energy Cost with GreenPower UPS

Technology

CyberPower’s goal is not only to provide eco-friendly products but also to bring the best value for consumers.

The advanced energy-saving design improves the operating efficiency and eliminates waste energy

consumption. As a result, consumers will enjoy significant energy cost savings with the adoption of

GreenPower UPS

technology.

Problem Possible Cause Solution

Full-time surge protection

outlets stop providing power

to equipment. Circuit

breaker button is projecting

from the side of the unit.

Circuit breaker has

tripped due to an

overload.

Turn the UPS off and unplug at least one

piece of equipment. Wait 10 seconds, reset

the circuit breaker by depressing the button,

and then turn the UPS on.

The UPS does not perform

expected runtime.

Battery not fully

charged.

Recharge the battery by leaving the UPS

plugged in.

Battery is slightly worn

out.

Contact CyberPower Systems about

replacement batteries.

The UPS will not turn on.

The on/off switch is

designed to prevent

damage by rapidly

turnin

it off and on.

Turn the UPS off. Wait 10 seconds and then

turn the UPS on.

The battery is worn out.

Contact CyberPower Systems about

replacement batteries

Mechanical problem.

Contact CyberPower Systems at

www.cyberpower.com

PowerPanel® Personal

Edition is inactive.

The USB cable is not

connected.

Connect the USB cable to the UPS unit and

an open serial port on the back of the

computer. You must use the cable that came

with the unit.

The unit is not providing

battery power.

Shutdown your computer and turn the

UPS off. Wait 10 seconds and turn the

UPS back on. This should reset the unit.

Additional troubleshooting information can be found at www.cyberpower.com

For more information, Visit www.cyberpower.com or contact CyberPower Systems B.V.

6F, No. 32, Sec. 1, Chenggong Rd., Nangang District, Taipei 115, Taiwan

TROUBLESHOOTING

DEFINITIONS FOR ILLUMINATED LCD INDICATORS

CYBERPOWER GREENPOWER UPS™ TECHNOLOGY

BATTERY REPLACEMENT

Produkt Specifikationer

Mærke:	CyberPower
Kategori:	UPS
Model:	BR1200ELCD
Batterispænding:	230 V
Pakkevægt:	8430 g
Pakkedybde:	325 mm
Pakkebredde:	158 mm
Pakkehøjde:	230 mm
USB-port:	Ja
Responstid:	4 ms
Ethernet LAN-porte (RJ-45):	2
Husmateriale:	Plast
Kabellængde:	1.5 m
Harmoniseret systemkode (HS):	8504408590
Bæredygtighedscertifikater:	CE, EAC, RoHS
Ikke-drift højde:	0 - 3000 m
Overholdelse af bæredygtighed:	Ja
Varmeafgivelse:	137 BUT/t
Strømbeskyttelsesfunktioner:	Kortslutning
USB porttype:	USB Type-A
Modem-porte (RJ-11):	2
Hørbare alarmtilstande:	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Udskiftningsbatteri:	RBP0063
