Side 1/10

Safety and General Information

Inspect the package contents upon receipt. Notify the carrier and

dealer if there is any damage.

SAVE THESE INSTRUCTIONS - This section contains important

instructions that should be followed during installation and maintenance

of the UPS and batteries.

Inventory

Connect the Battery

The UPS is shipped with the battery disconnected.

BX850/1000M/M-LM60

DANGER

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH

•This UPS is intended for indoor use only.

•Do not operate this UPS in direct sunlight, in contact with fluids, or where there is excessive

dust or humidity.

•Connect the UPS power cable directly to a wall outlet.

•Be sure the air vents on the UPS are not blocked. Allow adequate space for proper ventilation.

Failure to follow these instructions will result in death or serious injury.

 Remove the battery door.

 Remove the battery. Connect the wire.

bu001b

bu025c

User Manual Back-UPS

™

Pro

BX850/1000/1350/1500M/M-LM60

Back-UPS Pro BX850/1000/1350/1500M/M-LM602

BX1350/1500M/M-LM60

Install PowerChute

™

Personal Edition Software

Use PowerChute Personal Edition software to configure the UPS settings. During a

power outage, PowerChute will save any open files on your computer and shut it down.

When power is restored, it will restart the computer.

Note: PowerChute is only compatible with a Windows operating system. If you are

using Mac OSX, use the native shutdown feature to protect your system. See the

documentation provided with your computer.

Installation

Use the cable supplied with the Back-UPS to connect the data port on the Back-UPS to

the USB port on your computer. On the computer, go to www.apc.com Search for

“PowerChute Personal Edition” then click on “View Details” to download the latest

version of PCPE software ct Software product. Select . Click the download link and sele

the appropriate operating system. Follow directions to download the software.

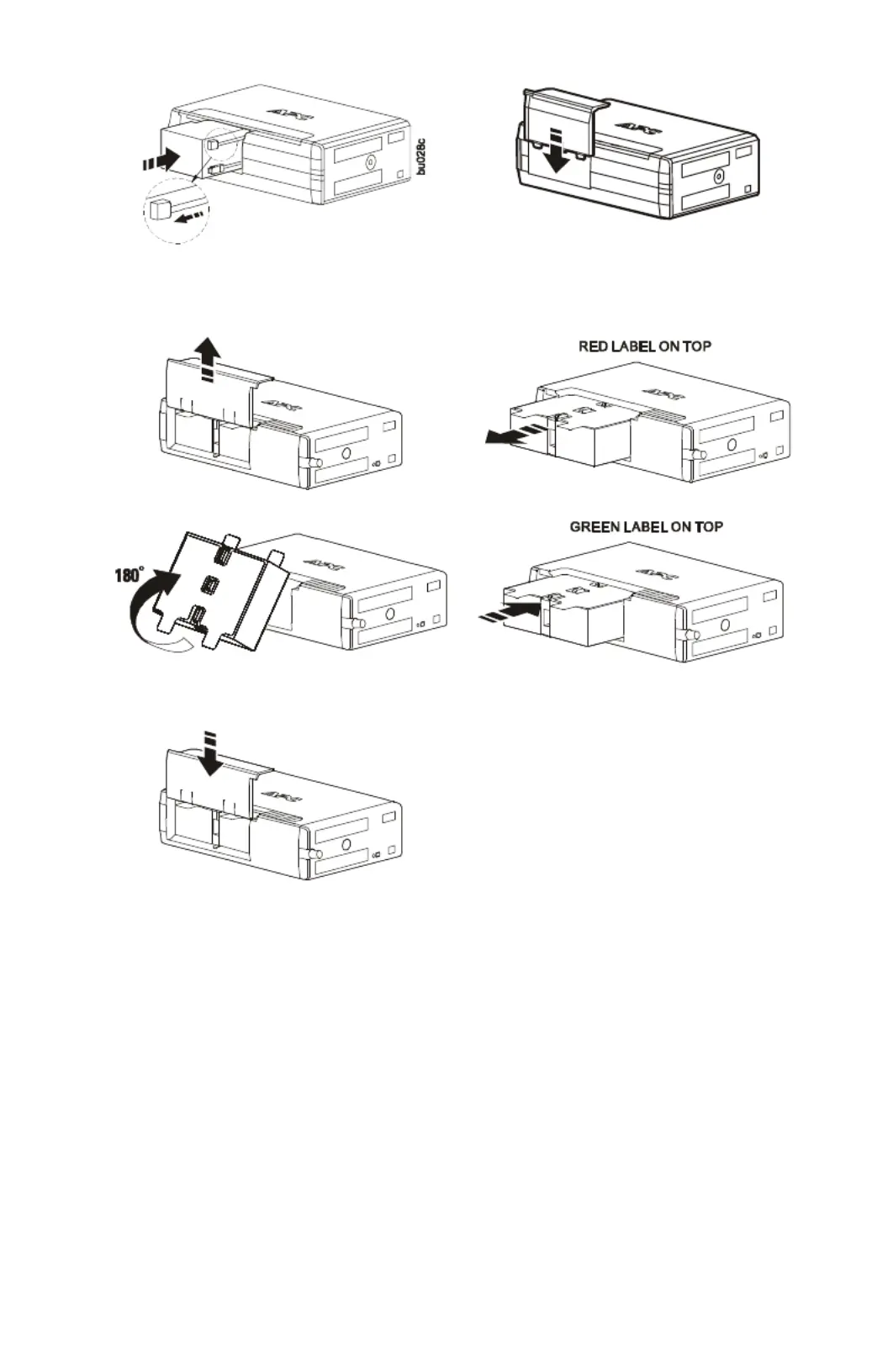

 Push the battery into the unit.

 Replace the battery door.

 Remove the battery door.

 Remove the battery.

 Flip or turn the battery 180 degrees

upward/downward to let green side of the

label face up.

 Push the battery into the unit.

 Replace the battery door.

bu026c

bu055b

bu057b

bu059b

bu058b

bu060b

Produkt Specifikationer

Mærke:	APC
Kategori:	UPS
Model:	BX1000M
Bredde:	91 mm
Dybde:	310 mm
Højde:	190 mm
Vægt:	7200 g
Produktfarve:	Sort
Pakkevægt:	8000 g
Pakkedybde:	442 mm
Pakkebredde:	142 mm
Pakkehøjde:	253 mm
Batteriteknologi:	Blybatterier (VRLA)
Formfaktor:	Tower
Opbevaringstemperatur (T-T):	-15 - 45 °C
Relativ luftfugtighed ved drift (H-H):	0 - 95 %
Relativ luftfugtighed ved opbevaring (H-H):	0 - 95 %
Ethernet LAN-porte (RJ-45):	1
Driftstemperatur (T-T):	0 - 40 °C
Udgangseffekt:	600 W
Certificering:	California (CEC) Battery Charger, FCC Part 15 Class B, UL 1778
Kabelteknologi:	10/100/1000Base-T(X)
Kabellængde:	1.83 m
Batterilevetid (maks.):	5 År
Opladningstid for batteri:	12 t
Bæredygtighedscertifikater:	RoHS, ENERGY STAR
Indgangsfrekvens:	60 Hz
Seriel grænsefladetype:	RJ-45
AC udgange, antal:	8 AC stikkontakt(er)
AC stikkontakt typer:	NEMA 5–15R
Overspænding energivurdering:	1103 J
Indgående driftsspænding (maks.):	139 V
Output strømkapacitet (VA):	1 kVA
Indgående driftsspænding (min.):	88 V
Udgangs driftsspænding (min.):	- V
Udgangs driftsspænding (maks.):	120 V
UPS topologi:	Interaktivt indgangsstik
Strøm (maks.):	12 A
Regulering af udgangsfrekvens:	60 Hz
Bølgeform:	Sine
Seriegrænseflade:	Ja
