UT1500/2200E/EI

User’s Manual

K01-C000111-01

IMPORTANT SAFETY INSTRUCTIONS

(SAVE THESE INSTRUCTIONS)

This manual contains important safety instructions. Please read and follow all instructions carefully during installation and operation of the

unit. Read this manual thoroughly before attempting to unpack, install, or operate your UPS.

CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free of conductive

contaminants. (See the specifications for the acceptable temperature and humidity range.)

CAUTION! To reduce the risk of overheating the UPS, do not cover the UPS' cooling vents and avoid exposing the unit to direct sunlight or

installing the unit near heat emitting appliances such as space heaters or furnaces.

CAUTION! Do not attach non-computer-related items, such as medical equipment, life-support equipment, microwave ovens, or vacuum

cleaners to UPS.

CAUTION! Do not plug the UPS input into its own output.

CAUTION! Do not allow liquids or any foreign object to enter the UPS. Do not place beverages or any other liquid-containing vessels on or

near the unit.

CAUTION! In the event of an emergency, press the OFF button and disconnect the power cord from the AC power supply to properly

disable the UPS.

CAUTION! Do not attach a power strip or surge suppressor to the UPS.

CAUTION! Unplug the UPS prior to cleaning and do not use liquid or spray detergent.

CAUTION! Servicing of batteries should be performed or supervised by personnel knowledgeable of batteries and the required precautions.

Keep unauthorized personnel away from batteries.

CAUTION! The battery supply should be therefore disconnected in the plus and minus pole at the quick connectors of the battery when

maintenance or service work inside the UPS is necessary.

CAUTION! Internal battery voltage is 12Vdc. Sealed, lead-acid, 6-cell battery.

CAUTION! When replacing the batteries, use the same number and type of batteries.

CAUTION! Do not dispose of batteries in a fire. The battery may explode. Do not open or mutilate the battery or batteries. Released

electrolyte is harmful to the skin and eyes.

INSTALLING YOUR UPS SYSTEM

UNPACKING

The box should contain the following:

UT1500/2200E-IN: (1) UPS Unit x1; (2) USB Cable x 1; (3)

Warranty Card x 1; (4)User Manual x 1

UT1500/2200E-AS: (1) UPS Unit x1; (2) USB Cable x 1; (3)User Manual x 1

PowerPanel® Personal Edition software is available on our website. Please visit www.cyberpower.com and go to the Software Section for

free download.

OVERVIEW

The UT1500/2200E series provide automatic voltage regulation for inconsistent utility power, and provides battery backup during power

outages. The UT1500/2200E series ensure consistent power to your computer system.

HARDWARE INSTALLATION GUIDE

1. Your new UPS may be used immediately upon receipt. However, recharging the battery for at least 8 hours is recommended to ensure

that the battery's maximum charge capacity is achieved. Charge loss may occur during shipping and storage. To recharge the battery,

simply leave the unit plugged into an AC outlet. The unit will charge in both the on and off position.

2. With the UPS unit off and unplugged, connect the computer, monitor, and any externally powered data storage device (Zip drive, Jazz

drive, Tape drive, etc. into the battery power supplied outlets. DO NOT plug a laser printer, copier, space heater, vacuum, paper

shredder or other large electrical device into the battery power supplied outlets. The power demands of these devices will

overload and possibly damage the unit.

3. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet is protected by a fuse or circuit

breaker and does not service equipment with large electrical demands (e.g. air conditioner, refrigerator, copier, etc. Avoid using

extension cords.

4. Press the power switch to turn the unit on. The power on indicator light will illuminate and the unit will "beep".

5. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct this, turn the UPS off and unplug

at least one piece of equipment from the battery power supplied outlets. Wait 10 seconds. Make sure the circuit breaker / fuse is

normal and then turns the UPS on.

6. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.

7. To store your UPS for an extended period, cover it and store with the battery fully charged. Recharge the battery every three months

to ensure battery life.

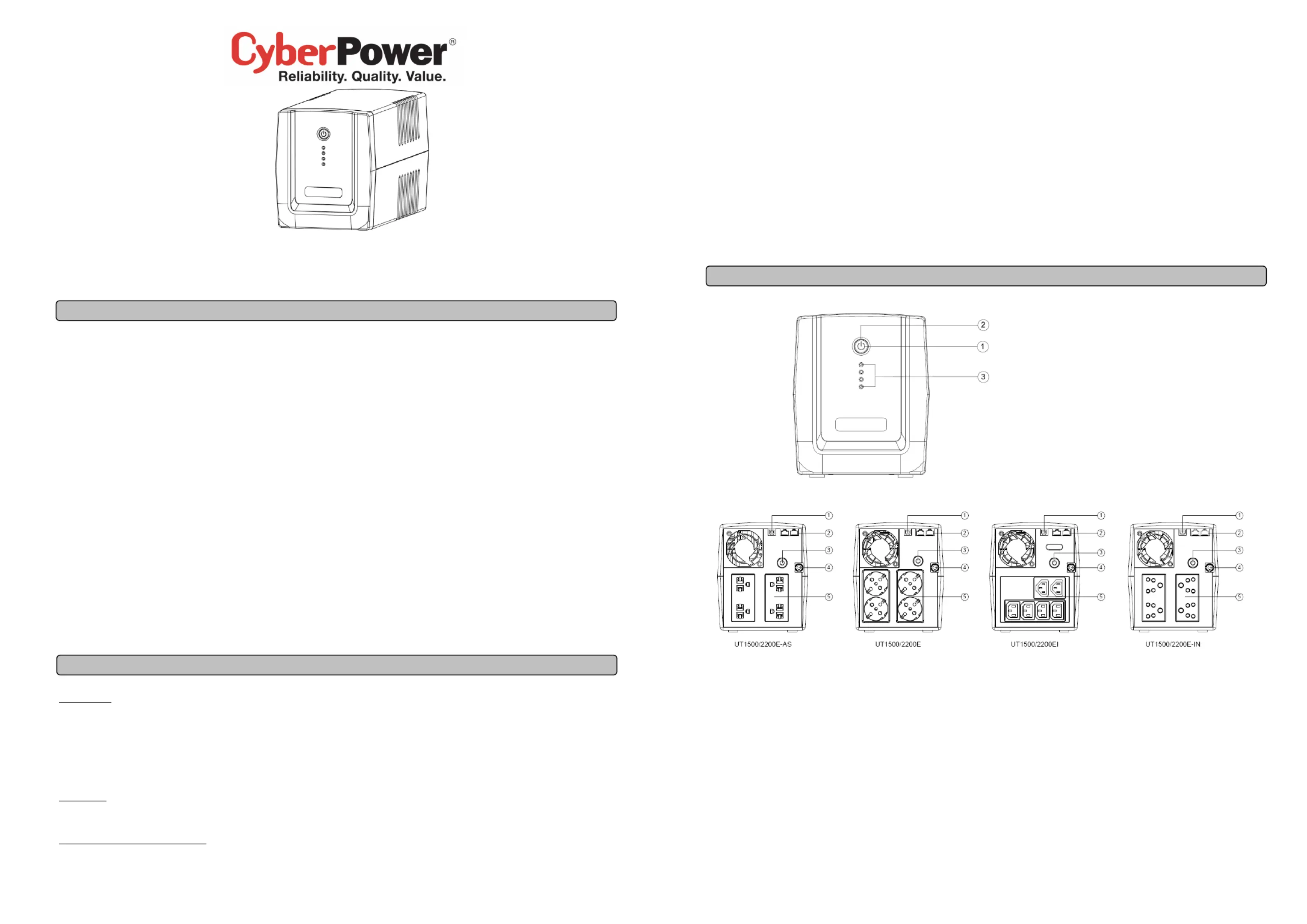

BASIC OPERATION

1. Power Switch

Press the switch for 2 seconds to turn the UPS

ON or OFF.

2. Led Indicators

This LED is illuminated when the UPS is working.

3. Battery Capability Led Indicators

Indicate the battery capability from bottom up

Front panel

Back panel

1. USB Port to PC

This port allows connection and puter to the UPS unit. The UPS communicates communication from the USB port on the com

its status to the PowerPanel

Personal Edition software.

2. Communication Protection Ports

Communication protection ports will protect any standard modem, fax, telephone line, or network cable

3. Input Circuit Breaker

The circuit breaker provides optimal overload protection.

4. Input power cord

Connect to utility power.

5. Battery Backup & Surge Protected Outlets

Provide battery backup and surge protection. They ensure power is provided to connected equipment over a

period of time during a power failure.

TECHNICAL SPECIFICATIONS

DEFINITIO

NS FOR ILLUMINATED LED INDICATORS

LED

Alarm

Condition

On Off Normal

Flash Beep Twice Utility Failure - The UPS is providing battery power to outlets.

Flash Rapid Beeping

Utility Failure - The UPS is providing battery power. The rapid beeps indicate the battery will run out

of power shortly.

On/Flash Constant Tone

Overload - Occurs when connected equipment exceeds the rating of the unit. Turn the UPS off and

unplug at least one piece of equipment from the UPS.

TROUBLESHOOTING

Problem Possible Cause Solution

The UPS does not perform

expected runtime.

Batteries are not fully charged.

Recharge the battery by leaving the UPS plugged in.

Battery is slightly worn out.

Contact CyberPower Systems Technical Support.

The UPS will not turn on.

The unit is not connected to an AC outlet. The unit must be connected to a 220-240V outlet.

The battery is worn out.

Contact CyberPower Systems Technical Support.

Mechanical problem.

Contact CyberPower Systems Technical Support.

Outlets do not provide power to

equipment

Fuse is blown or breaker is tripped due to

overload.

Turn the UPS off and unplug at least one piece

connected equipment. Unplug the power cord of the

UPS then replace the blown fuse with a spare one or

press the circuit breaker knob. Connect power cord

then turn the UPS on. Make sure that your spare fuse

meets the specification.

Batteries are discharged Allow the unit to recharge for at least 4 hours.

Unit has been damaged by a surge or spike.

Contact CyberPower Systems Technical Support.

For more information, v

isit www.cyberpower.com

6F, No. 32, Sec. 1, Chenggong Rd., Nangang District, Taipei 115, Taiwan

Model

UT1500E UT1500EI

UT1500E UT2200E UT1500E UT2200E UT2200EI UT2200E

Capacity (VA)

1500

2200

Watt (W)

900 1320

Input

Voltage Range

165~290Vac

Nominal Frequency

50 Hz

Output

On Battery Output

Voltage

Simulated Sine Wave at 230Vac +/-5%

On Battery Output

Frequency

50 Hz +/-1%

Overload Protection

Breaker / Fuse

Physical

Total # of UPS

Receptacles

SCHOKO

6 IEC 4 ASEAN 4 INDIA

SCHOKO

6 IEC 4 ASEAN 4 INDIA

Dimensions (W x H x

D)(mm)

148 X 178 X 298

Weight (kg)

9.1 kg 10.8 kg

Battery

Sealed Maintenance

Free Lead Acid Battery

RBP0089 p2-x2 RBP0090 p2-x2

Typical Recharge Time

8 Hours

Warning Diagnostics

Indicators Power On / Using Battery

Audible Alarms

On Battery, Low Battery, Overload, Fault

Surge Protection

Network/ Phone/ Fax/

Modem Protection

YES

Communication

PowerPanel® Personal

Edition Software

Windows 8/7/Vista/XP/2000,Server 2012/2008/2003, Linux

Environmental

Operating Temperature

0C to 40C

Operating Relative

Humidity

0 to 90%

Management

Auto-Charger

Yes

Auto-Restart

Yes

Produkt Specifikationer

Mærke:	CyberPower
Kategori:	UPS
Model:	UT2200E
Bredde:	148 mm
Dybde:	298 mm
Højde:	178 mm
Vægt:	10800 g
Produktfarve:	Sort
Indbygget skærm:	Ingen
Responstid:	4 ms
Opbevaringstemperatur (T-T):	-20 - 50 °C
Relativ luftfugtighed ved drift (H-H):	0 - 90 %
Relativ luftfugtighed ved opbevaring (H-H):	0 - 90 %
Driftstemperatur (T-T):	0 - 40 °C
Støjniveau:	45 dB
Udgangseffekt:	1320 W
Certificering:	CE
Udgangsspænding:	230 V
Bæredygtighedscertifikater:	RoHS
Driftshøjde:	0 - 3000 m
Indgangsfrekvens:	50/60 Hz
Nominel indgangsspænding:	230 V
Maksimal input strøm pr. fase:	10 A
AC udgange, antal:	4 AC stikkontakt(er)
AC stikkontakt typer:	Type F
Output strømkapacitet (VA):	2.2 kVA
Beskyttelsesfunktioner mod strømstød:	A/V
Uddgående frekvens:	50/60 Hz
Ændring af spændingsområde:	-10 - 10 V
