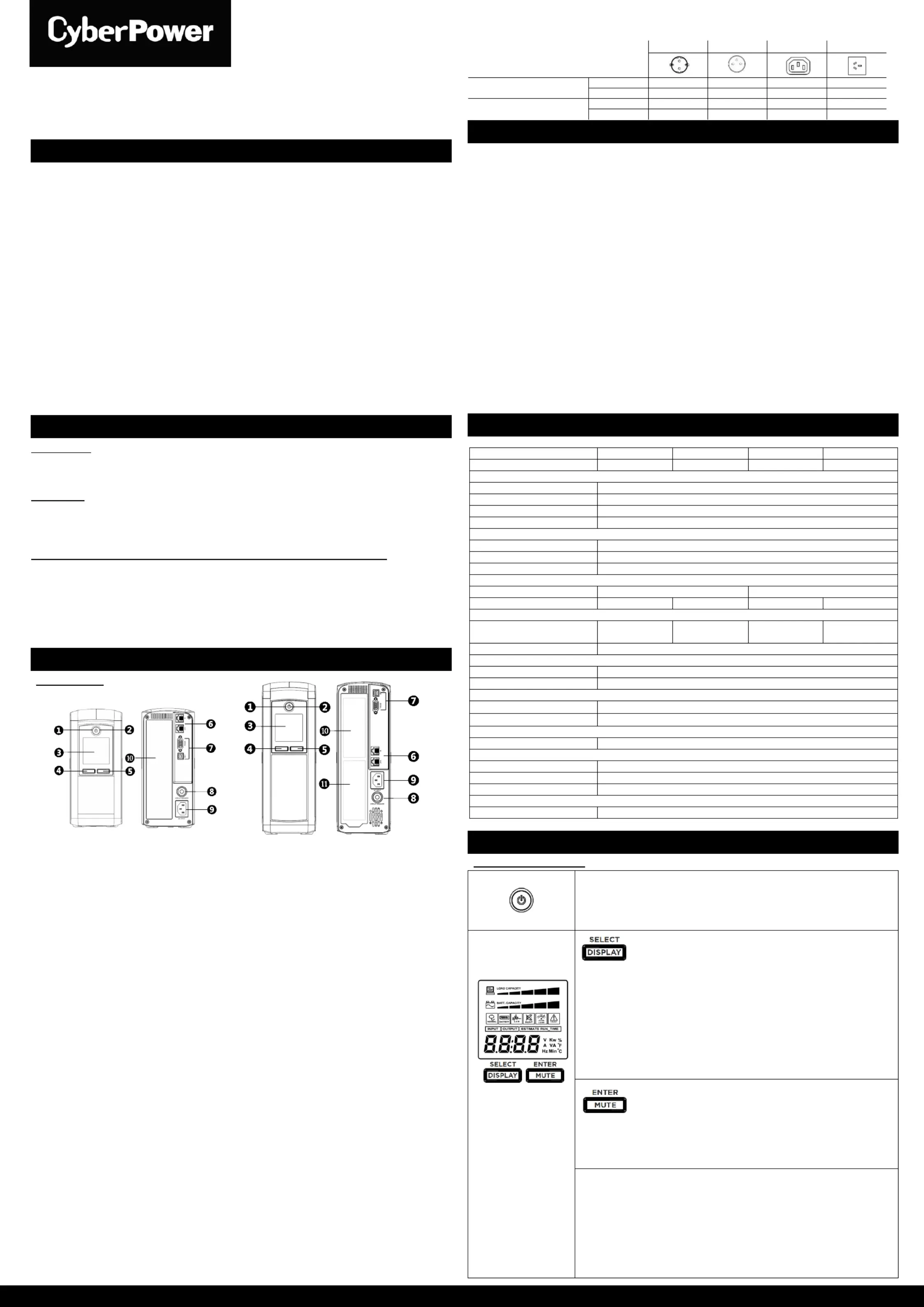

VP700/1000/1200/1600E(I)LCD

User’s Manual

IMPORTANT SAFETY INSTRUCTIONS

This manual contains important safety instructions. Please read and follow all instructions carefully during

installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate

your UPS.

CAUTION! The UPS must be connected to a grounded AC power outlet with fuse or circuit breaker protection.

DO NOT plug the UPS into an outlet that is not grounded. If you need to -energize this equipment, turn o and de

unplug the UPS.

CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! CyberPower does not sell products

for life support or medical applications. use in any circumstance that would aect the operation and safety DO NOT

of life support equipment, medical applications, or patient care.

CAUTION! Hazardous live parts inside can be energized by the battery even when the AC input power is

disconnected.

CAUTION! To prevent the risk of re or electric shock, install in a temperature and humidity controlled indoor area,

free of conductive contaminants. (Please see specications for acceptable temperature and humidity range).

CAUTION! To reduce the risk of electric shock, do not remove the cover There are no user serviceable parts .

inside.

CAUTION! To avoid electrical shock, turn o the unit and unplug it from the AC power source before installing a

computer component.

CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of re, do not use with or near

aquariums. Condensation from the aquarium can come in contact with metal electrical contacts and cause the

machine to short out.

DO NOT USE THE UPS ON ANY TRANSPORTATION! To reduce the risk of re or electric shock, do not use the

unit on any transportation such as airplanes or ships. The eect of shock or vibration caused during transit and the

damp environment can cause the unit to short out.

INSTALLING YOUR UPS SYSTEM

UNPACKING

The box should contain the following:

(1) UPS Unit 1; (2) USB Cable User Manual 1; Multi-language Quick Start Guide (For EU) 1 x x 1; (3) x (4) x ;

(5) Power Cord 1 (Type may differ between models.) x

OVERVIEW

The V 00/1000/1200/1600E(I)P7 LCD provides automatic voltage regulation for inconsistent utility power, and

provides battery backup during power outages. The V 00/1000/1200/16 (I)P7 00E LCD ensures consistent power to

your computer system and its included software will automatically save your open les and shut down your

computer system during a utility power loss.

HOW TO DETERMINE THE POWER REQUIREMENTS OF YOUR EQUIPMENT

1. Make sure that the total Volt-Amp (VA) requirements of your computer, monitor, and peripheral equipment does

not exceed the VA/ /12 16700 1000VA 00VA/ 00VA.

2. Ensure that the equipment plugged into the battery power-supplied outlets does not exceed the UPS unit’s rated

capacity ( VA/390W for VP700E(I)LCD, 00VA/550W for VP1000E(I)LCD,1200VA/720W for 700 10

VP1200E(I)LCD, 1600VA/960W for V 00E(I)LCD). If rated unit capacities are exceeded, an overload P16

condition may occur and cause the UPS unit to shut down or the circuit breaker trip.

3. There are many factors that can aect the amount of power that your computer system will require. For optimal

system performance keep the load below 80% of the unit’s rated capacity.

BASIC OPERATION

DESCRIPTION

1. Power Switch

Used as the master on/o switch for equipment connected to the battery power supplied outlets.

2. Power On Indicator

This LED is illuminated when the utility power is normal and the UPS outlets are providing power, free of surges

and spikes.

3. LCD Module Display

High resolution and intelligent LCD display shows all the UPS information with icons and messages. For more

information, please refer to the Function Setup Guide

4. Display / Select Button

The button can be used to select the LCD display contents including Input Voltage, Output Voltage, and

Estimated Run Time. For more information, please refer to the Function Setup Guide.

5. Mute / Enter Button

The button can be used to silence the alarm, conrm the settings, and enter into the functions. For more

information, please refer to the Function Setup Guide.

6. Communication Protection Ports

Communication protection ports will protect any standard modem, fax, telephone line, network or Ethernet

connection (RJ11/RJ45).

7. Serial/ USB Port to PC

The Serial and USB port allow connection and communication from DB-9 serial or USB port on the computer to

the UPS unit. The UPS communicates its status to the PowerPanel

Personal software.

NOTE: Only one of these two ports can be used as communication and control of the UPS unit at the same

time.

8. Circuit Breaker

Located on the back of the UPS, the circuit breaker serves to provide overload and fault protection

9. AC Input

Connect AC Power cord to a properly wired and grounded outlet.

10. Battery Backup and Surge Protected Outlets

The unit has several battery powered/surge suppression outlets for connected equipment to ensure temporary

uninterrupted operation of your equipment during a power failure. Check the type and quantity of outlets for

dierent models in the following table.

11. Surge Protected Outlets

Provides surge protection for devices that don’t require battery backup.

Outlet Type

IEC

Battery Backup & Surge

Protected Outlets

700/1000VA

1200/1600VA

Surge Protected Outlets

700/1000VA

1200/1600VA

HARDWARE INSTALLATION GUIDE

1. Your new UPS may be used immediately upon receipt. However, recharging the battery for at least 8 hours is

recommended to ensure that the battery's maximum charge capacity is achieved. Charge loss may occur during

shipping and storage. To recharge the battery, simply leave the unit plugged into an AC outlet. The unit will

charge in both the on and o position.

Note: This UPS is designed with a safety feature to keep the system from being turned on during shipment. The

rst time you turn the UPS , you will need to have it connected to AC power or it will not power up. on

2. With the UPS unit o and unplugged, connect the computer, monitor, and any externally powered data storage

device (Zip drive, Jazz drive, Tape drive, etc.) into the battery power supplied outlets. DO NOT plug a laser

printer, copier, space heater, vacuum, paper shredder or other large electrical device into the battery

power supplied outlets. The power demands of these devices will overload and possibly damage the unit.

3. To protect the network, connect a network cable from the wall jack outlet to the IN jack of the UPS. Then connect

network cable from the OUT jack on the UPS to the computer or network device.

4. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet is protected

by a fuse or circuit breaker and does not service equipment with large electrical demands (e.g. air conditioner,

refrigerator, copier, etc. Avoid using extension cords.

5. Depress the power switch to turn the unit on. The power on indicator light will illuminate and the unit will "beep".

6. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct this, turn

the UPS o and unplug at least one piece of equipment from the battery power supplied outlets. Wait 10 seconds.

Make sure the circuit breaker is depressed and then turn the UPS on.

7. Your UPS is equipped with an auto-charge feature. When the UPS is plugged into an AC outlet, the battery will

automatically recharge.

8. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.

9. To store your UPS for an extended period, cover it and store with the battery fully charged. Recharge the battery

every three months to ensure battery life.

TECHNICAL SPECIFICATIONS

Model

VP700E(I)LCD

VP1000E(I)LCD

VP1200E(I)L CD

VP1600E(I)LCD

Capacity

700VA/390W

1000VA/ 550W

1200VA/72 0W

1600VA/96 0W

Input

Nominal Input Voltage

220-240V

Voltage Range

167-295Vac

Frequency Range

50/60Hz +/- 5 (Auto Sensing) Hz

AVR Function

Yes

Output

On Battery Output Voltage

220-240V

On Battery Output Frequency

50/60Hz -1% +/

Overload Protection

On Utility: Circuit Breaker, On Battery: Internal Current Limiting

Physical

Maximum Dimensions (WxH ) xD

100 60 x 227 x 2 mm

100 81 55 x 2 x 3 mm

Weight (kg)

5.1 kg

6.2 kg

9.6 kg

10.4 kg

Battery

Sealed Maintenance Free Lead

Acid Battery

12V/7Ah x 1

12V/9Ah x 1

12V/7 Ah x 2 .2

12V/9Ah x 2

Typical Recharge Time

8 hours

Warning Diagnostics

Indicators

Power On, LCD Display

Audible Alarms

On Battery, Low Battery, Overload

Environmental

Operating Temperature

0 C to 40C

Operating Relative Humidity

0 to 90%

Communication

PowerPanel

Personal Software

Windows 10 / 8 / 7 / Vista / XP / 2000, Server2012 / 2008 / 2003, Linux

Management

Auto-Charger

Yes

Auto-Restart

Yes

USB interface

Yes

Certications

Certications

CE RC, EAC, M

FUNCTION SETUP GUIDE

BUTTON DESCRIPTION

Power On:

Press and hold the POWER button. You will hear a constant tone for 1 second,

followed by a short beep. Release the button after the short beep.

Power O:

Press and hold the POWER button. You will hear a constant tone for 1 second,

followed by two short beeps. Release the button after the two short beeps.

DISPLAY:

Press the button for 3 seconds to change current LCD status between "LCD Sleep in

1 minute (beep twice and "LCD Sleep in s )" 30 minutes (beeps once)".

 LCD Sleep in 1 minute: In Line mode, LCD screen will o automatically be

after 1 min of inactivity.

 LCD Sleep in 30 minute: In Line mode, LCD screen will o automatically be

after 30 min of inactivity.

 In Battery mode, LCD screen will be always on.

SELECT:

Short press the button to view the information about the UPS or scroll down function /

option menu in Setup Mode.

MUTE:

Press the button for 3 seconds to enable the audible alarm (beeps once) or disable

(beeps twice) the audible alarm.

ENTER:

Short press the button to conrm the settings or enter into the functions.

Enter into Setup Mode:

Press both of the “SELECT” and “ENTER” at the same time for approximately 3

seconds to access the setup mode’s 11 functions.

Select Function:

Short press the “SELECT” button to scroll down the function/ option menu.

Short press the "ENTER" button to enter into set up options.

Conrm Option:

When an option is selected, short press the “ENTER” button.

After the setting has been conrmed, the LCD screen will stop ashing.

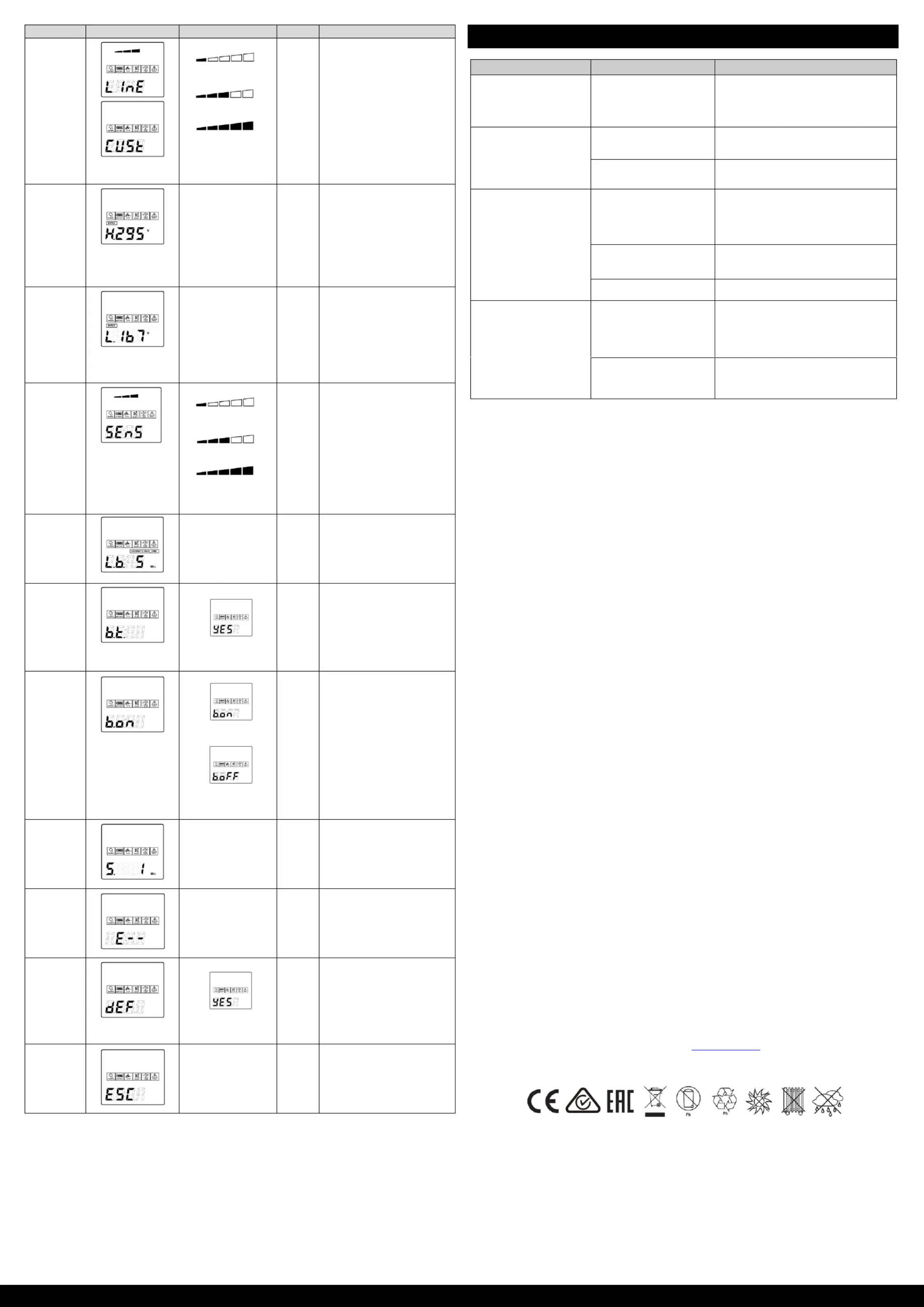

VP700/1000E(I)LCD

VP1200/1600E(I)LCD

Function

LCD Display

Options

Default

Description

Utility Power

CUSt Only when MIN :

or MAX I Voltage is /P

congured.

Poor (167 295V~ V)

Normal (171V~291V)

Good (175V~287V)

ESC

(Escape to Function

Menu)

Poor

This function determines how the

UPS will switch to Battery Mode.

3 dierent output voltage ranges can

be chosen according to the quality of

the AC utility service in your location.

If your utility service is not stable,

you can select Poor (167V~295V).

The UPS will go to Battery Mode

less often to tolerate the utility power

uctuations.

If your utility service is stable, you

can select Good (175V~287V) The .

unit will go to Battery Mode more

often.

MAX I/P

Voltage

H2 , H2 , H2 95 91 87

ESC

(Escape to Function

Menu)

H295V

In Utility Power settings, only 3 types

of xed voltage ranges can be

chosen.

However, you can ne tune the MAX

I/P voltage in this function.

If the utility voltage is usually high,

and the connected equipment can

work in this condition, you can set

the input voltage range higher to

reduce the UPS from going to

Battery Mode as often.

MIN I/P

Voltage

L1 , L171, L175 67

ESC

(Escape to Function

Menu)

L167V

In Utility Power settings, only 3 types

of voltage ranges can be chosen.

However, you can ne tune the MIN

I/P voltage in this function.

If the utility voltage is usually low,

and the connected equipment can

work in this condition, you can set

the input voltage range lower to

reduce the UPS from going to AVR

Mode or Battery Mode as often.

Sensitivity

Low

Medium

High

ESC

(Escape to Function

Menu)

Medium

If the connected equipment can

tolerate more power events

(Example: unstable power often

associated with stormy weather),

select Low Sensitivity. The UPS will

go Battery Mode less often. to

If the connected equipment is more

sensitive to power events, select

High Sensitivity. The UPS will go to

Battery Mode more often.

Low Battery

Warning

5~8 mins

ESC

(Escape to Function

Menu)

5 mins

The audible alarm will sound when

the remaining runtime is less than

the value selected.

Self Test

(Battery Test)

YES

ESC

(Escape to Function

Menu)

Action

In Line Mode, select YES to perform

a Self Test on the battery.

Audible Alarm

b.on

b.oFF

ESC

(Escape to Function

Menu)

b.on

"b.on is buzzer enable; "

" b.oFF” is buzzer disable.

If b.oFF is selected, the unit will

mute all alarms except for fault or

overload condition.

You can also set the audible alarm

with the MUTE button mentioned

before.

LCD Sleep

1, 5, 10, 30 min(s)

ESC

(Escape to Function

Menu)

S.1 min

In Line Mode, LCD screen can be

congured to sleep automatically

after 1, 5, 10, or 30 min(s) of

inactivity.

In Battery Mode, LCD screen is

always on.

Last Fault

Reason

There is no setting in this page. This

page will only show the error code

for last fault reason.

E01 : Charger fault (Over Charge)

E02 : Charger fault (No Charge)

E21 : Output short.

E22 : Over load.

Back to

Default

Settings

YES

ESC

(Escape to Function

Menu)

Action

Select YES to restore the UPS

factory default settings.

Return to

Status

Display

Press the ENTER Button to leave

setup mode and go back to the

Status Display.

TROUBLESHOOTING

Problem

Possible Cause

Solution

Circuit breaker button is

projecting from the back of the

unit.

Circuit breaker has tripped due to

an overload.

Turn the UPS o and unplug at least one piece of

equipment. Wait 10 seconds, reset the circuit

breaker by depressing the button, and then turn

the UPS on.

The UPS does not perform

expected runtime.

Battery not fully charged.

Recharge the battery by leaving the UPS plugged

in.

Battery is slightly worn out.

Contact CyberPower about replacement batteries.

The UPS will not turn on.

The on/o switch is designed to

prevent damage by rapidly

turning it o and on.

Turn the UPS o. Wait 10 seconds and then turn

the UPS on.

The battery is worn out.

Contact CyberPower about replacement batteries.

Mechanical problem.

Contact CyberPower.

PowerPanel® Personal is

inactive.

The USB cable is not connected.

Connect the USB / serial cable to the UPS unit

and an open USB / serial port on the back of the

computer.

The unit is not providing battery

power.

Shutdown your computer and turn the

UPS o. Wait 10 seconds and turn the

UPS back on. This should reset the unit.

Cyber Power Systems, Inc.

For more information, visit www.cyberpower.com

Manufacturer: Cyber Power Systems Inc.

11F., No.26, Jinzhuang Rd., Neihu Dist., Taipei City 114, Taiwan

Produkt Specifikationer

Mærke:	CyberPower
Kategori:	UPS
Model:	VP1200ELCD
Bredde:	100 mm
Dybde:	355 mm
Højde:	281 mm
Vægt:	9620 g
Brugervejledning:	Ja
Produktfarve:	Sort
Skærmtype:	LCD
Pakkevægt:	10670 g
Pakkedybde:	165 mm
Pakkebredde:	430 mm
Pakkehøjde:	384 mm
USB-port:	Ja
Batteriteknologi:	Blybatterier (VRLA)
Formfaktor:	Tower
Responstid:	4 ms
Opbevaringstemperatur (T-T):	-20 - 50 °C
Relativ luftfugtighed ved drift (H-H):	0 - 90 %
Relativ luftfugtighed ved opbevaring (H-H):	0 - 90 %
Ethernet LAN-porte (RJ-45):	2
Antal USB 2.0-porte:	1
Driftstemperatur (T-T):	0 - 40 °C
Husmateriale:	Plast
Kabler inkluderet:	USB kabel
Udgangseffekt:	720 W
Certificering:	CE, RCM
Kabelteknologi:	10/100/1000Base-T(X)
LED-indikatorer:	Ja
Kabellængde:	1.5 m
Harmoniseret systemkode (HS):	8504408590
Opladningstid for batteri:	8 t
Bæredygtighedscertifikater:	RoHS
Driftshøjde:	0 - 3000 m
Ikke-drift højde:	0 - 3000 m
Oprindelsesland:	Kina
Indgangsfrekvens:	50/60 Hz
Overholdelse af bæredygtighed:	Ja
Varmeafgivelse:	74 BUT/t
Seriel grænsefladetype:	RS-232
Lydalarmer:	Ja
Strømbeskyttelsesfunktioner:	Højspænding
USB porttype:	USB Type-B
Antal serielle porte:	1
Strømstik:	C14 forbinder
AC udgange, antal:	5 AC stikkontakt(er)
AC stikkontakt typer:	Type F
Overspænding energivurdering:	450 J
Indgående driftsspænding (maks.):	295 V
Output strømkapacitet (VA):	1.2 kVA
Indgående driftsspænding (min.):	167 V
Udgangs driftsspænding (maks.):	230 V
UPS topologi:	Interaktivt indgangsstik
Strøm (maks.):	5.2 A
Beskyttelse ved overspænding:	Ja
Bølgeform:	Sine
Hørbare alarmtilstande:	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Typisk backup tid ved halv styrke:	12 min.
Typisk backup tid ved fuld styrke:	4 min.
Seriegrænseflade:	Ja
Automatisk spændingsregulering (AVR):	Ja
Uddgående frekvens:	50/60 Hz
EMI/RFI støjfiltrering:	Ja
Antal indgående faser:	1
Antal udgående faser:	1
Regulering af udgangsspænding:	10 %
