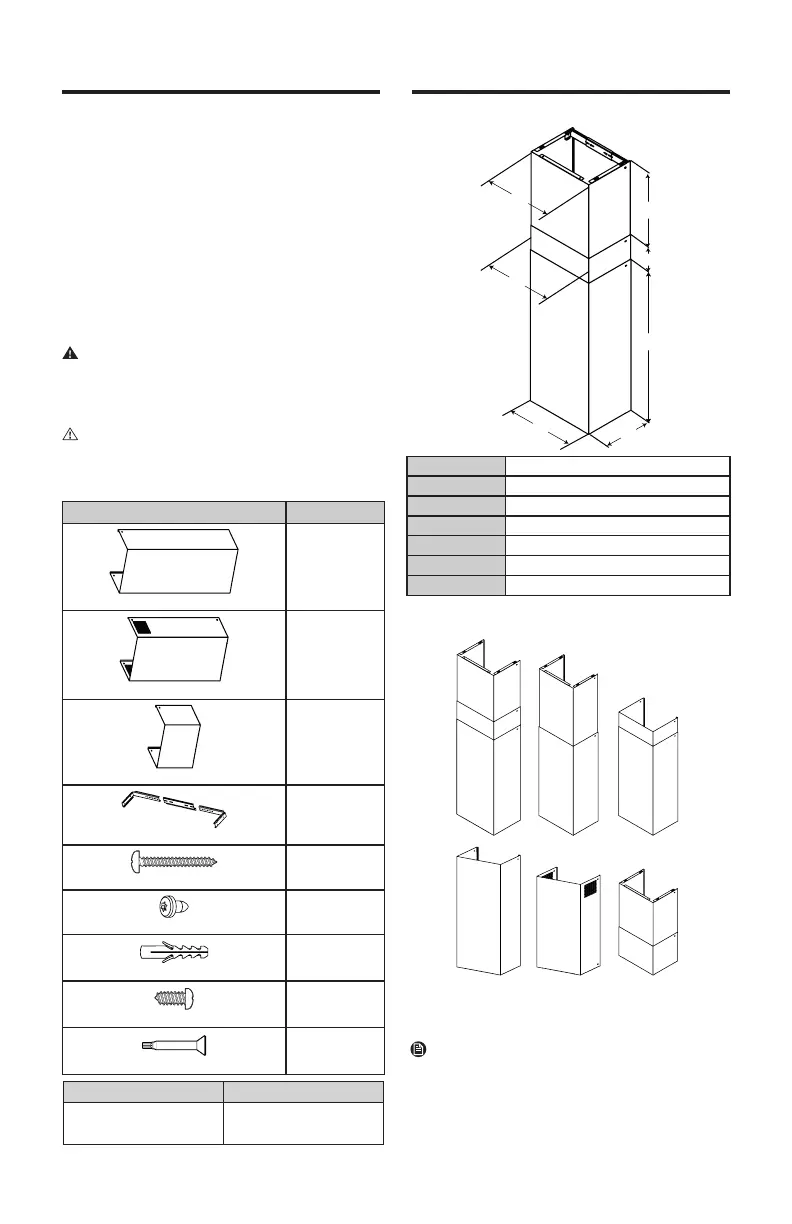

Side 1/8

FOG0185263

Duct Cover Kit

Kit de Couverture de Conduit

Kit de Cubierta de Ducto

DHD-D0000CS/DA

DHD-D0000CM/DA

Installation Instructions

Instructions D’installation

Instrucciones de Instalación

Important Safety Instructions Installation

APPROVED FOR RESIDENTIAL APPLIANCES

FOR RESIDENTIAL USE ONLY

READ AND SAVE THESE INSTRUCTIONS

PLEASE READ ENTIRE INSTALLATION GUIDE

BEFORE PROCEEDING.

INSTALLATION MUST COMPLY WITH ALL LOCAL

CODES.

IMPORTANT:

INSTALLER:

OWNER:

Save these instructions for the local

electrical inspector’s use.

Please leave these Instructions with

this unit for the owner.

Please retain these instructions for

future reference.

WARNING

Turn off power circuit at service panel and lock out panel

before installing this kit to the appliance.

Installation must comply with all local codes.

CAUTION

Remove the carton carefully. Wear gloves to protect

against sharp edges.

Tools and Parts

Part Qty

Large Duct Cover

Medium Duct Cover

Small Duct Cover

Duct Cover bracket

5 x 45 mm

4.2 x 8 mm

8 x 40 mm

3.5 x 9.5 mm

Torx 20 adapter

DHD-D0000CS/DA DHD-D0000CM/DA

DHD30U990CS/DA

DHD36U990CS/DA

DHD48U990CS/DA

DHD30U990CM/DA

DHD36U990CM/DA

DHD48U990CM/DA

General Dimensions

A 11 ¹⁵/₁₆” (30.4 cm)

B 30” (76.2 cm)

C 36 ¹⁵/₁₆” (93.9 cm)

D 11 ¹⁵/₁₆” (30.4 cm)

E 16 ¹/₂” (42 cm)

F 16 ⁵/₁₆” (41.4 cm)

G 16 ⁷/₁₆” (41.7 cm)

Choose the duct cover conguration appropriate to the

ducting length.

Place the duct cover lying on a at surface and pull the

medium cover outwards, nally slide the small cover to

the outside too.

NOTE

When using large and small duct covers together,

assemble both pieces with 4 - 4.2 x 8 mm screws before

nxing to the bracket.

ENGLISH2
