Installation Guide
EKE 400
080R9338
080R9338
© Danfoss | Climate Solutions | 2022.07
AN30561784681801-000401 | 1

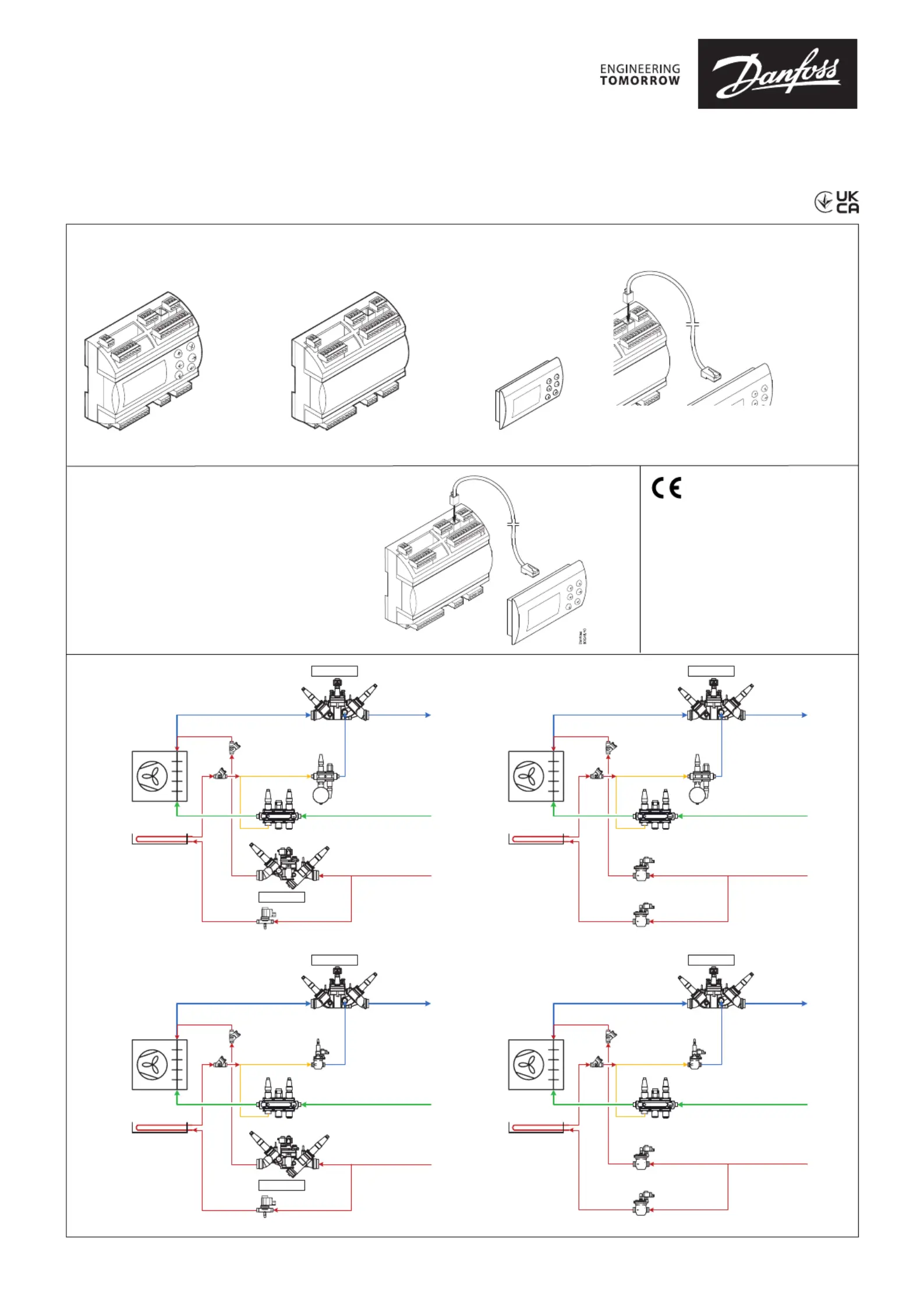

Principle
原理
Application example (parts program)
Cable
Remote display type MMIGRS2
应用示例（零件程序）
EKE 400（不带显示器）
电缆
远程显示器（类型：MMIGRS2）
IP20
-20 – 60 °C
(0 – 140 °F)
RH max. 90% non condensing
最大 RH 90%（非冷凝）
1,5 m
Identication
代码识别
080G5003 = 230 V AC 20 VA
080G5004 = 24 V AC / DC 17 VA
080G5005 = 230 V AC 20 VA
080G5006 = 24 V AC / DC 17 VA
Cable between EKE 400
and HMI
EKE 400 与 HMI 连接电缆
1.5 m: 080G0075
3.0 m: 080G0076
Remote HMI, type
MMIGRS2: 080G0294
EKE 400 without HMI
EKE 400（不带显示器）
EKE 400 with HMI
EKE 400（带显示器）
Remote HMI
远程显示器
Evaporator
Drip aytr
Liquid feed
line
Defrost
drain neli
Wet re rntu
line
Drip tray
line
Hot gas
defrost line
Soft-opening
Soft-opening
CHV
CHV
EVRST
ICSH
ICLX
ICF
ICFE
ICFSICFR
ICFF
ICFC
ICFW
ICFD
ICF
ICFS
ICFE
ICFS
Evaporator
Drip aytr
Liquid feed
line
Defrost
drain neli
Wet re rntu
line
Drip tray
line
Hot gas
defrost line
Soft-opening
CHV
CHV
ICS
ICLX
EVM
ICF
ICFE
ICFSICFR
ICFF
ICFC
ICFW
ICF
ICFS
ICFS
ICFE
ICFD
ICS
EVM
Evaporator
Drip aytr
Liquid feed
line
Defrost
drain neli
Wet re rntu
line
Drip tray
line
Hot gas
defrost line
Soft-opening
Soft-opening
CHV
CHV
EVRST
ICSH
ICLX
EVM
CVP
ICS
ICF
ICFE
ICFSICFR
ICFF
ICFC
ICFW
Evaporator
Drip aytr
Liquid feed
line
Defrost
drain neli
Wet re rntu
line
Drip tray
line
Hot gas
defrost line
Soft-opening
CHV
CHV
ICS
ICLX
EVM
ICF
ICFE
ICFSICFR
ICFF
ICFC
ICFW
EVM
CVP
ICS
ICS
EVM
089
Info for UK customers only : Danfoss Ltd., 22 Wycombe End, HP9 1NB, GB
Імпортер:ТОВ з іі “Данфосс ТОВ” 04080, Київ 80, п/с 168, Україна
ENGLISH
Electric noise
Signal cables for sensors, DI inputs, data communication
and display must be kept separate from high voltage
(230 V) electric cables:
- Use separate cable trays
- Keep a distance between high voltage and signal cables
of at least 10 cm
Cables for DI input.
Cables longer than 10 meter (33 ft) is not recommended.
At cables longer than 10 meter (33 ft), it is recommended
to use auxiliary relays, placed within 10 meter (33 ft) cable
distance. Typical auxiliary relays then are placed in the
same panel, as EKE 400.
Warning
The supply voltage of AI may not
share the signal with other controllers.
Valve congu-
ration no.
Evaporator Line Valve selection in Wizard Parameter number DO1 DO2 DO3 DO4 DO5 DO6
1
Liquid feed line Solenoid (ICFE) R2A or R2B or R2C X
Hotgas defrost line Solenoid 2-step (ICSH) D2A X X
Defrost drain line Solenoid (upstream ICFD) D1B and D4A X
Wet return line Solenoid 2-step (ICLX) D3A X
Fan - F01 X
2
Liquid feed line Solenoid (ICFE) R2A or R2B or R2C X
Hotgas defrost line Solenoid (ICS) D2A X
Defrost drain line Solenoid (upstream ICFD) D1B and D4A X
Wet return line Solenoid 2-step (ICLX) D3A X
Fan - F01 X
3
Liquid feed line Solenoid (ICFE) R2A or R2B or R2C X
Hotgas defrost line Solenoid 2-step (ICSH) D2A X X
Defrost drain line Solenoid for quick drain - pressurecontrol) D1B and D4A X
Wet return line Solenoid 2-step (ICLX) D3A X
Fan - F01 X
4
Liquid feed line Solenoid (ICFE) R2A or R2B or R2C X
Hotgas defrost line Solenoid (ICS) D2A X
Defrost drain line Solenoid for quick drain - pressurecontrol) D1B and D4A X
Wet return line Solenoid 2-step (ICLX) D3A X
Fan - F01 X

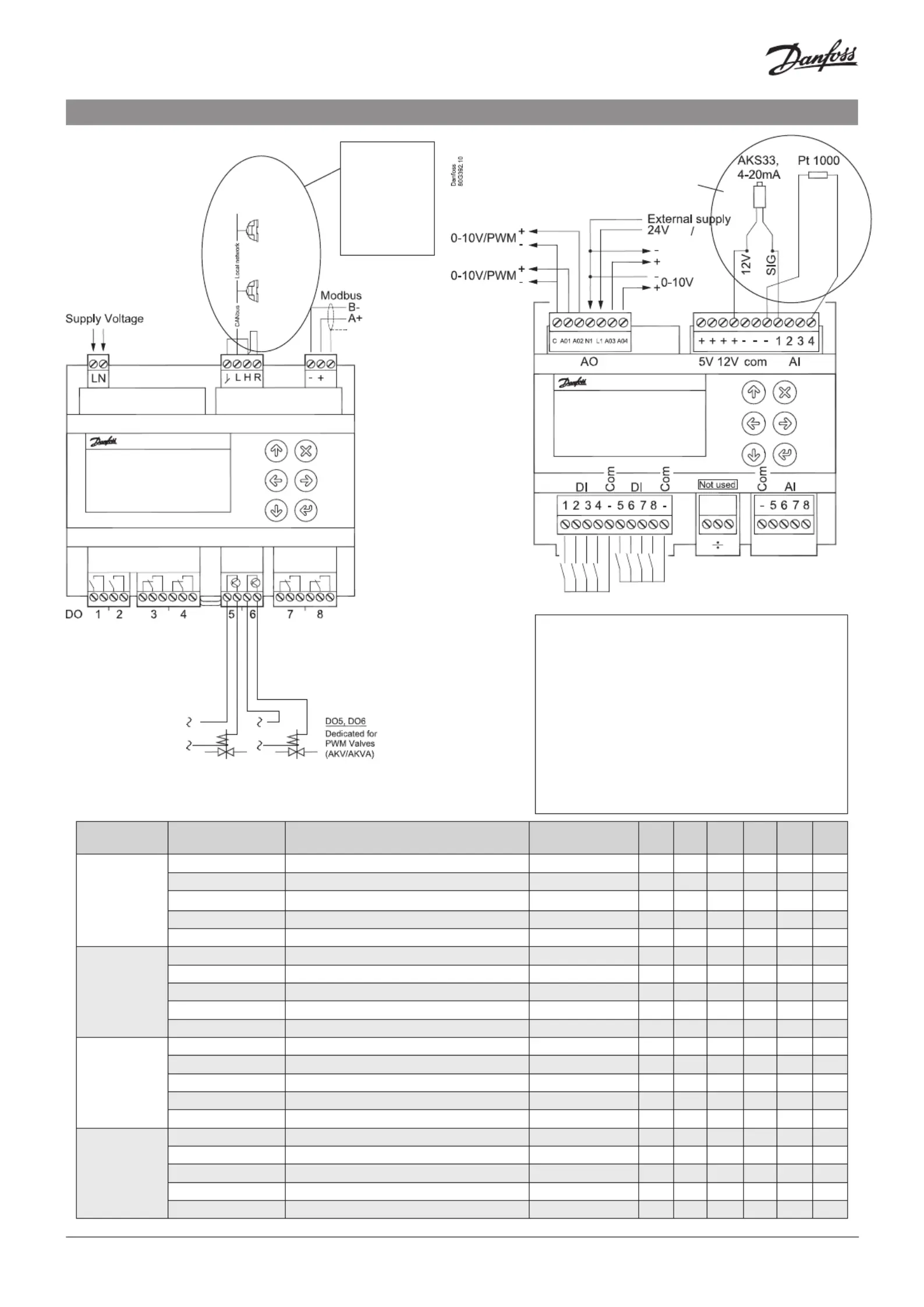

Connection, upper level
Examples
1 AKS 33 pressure transmitter
1 Pt 1000 temp. sensor
AC DC
Connection, lower level
EKE 400
EKE 400
Network between
more EKE 400
H-R connection has
to be made on the
rst and the last local
EKE 400.
Connection as close
as possible to the
connector
Observe
AC only
2 | AN30561784681801-000401
© Danfoss | Climate Solutions | 2022.07
