Feature Benet
Connectivity to EtherNet/IP based networks
Connects to Rockwell PLC-system via the
Common Industry Protocol (CIP
TM
)
Requested Packet Interval (RPI) of 1 ms
High performance
Remote diagnosis and reading out of
basic drive parameters
E-mail noticator Noties if warnings or alarms occur
Two Ethernet ports with built-in switch
• Simple cabling
• No need for expensive switches or hubs
Based on CIP Protocol
Reuse of PLC program when migrating from
DeviceNet to EtherNet/IP or supporting both
technologies.
Supports Device Level Ring (DLR) topology
A single fault in one of the Ethernet cables, or
one of the devices in the ring, will not lead to
loss of the communication to all devices.

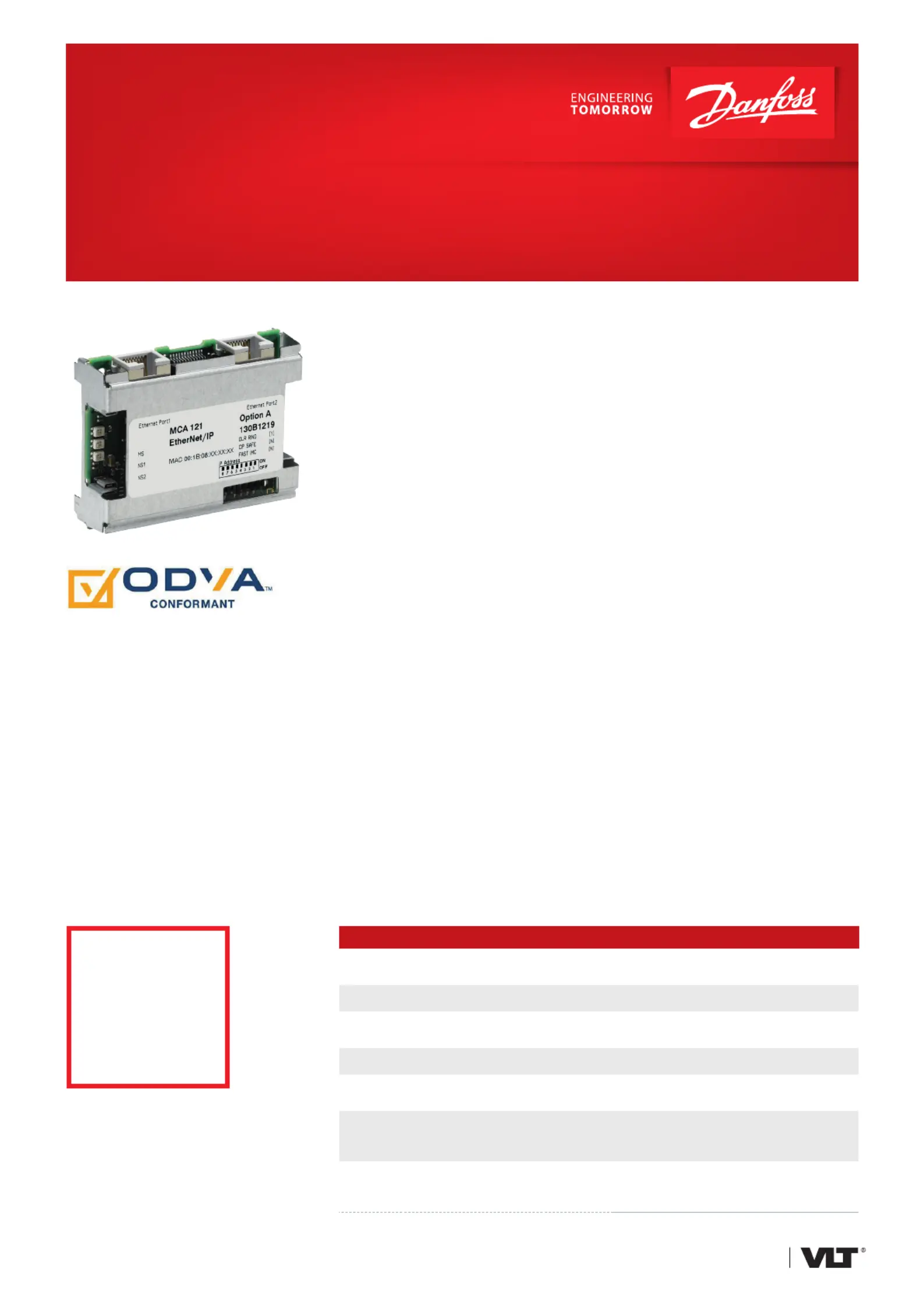

The VLT® EtherNet/IP MCA 121 option
oers plug and play connectivity to
EtherNet/IP based networks, such as
Rockwell PLC systems, via the Com-
mon Industry Protocol (CIP
TM
) proto-
col.
The option can handle a single Ether-
Net/IP Class 1 connection with a
Requested Packet Interval (RPI) of 1 ms
in both directions. This makes it one of
the highest performing EtherNet/IP
devices in the market.
The option features a built-in 2-port
switch, facilitating traditional line
network or Device Level Ring (DLR)
topology. The DLR in the MCA 121 is
Beacon based, to achieve the fastest
fault detection with recovery time
down to 3 ms. These topologies
eliminate the need for the complex
cabling and expensive industrial
Ethernet switches, which are used in
star topology.
Other features
n Built-in web-server for remote
diagnosis and reading out basic drive
diagnosis.
n An E-mail notificator can be config-
ured for sending an e-mail message
to one or several receivers, if certain
warnings or alarms occur, or have
cleared again.
n Add On Instruction (AOI) that reduces
the time, effort and cost involved in
development of the PLC program.
The AOI contains a list of pre-defined
tags used to control the drive
n Swift integration into the PLC
configuration tool via an EDS file
Application protocols
n EtherNet/IP (Industrial Protocol) for
controlling and parameter settings
n
CIP (Common Industry Protocol) For
communication to the PLC
n
HTTP (Hypertext Transfer Protocol)
for diagnosis via build-in web server
n
SMTP (Simple Mail Transfer Protocol)
for e-mail notification
n
DHCP (Dynamic Host Configuration
Protocol) automatic IP address
configuration
n
Supports connection to
VLT® Motion Control Tool MCT 10
over TCP/IP
n
Supports read/write Scattered of
Drive parameters
Ordering number
Uncoated 130B1119
Coated 130B1219
VLT® EtherNet/IP MCA 121
Fact Sheet
DLR
Support for high
availability
High performance EtherNet/IP
TM
eldbus option for
n VLT® HVAC Drive FC 102
n VLT® AQUA Drive FC 202
n VLT® AutomationDrive FC 302
n VLT® Lift Drive LD 302
drives.danfoss.com
EtherNet/IP™ is a trademarks of ODVA, Inc.
The VLT® EtherNet/IP MCA 121 option
integrates swiftly into the PLC
conguration tool, via the EDS le.
VLT® drives support the ODVA and FC
proles for I/O Assembly objects.
Likewise, they also support:
n CIP objects, including I/O Assem-
blies for ve dierent assembly
objects (AO) to tailor the commuta-
tion for optimal performance
n AC Drive object
n Other objects to support easy
conguration and integration with
PLCs supporting EtherNet/IP
Downloads
These les are available free of charge
in the software download area at
drives.danfoss.com:
n Add-on Instruction (AOI)
n EDS le
Danfoss Drives, Ulsnaes 1, DK-6300 Graasten, Denmark, Tel. +45 74 88 22 22, Fax +45 74 65 25 80, drives.danfoss.com, E-mail: info@danfoss.com
DKDD.PFO.604.A4.02 © Copyright Danfoss Drives | 2016.04
Ring
supervisor
AC drives
PLC

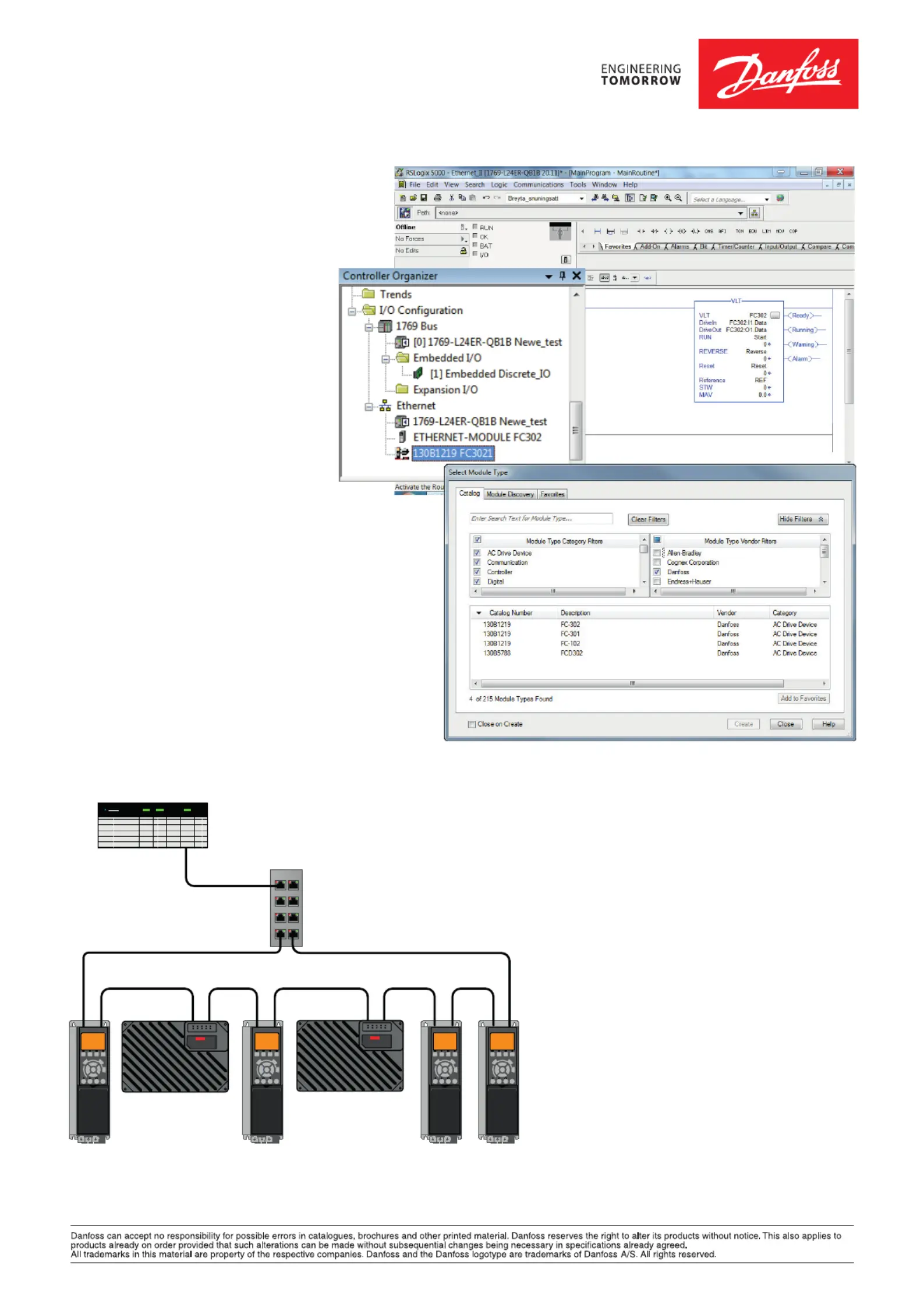

Device Level Ring (DLR) topology
