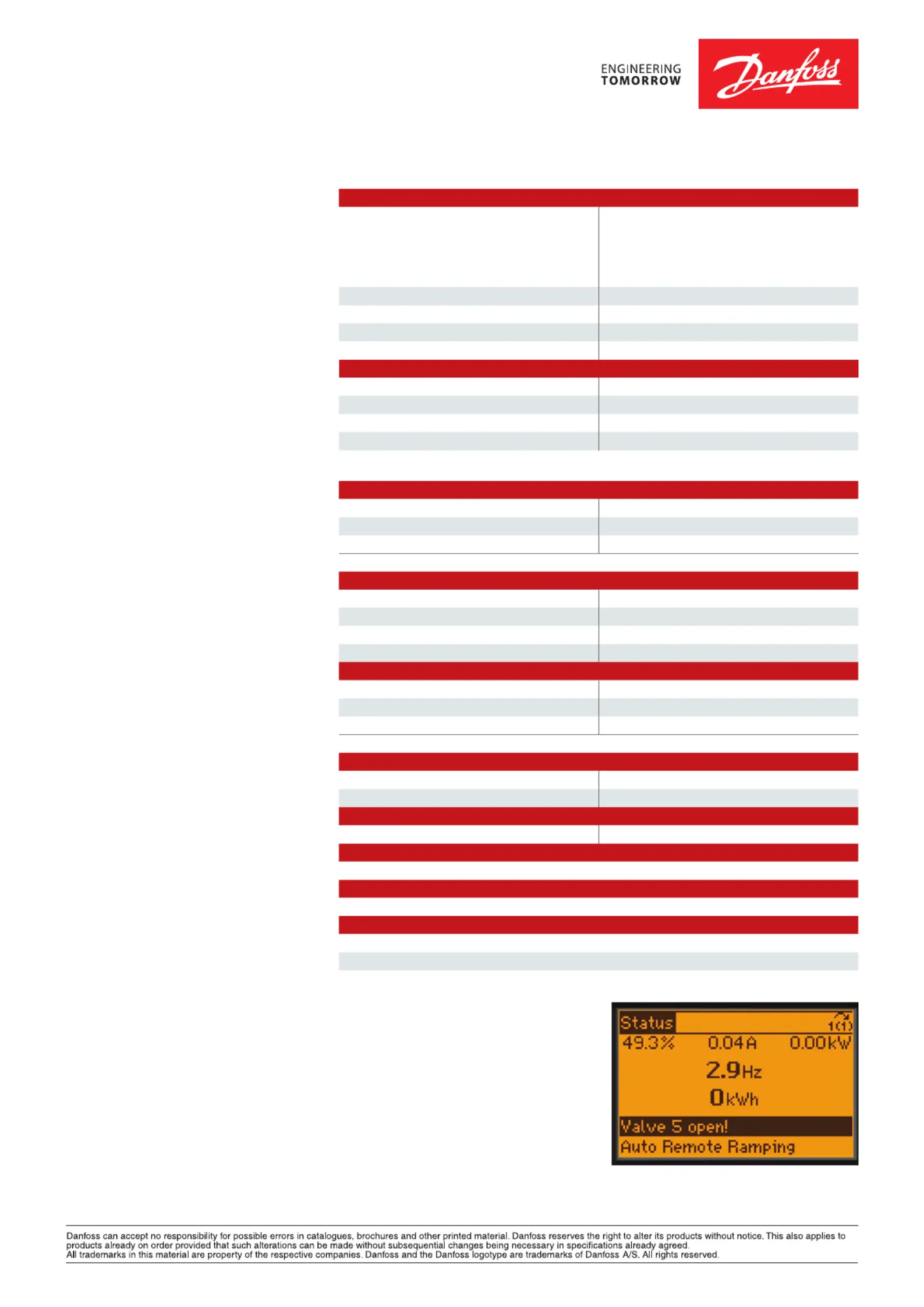

Fact Sheet | VLT® AQUA Drive FC 202
Optimized drive for AC motor-driven
water and wastewater applications.
A user-friendly set-up makes instal-
lation easy. Powerful efficiency
enables owners to reach the highest
of ownership.
Featuring a wide range of powerful,
standard features, which can be
expanded with performance-improving
options, the VLT® AQUA Drive is equally
suited to both new and retrofit projects.
Set up the drive quickly and easily with
the user-friendly dialog-based Smart
Start wizard and a quick menu which
provides direct access to the most
important features for water and pump
applications. Collecting the most im-
portant water and pump parameters in
one place significantly reduces the risk
of incorrect configuration.
IP66 enclosure and coated boards
cut down the need for cabinet space,
saving on investment and reducing
installation time.
Instantly benefit from high efficiency,
of ownership for water and wastewater
applications.
Product range
1 x 200-240 V AC 1.1-22 kW .............................
1 x 380-480 V AC 7.5-37 kW .............................
3 x 200-240 V AC 0.25-160 kW ........................
3 x 380-480 V AC 0.37-1000 kW .....................
3 x 525-600 V AC 0.75-90 kW ...........................
3 x 525-690 V AC 11-1400 kW* .......................
*Up to 2000 kW available on request
Feature Benefit
Dedicated features
Dry run detection Protects the pump
Flow compensation function Saves energy
2 step ramps (initial/final ramp)
and minimum speed monitor
Protects deep well pumps
Check valve ramp
Protects against water hammering and saves
installation cost for soft close valves
Pipe fill mode Eliminates water hammering
Built-in motor alternation feature Duty stand by operation, cost reduction
Sleep Mode and no/low flow detection Save energy and protect the pump
End of pump-curve detection Pump protection, leakage detection
Pump cascade controller Saves energy and reduces equipment cost
Built-in Smart Logic Controller Often makes PLC omissible
Multi-Master Cascade (optional)
Full redundant cascade system for maximum
up-time
Deragging Preventive/reactive pump cleaning
Back-channel cooling for frame D, E and F Prolonged lifetime of electronics
Pre/Post Lubrication System and pump protection
Free programmable infos/warnings/alerts
Perfect system integration and adaptation
to the application
Flow confirmation System and pump protection
Energy saving Less operation cost
VLT® efficiency (98%) Saves energy
Automatic Energy Optimisation (AEO) Saves 3-8% energy
Auto Tuning of Staging Speeds Smoothens the staging and saves energy
Reliable Maximum uptime
IP20 – IP66 enclosures (depending on power size) Choose the protection class you need
All power sizes available in IP 54/55 enclosures Broad usability in standard enclosure
Password protection Reliable operation
Mains disconnect switch No need for external switch
Optional, built-in RFI suppression No need for external modules
One Wire safe stop Safe operation/less wiring
Max. ambient temperature up to 50°C
without derating (D-frame 45°C)
Less need for cooling or oversizing
User-friendly Save initial and operation cost
One drive type for the full power range Less learning required
Intuitive user interface Time saved
Modular design Enables fast installation of options
Auto tuning of PI-controllers Time saved
Payback time indication Monitor performance
30%
cost reduction in 1
st
year compared with
next best alternative
drives.danfoss.com
DKDD.PFP.201.A7.02 © Copyright Danfoss Drives | 2020.06
Fieldbus options
Extend the functionality of the drive
with integrated options:
n VLT® PROFIBUS DP MCA 101
n VLT® DeviceNet MCA 104
n VLT® PROFINET MCA 120
n VLT® EtherNet/IP MCA 121
n VLT® Modbus TCP MCA 122
n VLT® BACnet/IP MCA 125
Application and I/O options
Extend the functionality of the drive
with integrated options:
n VLT® General Purpose I/O MCB 101
n VLT® Extended Cascade Controller
MCO 101
n VLT® Advanced Cascade Controller
MCO 102
n VLT® 24 V External Supply MCB 107
n VLT® PTC Thermistor Card MCB 112
n VLT® Extended Relay Card MCB 113
n VLT® Sensor Input MCB 114
n VLT® Relay Card MCB 105
n VLT® 24 V DC Supply MCB 107
n VLT® Analog I/O MCB109
n VLT® Programmable I/O MCB115
n VLT® Real-time Clock MCB 117
License features
Extend the functionality of the drive
with integrated options:
n Condition-based monitoring
n VLT® Digital Cascade Controller
Multi-Master
High-power options
(above 110 kW)
See the VLT® AQUA Drive FC 202
Selection Guide for a complete list.
Coated PCB available
Standard 3C2 for harsh environments
according to levels in IEC61721-3-3,
optional 3C3. From 90 kW 3C3 coating
is standard.
Power options
Choose from a wide range of external
power options for use with our drive in
critical networks or applications:
n VLT® Low Harmonic Drive
n VLT® Advanced Harmonic Filter
AHF 050 & AHF 010
Specifications
User-configurable texts allow the perfect adaptation
to the application.
Mains supply (L1, L2, L3)
Supply voltage
1 x 200-240 V AC 1.1-22 kW ...................................................
1 x 380-480 V AC 7.5-37 kW ...................................................
3 x 200-240 V AC 0.25-160 kW ..............................................
3 x 380-480 V AC 0.37-1000 kW ...........................................
3 x 525-600 V AC 0.75-90 kW ................................................
3 x 525-690 V AC 11-1400 kW* ............................................
Supply frequency 50/60 Hz
Displacement Power Factor (cos φ) near unity (> 0.98)
True power factor (λ) ≥ 0.9
Switching on input supply L1, L2, L3 1-2 times/min.
Output data (U, V,W)
Output voltage 0-100% of supply
Switching on output Unlimited
Ramp times 0.1-3600 sec.
Max. output frequency 590 Hz
Note: VLT® AQUA Drive can provide 110%, 150% or 160% current for 1 minute, dependent on power size and
parameter settings. Higher overload rating is achieved by oversizing the drive.
Digital inputs
Programmable digital inputs 6*
Logic PNP or NPN
Voltage level 0-24 V DC
* Two of the inputs can be used as digital outputs.
Analog inputs
Number of analogue inputs 2
Modes Voltage or current
Voltage level -10 to +10 V (scaleable)
Current level 0/4 to 20 mA (scaleable)
Pulse inputs
Programmable pulse inputs 2
Voltage level 0-24 V DC (PNP positive logic)
Pulse input accuracy (0.1 – 1 kHz) Max. error: 0.1% of full scale
* Two of the digital inputs can be used for pulse inputs.
Analog output
Programmable analogue outputs 1
Current range at analogue output 0/4 – 20 mA
Relay outputs
Programmable relay outputs 2 (240 VAC, 2 A and 400 VAC, 2 A)
Fieldbus communication
FC Protocol and Modbus RTU built-in
Ambient temperature
Up to 55° C (50°C without derating)
Hardware specifications
IP20 – IP66 enclosures (depending on power size)
All power sizes available in IP 54/55 enclosures
* Up to 2000 kW available on request
n
VLT® dU/dt Filter MCC 102
n VLT® Sine Wave Filter MCC 201
(LC filter)
PC software tool
n VLT® Motion Control Tool MCT 10
n VLT® Energy Box
n VLT® Motion Control Tool MCT 31
