Side 1/56

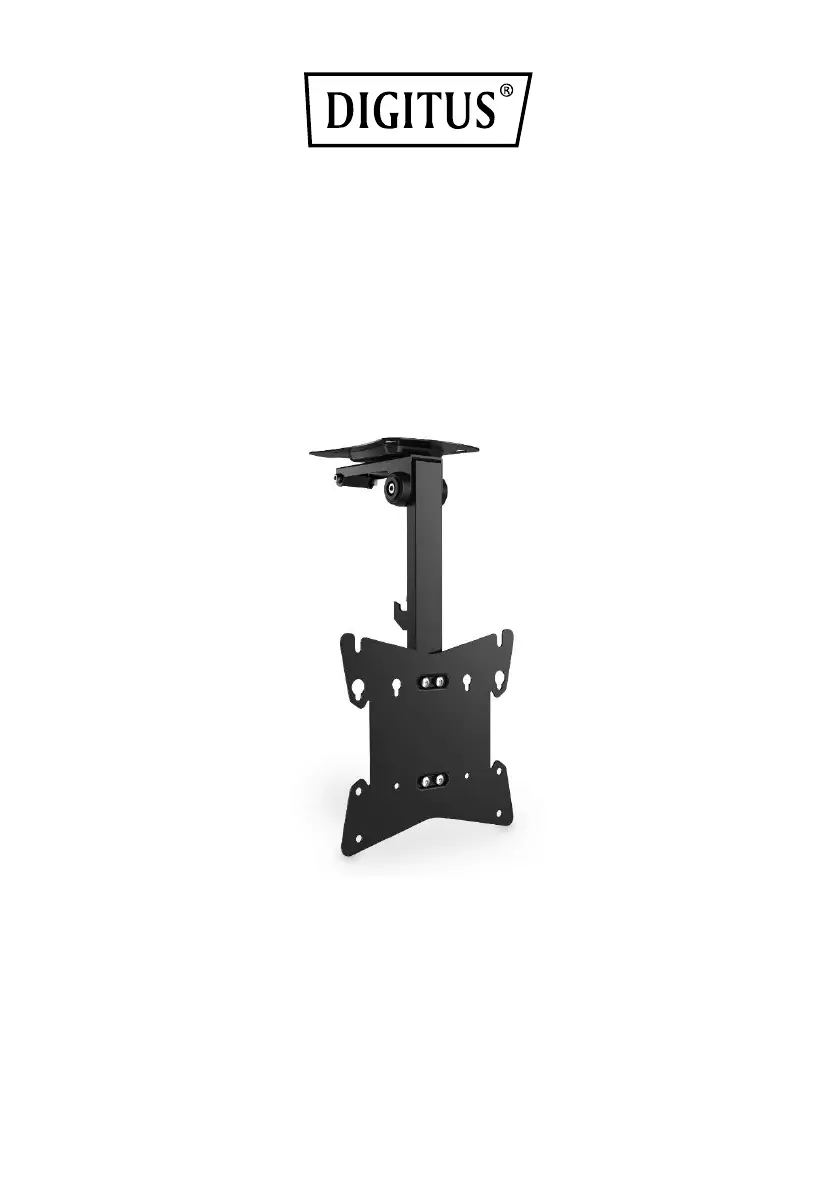

Universal TV Ceiling Mount

with Height-Adjustment

Quick Installation Guide

DA-90423

Introduction

The height-adjustable Universal TV Ceiling Bracket from DIGITUS® is suitable for flat

and curved displays with a screen diagonal from 17” to 37” and a weight of up to 20

kg. It can be optimally adjusted to different ceiling heights thanks to height

adjustment. An optimal viewing angle is ensured by the variable inclination, which

can be adjusted from 0 to -90° depending on the ceiling height and desired viewing

angle. The entire bracket can be folded together to save space and securely locked.

The installation of monitors and TV devices with VESA 100 or 200 is possible.

Warning

The ceiling structure must be able to load at least equal to the maximum weight 20

kgs (44lbs). If not, the ceiling must be reinforced. The correct installation procedure

by a qualified service technician, according to installation instructions, must persist.

Failure to do so may result in serious injury or death, and even death.

Safety measures must be practiced at all times during the installation of this product.

Use proper safety gear and tools for the installation procedure to prevent personal

injury.

Prior to the installation of this product, the installation instructions should be read

and completely understood. The installation instructions must be read to prevent

personal injury and property damage. Keep these installation instructions in an easily

accessible location for future reference.

A secure structure must support the weight or load of the display, when

mounting to a wall that contains wooden studs, dead center of the wooden

stud must be confirmed prior to installation.

Do not install on a structure that is prone to vibration, movement, or chance

of impact. Failure to do so could result in damage to the display and/or

damage to the mounting surface.

Do not install near heater, fireplace, direct sunlight, air conditioning or any

other source of direct heat energy. Failure to do so may result in damage to

the display and could increase the risk of fire.

At least two qualified people should perform the installation procedure.

Injury and/or damage can result from dropping or mishandling the display.

Produkt Specifikationer

Mærke:	Digitus
Kategori:	Vægophæng
Model:	DA-90423
Bredde:	240 mm
Højde:	392 mm
Vægt:	2200 g
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Panel montering grænseflade:	75 x 75,100 x 100,200 x 200 mm
Husmateriale:	Stål
Monteringstype:	Loft
Harmoniseret systemkode (HS):	85299097
Oprindelsesland:	Kina
Højdejustering:	Ja
Hældningsvinkelområde:	-90 - 0 °
Maksimal vægtkapacitet:	20 kg
Højdejusteringsområde:	2020 - 2620 mm
Hældningsindstilling:	Ja
Maksimal skærmstørrelse kompatibilitet:	37 "
Antal understøttede skærme:	1
Minimal skærmstørrelse kompatibilitet:	17 "
Montering interface kompatibilitet (min.):	75 x 75 mm
Montering interface kompatibilitet (maks.):	200 x 200 mm
Dybde (min.):	80 mm
