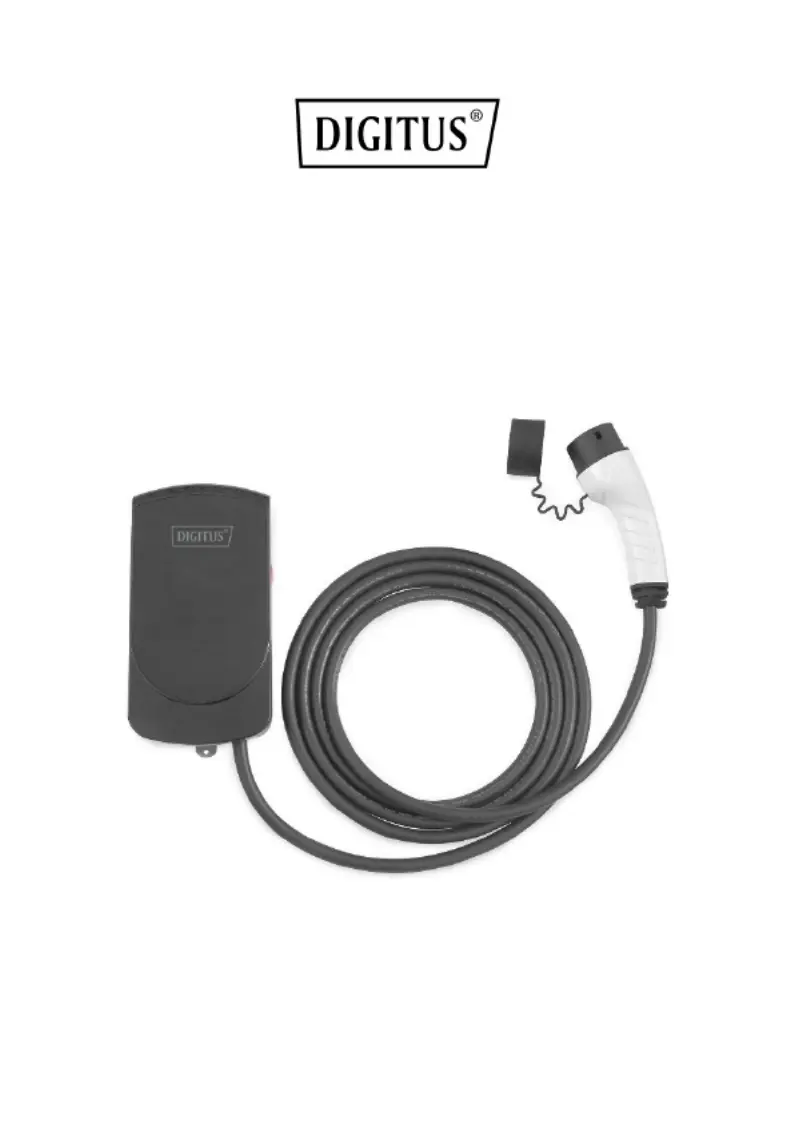

3-Phase - Wall Box 11KW

with 5m standard charger cable

Quick Installation Guide

DN-3 - – P16 050 Rev 1.0

Please read this manual carefully before installation and use,

otherwise, it may interfere with the

normal use of the equipment

and even risk causing personal injury.

1. Safety and Points for Attention

1.1. Installation

 Installation must be carried out by personnel with

professional qualification, otherwise there is a risk of

electric shock.

 It shall be installed in the place without violent vibration

and impact and placed vertically to facilitate ventilation.

It shall be installed on noncombustible materials such

as metal, or there is a risk of fire.

 Do not drop any foreign objects, especially metal

objects, into the inside of the charging station or there

is a risk of fire. The lead nose of the charging station

must be securely attached or there is a risk of damaging

the equipment.

 The power supply input cable should have at least

5G2.5mm² (minimum) copper cable while it is

recommended 5G4mm² copper input cable.

1.2. Maintenance

 It is recommended that routine safety inspection visits

to charging station be conducted at least once a week.

 Please do not attempt to disassemble, repair, or modify

the charger by yourself. If there is a need for

maintenance or modification, please contact certified

Produkt Specifikationer

Mærke:	Digitus
Kategori:	Autolader
Model:	DN-3P16-050
Kode for international beskyttelse (IP):	IP55
Antal pr. pakke:	1 stk
Indbygget skærm:	Ingen
Driftstemperatur (T-T):	30 - 50 °C
Kabellængde:	5 m
Driftsspænding:	415 V
Kabelfarve:	Sort
Stik 1:	Type 2
Kabeltype:	5G6 mm²+2x0.5 mm²
Stik 1 formfaktor:	Lige
Kabeldiameter:	16.8 mm
Antal faser:	3
Beskyttelseshætte:	Ja
Maksimal driftseffekt (trefaset):	11 kW
Maksimal driftsstrøm (trefaset):	16 A
