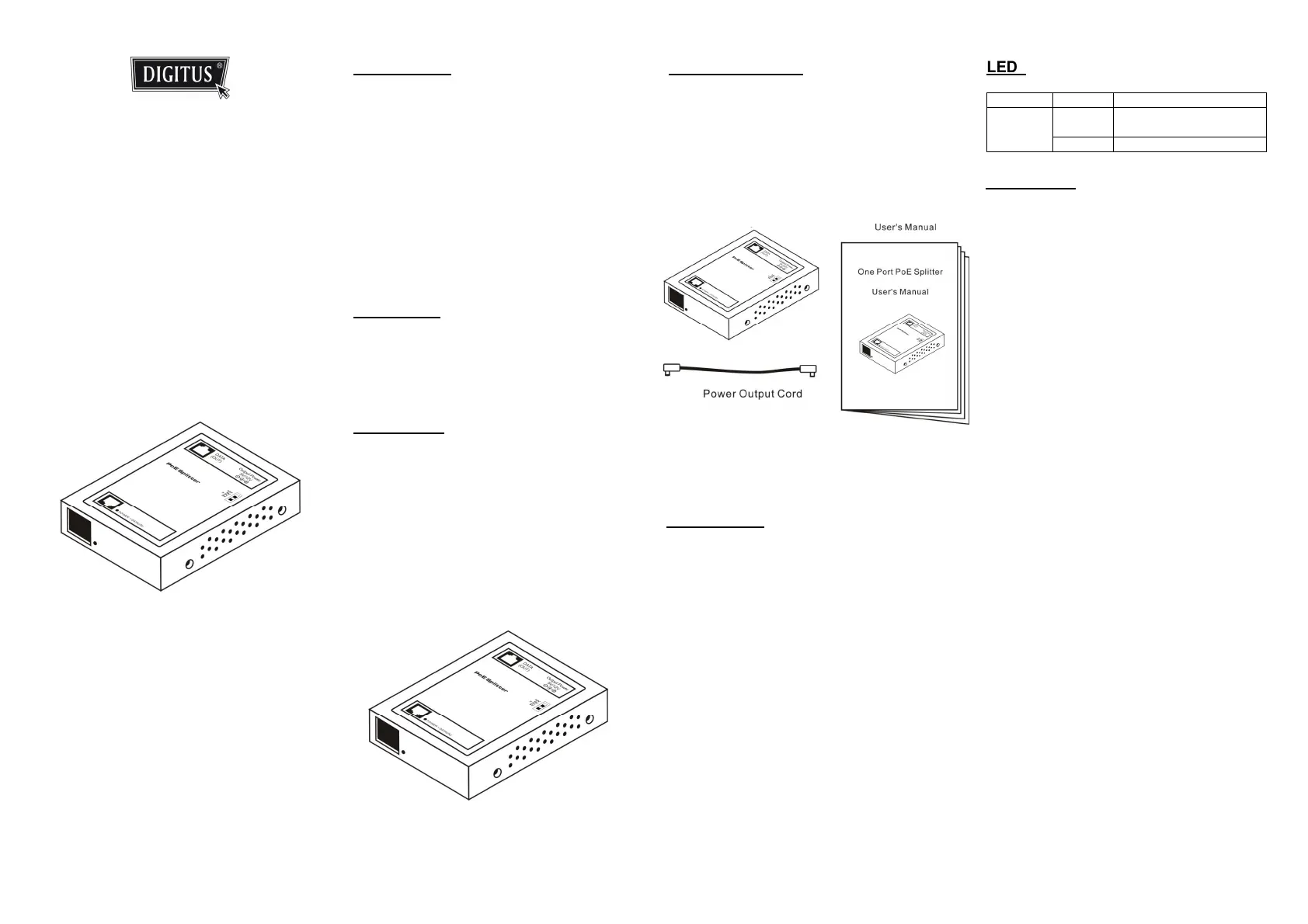

User’s Manual

FCC Warning

This device has been tested and found to

comply with limits for a Class A digital device,

pursuant to Part 15 of FCC Rules. These

limits are designed to provide reasonable

protection against harmful interference when

the equipment is operated in a commercial

environment. This equipment generates

and radiates radio frequency energy and, if

not installed and used in accordance with the

user’s manual, it may cause interference in

which case users will be required to correct

interference at their own expenses.

CE Warning

This is a Class A product. In a domestic

environment, this product may cause radio

interference in which case the user may be

required to take adequate measures.

Introduction

This Power over Ethernet splitter splits the

data and the power from the PoE cable.

When the input port connects via Cat. 5

twisted-pair cable, the splitter will

pass-through the data signal to its RJ-45

output port and also convert the 48V PoE

power to DC 5V , 7.5V , 9V , 12V output

power jack. This splitter makes it possible to

use PoE cabling for devices, which do not

support PoE.

Package Contents

Before you start to install this PoE splitter,

please verify your package contains the

following items:

 One PoE Splitter

 One Power Output Cord

 One User’s Manual

Note: If any of these items is found missing or

damaged, please contact your local supplier

for replacement.

Key Features

 Complies with IEEE 802.3af, IEEE 802.3

10BaseT and IEEE 802.3u 100BaseTX

 RJ45 port supports Auto-MDI/MDI-X and

Auto-Negotiation

 RJ45 port supports Auto-detect

full/half-duplex

 RJ45 port is up to 100 meters for the

shielded/unshielded twisted pair cable

 Supporting up to 5V/2A ; 7.5V/1.4A ;

9V/1.2A ; 12V/0.9A

 Smart plug & play

LEDs

LED Status Description

On Power is on and ready to

connect to PoE

Power

Off Power is off.

Installations

I. The RJ45 Input Port

Using this port to connect to the PSE port of

PoE switch or Power Injector Hub

II. The RJ45 Output Port

Using this port to directly connect to the RJ45

port of client devices (i.e. SOHO switches,

Wireless AP)

III. The Power Output Port

Using the power jack cable to connect to the

client devices and supplying 5V, 7.5V, 9V,

12V to the client devices

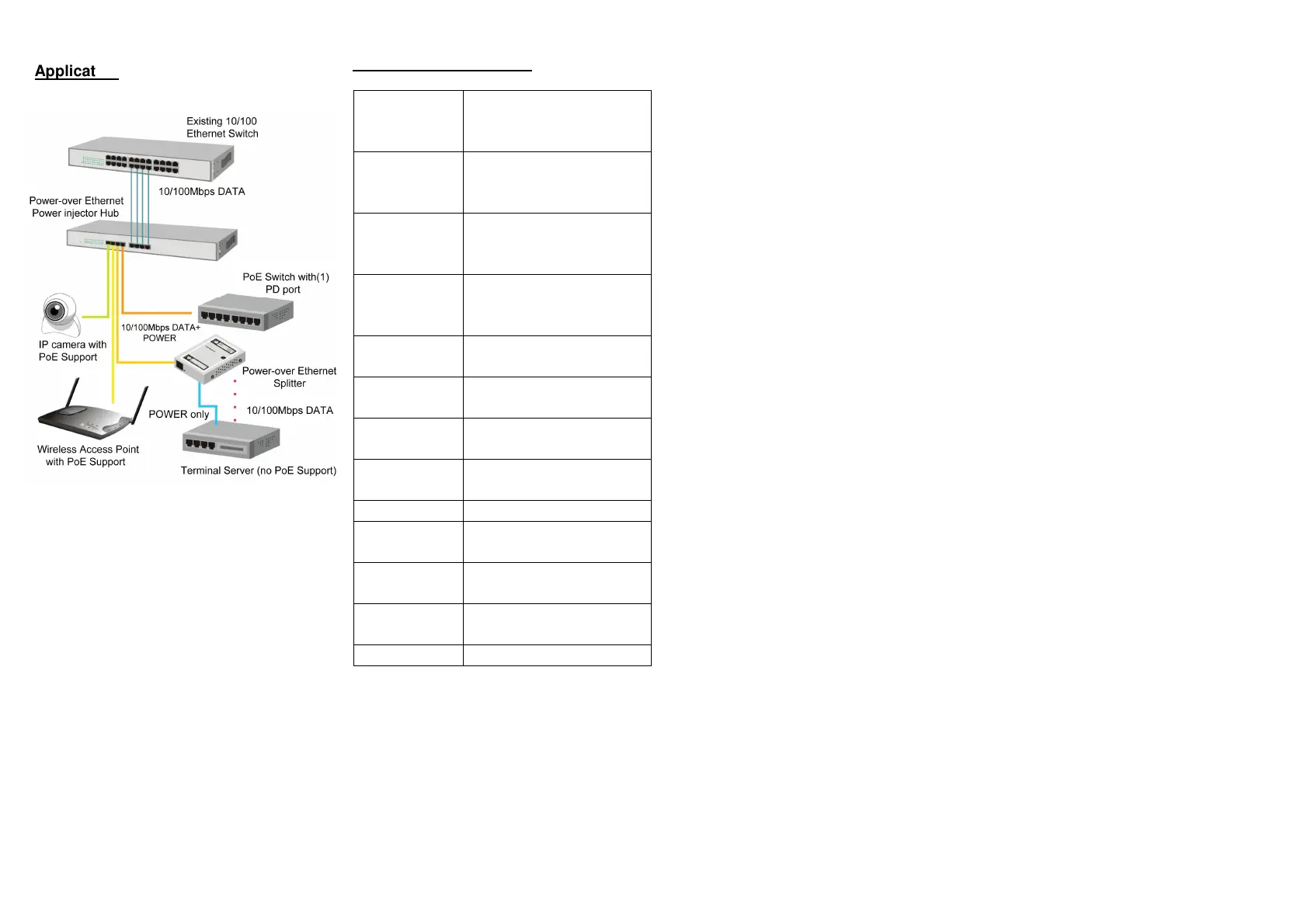

Application

Technical Specifications

Standards

IEEE 802.3af

IEEE 802.3 10BaseT

IEEE 802.3u 100BaseTX

Features

Number of Ports:

1 LAN-in (data + power) Port

1 LAN-out (data only) Port

Filtering/

Forwarding

Rates

100Mbps port - 148,800pps

10Mbps port - 14,880pps

Transmission

Media

10BaseT Cat. 3, 4, 5 UTP/STP

100BaseTX Cat. 5

UTP/STP

LED

Indicators

Power

Output

5V/2A ; 7.5V/1.4A ;

9V/1.2A ; 12V/0.9A

Power

Consumption

11W (Max)

Dimensions

102 × 75 × 23 mm

(L x W x H)

Weight 0.215 kg

Operating

Temperature

0 to 40 °C

Storage

Temperature

-20 to 90 °C

Humidity

10 to 90%

(non-condensing)

Certifications FCC Class A, CE

Produkt Specifikationer

Mærke:	Digitus
Kategori:	Skifte
Model:	DN-95202
Bredde:	75 mm
Dybde:	102 mm
Højde:	23 mm
Vægt:	215 g
Opbevaringstemperatur (T-T):	-20 - 90 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Ethernet LAN-porte (RJ-45):	2
Driftstemperatur (T-T):	0 - 40 °C
Udgangseffekt:	11 W
Kabelteknologi:	Cat. 3, 4, 5 UTP/STP
Udgangsspænding:	12 V
Strøm-LED:	Ja
Strøm over Ethernet (PoE):	Ja
Overholdelse af branchestandarder:	IEEE 802.3af, IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX
Elektromagnetisk kompatibilitet:	FCC A, CE
