Side 1/2

Datasheet

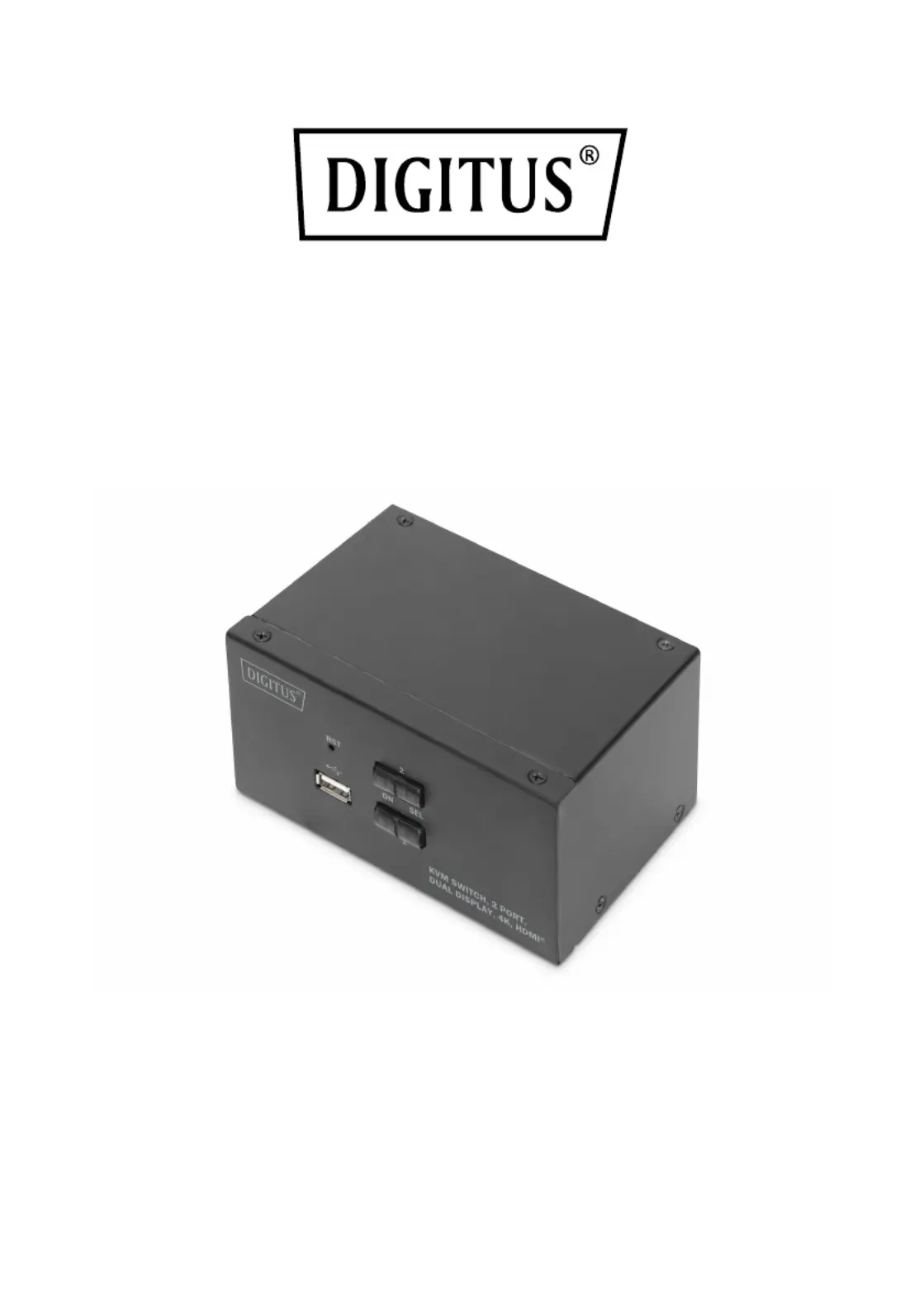

DIGITUS KVM Switch, 4 Port, Dual Display, 4K,

DisplayPort®

DS-12882

EAN 4016032478140

4 Port Displayport Dualview 4K@60 Hz

With the DIGITUS® 4-Port KVM Switch for dual displays, you can

operate four 4k-compatible PCs using a single USB keyboard and

mouse combination. By pressing a button or hot key, you can switch

comfortably between all four PCs and are spared the trouble of

replugging all cables. Output on up to two monitors is provided via

two DisplayPort® outputs on the rear side. You can also switch

between the audio signals for the microphone and speaker. In

addition, a USB port is included on the front side for use with other

peripheral devices like USB sticks or external hard drives on both PCs.

The connected peripheral devices are each assigned to the active PC.

Status LEDs on the front side of the switch show you the current

configuration at all times. The slim switch features the added benefits

of sturdy metal housing.

Operate 4 PCs with dual display using a USB keyboard and mouse

combination – switch between four computers by pressing a

button

• UHD resolution: 4K / 60 Hz (3840 x 2160p) / Subsampling: YUV 4:4:4

• Inputs: 8 x DP® inputs (4x2), 4 x USB B, 4 x Audio combo socket 3.5

mm jack (microphone, speaker)

• Outputs (console): 2 x DP®, 2 x USB A (mouse, keyboard), 2 x

Stereo audio 3.5 m jack (microphone, speaker)

• Additional connection on the front side: 1 x USB A for additional

peripheral equipment such as printers or USB sticks

• USB specifications: USB 2.0 compliant (full speed)

• Supported audio formats: Dolby True HD, DTS HD Master Audio

• Switching between the PCs: Switch on the front side or hot keys

• Status LED on front side shows current configuration

• The device is platform-independent, suitable for all operating

systems

• Operating temperature: 0 °C to 50 °C

• Storage temperature: -20 °C to +60 °C

• Operating humidity: 0% - 80% RH (non-condensing)

• Case material: Metal

• Power supply device: USB power supply or optional 9 V DC power

adapter (300 mA, 5.5x2.1 mm plug)

• Dimensions: 20.2 x 11.0 x 6.6 cm (WxDxH)

• Weight: 920 g

Package contents

• 1 x KVM Switch, 4-Port, Dual Display, 4K, DisplayPort®

• 4 x DisplayPort® cable

• 4 x KVM cable (DisplayPort, USB, Audio)

• 1 x Instructions

Logistics

Number

(pcs)

Weight

(kg)

Depth

(cm)

Width

(cm)

Height

(cm) cm³

Packaging Unit Carton 8 14.84 3.00 45.40 49.20 6,701.04

Packaging Unit Inside 1 1.86 0.00 0.00 0.00 0.00

Packaging Unit Single 1 1.86 22.00 23.00 16.00 8,096.00

Net single without Packaging 1 0.92 9.20 13.20 6.60 0.00

www.digitus.info Druckfehler, Irrtümer und technische Änderungen sind vorbehalten. | Printing errors, falsities and technical changes remain reserved. 1

Datasheet

More images:

www.digitus.info Druckfehler, Irrtümer und technische Änderungen sind vorbehalten. | Printing errors, falsities and technical changes remain reserved. 2
