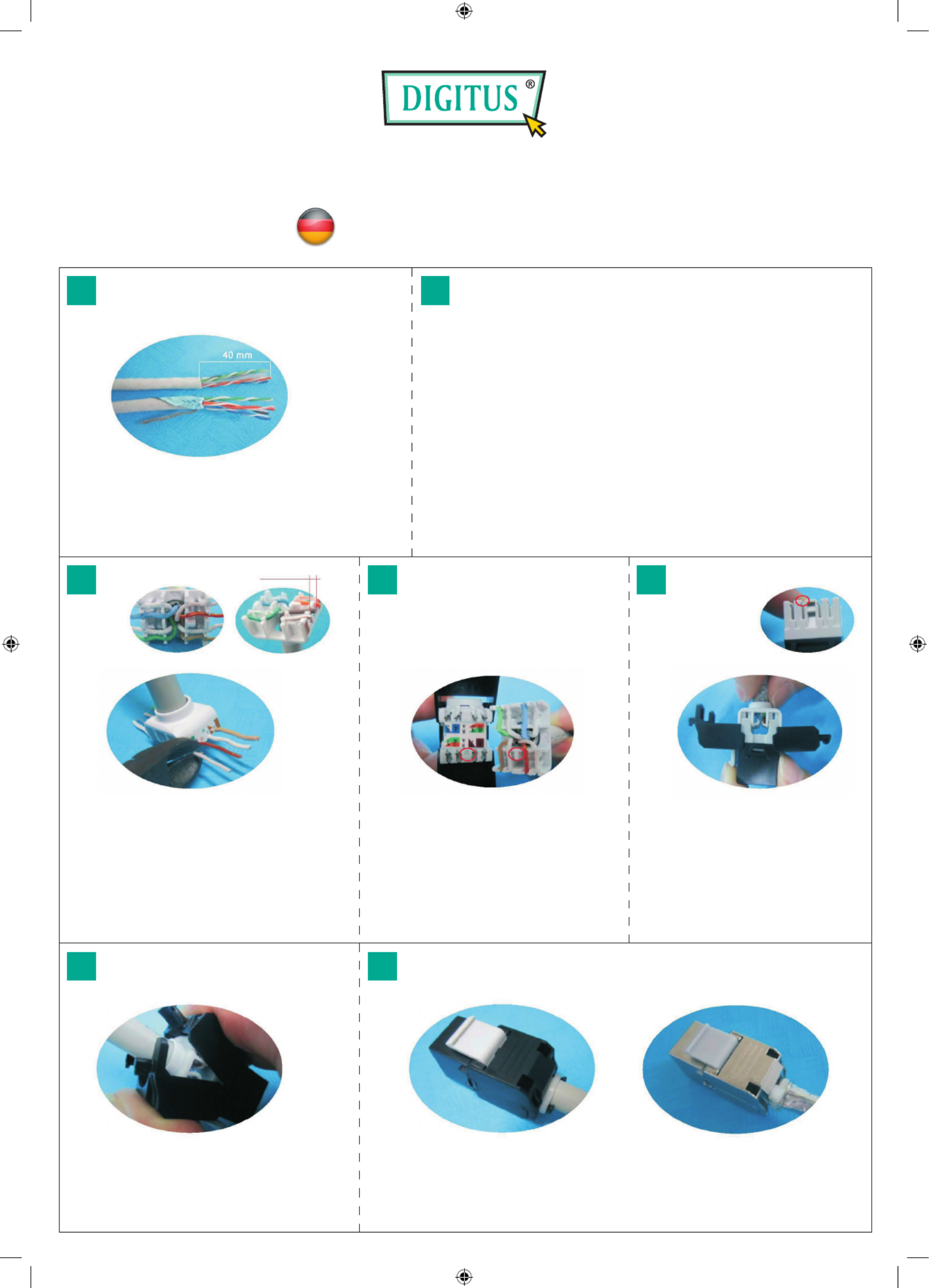

CAT 6A Keystone Jack
Installing Instruction
DN-93615
Strip approximately 40 mm of the
cable jacket, cut off the plastic cross,
and separate the wire into 4 pairs.
Insert the wires through the cap,
and lay the wires in the correct slots
according tot he wiring diagram on the
cap. Trim the wires fl ush with the cap.
It’s strongly recommended the tip of
wires is 0.15 ~ 0.2 mm.
Close up the outer cap by pushing
down both sides of the outer cap
until it clicks.
Tie up the cable
and fi nish
Unshield
Connect the drain wire
to the shielded shell.
Shielded
Match the T-shape rib in cap with
the corresponding cavity on IDC,
and put the cap onto IDC.
Press the cap down to IDC
and make sure the wires
deeper than the tiny teeth
in IDC slots.
T 568A
Pin 5 White / Blue
Pin 4 Blue
Pin 1 White / Green
Pin 2 Green
Pin 3 White / Orange
Pin 6 Orange
Pin 7 White / Brown
Pin 8 Brown
T568B
Pin 5 White / Blue
Pin 4 Blue
Pin 1 White / Orange
Pin 2 Orange
Pin 3 White / Green
Pin 6 Green
Pin 7 White / Brown
Pin 8 Brown
Wiring Confi gurations
0.15 ~ 0.2 mm The tiny teeth on the outer side
of IDC slots.
